GRJ120L-GKMGKV (2003)
Toyota Land Cruiser Prado

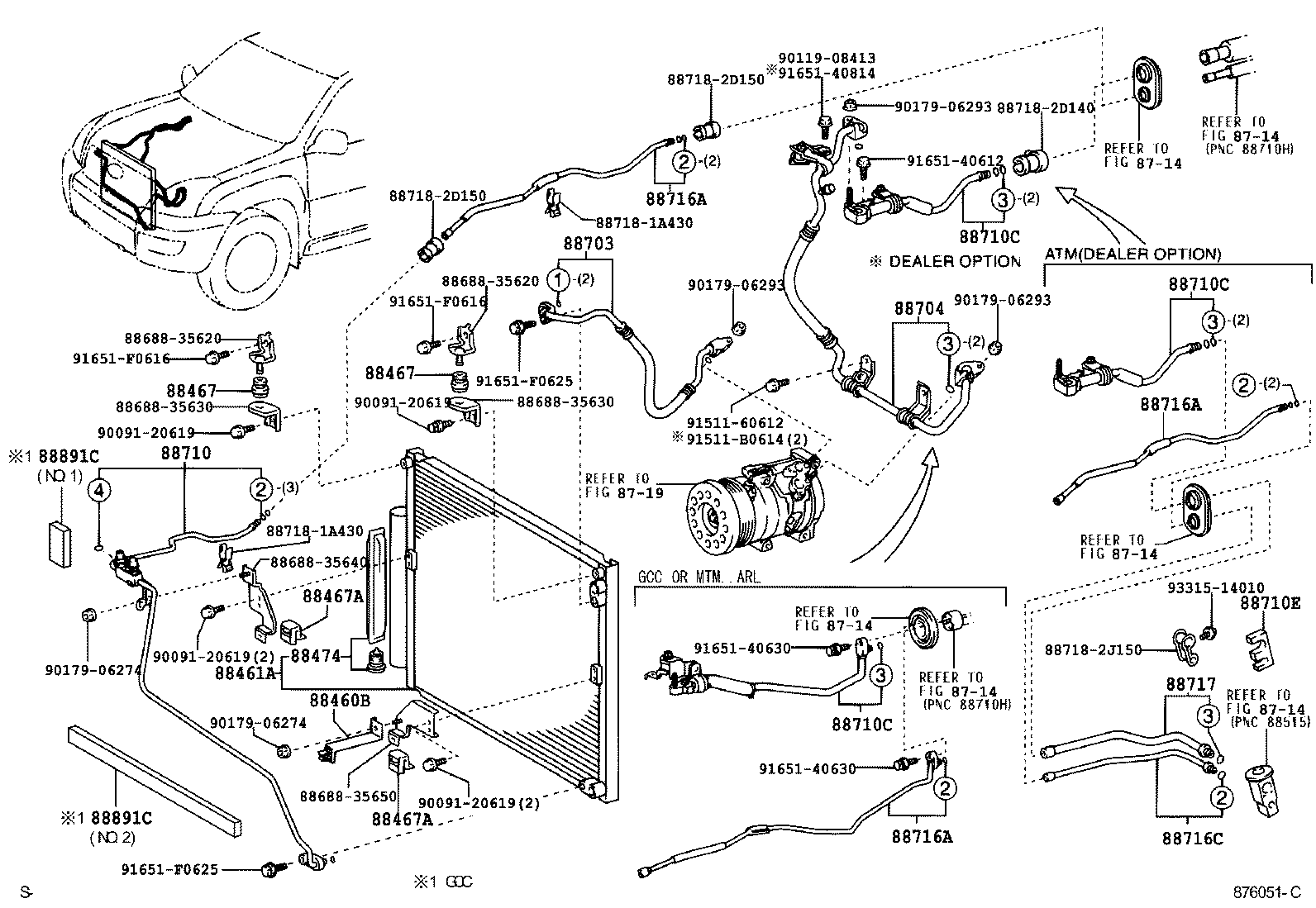

ILLUST NO. 1 OF 3(0301- )GRJ12#
FRONT-SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-35570 |
LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88460-60360 |
GRJ12#..GCC |
1 | ||
| 88461-60090 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88461-35150 |
GRJ12#..VX |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467-28050 |
GRJ12#..VX |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467-28050 |
GRJ12#..VX |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRJ12#..VX |
2 | ||
| 88467-35080 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRJ12#..VX |
2 | ||
| 88467-35080 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-35010 |
GRJ12#..GCC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35540 |
GRJ12#..GCC |
1 | ||
| 88710-6A770 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35010 |
GRJ12#..GCC |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35010 |
GRJ12#..GCC |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88707-35010 |
GRJ12#..GCC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B510 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-35620 |
GRJ12#..GCC |
1 | ||
| 88716-6B510 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B510 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-35620 |
GRJ12#..GCC |
1 | ||
| 88716-6B510 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B510 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-35620 |
GRJ12#..GCC |
1 | ||
| 88716-6B510 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-60320 |
GRJ12#..GCC NO.1 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-60320 |
GRJ12#..GCC NO.1 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| Common parts | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88718-1A430 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-2J150 | ||||
| 90091-20619 | ||||
| 90119-08413 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91511-60612 | ||||
| 91511-B0614 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 91651-40814 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

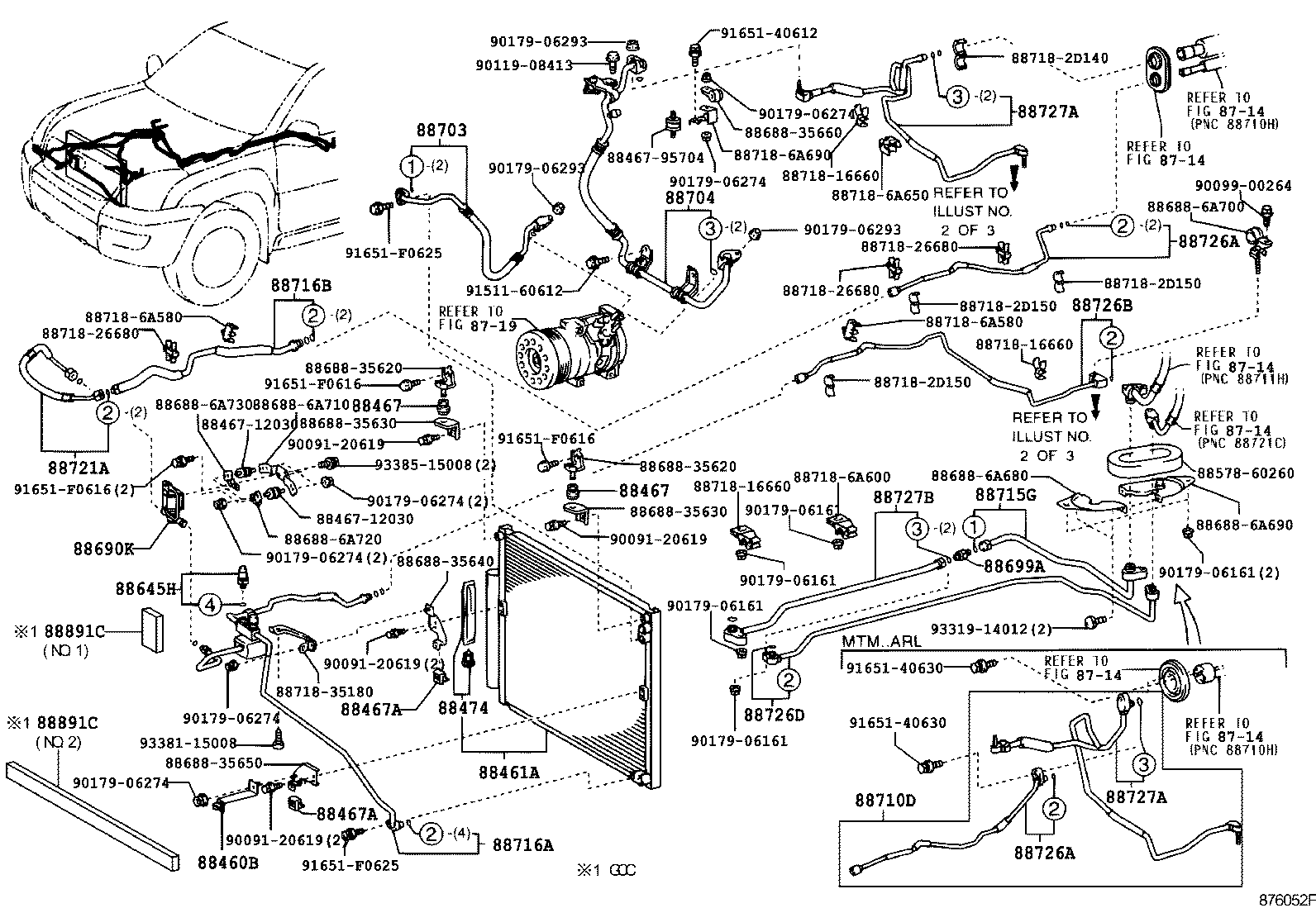

ILLUST NO. 1 OF 3(0301- )GRJ12#
FRONT-SINGLE AIR CON. & W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-35570 |
LJ12#;GRJ12#,KDJ120,KZJ120..VX..(ARL,GCC,GEN) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88460-60360 |
GRJ12#..GCC |
1 | ||
| 88461-60090 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88461-35150 |
GRJ12#..VX |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467-28050 |
GRJ12#..VX |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467-28050 |
GRJ12#..VX |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRJ12#..VX |
2 | ||
| 88467-35080 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GRJ12#..VX |
2 | ||
| 88467-35080 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GRJ120..LHD AIR CONDITIONER-DUAL AUTO |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88645-34010 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-60240 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88690-60240 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
GRJ120..5FC..GEN;GRJ120..ATM..GX..ARL;GRJ120..LHD..VX..(4FC,5F,6F);KZJ120,RZJ120,TRJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88699-60010 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-35010 |
GRJ12#..GCC |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-60180 |
GRJ120..5FC..GEN;GRJ120..ATM..GX..ARL;GRJ120..LHD..VX..(4FC,5F,6F);KZJ120,RZJ120,TRJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B510 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-35620 |
GRJ12#..GCC |
1 | ||
| 88716-6B510 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6B520 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88716-6B520 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-60140 |
GRJ120..GX;GRJ120..LHD;KZJ120,RZJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88721-60140 |
GRJ12#,KZJ120..VX WITH/COOL BOX |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B500 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88716-6B570 |
GRJ120..LHD;GRJ120..GX..4FC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-6B440 |
GRJ12#..VX WITH/COOL BOX |
1 | ||
| 88716-6B690 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6B500 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88716-6B570 |
GRJ120..LHD;GRJ120..GX..4FC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-6B440 |
GRJ12#..VX WITH/COOL BOX |
1 | ||
| 88716-6B690 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6B450 |
GRJ12#..VX WITH/COOL BOX |
1 | ||
| 88716-6B590 |
GRJ120..LHD;GRJ120..GX..4FC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88716-6B700 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6B420 |
GRJ120..GCC,GEN;GRJ120..ATM..GX..ARL;KDJ120,KZJ120,RZJ120,TRJ120..4FC,5F,5FC AIR CONDITIONER-DUAL AUTO |
1 | ||
| 88716-6B420 |
GRJ120..5FC..GEN;GRJ120..ATM..GX..ARL;GRJ120..LHD..VX..(4FC,5F,6F);KZJ120,RZJ120,TRJ120..ARL,GEN AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6A660 |
GRJ12#..VX WITH/COOL BOX |
1 | ||
| 88717-6A730 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88717-6A660 |
GRJ120..LHD;GRJ120..GX..4FC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6A660 |
GRJ12#..VX WITH/COOL BOX |
1 | ||
| 88717-6A730 |
GRJ120..GCC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88717-6A660 |
GRJ120..LHD;GRJ120..GX..4FC AIR CONDITIONER-DUAL AUTO&WITH/COOL BOX |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-60320 |
GRJ12#..GCC NO.1 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-60320 |
GRJ12#..GCC NO.1 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| 88578-60330 |
GRJ12#..GCC NO.2 |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88467-95704 | ||||
| 88578-60260 | ||||
| 88688-35620 | ||||
| 88688-35630 | ||||
| 88688-35640 | ||||
| 88688-35650 | ||||
| 88688-35660 | ||||
| 88688-6A680 | ||||
| 88688-6A690 | ||||
| 88688-6A700 | ||||
| 88688-6A710 | ||||
| 88688-6A720 | ||||
| 88688-6A730 | ||||
| 88718-16660 | ||||
| 88718-26680 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-35180 | ||||
| 88718-6A580 | ||||
| 88718-6A600 | ||||
| 88718-6A650 | ||||
| 88718-6A690 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90119-08413 | ||||
| 90179-06161 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
| 91511-60612 | ||||
| 91651-40612 | ||||
| 91651-40630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93319-14012 | ||||
| 93381-15008 | ||||
| 93385-15008 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
