GRJ120L-GKMGKV (2003)

Toyota Land Cruiser Prado

Production Jan 2003 - Aug 2004
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1GRFE

Click highlighted areas on diagram

12V 80A

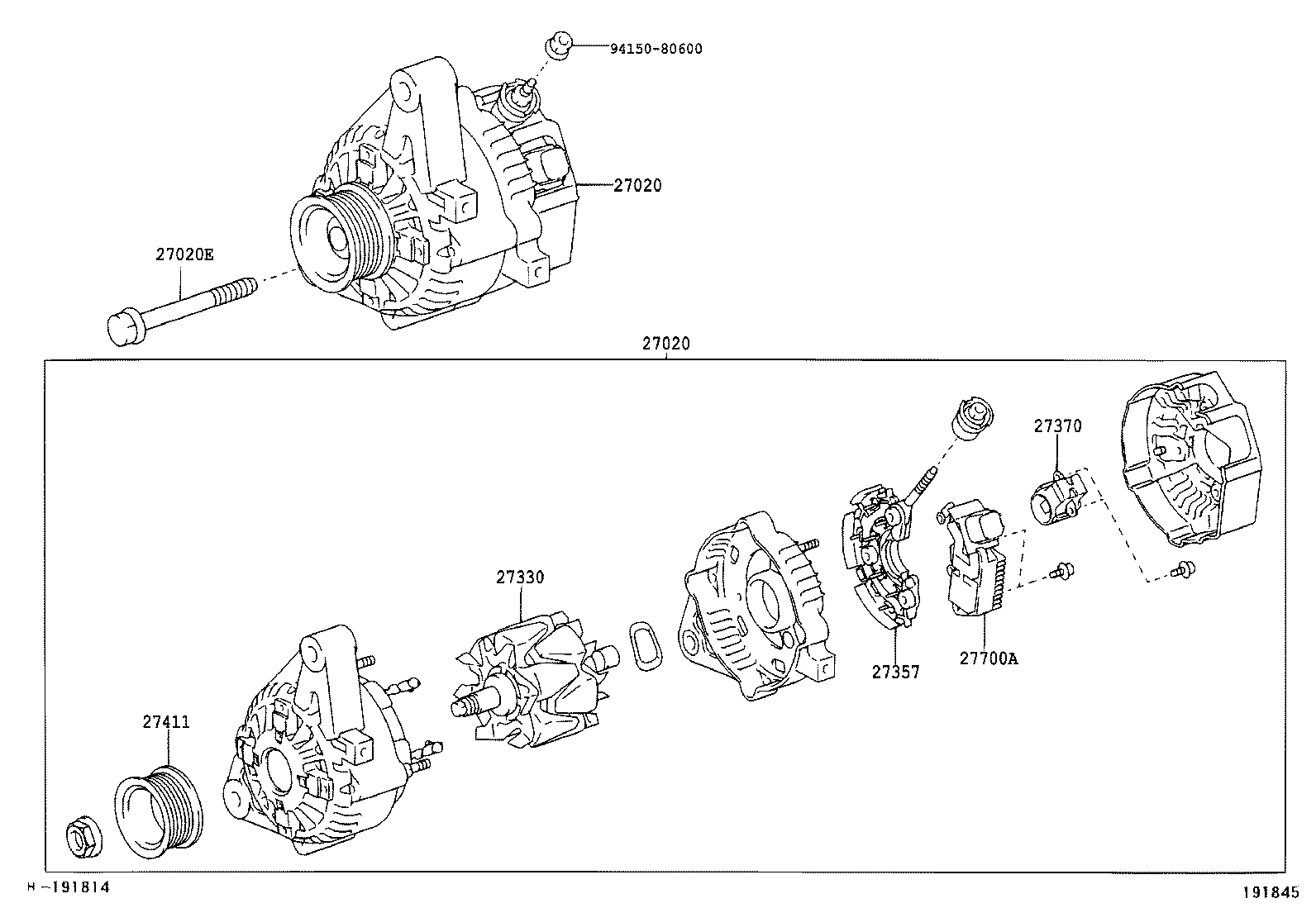

diagram 27020 27020 27020E 27330 27357 27370 27411 27700A 9415080600
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
91642-81065

1GRFE..GRJ12#..ARL,GCC,GEN

 2
27330 - ROTOR ASSY, ALTERNATOR
27330-62220

1GRFE,1KDFTV,3RZFE,2TRFE..GRJ12#,KDJ120,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22200

1GRFE,1KDFTV,3RZFE,2TRFE..GRJ12#,KDJ120,RZJ12#,TRJ12#..ARL,GCC,GEN

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1GRFE,1KZTE,5LE,3RZFE..GRJ12#,KZJ120,LJ12#,RZJ12#..ARL,GCC,GEN

 1
27411 - PULLEY, ALTERNATOR
27411-31200

1GRFE..GRJ12#..ARL,GCC,GEN

 1
Common parts
94150-80600
