GRJ120L-GKFGK (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )6F

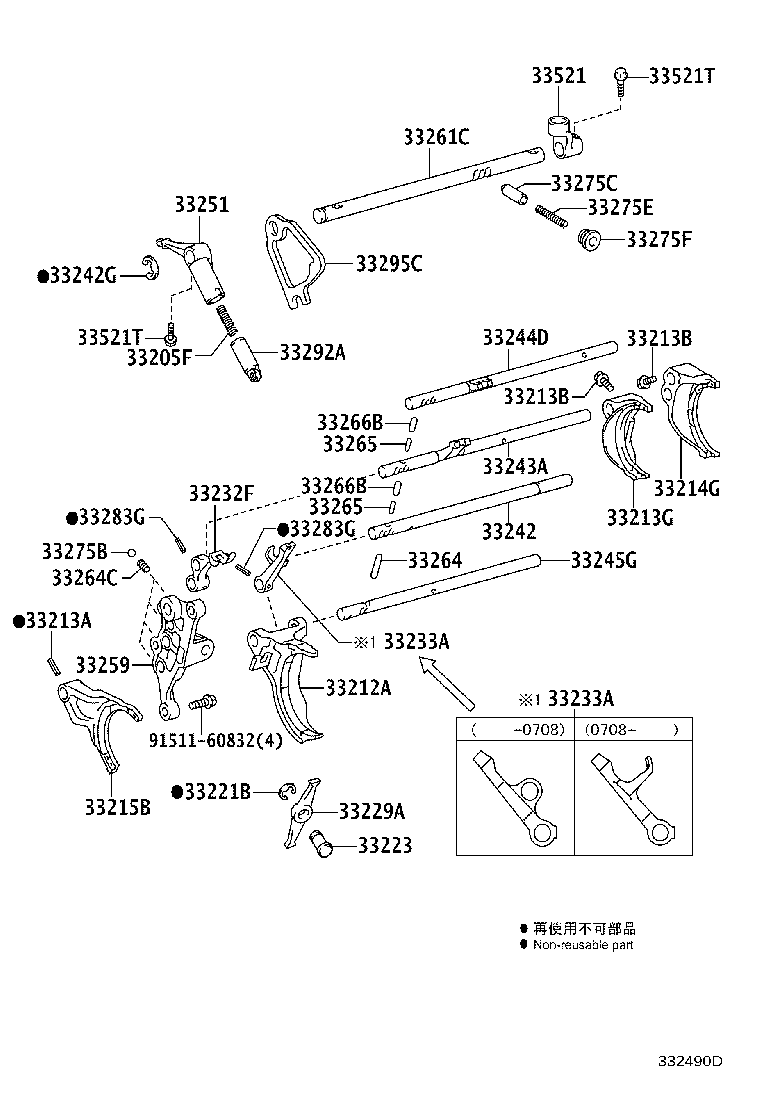

Click highlighted areas on diagram

RA61

diagram 33205F 33212A 33213A 33213B 33213B 33213G 33214G 33215B 33221B 33223 33229A 33232F 33233A 33233A 33242 33242G 33243A 33244D 33245G 33251 33259 33261C 33264 33264C 33265 33265 33266B 33266B 33275B 33275C 33275E 33275F 33283G 33283G 33292A 33295C 33521 33521T 33521T 9151160832
Part # Description Qty Price
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90501-22066

GRJ120..6F

 1
33212A - FORK, GEAR SHIFT, NO.1
33210-35010

GRJ120,KDJ120..6F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

GRJ120,KDJ120,RZJ12#,TRJ12#..MTM

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

GRJ120,KDJ120,KZJ120,TRJ12#..MTM

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06077

GRJ120,KDJ120,KZJ120,TRJ12#..MTM

 2
33213G - FORK, GEAR SHIFT, NO.2
33220-35010

GRJ120,KDJ120..6F

 1
33214G - FORK, GEAR SHIFT, NO.3
33230-35020

GRJ120,KDJ120..6F

 1
33215B - FORK, GEAR SHIFT, NO.4
33240-35010

GRJ120,KDJ120..6F

 1
33240-35011

GRJ120..6F

 1
33221B - RING, E(FOR REVERSE SHIFT ARM)
96160-01200

GRJ120,KDJ120..6F

 1
33223 - PIVOT, SHIFT ARM
33223-35040

GRJ120..6F

 1
33229A - ARM, RELEASE, NO.1
33222-35010

GRJ120..6F

 1
33232F - HEAD, GEAR SHIFT, NO.1
33232-35021

GRJ120..6F

 1
33232-35020

GRJ120..6F

 1
33232-35022

GRJ120,KDJ120..6F

 1
33233A - HEAD, GEAR SHIFT, NO.2
33233-35031

GRJ120,KDJ120..6F

REFER TO ILLUST.

 1
33233-35032

GRJ120,KDJ120..6F

REFER TO ILLUST.

 1
33233-35030

GRJ120..6F

 1
33233A - HEAD, GEAR SHIFT, NO.2
33233-35031

GRJ120,KDJ120..6F

REFER TO ILLUST.

 1
33233-35032

GRJ120,KDJ120..6F

REFER TO ILLUST.

 1
33233-35030

GRJ120..6F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-35080

GRJ120,KDJ120..6F

 1
33242G - RING, E (FOR SHIFT FORK SHAFT)
96160-01500

GRJ120..6F

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-35090

GRJ120..6F

 1
33243-35091

GRJ120,KDJ120..6F

 1
33243-35092

GRJ120,KDJ120..6F

 1
33244D - SHAFT, GEAR SHIFT FORK, NO.3
33244-35101

GRJ120,KDJ120..6F

 1
33244-35100

GRJ120..6F

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-35100

GRJ120,KDJ120..6F

 1
33251 - LEVER, SHIFT & SELECT
33251-35170

GRJ120..6F

 1
33251-35171

GRJ120,KDJ120..6F

 1
33259 - BRACKET, SHIFT INTERLOCK
33259-35010

GRJ120..6F

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-35160

GRJ120..6F

 1
33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1
90250-06036

GRJ120,KDJ120..6F

L=24.6,OD=6

 1
33264C - BALL (FOR SHIFT INTER LOCK)
90501-12212

GRJ120,KDJ120..6F

 4
90501-09162

GRJ120..6F

 4
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

GRJ120,KDJ120..6F

L=11.2,OD=4

 2
33265 - PIN, SHIFT INTER LOCK, NO.2
33265-22010

GRJ120,KDJ120..6F

L=11.2,OD=4

 2
33266B - PIN, SHIFT INTER LOCK, NO.3
33266-22010

GRJ120..6F

 2
33266B - PIN, SHIFT INTER LOCK, NO.3
33266-22010

GRJ120..6F

 2
33275B - BALL, SHAFT DETENT
90360-10003

LJ12#;GRJ120,KDJ120..6F

 4
33275C - BALL (FOR SHIFT DETENT)
33292-53010

GRJ120,KDJ120..6F

 1
33292-20010

GRJ120,KDJ120..6F

 1
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-15045

GRJ120..6F

 1
90501-12211

GRJ120,KDJ120..6F

 1
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-16013

GRJ120..6F

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

GRJ120,KDJ120..6F

 2
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
90254-05001

GRJ120,KDJ120..6F

 2
33292A - PIN, LOCK BALL
33292-35010

GRJ120..6F

 1
33295C - CAM, SHIFT & SELECT
33295-35010

GRJ120,KDJ120..6F

 1
33521 - HOUSING, SHIFT LEVER
33521-35400

GRJ120..6F

 1
33521T - BOLT (FOR SHIFT LEVER HOUSING)
90109-08305

GRJ120,KDJ120..6F

 2
33521T - BOLT (FOR SHIFT LEVER HOUSING)
90109-08305

GRJ120,KDJ120..6F

 2
Common parts
91511-60832
