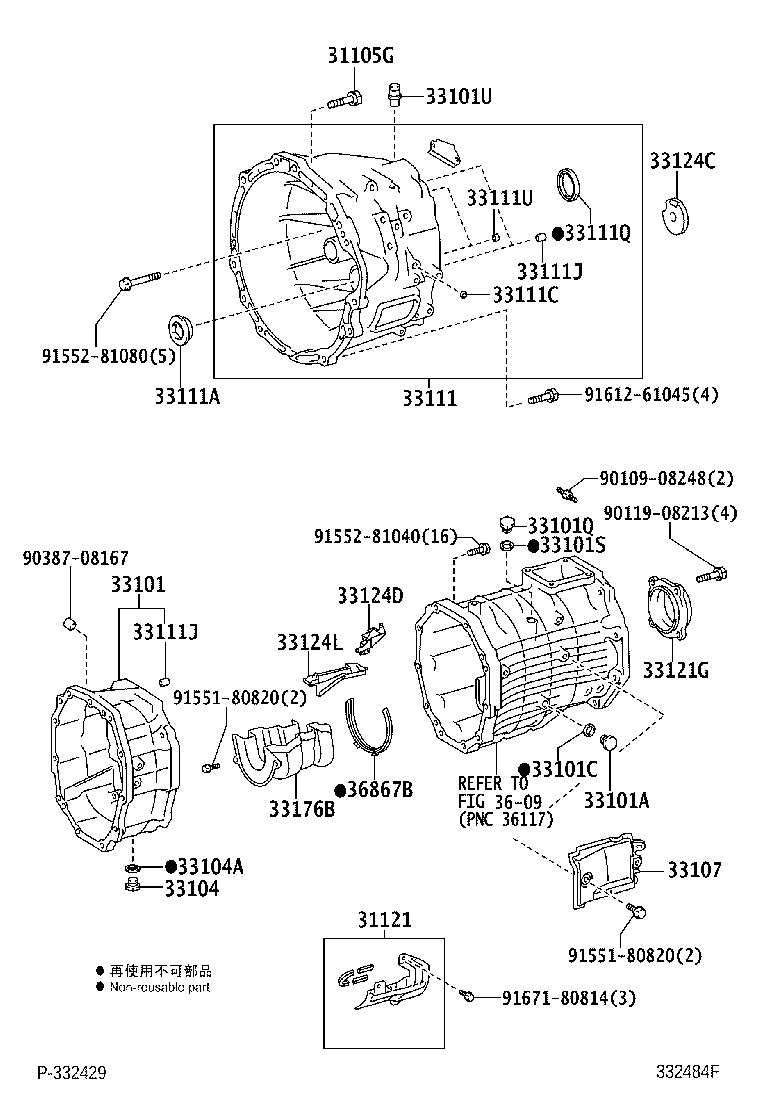

Toyota Land cruiser prado GRJ120 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91619-61250	GRJ120,KDJ120..6F *12-1.25PX50-30	08/2004 - 12/2999	5
31121 - COVER, CLUTCH HOUSING, NO.1
31101-35010	GRJ120..6F	08/2004 - 12/2999	1
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33106-35050	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM	09/2002 - 12/2999	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM	09/2002 - 12/2999	1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-18032	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33101S - GASKET(FOR TRANSMISSION CASE PLUG NO.1)
90430-18008	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03075	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057	LJ12#;GRJ120,KDJ120..6F	09/2002 - 12/2999	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM	09/2002 - 12/2999	1
33107 - COVER SUB-ASSY, TRANSMISSION, UPPER
33107-60020	GRJ120,KDJ120..6F	07/2009 - 12/2999	1
33107-60010	GRJ120,KDJ120..6F	08/2004 - 07/2009	1
33111 - CASE, MANUAL TRANSMISSION
33101-35110	GRJ120..6F	08/2004 - 01/2006	1
33101-35111	GRJ120..6F	01/2006 - 12/2999	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-42001	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41000	GRJ120,KDJ120..6F OD=10	08/2004 - 12/2999	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10232	GRJ120,KDJ120..6F L=15,OD=8	08/2004 - 12/2999	4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10232	GRJ120,KDJ120..6F L=15,OD=8	08/2004 - 12/2999	4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34029	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11021	GRJ120,KDJ120..6F L=8,OD=11	08/2004 - 12/2999	2
33121G - COVER, MANUAL TRANSMISSION CASE
33121-35110	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-35130	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-35140	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
33124L - PIPE, OIL RECEIVER, N0.3(MTM)
33124-35120	GRJ120..6F	08/2004 - 09/2004	1
33124-35121	GRJ120,KDJ120..6F	09/2004 - 12/2999	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-35030	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
36867B - SEAL, PACKING (FOR OIL SEPARATOR)
36867-35010	GRJ120,KDJ120..6F	08/2004 - 12/2999	1
Common parts
90109-08248
90119-08213
90387-08167
91551-80820
91552-81040
91552-81080
91612-61045
91671-80814
Linked diagrams
3609

GRJ120L-GKFGK (2004)

(0408- )GRJ120..6F
