GRJ120L-GKFGK (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )6F

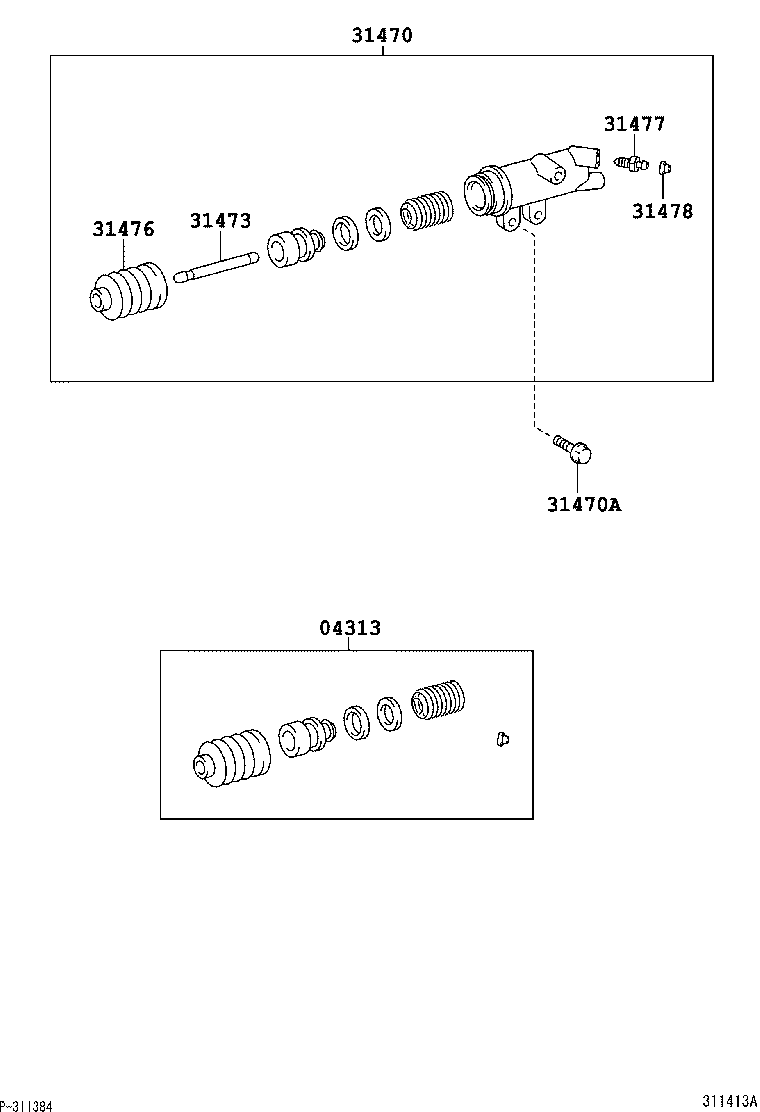

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-60180

GRJ120..6F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-60360

GRJ120..6F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-B0825

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

*8-1.25PX25-25

 2
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

GRJ120,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12#..MTM

 1
