GRJ120L-GKFGK (2004)

Toyota Land Cruiser Prado

Production Aug 2004 - Aug 2009
Engine 1GRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

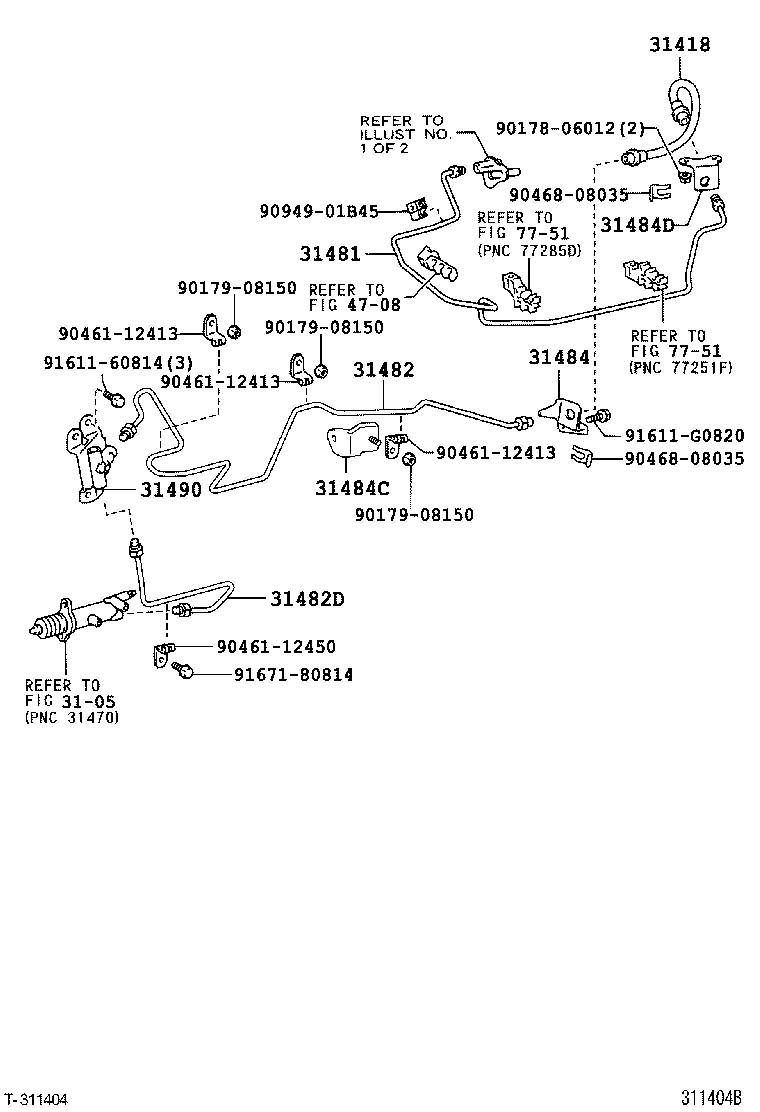

ILLUST NO. 2 OF 2(0408- )VX..6F

Click highlighted areas on diagram

diagram 3105 31418 31481 31482 31482D 31484 31484C 31484D 31490 4708 7751 7751 9017806012 9017908150 9017908150 9017908150 9046112413 9046112413 9046112413 9046112450 9046808035 9046808035 9094901B45 9161160814 91611G0820 9167180814
Part # Description Qty Price
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-60150

GRJ120..VX..6F

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-60160

GRJ120..VX..6F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-60280

GRJ120..6F

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31311-60230

GRJ120..6F

CRUISE CONTROL-WITH

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-60151

GRJ120..VX..6F

 1
Common parts
90178-06012
90179-08150
90461-12413
90461-12450
90468-08035
90949-01B45
91611-60814
91611-G0820
91671-80814
Linked diagrams
3105
4708
7751
