GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ120

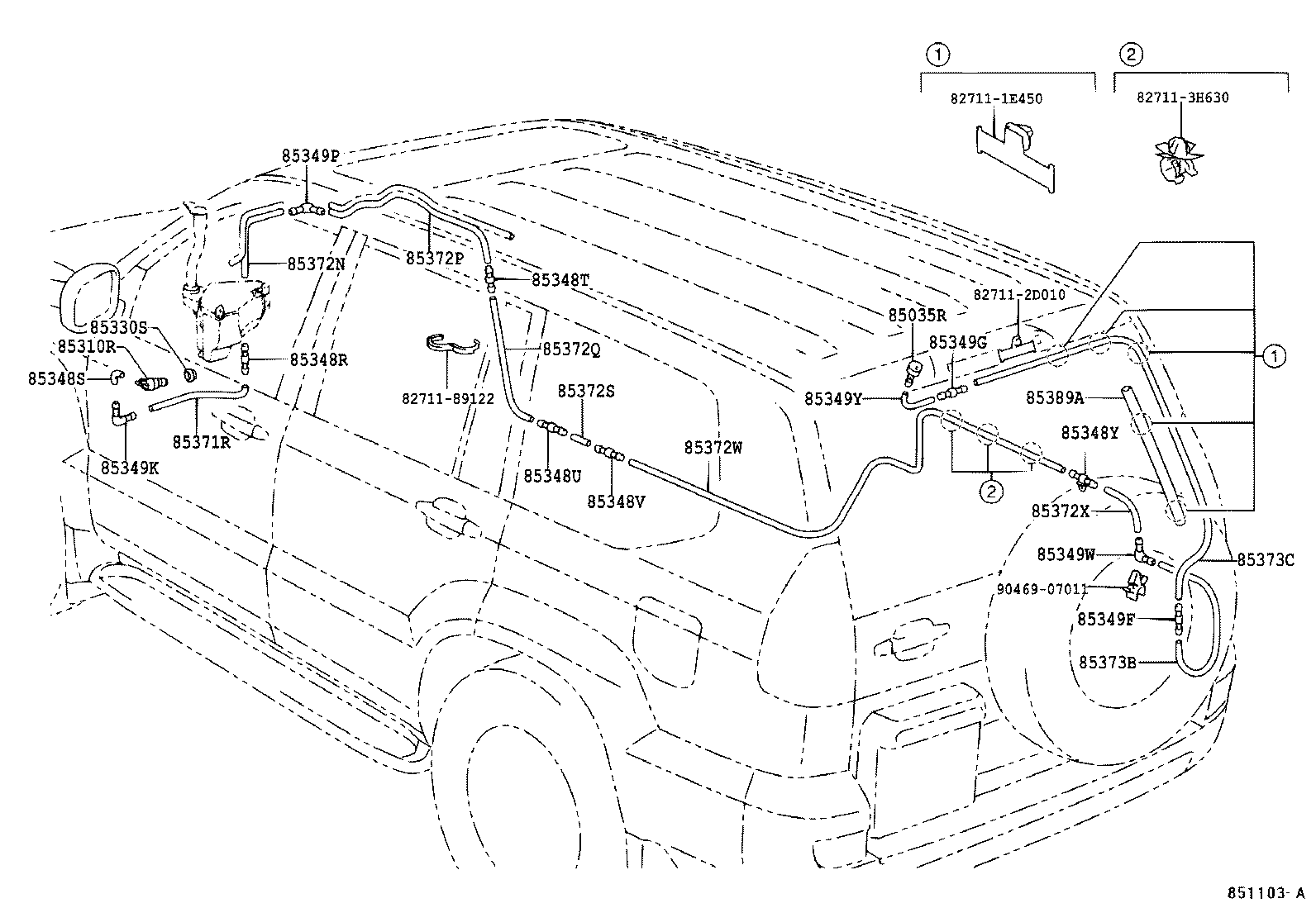

Click highlighted areas on diagram

diagram 827111E450 827112D010 827113H630 8271189122 85035R 85310R 85330S 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85349G 85349K 85349P 85349W 85349Y 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85373C 85389A 9046907011
Part # Description Qty Price
85348V - JOINT, REAR WASHER HOSE, NO.4
85375-10260

KZJ120,TRJ120;GRJ120..5FC,6F

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85375-17050

KZJ120,TRJ120;GRJ120..5FC,6F

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

GRJ120..CHI

*H,L=250,REAR WINDOW WIPER-MADE IN CHINA

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GRJ120..CHI

*H,L=210,REAR WINDOW WIPER-MADE IN CHINA

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

GRJ120..CHI

*H,L=1000,REAR WINDOW WIPER-MADE IN CHINA

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

GRJ120..CHI

*H,L=500,REAR WINDOW WIPER-MADE IN CHINA

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

KZJ120,TRJ120;GRJ120..5FC,6F

*H,L=50

 1
90099-33080

GRJ120..CHI

*H,L=50,REAR WINDOW WIPER-MADE IN CHINA

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33589

KZJ120,TRJ120;GRJ120..5FC,6F

*H,L=3300

 1
90099-33589

GRJ120..CHI

*H,L=3300,REAR WINDOW WIPER-MADE IN CHINA

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

GRJ120..CHI

*H,L=130,REAR WINDOW WIPER-MADE IN CHINA

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90446-07001

GRJ120..CHI

*H,L=500,REAR WINDOW WIPER-MADE IN CHINA

 1
85373C - TUBE, REAR WASHER RUBBER
90099-33080

GRJ120..CHI

*H,L=1350,REAR WINDOW WIPER-MADE IN CHINA

 1
Common parts
82711-1E450
82711-2D010
82711-3H630
82711-89122
90469-07011
