GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(0209- )

Click highlighted areas on diagram

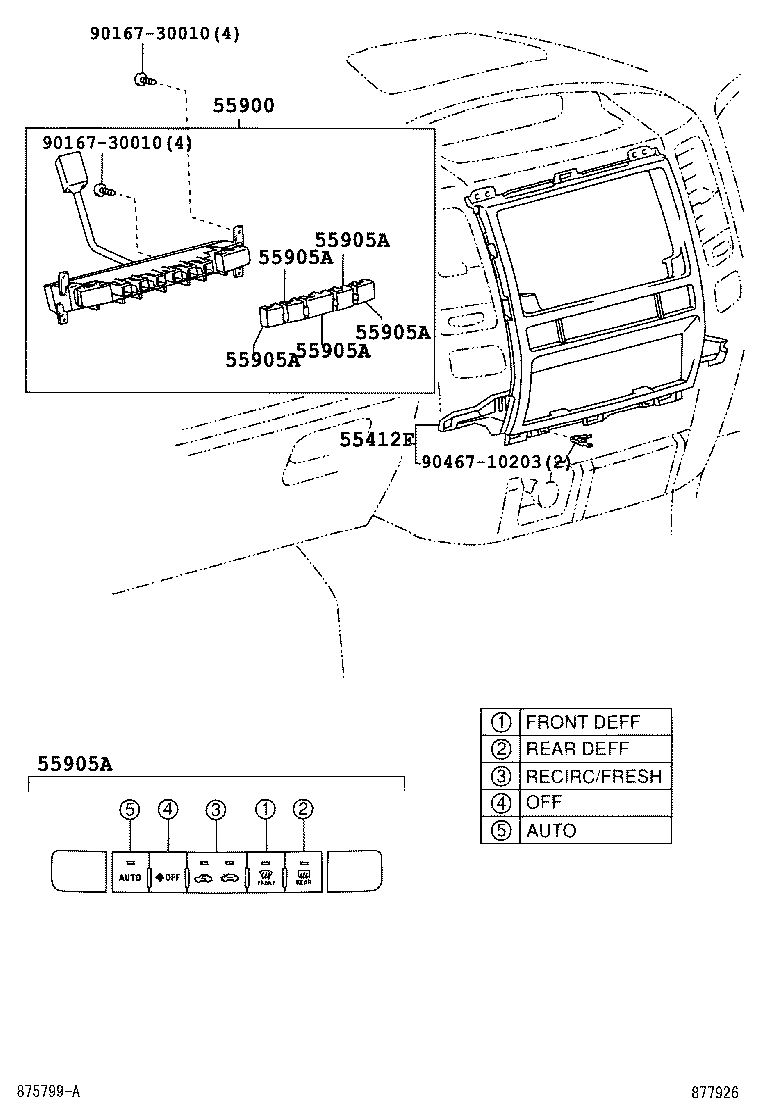

FRONT CONTROL-AUTO AIR CONDITIONER

diagram 55412F 55412F 55900 55900B 55900B 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55921A 55921A 55922 83911E 88650B 9016730010 9046710203 9046710203 9354014012
Part # Description Qty Price
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60230

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),TYPE B

 1
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60230

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),TYPE B

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-60E00

GRJ120..CHI

 1
55900-60622

GRJ120..CHI

 1
55900-60560

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-60642

GRJ120..CHI

 1
88650-60C20

GRJ120..CHI

 1
Common parts
90167-30010
90467-10203
93540-14012

ILLUST NO. 1 OF 5(0209- )

Click highlighted areas on diagram

FRONT CONTROL-MANUAL AIR CODITIONER

diagram 55412F 55412F 55519 55905A 55905A 55905A 55905B 55905B 55905T 55905T 55906A 55909A 55910 55921A 55921A 55922 9046710203 9046710203
Part # Description Qty Price
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60230

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),TYPE B

 1
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60230

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),TYPE B

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
Common parts
90467-10203

ILLUST NO. 2 OF 5(0209- )

Click highlighted areas on diagram

REAR HEATER CONTROL

diagram 55900B 55900B 55900B 55900B 55900B 55900B 55912A 55912A 81942A 81942A 84010A 84010A 84014E 84014E 84661A 84661A 84661A 84661A 84661A 84661A 84732H 9016730010 9016730010 9020611012
Part # Description Qty Price
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-60150C0

GRJ120..CHI

BLACK,TRIM1#

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-60150C0

GRJ120..CHI

BLACK,TRIM1#

 1
Common parts
90167-30010
90206-11012

ILLUST NO. 4 OF 5(0209- )

Click highlighted areas on diagram

REAR COOLER AIR DUCT

diagram 88566A 88566B 88566C 88566D 9046707076C0
Part # Description Qty Price
88566A - DUCT, COOLER AIR, NO.1
88566-0G010

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
88566B - DUCT, COOLER AIR, NO.2
88566-0G020

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
88566C - DUCT, COOLER AIR, NO.3
88566-0G030

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
88566D - DUCT, COOLER AIR, NO.4
88566-0G040

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
Common parts
90467-07076C0

ILLUST NO. 5 OF 5(0209- )

Click highlighted areas on diagram

SENSOR

diagram 88625C 88790B
Part # Description Qty Price

ILLUST NO. 3 OF 5(0209- )LHD

Click highlighted areas on diagram

FRONT AIR DUCT

diagram 55843A 55843B 55843B 55844 55845A 55870B 55950G 55971C 55971C 55972C 55972C 55990B 87211 87211A 87212 87213 87215 87216 9015950105 9015950105 9018305094 9046806080 9046806080 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-0G020

GRJ120..CHI

MADE IN CHINA

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-0G020

GRJ120..CHI

MADE IN CHINA

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-0G020

GRJ120..CHI

MADE IN CHINA

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-0G010

GRJ120..CHI

MADE IN CHINA

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-60100

GRJ12#,KZJ120,LJ12#,RZJ12#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-0G010

GRJ120..CHI

MADE IN CHINA

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-0G010

GRJ120..CHI

MADE IN CHINA

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-0G010

GRJ120..CHI

MADE IN CHINA

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-0G010

GRJ120..CHI

MADE IN CHINA

 1
87211 - DUCT, AIR, NO.1
87211-0G010

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
87211A - DUCT, AIR, NO.2
87211-0G020

GRJ120..CHI

AIR CONDITIONER-DUAL AUTO (MADE IN CHINA)

 1
87212 - DUCT, AIR, REAR NO.1
87212-35020

GRJ120..CHI

(J)

 1
87212-0G010

GRJ120..CHI

(L)

 1
87213 - DUCT, AIR, REAR NO.2
87213-0G010

GRJ120..CHI

(L)

 1
87213-35020

GRJ120..CHI

(J)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
87215-35010

GRJ120..CHI

(J)

 1
87215-0G010

GRJ120..CHI

(L)

 1
87216 - DUCT, HEATER INTERIOR AIR (TO REAR)
87216-35010

GRJ120..CHI

(J)

 1
87216-0G010

GRJ120..CHI

(L)

 1
Common parts
90159-50105
90183-05094
90468-06080
93568-55014

ILLUST NO. 1 OF 5(0606- )CHI

Click highlighted areas on diagram

FRONT CONTROL-W(NAVIGATION SYSTEM)

diagram 55412F 55900 55905A 55905A 55905A 55905A 55905A 55905A 9016730010 9016730010 9046710203
Part # Description Qty Price
55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60230

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),TYPE B

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-60E00

GRJ120..CHI

 1
55900-60622

GRJ120..CHI

 1
55900-60560

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
55905A - KNOB, HEATER CONTROL
55905-60370

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),RECIRC/FRESH

 1
55905-60440

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),AUTO

 1
55905-60430

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),OFF

 1
55905-60400

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),FRONT DEF

 1
55905-60410

GRJ120..CHI

AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH),REAR DEF

 1
Common parts
90167-30010
90467-10203
