GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

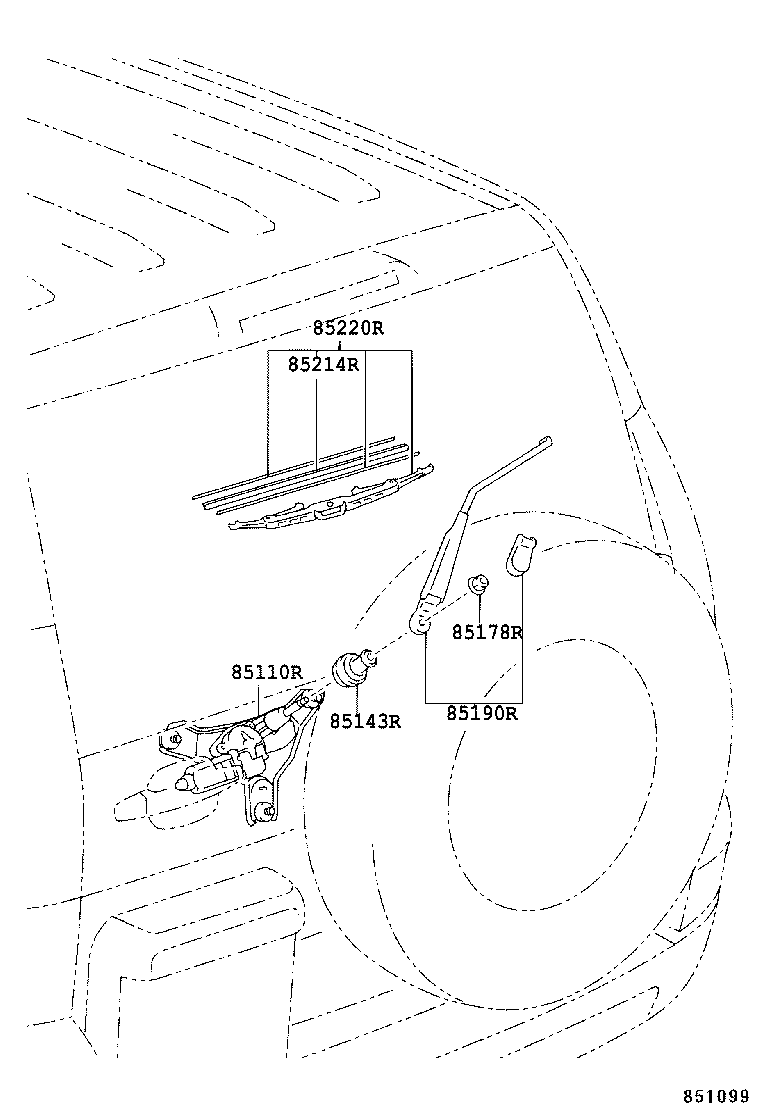

Click highlighted areas on diagram

W(SPARE TIRE CARRIER = BACK DOOR)

diagram 85110R 85143R 85178R 85190R 85214R 85220R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0G020

GRJ120..CHI

REAR WINDOW WIPER-MADE IN CHINA

 1
85214R - RUBBER, REAR WIPER
85214-46011

GRJ120..CHI

REAR WINDOW WIPER-MADE IN CHINA

 1
85214-46011

GRJ120..CHI

 1
85220R - BLADE ASSY, REAR WIPER
85242-60071

GRJ120..CHI

 1
85242-60071

GRJ120..CHI

REAR WINDOW WIPER-MADE IN CHINA

 1
85242-60071

GRJ120..CHI

 1
