GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

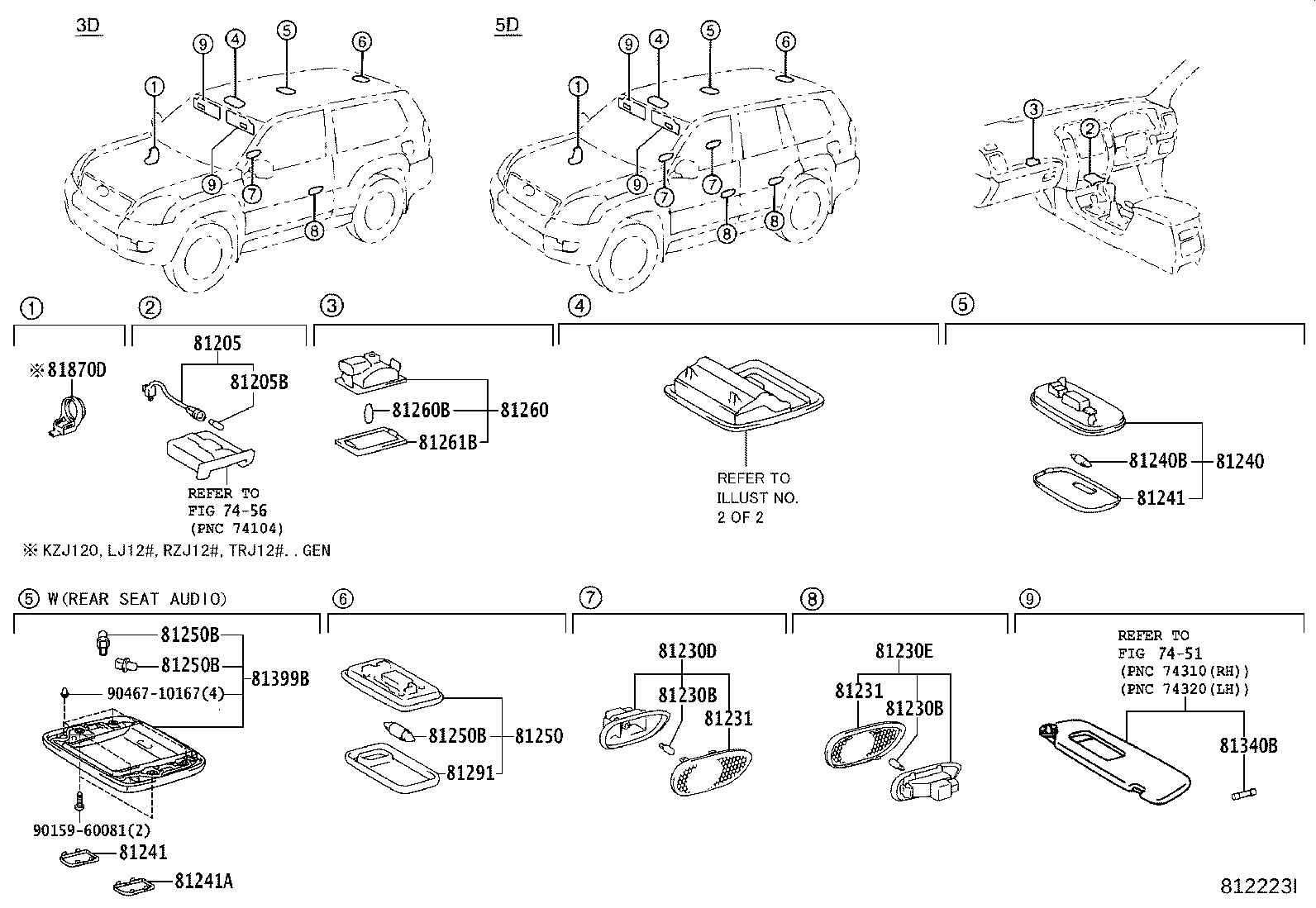

ILLUST NO. 1 OF 2(0209- )

Click highlighted areas on diagram

diagram 7451 7456 81205 81205B 81230B 81230B 81230D 81230E 81231 81231 81240 81240B 81241 81241 81241A 81250 81250B 81250B 81250B 81260 81260B 81261B 81291 81340B 81399B 81870D 9015960081 9046710167
Part # Description Qty Price
81241 - LENS, ROOM LAMP, NO.1
81027-35010

GRJ120..CHI

REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 1
81241 - LENS, ROOM LAMP, NO.1
81027-35010

GRJ120..CHI

REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 1
81241A - LENS, ROOM LAMP, NO.2
81028-35010

GRJ120..CHI

REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 1
81250B - BULB, ROOM LAMP, NO.2
90981-14004

GRJ120..CHI

12V 8W,REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 2
81250B - BULB, ROOM LAMP, NO.2
90981-14004

GRJ120..CHI

12V 8W,REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 2
81250B - BULB, ROOM LAMP, NO.2
90981-14004

GRJ120..CHI

12V 8W,REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR

 2
81340B - BULB (FOR VANITY LAMP)
90981-14014

GRJ120..GX..CHI

12V 2W,SUN VISOR-FABRIC W/LIGHT&MIRROR(MADE IN CHINA)

 2
90981-14014

GRJ120..CHI

12V 2W

 2
81399B - COVER, LENS
81399-60020B0

GRJ120..GX..CHI

REAR AUDIO-05MODEL RR SEAT ENTERTAINMENT & DVD PYR,STONE,TRIM1#

 1
Common parts
90159-60081
90467-10167
Linked diagrams
7451
7456

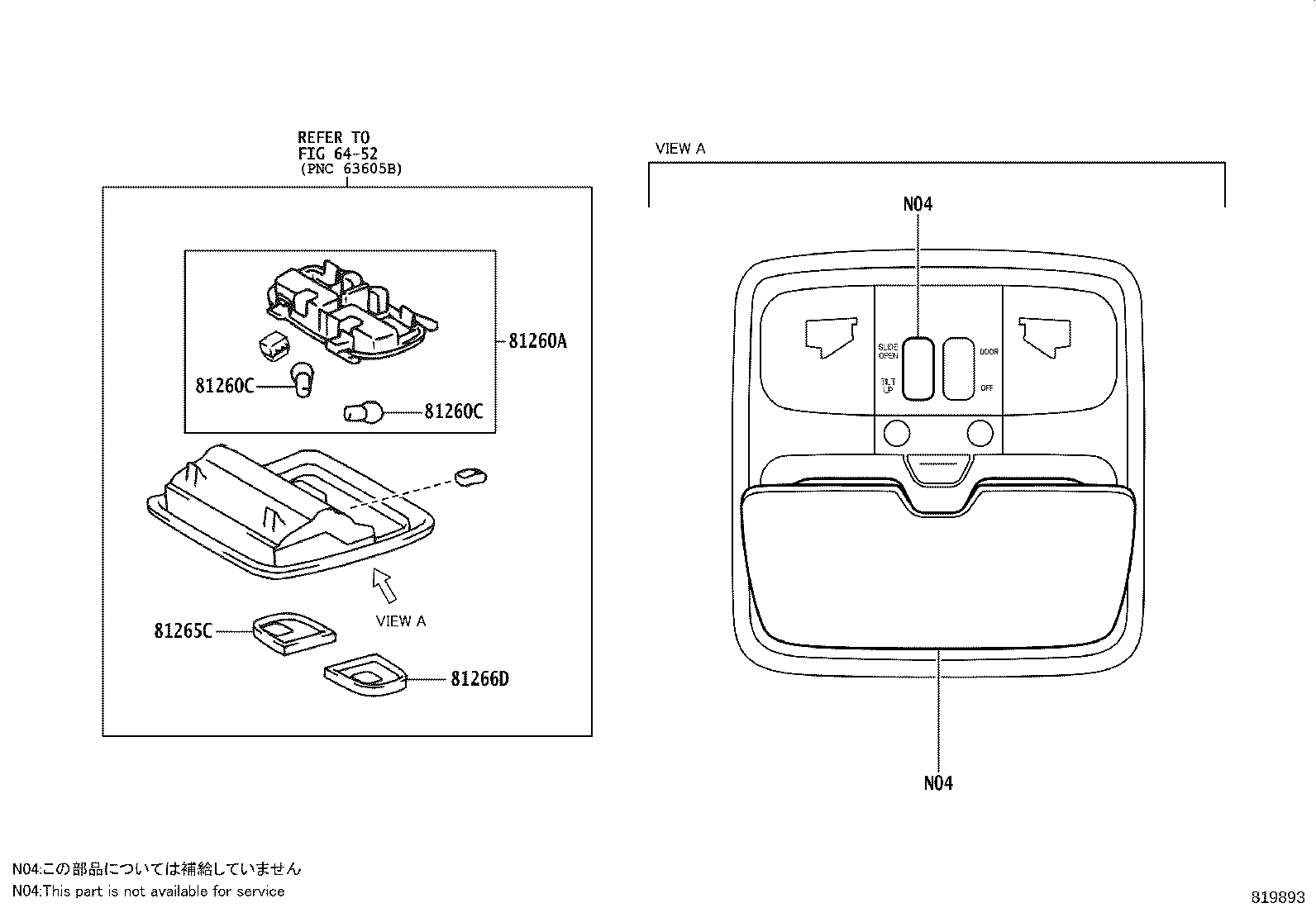

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

diagram 6452 81260A 81260C 81260C 81265C 81266D
Part # Description Qty Price
81260C - BULB(FOR MAP LAMP)
90981-12005

GRJ120..CHI

12V 8W,AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

GRJ120..CHI

12V 8W,AUDIO(FOR OVERSEAS MARKET)-05EMV 9SP W(BLUETOOTH)

 2
Linked diagrams
6452
