GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0209- )

Click highlighted areas on diagram

diagram 11296C 11298B 23923A 36369 41991A 44391B 47288 48969 69339A 74511F 74515A 74529 74529A 74542
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-60610

GRJ120..GX..CHI

 1
44391B - LABEL, POWER STEERING OIL INFORMATION
44391-33010

GRJ120..CHI

 1
74515A - PLATE, THEFT WARNING
74515-14010

GRJ120..CHI

 2
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

GRJ120..CHI

POWER DOOR LOCK-WITH(MADE IN CHINA)

 2
69339-06030

GRJ120..CHI

POWER DOOR LOCK-WITH(MADE IN CHINA)

 2
69339-52020

GRJ120..CHI

 2
74529A - PLATE, BACK DOOR CAUTION
74529-60010

GRJ120..CHI

 1
74542 - PLATE, REAR WINDOW MARK
74542-60040

GRJ120..CHI

 1

ILLUST NO. 2 OF 3(0209- )

Click highlighted areas on diagram

diagram 5355 74543C 74543S 74559A 74559B 74567A 74571 74571A 74579A 74596A 74751 82685 87529B 88723E 88723H
Part # Description Qty Price
74543C - LABEL, REAR SEAT INFORMATION
74543-60360

GRJ120..CHI

 2
74571 - PLATE, BRAKE FLUID CAUTION
47288-60010

GRJ120..GX..CHI

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-60170

GRJ120..CHI

TYPE E:REFER ILLUST.

 1
82685 - PLATE, CAUTION
82683-60191

GRJ120..CHI

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-0G010

GRJ120..CHI

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-48070

GRJ120..CHI

 1
Linked diagrams
5355

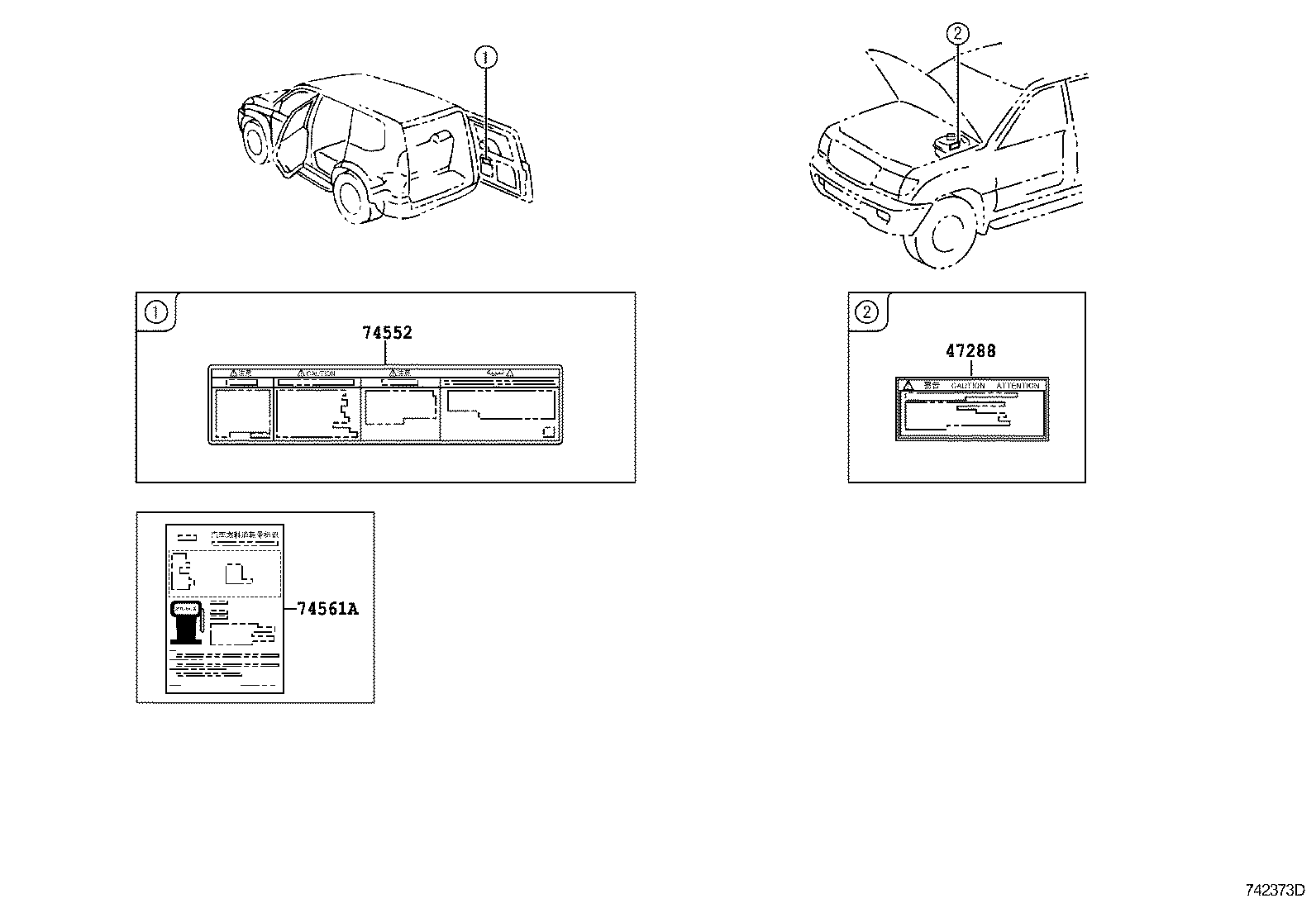

ILLUST NO. 3 OF 3(0707- )CHI ; (0707- )TRJ120..GCC ; (0708-)ARL,GCC,GEN

Click highlighted areas on diagram

diagram 47288 74552 74561A
Part # Description Qty Price
74552 - PLATE, SAFETY CAUTION
74552-60A20

GRJ120..CHI

 1
