GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

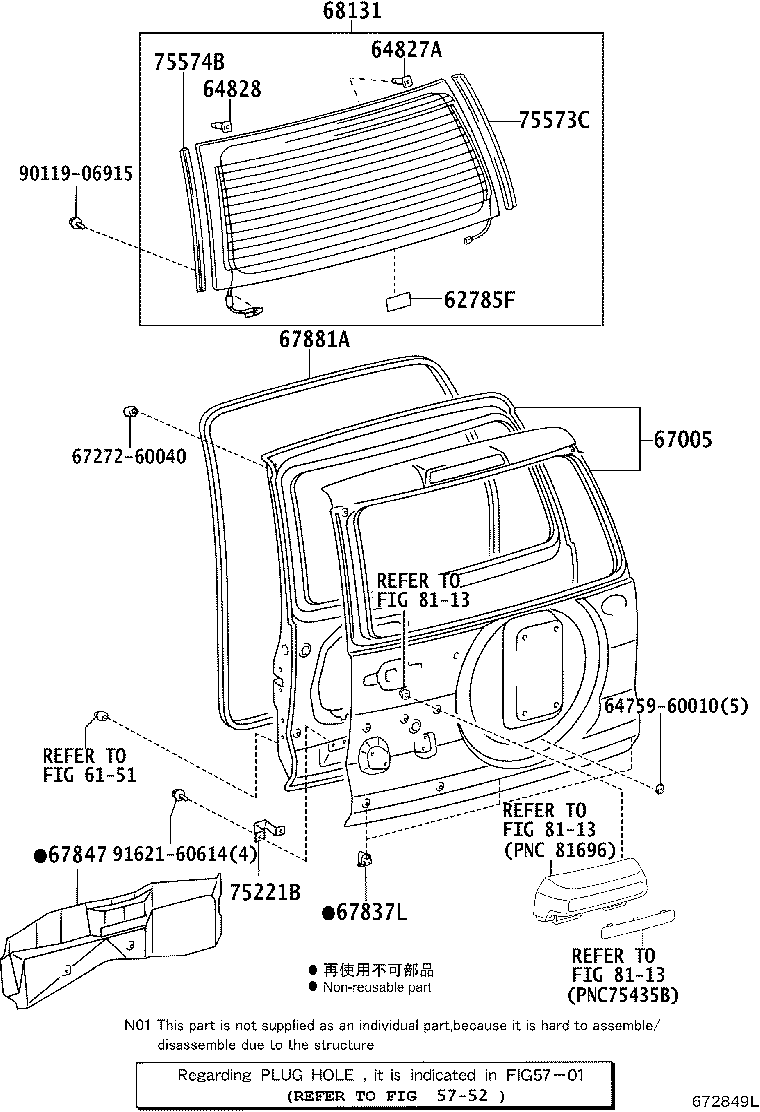

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

W(SPARE TIRE CARRIER=BACK DOOR)

diagram 6151 62785F 6475960010 64827A 64828 67005 6727260040 67837L 67847 67881A 68131 75221B 75573C 75574B 8113 8113 8113 9011906915 9162160614
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 2
67847 - COVER, BACK DOOR SERVICE HOLE, RH
67847-0G010

GRJ120..CHI

SPARE WHEEL CARRIER-MADE IN CHINA

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-60130

GRJ12#,KZJ120,LJ12#,RZJ12#

 1
68131 - GLASS, BACK DOOR
68105-0G010

GRJ120..CHI

*EHTT,T=3.1,GREEN,BACK GLASS-GREEN UV

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60050

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75573-60050

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 1
Common parts
64759-60010
67272-60040
90119-06915
91621-60614
Linked diagrams
6151
8113

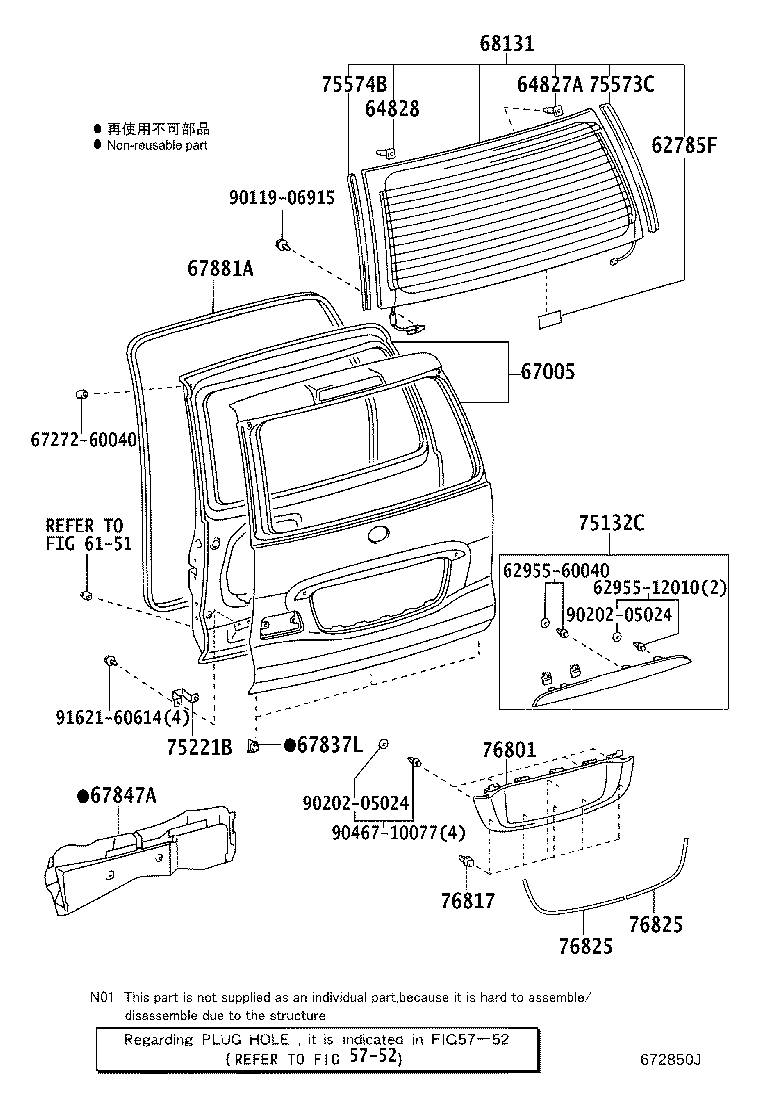

ILLUST NO. 2 OF 2(0209- )

Click highlighted areas on diagram

W(SPARE TIRE CARRIER=FRAME)

diagram 5752 6151 62785F 6295512010 6295560040 64827A 64828 67005 6727260040 67837L 67847A 67881A 68131 75132C 75221B 75573C 75574B 76801 76817 76825 76825 9011906915 9020205024 9020205024 9046710077 9162160614
Part # Description Qty Price
62785F - SPACER, BACK DOOR GLASS
62785-60030

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-60130

GRJ12#,KZJ120,LJ12#,RZJ12#

 1
68131 - GLASS, BACK DOOR
68105-0G010

GRJ120..CHI

*EHTT,T=3.1,GREEN,BACK GLASS-GREEN UV

 1
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-60050

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 1
75574B - MOULDING, BACK WINDOW, OUTSIDE LH
75573-60050

GRJ120..GX..CHI

BACK GLASS-GREEN UV

 1
Common parts
62955-12010
62955-60040
67272-60040
90119-06915
90202-05024
90467-10077
91621-60614
Linked diagrams
5752
6151
