GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )GX..CHI ; (0209- )ARL,GCC,GEN

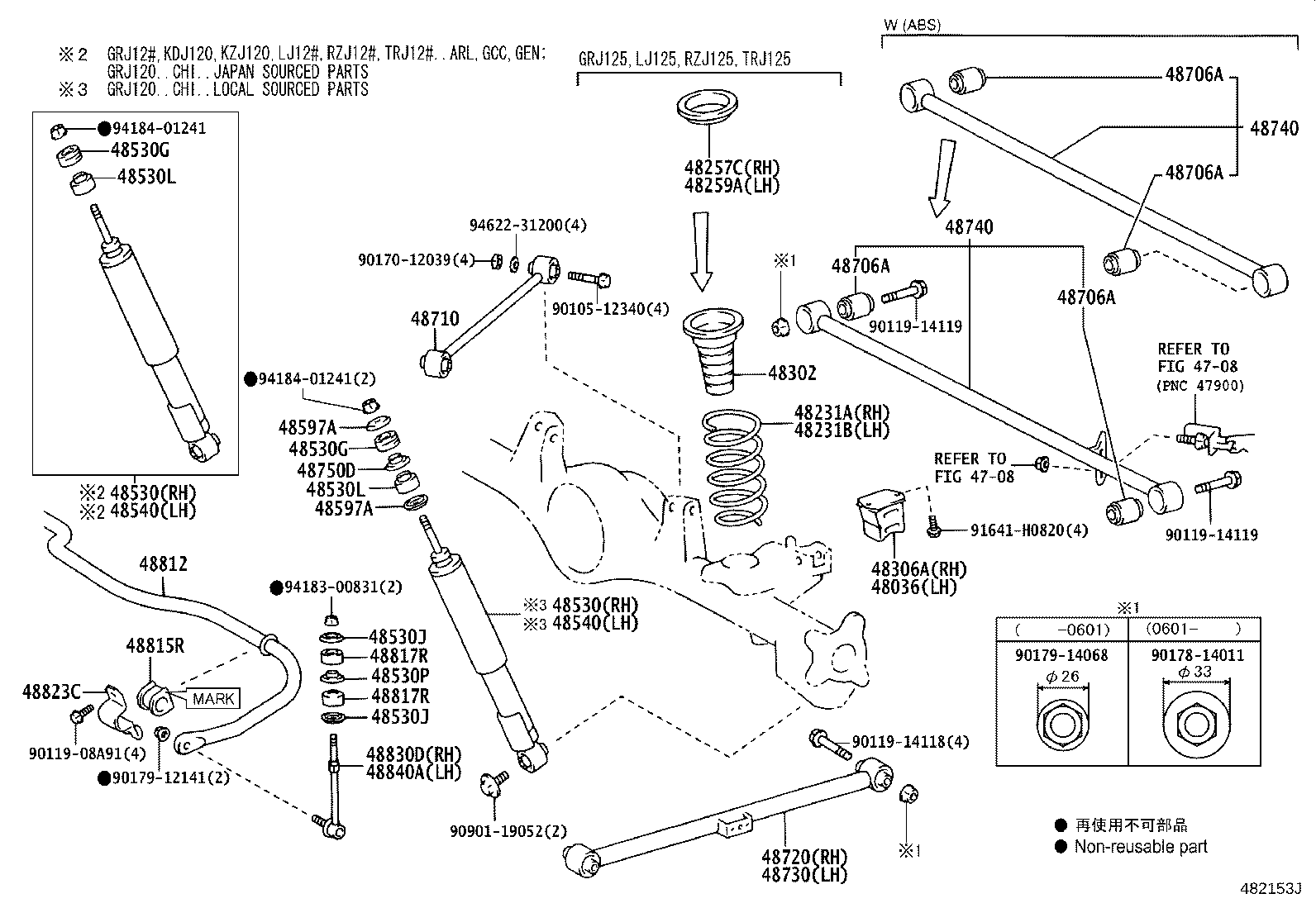

Click highlighted areas on diagram

diagram 4708 4708 48036 48231A 48231B 48257C 48259A 48302 48306A 48530 48530 48530G 48530G 48530J 48530J 48530L 48530L 48530P 48540 48540 48597A 48597A 48706A 48706A 48706A 48706A 48710 48720 48730 48740 48740 48750D 48812 48815R 48817R 48817R 48823C 48830D 48840A 9010512340 9011908A91 9011914118 9011914119 9011914119 9017012039 9017814011 9017912141 9017914068 9090119052 91641H0820 9418300831 9418401241 9418401241 9462231200
Part # Description Qty Price
48036 - BUMPER SUB-ASSY, REAR SPRING, LH
48306-0G010

GRJ120..GX..CHI

MADE IN CHINA

 1
48302 - SPRING SUB-ASSY, HOLLOW
48302-0G010

GRJ120..GX..CHI

MADE IN CHINA

 2
48306A - BUMPER SUB-ASSY, REAR SPRING, RH
48306-0G010

GRJ120..GX..CHI

MADE IN CHINA

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-69345

GRJ120..CHI

MARK 48530-60081,JAPAN SOURCED PARTS

 1
48530-0G011

GRJ120..GX..CHI

MARK 48530-0G011,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-0G010

GRJ120..CHI

MARK 48530-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-69346

GRJ120..GX..CHI

MARK 48530-60082,JAPAN SOURCED PARTS

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-69345

GRJ120..CHI

MARK 48530-60081,JAPAN SOURCED PARTS

 1
48530-0G011

GRJ120..GX..CHI

MARK 48530-0G011,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-0G010

GRJ120..CHI

MARK 48530-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-69346

GRJ120..GX..CHI

MARK 48530-60082,JAPAN SOURCED PARTS

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-0G011

GRJ120..GX..CHI

MARK 48530-0G011,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-0G010

GRJ120..CHI

MARK 48530-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-69346

GRJ120..GX..CHI

MARK 48530-60082,JAPAN SOURCED PARTS

 1
48530-69345

GRJ120..CHI

MARK 48530-60081,JAPAN SOURCED PARTS

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-0G011

GRJ120..GX..CHI

MARK 48530-0G011,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-0G010

GRJ120..CHI

MARK 48530-0G010,TEMS-WITHOUT,LOCAL SOURCED PARTS

 1
48530-69346

GRJ120..GX..CHI

MARK 48530-60082,JAPAN SOURCED PARTS

 1
48530-69345

GRJ120..CHI

MARK 48530-60081,JAPAN SOURCED PARTS

 1
48720 - ARM ASSY, LOWER CONTROL, RH
48720-35061

GRJ120..CHI

 1
48730 - ARM ASSY, LOWER CONTROL, LH
48720-35061

GRJ120..CHI

 1
48812 - BAR, STABILIZER, REAR
48812-60200

GRJ120..CHI

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-10090

GRJ120..CHI

MARK 19

 2
Common parts
90105-12340
90119-08A91
90119-14118
90119-14119
90170-12039
90178-14011
90179-12141
90179-14068
90901-19052
91641-H0820
94183-00831
94184-01241
94622-31200
Linked diagrams
4708
