GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

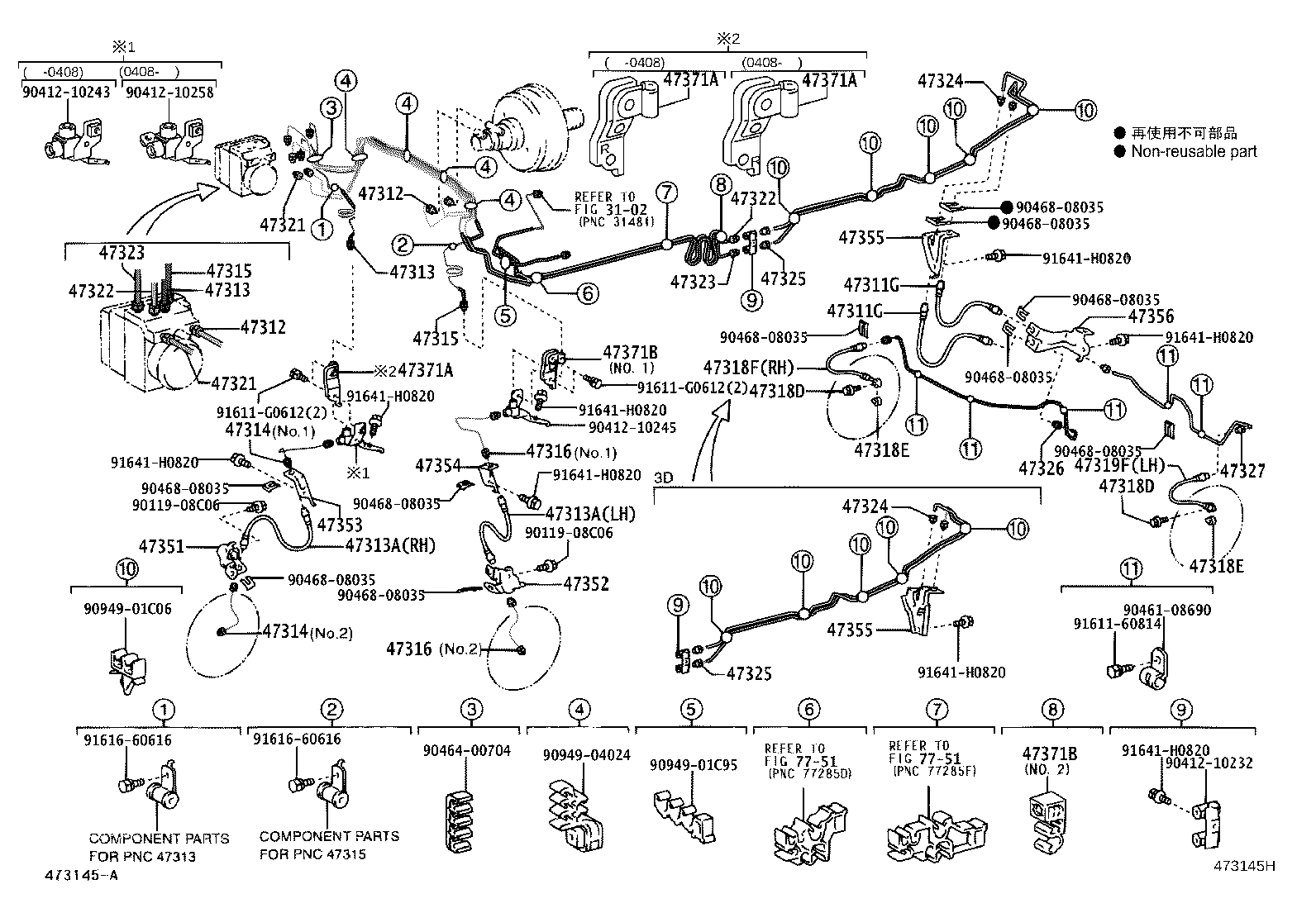

ILLUST NO. 1 OF 2(0209- )GX..5FC..CHI ; (0209- )GRJ120..5FC..GCC,GEN ; (0209- )GRJ120..LHD.

Click highlighted areas on diagram

W(ABS)

diagram 3102 47311G 47311G 47312 47312 47313 47313 47313A 47313A 47314 47314 47315 47315 47316 47316 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321 47322 47322 47323 47323 47324 47324 47325 47325 47326 47327 47351 47352 47353 47354 47355 47355 47356 47371A 47371A 47371A 47371B 47371B 7751 7751 9011908C06 9011908C06 9041210232 9041210243 9041210245 9041210258 9046108690 9046400704 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9094901C06 9094901C95 9094904024 9161160814 91611G0612 91611G0612 9161660616 9161660616 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02F19

GRJ120..CHI

 2
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02F19

GRJ120..CHI

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D430

GRJ120..GX..CHI

 1
47312-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D430

GRJ120..GX..CHI

 1
47312-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35

GRJ120..GX..CHI

MADE IN CHINA

 2
90947-02F20

GRJ120..CHI

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D35

GRJ120..GX..CHI

MADE IN CHINA

 2
90947-02F20

GRJ120..CHI

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-0G020

GRJ120..CHI

MADE IN CHINA,NO.1

 1
47314-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA),NO.2

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-0G020

GRJ120..CHI

MADE IN CHINA,NO.1

 1
47314-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA),NO.2

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA),NO.2

 1
47316-0G010

GRJ120..CHI

MADE IN CHINA,NO.1

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA),NO.2

 1
47316-0G010

GRJ120..CHI

MADE IN CHINA,NO.1

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02F23

GRJ120..CHI

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02F24

GRJ120..CHI

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35850

GRJ120..GX..CHI

 1
47321-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35850

GRJ120..GX..CHI

 1
47321-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-0G030

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-35120

GRJ12#;KZJ120..ARL

TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
47326-35120

GRJ12#,KZJ120,RZJ12#

ABS-WITH

 1
47326-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47326-0G021

GRJ120..CHI

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-35090

GRJ12#,KZJ120,RZJ12#

ABS-WITH

 1
47327-35090

GRJ12#;KZJ120..ARL

TRANSFER-FULL TIME&ABS-W(ABS& VSC & ACTIVE TRACTION CONTROL)

 1
47327-0G020

GRJ120..GX..CHI

BRAKE MASTER CYLINDER & BOOSTER-10" BOOSTER TUBE(MADE IN CHINA)

 1
47327-0G020

GRJ120..GX..CHI

 1
Common parts
90119-08C06
90412-10232
90412-10243
90412-10245
90412-10258
90461-08690
90464-00704
90468-08035
90949-01C06
90949-01C95
90949-04024
91611-60814
91611-G0612
91616-60616
91641-H0820
Linked diagrams
3102
7751

ILLUST NO. 2 OF 2(0209- )GX..CHI ; (0209- )GRJ12#,KDJ120,KZJ120,RZJ12#,TRJ12#..ARL,GCC,GEN

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905278 9009905278 9017908249 9017908249 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-60090

GRJ120..GX..CHI

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

GRJ120..GX..CHI

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12010

GRJ120..GX..CHI

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

GRJ120..GX..CHI

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

GRJ120..GX..CHI

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-60060

GRJ120..GX..CHI

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-60020

GRJ120..GX..CHI

 1
Common parts
90099-05278
90179-08249
