GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

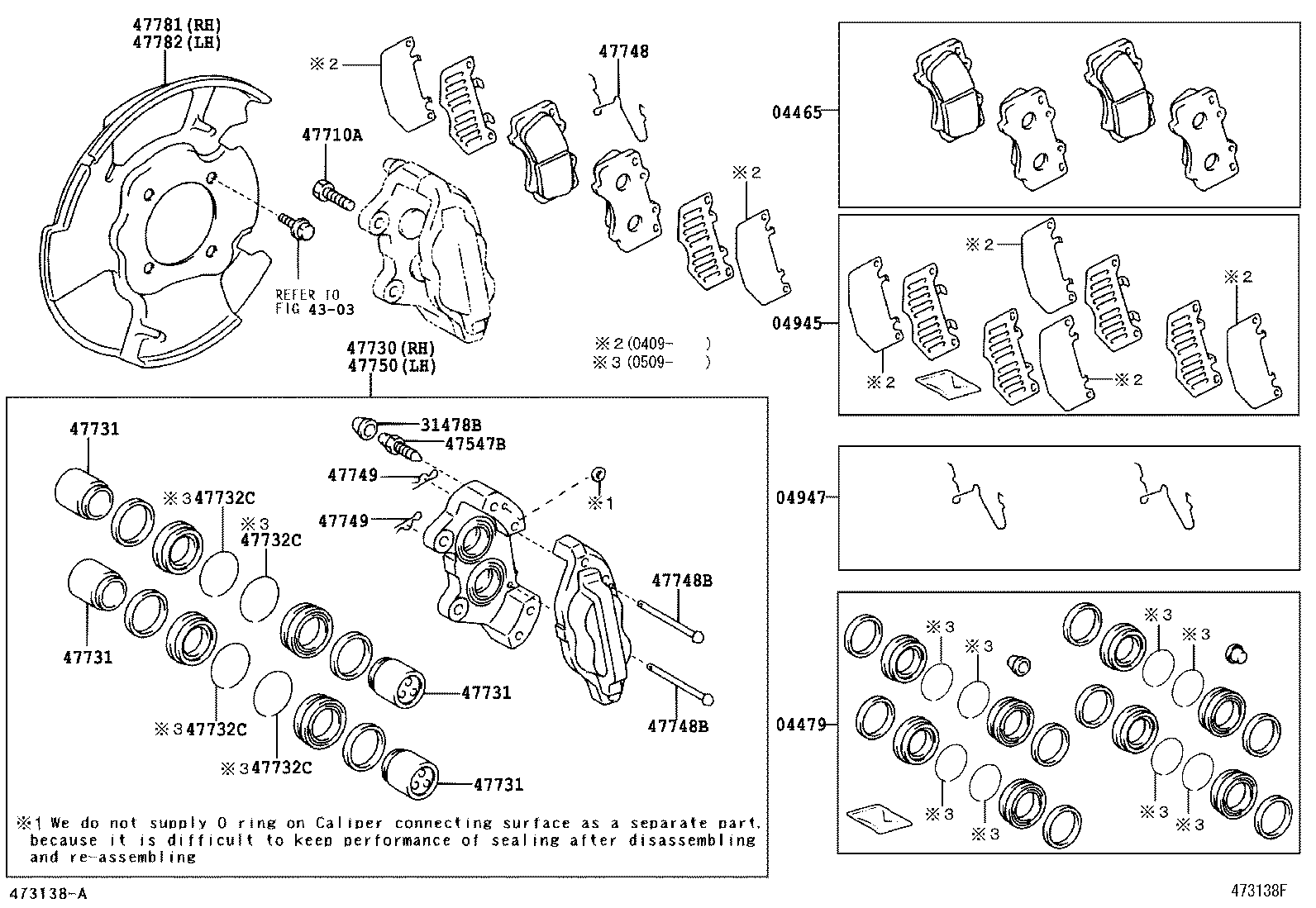

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47730 47731 47731 47731 47731 47732C 47732C 47732C 47732C 47748 47748B 47748B 47749 47749 47750 47781 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-60050

GRJ120..CHI

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35120

GRJ120..CHI

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GRJ120..CHI

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-35020

GRJ120..CHI

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60261

GRJ120..CHI

 1
47731 - PISTON, FRONT DISC BRAKE
47731-35040

GRJ120..CHI

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

GRJ120..CHI

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

GRJ120..CHI

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35040

GRJ120..CHI

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GRJ120..CHI

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GRJ120..CHI

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GRJ120..CHI

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GRJ120..CHI

 8
47749 - CLIP, PIN HOLD
47749-35040

GRJ120..CHI

 4
47749 - CLIP, PIN HOLD
47749-35040

GRJ120..CHI

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60261

GRJ120..CHI

 1
Linked diagrams
4303
