GRJ120L-GKAEKC (2004)
Toyota Land Cruiser Prado
Production
Sep 2004
-
Mar 2010
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )
Click highlighted areas on diagram

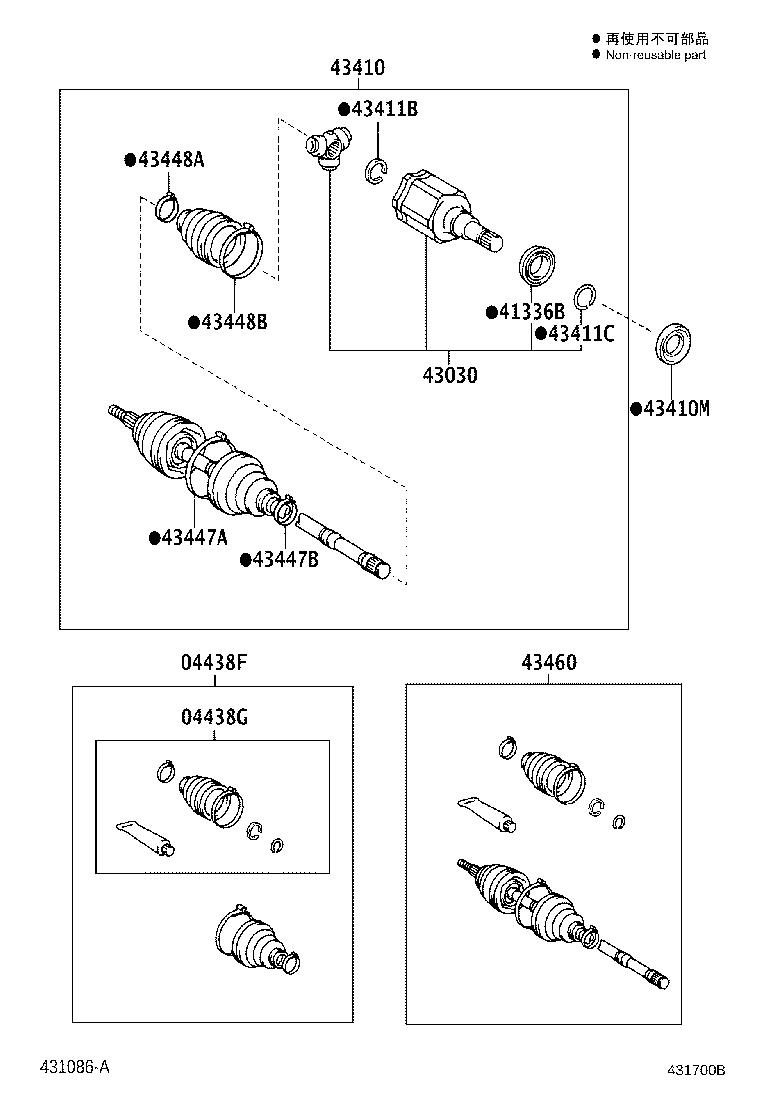

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-60040 |
GRJ120..CHI |
1 | ||
| 04427-60130 |
GRJ120 |
1 | ||
| 04427-60080 |
GRJ120..CHI |
1 | ||
| 04427-60140 |
GRJ120 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-60040 |
GRJ120..CHI |
1 | ||
| 04437-60090 |
GRJ120 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43403-60040 |
GRJ120..CHI |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43430-60080 |
GRJ120..CHI |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-60160 |
GRJ120..CHI |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-60160 |
GRJ120..CHI |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-60170 |
GRJ120..CHI |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-69055 |
GRJ120..CHI |
1 | ||
| 43460-69105 |
GRJ120..CHI |
1 | ||
| 43460-69185 |
GRJ120..CHI |
1 | ||
(0209- )
Click highlighted areas on diagram

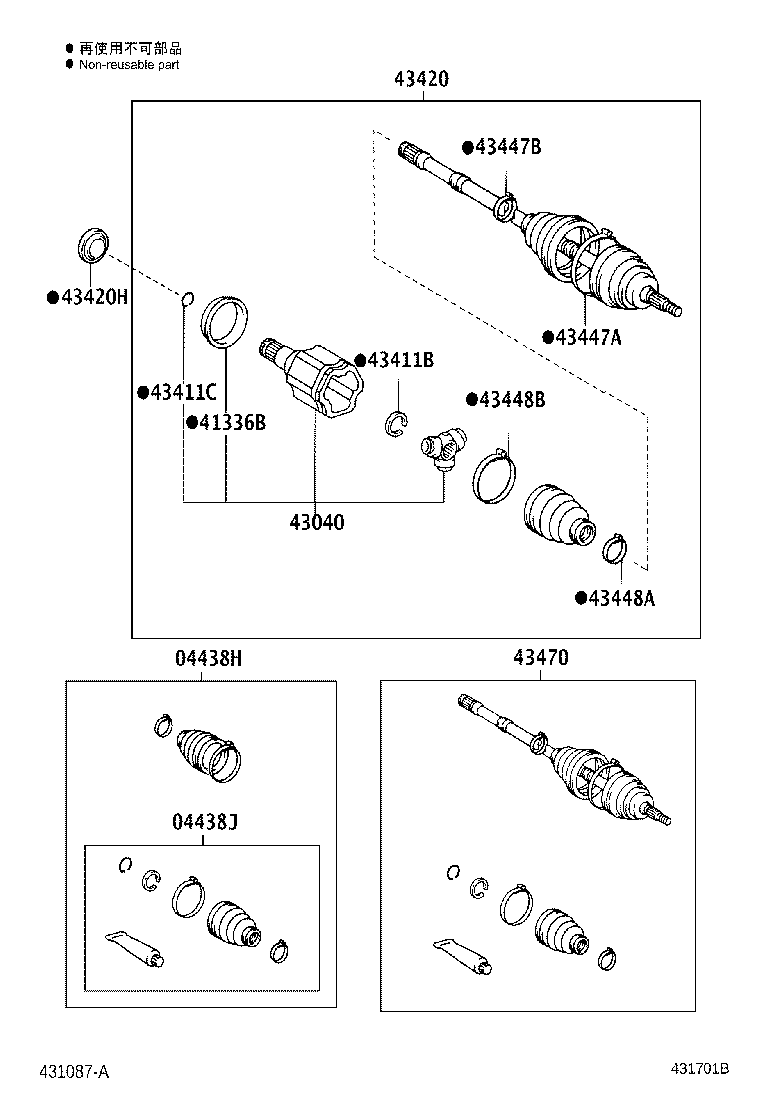

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04427-60140 |
GRJ120 |
1 | ||
| 04427-60130 |
GRJ120 |
1 | ||
| 04427-60080 |
GRJ120..CHI |
1 | ||
| 04427-60040 |
GRJ120..CHI |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-60040 |
GRJ120..CHI |
1 | ||
| 04437-60090 |
GRJ120 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43403-60040 |
GRJ120..CHI |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43430-60080 |
GRJ120..CHI |
1 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 42345-60160 |
GRJ120..CHI |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-60160 |
GRJ120..CHI |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 42345-60170 |
GRJ120..CHI |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43460-69055 |
GRJ120..CHI |
1 | ||
| 43460-69105 |
GRJ120..CHI |
1 | ||
| 43460-69185 |
GRJ120..CHI |
1 | ||
