GRJ120L-GKAEKC (2004)
Toyota Land Cruiser Prado

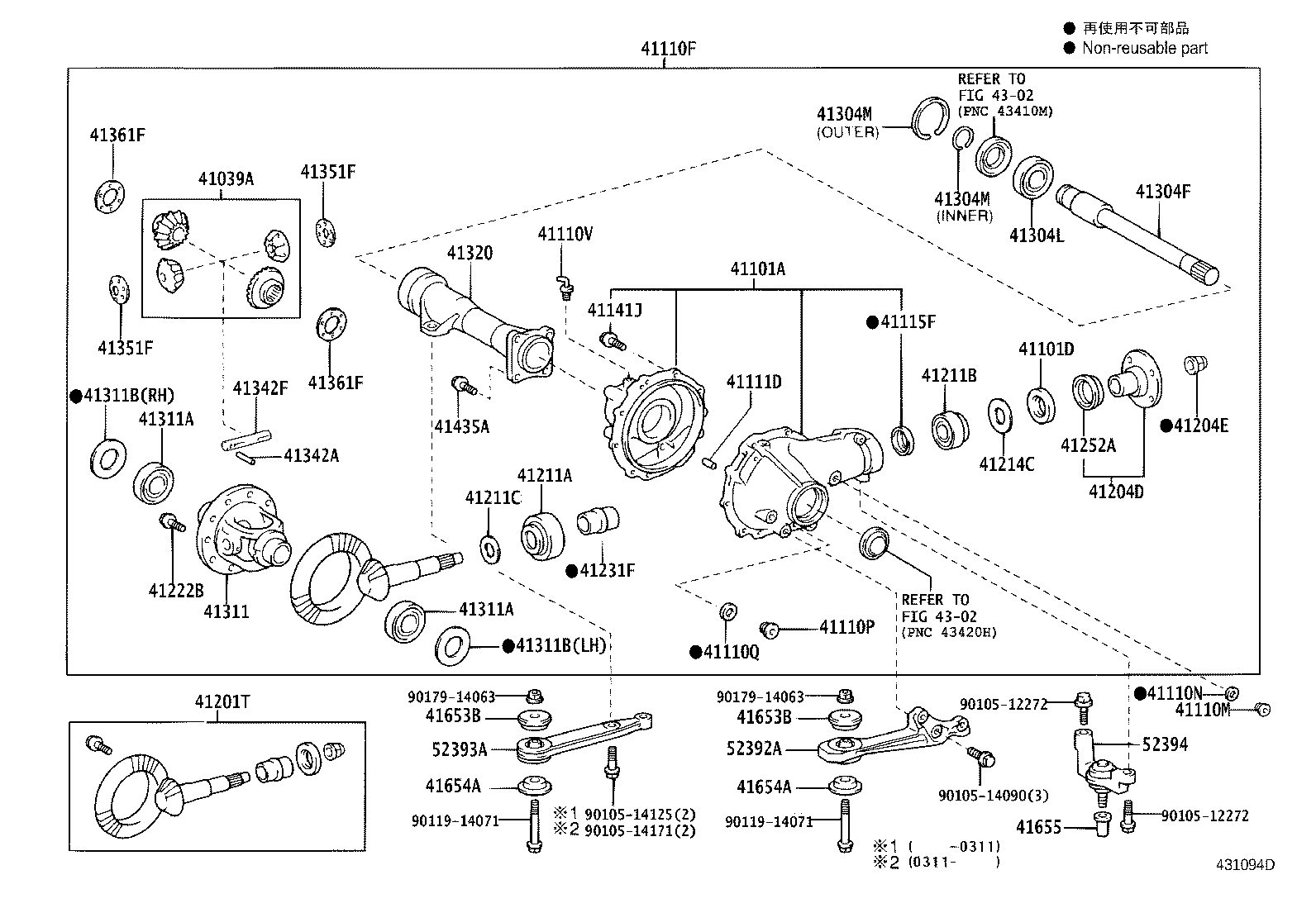

ILLUST NO. 1 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-3D440 |
KZJ120;GRJ120..5F *FGR=41:10=4.100 |
1 | ||
| 41110-3D420 |
GRJ120..CHI *FGR=41:11=3.727 |
1 | ||
| 41201T - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-80194 |
GRJ120..CHI *FGR=41:11=3.727 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-35100 |
GRJ120..CHI |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50224 |
GRJ120..CHI T=1.44,RH |
1 | ||
| 90564-50225 |
GRJ120..CHI T=1.46,RH |
1 | ||
| 90564-50231 |
GRJ120..CHI T=2.18,LH |
1 | ||
| 90564-50226 |
GRJ120..CHI T=1.48,RH |
1 | ||
| 90564-50228 |
GRJ120..CHI T=1.52,RH |
1 | ||
| 90564-50232 |
GRJ120..CHI T=2.20,LH |
1 | ||
| 90564-50229 |
GRJ120..CHI T=1.54,RH |
1 | ||
| 90564-50230 |
GRJ120..CHI T=1.56,RH |
1 | ||
| 90564-50237 |
GRJ120..CHI T=2.30,LH |
1 | ||
| 90564-50227 |
GRJ120..CHI T=1.50,RH |
1 | ||
| 90564-50236 |
GRJ120..CHI T=2.28,LH |
1 | ||
| 90564-50233 |
GRJ120..CHI T=2.22,LH |
1 | ||
| 90564-50235 |
GRJ120..CHI T=2.26,LH |
1 | ||
| 90564-50234 |
GRJ120..CHI T=2.24,LH |
1 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90564-50224 |
GRJ120..CHI T=1.44,RH |
1 | ||
| 90564-50225 |
GRJ120..CHI T=1.46,RH |
1 | ||
| 90564-50231 |
GRJ120..CHI T=2.18,LH |
1 | ||
| 90564-50226 |
GRJ120..CHI T=1.48,RH |
1 | ||
| 90564-50228 |
GRJ120..CHI T=1.52,RH |
1 | ||
| 90564-50232 |
GRJ120..CHI T=2.20,LH |
1 | ||
| 90564-50229 |
GRJ120..CHI T=1.54,RH |
1 | ||
| 90564-50230 |
GRJ120..CHI T=1.56,RH |
1 | ||
| 90564-50237 |
GRJ120..CHI T=2.30,LH |
1 | ||
| 90564-50227 |
GRJ120..CHI T=1.50,RH |
1 | ||
| 90564-50236 |
GRJ120..CHI T=2.28,LH |
1 | ||
| 90564-50233 |
GRJ120..CHI T=2.22,LH |
1 | ||
| 90564-50235 |
GRJ120..CHI T=2.26,LH |
1 | ||
| 90564-50234 |
GRJ120..CHI T=2.24,LH |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GRJ120..CHI |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-35030 |
GRJ120..CHI |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0G010 |
GRJ120..CHI MADE IN CHINA |
2 | ||
| 41653B - STOPPER, DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-0G010 |
GRJ120..CHI MADE IN CHINA |
2 | ||
| Common parts | ||||
| 90105-12272 | ||||
| 90105-14090 | ||||
| 90105-14125 | ||||
| 90105-14171 | ||||
| 90119-14071 | ||||
| 90179-14063 | ||||
| Linked diagrams | ||||
| 4302 | ||||

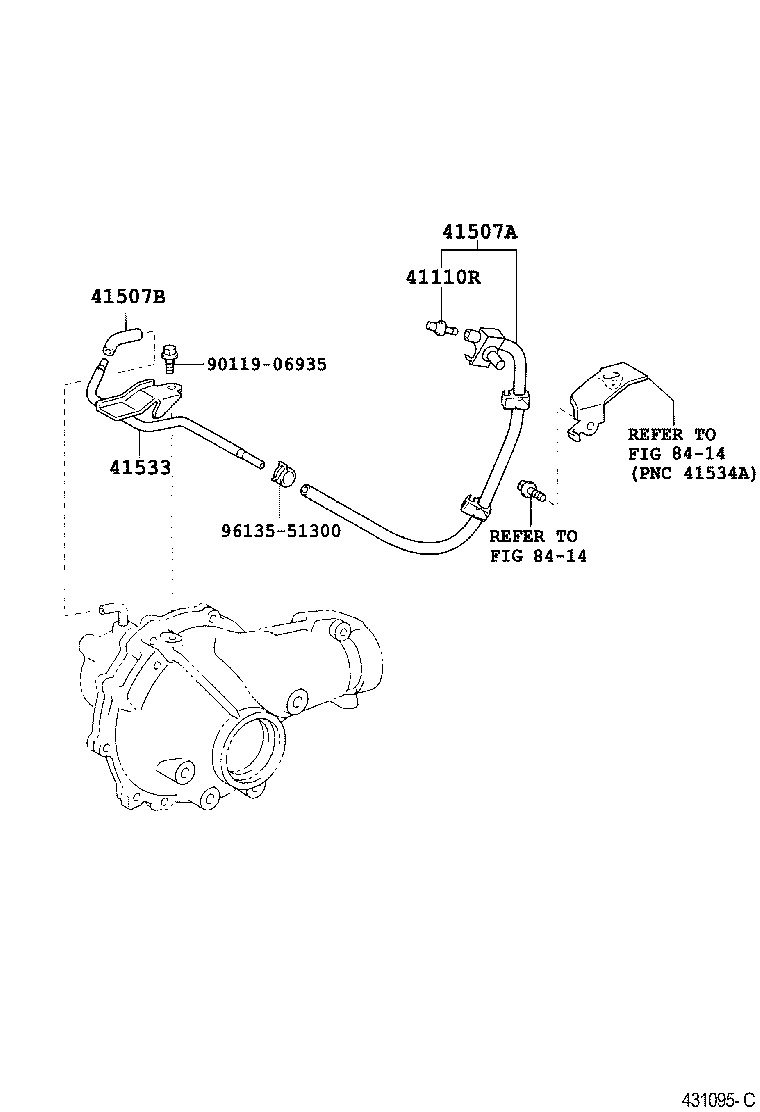

ILLUST NO. 2 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06935 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 8414 | ||||
