GRJ120L-GKAEKC (2004)

Toyota Land Cruiser Prado

Production Sep 2004 - Mar 2010
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )GX..CHI ; (0209- )RZJ12#,TRJ12#..5F ; (0209- )GRJ12#..ARL,GCC,GEN

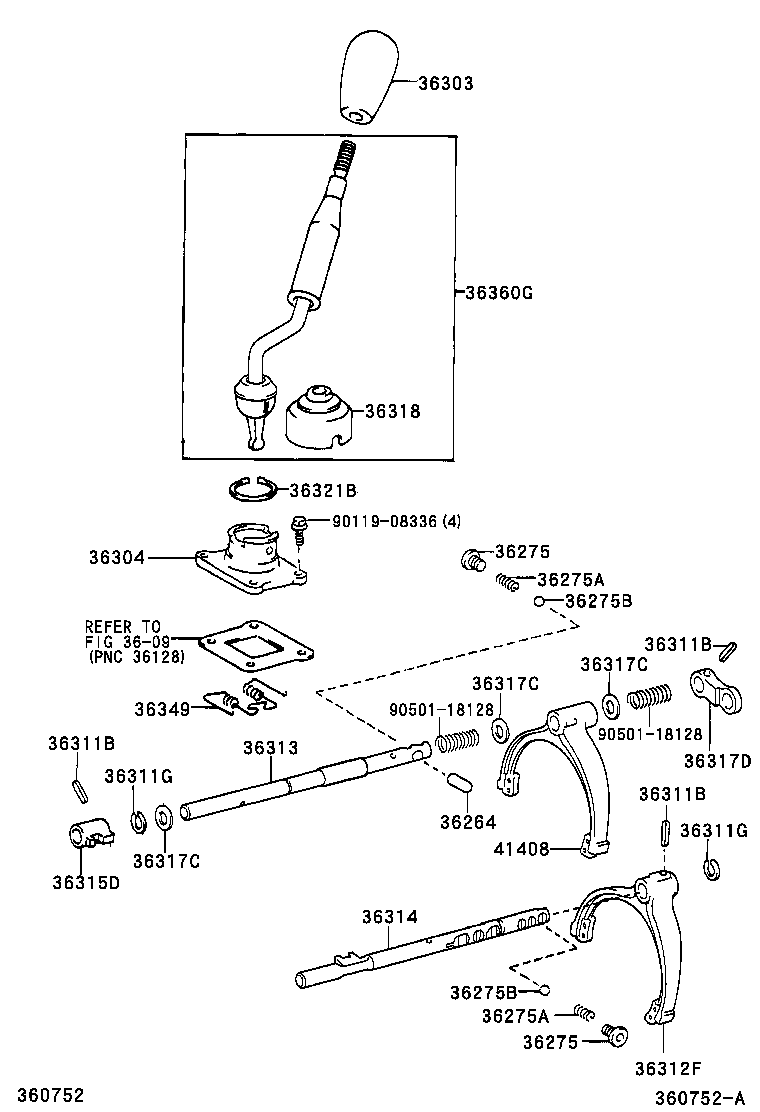

Click highlighted areas on diagram

diagram 3609 36264 36275 36275 36275A 36275A 36275B 36275B 36303 36304 36311B 36311B 36311B 36311G 36311G 36312F 36313 36314 36315D 36317C 36317C 36317C 36317D 36318 36321B 36349 36360G 41408 9011908336 9050118128 9050118128
Part # Description Qty Price
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

GRJ120..GX..CHI

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

GRJ120..GX..CHI

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16116

GRJ120..GX..CHI

L=23

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-16116

GRJ120..GX..CHI

L=23

 2
36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER
36304-60100

GRJ120..CHI

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

GRJ120..GX..CHI

L=22

 3
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

GRJ120..GX..CHI

L=22

 3
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05001

GRJ120..GX..CHI

L=22

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRJ120..GX..CHI

 2
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRJ120..GX..CHI

 2
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36302-60190

GRJ120..CHI

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-60120

GRJ120..GX..CHI

 1
36318 - BOOT, TRANSFER FRONT DRIVE SHIFT
33555-35190

GRJ120..CHI

 1
36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
90521-49003

GRJ120..CHI

 1
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-60780

GRJ120..GX..CHI

 1
41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK
41408-60030

GRJ120..GX..CHI

 1
Common parts
90119-08336
90501-18128
Linked diagrams
3609
