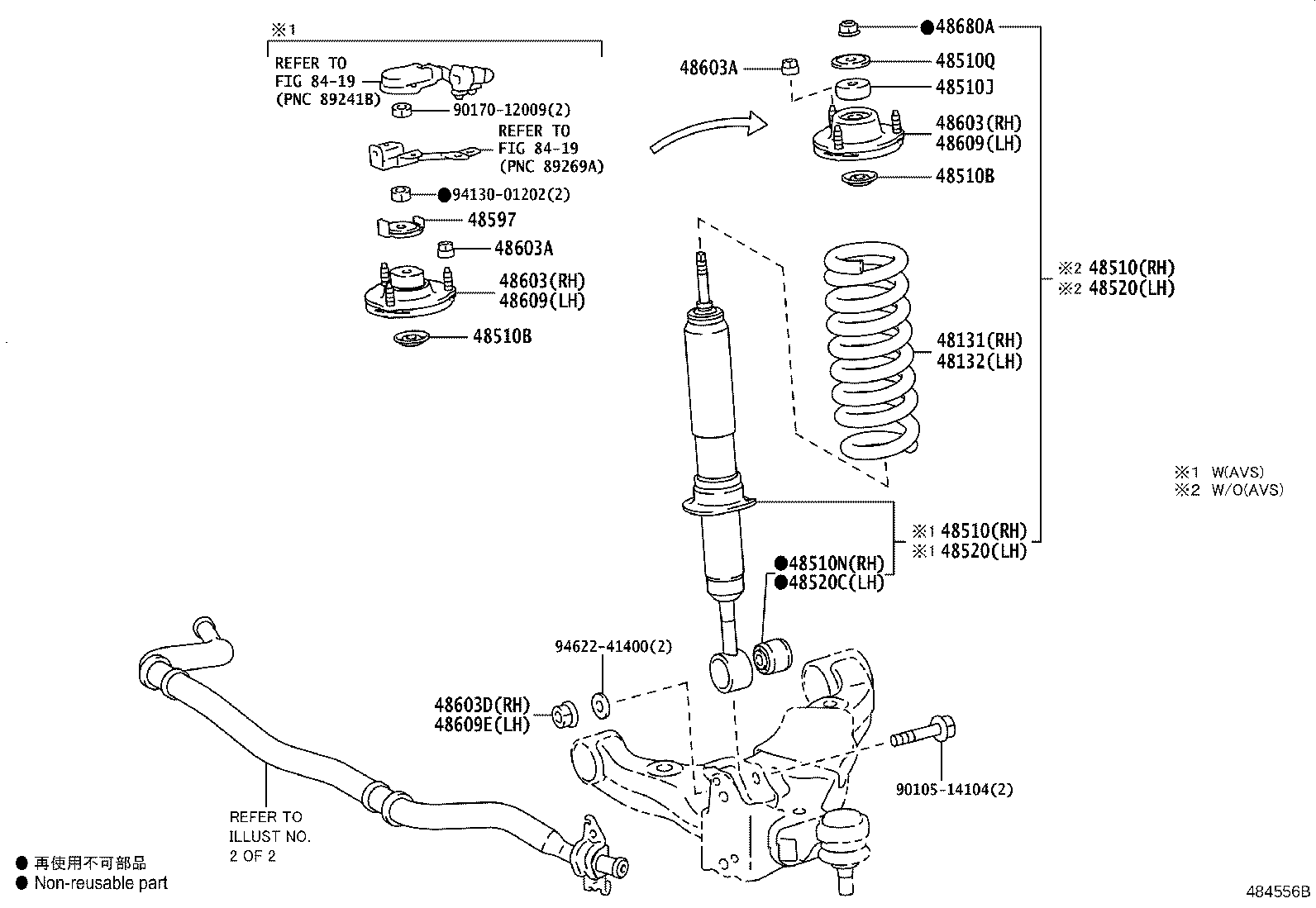

GDJ150R-GKTEYQ (2015)
Toyota Land Cruiser Prado
(0908- )
W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60J60 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48131-60J60 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150..RHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60J40 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150 |
1 | ||
| 48131-60J40 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60140 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60040 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60310 |
GDJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48811-60390 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48811-60390 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-60390 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48815-60390 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48815-60380 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-60390 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48815-60380 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48815-60390 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60050 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60190 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-60120 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| Common parts | ||||
| 90105-14104 | ||||
| 90170-12009 | ||||
| 90179-12144 | ||||
| 91674-G1028 | ||||
| 94130-01202 | ||||
| 94622-41400 | ||||
| Linked diagrams | ||||
| 8419 | ||||
ILLUST NO. 1 OF 2(1506- )GDJ150..6FC
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60J60 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48131-60J60 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48131-60J60 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J60 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150..RHD |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150..RHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60J40 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J40 |
GDJ150..6FC VX-L PACKAGE |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150 |
1 | ||
| 48131-60J30 |
GDJ150,KDJ150 |
1 | ||
| 48131-60J40 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48131-60J40 |
GDJ150..6FC VX PACKAGE |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90948-02205 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 | ||||
| 90948-01100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90948-01100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48510Q - RETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02161 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 90948-02161 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80671 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ150 MARK 48510-60221 |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-80672 |
GDJ150..6FC MARK 48510-60191,VX PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48510-60260 |
GDJ150..6FC MARK 48510-60260,VX-L PACKAGE |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48536-60010 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60140 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
2 | ||
| 48597-60140 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 90178-10014 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
6 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60100 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609-60090 |
GDJ150,GRJ150,KDJ150..ATM VX-L PACKAGE |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 90170-14032 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94184-01241 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| 94184-01241 |
GDJ150,GRJ150,KDJ150,LJ150,TRJ15# |
2 | ||
| Common parts | ||||
| 90105-14104 | ||||
| 90170-12009 | ||||
| 94130-01202 | ||||
| 94622-41400 | ||||
| Linked diagrams | ||||
| 8419 | ||||
(1708- )
W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14104 | ||||
| 90170-12009 | ||||
| 90179-12144 | ||||
| 91674-G1028 | ||||
| 94130-01202 | ||||
| 94622-41400 | ||||
| Linked diagrams | ||||
| 8419 | ||||
ILLUST NO. 1 OF 2(1708- )GDJ150..ARL ; (1708- )GRJ150,KDJ150
W(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-14104 | ||||
| 90170-12009 | ||||
| 94130-01202 | ||||
| 94622-41400 | ||||
| Linked diagrams | ||||
| 8419 | ||||
ILLUST NO. 2 OF 2(1708- )GDJ150,KDJ150
W(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A33 | ||||
| 90119-12386 | ||||
| 90119-14118 | ||||
| 90119-14124 | ||||
| 90178-14011 | ||||
| 90410-06002 | ||||
| 91552-K1235 | ||||
| 91641-H0820 | ||||
| 96711-24015 | ||||
| Linked diagrams | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
