GDJ150R-GKTEYQ (2015)
Toyota Land Cruiser Prado
Production
Jun 2015
-
Aug 2017
Engine
1GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )1GDFTV
Click highlighted areas on diagram

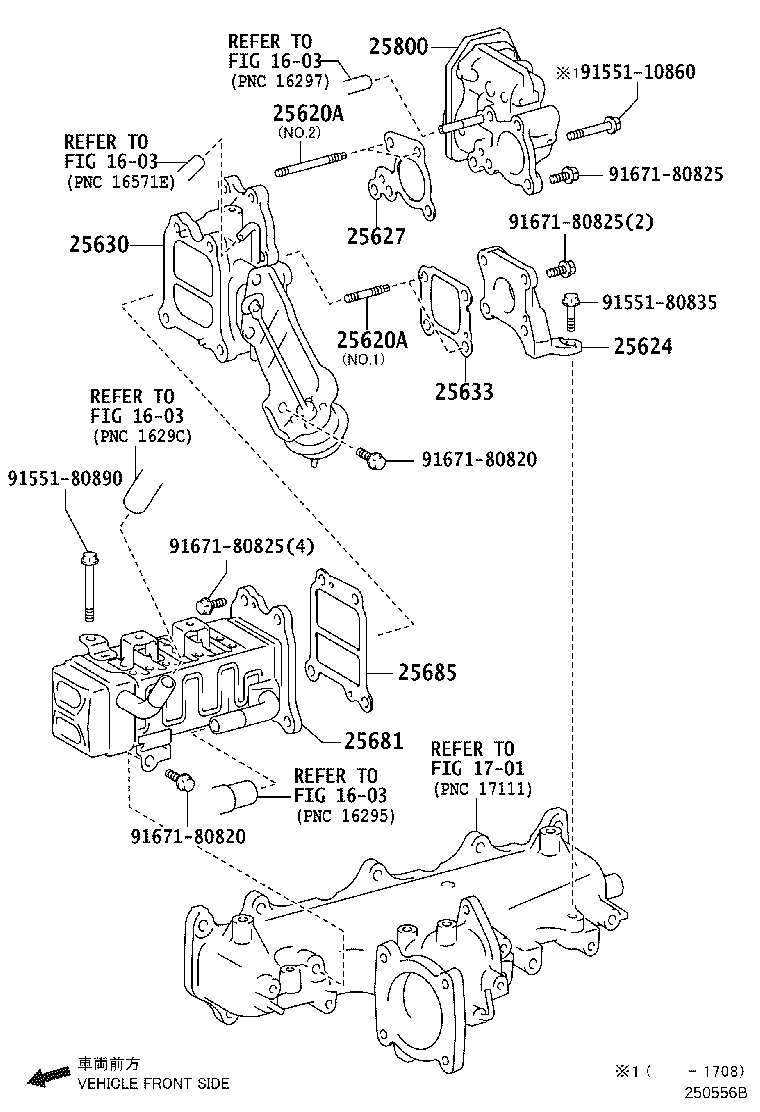

EGR VALVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90126-08064 |
1GDFTV..GDJ150 NO.2 |
2 | ||
| 90126-08047 |
1GDFTV..GDJ150 NO.1 |
2 | ||
| 25620A - BOLT, STUD(FOR EGR VALVE) | ||||
| 90126-08064 |
1GDFTV..GDJ150 NO.2 |
2 | ||
| 90126-08047 |
1GDFTV..GDJ150 NO.1 |
2 | ||
| 25624 - ADAPTER, EGR VALVE | ||||
| 25624-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-11050 |
1GDFTV..GDJ150 |
1 | ||
| 25630 - VALVE ASSY, EGR, NO.2 | ||||
| 25630-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25633 - GASKET, EGR VALVE | ||||
| 25633-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25681 - COOLER, EGR, NO.1 | ||||
| 25681-0E010 |
1GDFTV..GDJ150 |
1 | ||
| 25685 - GASKET, EGR COOLER, NO.1 | ||||
| 25685-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25800 - VALVE ASSY, ELECTRIC EGR CONTROL | ||||
| 25800-11010 |
1GDFTV..GDJ150 |
1 | ||
| Common parts | ||||
| 91551-10860 | ||||
| 91551-80835 | ||||
| 91551-80890 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
(1506- )1GDFTV
Click highlighted areas on diagram

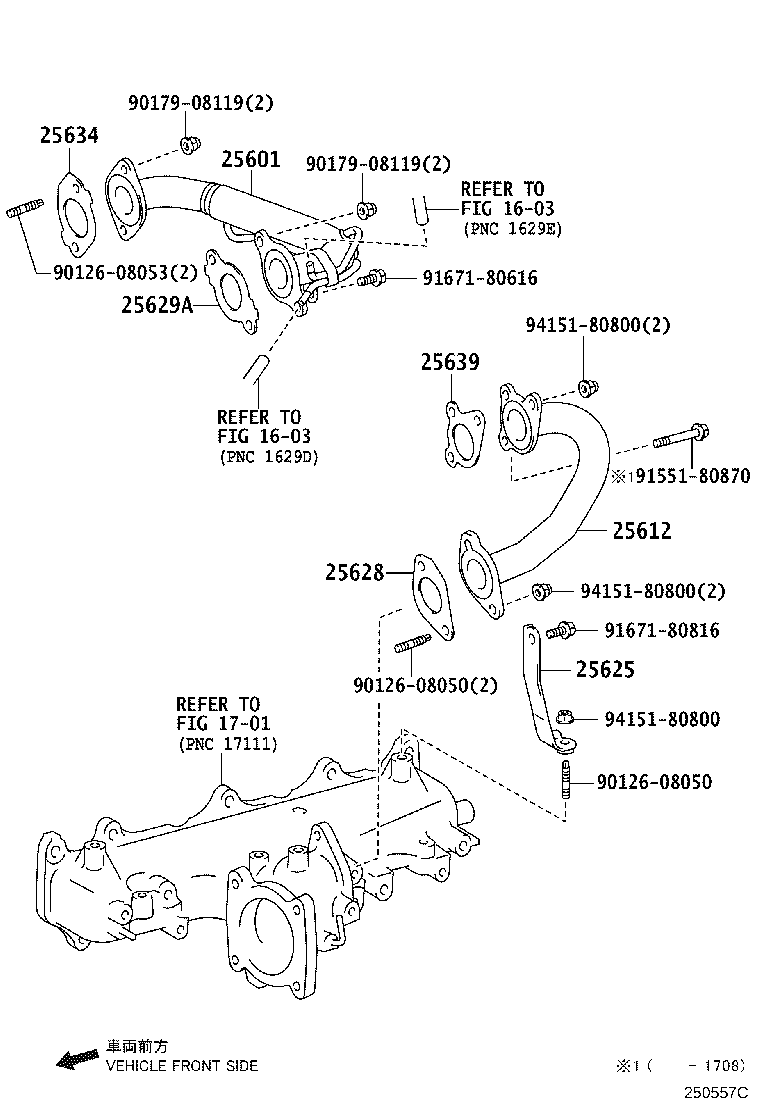

EGR PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25611-11060 |
1GDFTV..GDJ150 |
1 | ||
| 25612 - PIPE, EGR, NO.2 | ||||
| 25612-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 25628-11030 |
1GDFTV..GDJ150 |
1 | ||
| 25629A - GASKET, EGR PIPE, NO.2 | ||||
| 25629-11010 |
1GDFTV..GDJ150 |
1 | ||
| 25634 - GASKET, EGR PIPE | ||||
| 25634-11020 |
1GDFTV..GDJ150 |
1 | ||
| 25639 - GASKET, EGR PIPE, NO.3 | ||||
| 25639-11010 |
1GDFTV..GDJ150 |
1 | ||
| Common parts | ||||
| 90126-08050 | ||||
| 90126-08053 | ||||
| 90179-08119 | ||||
| 91551-80870 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
ILLUST NO. 2 OF 2(1708- )1GDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90126-08050 | ||||
| 90126-08053 | ||||
| 90179-08119 | ||||
| 91551-G0865 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||

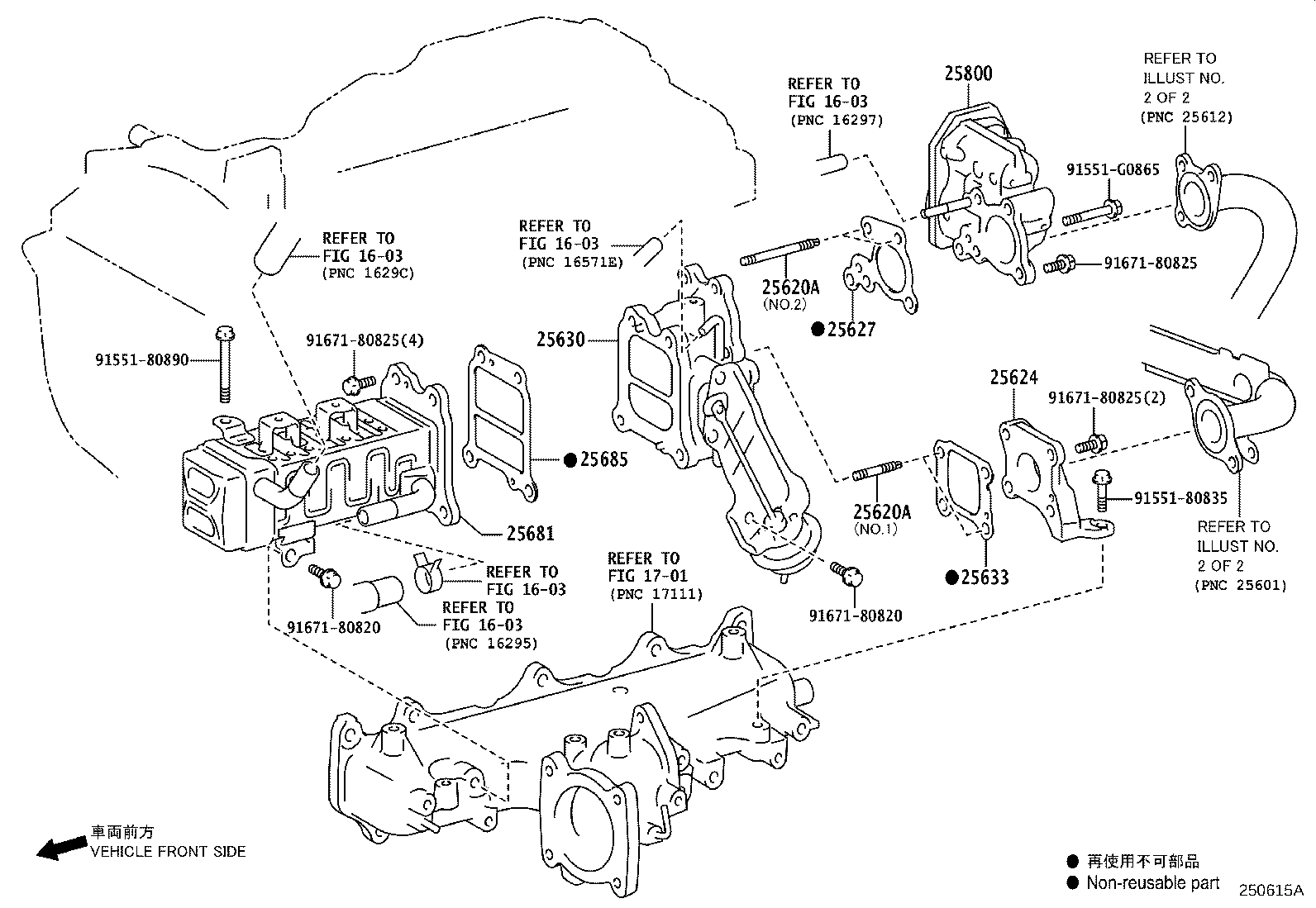

ILLUST NO. 1 OF 2(1708- )1GDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80835 | ||||
| 91551-80890 | ||||
| 91551-G0865 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
