GDJ150R-GKTEYQ (2015)
Toyota Land Cruiser Prado

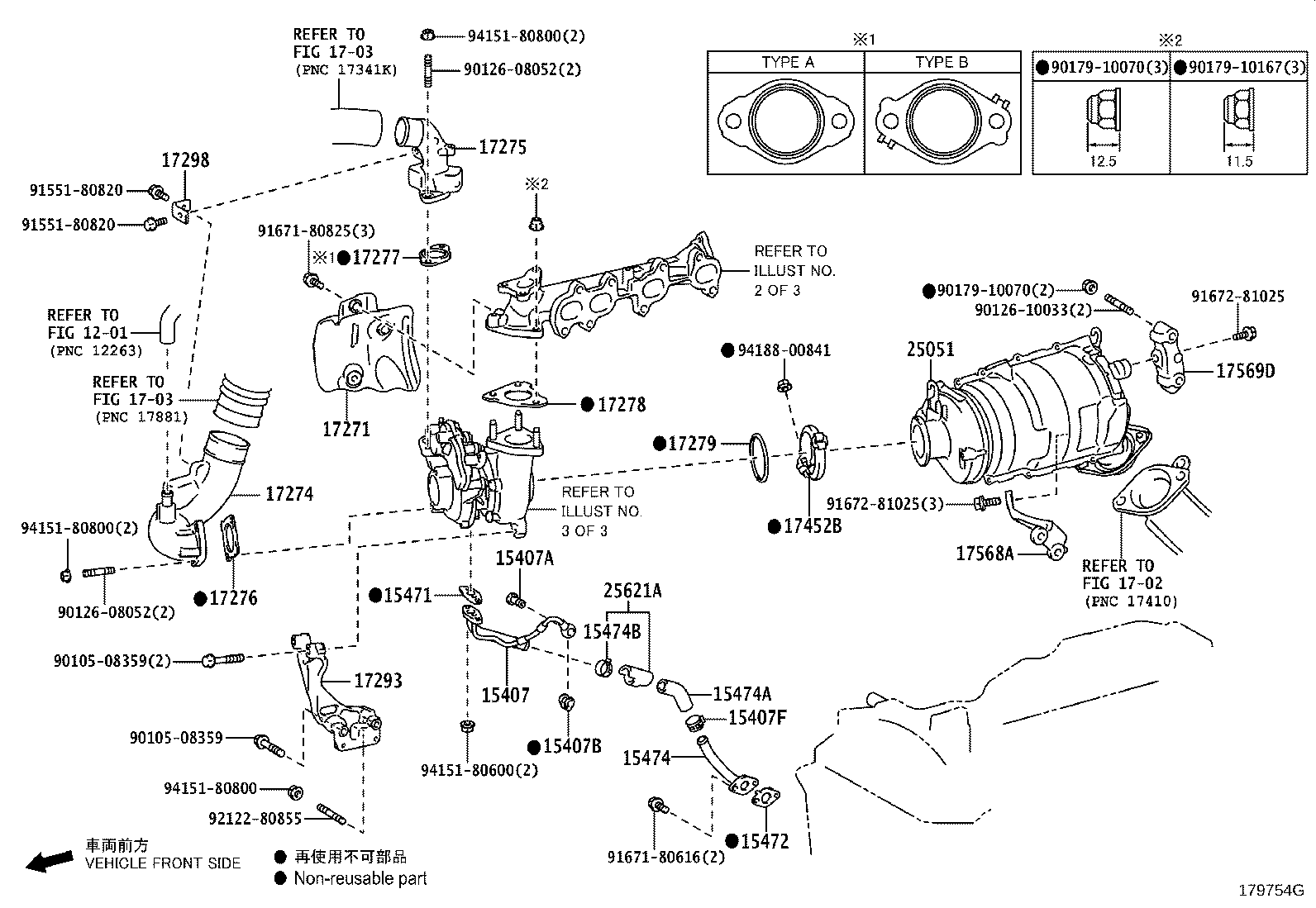

ILLUST NO. 1 OF 3(1506- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-11030 |
1GDFTV..GDJ150 |
1 | ||
| 15407-0E020 |
1GDFTV..GDJ150 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1GDFTV..GDJ150 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30004 |
1GDFTV..GDJ150 |
1 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV..GDJ150 |
2 | ||
| 15407F - CLAMP OR CLIP, OIL HOSE | ||||
| 96137-42501 |
1GDFTV..GDJ150 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-11020 |
1GDFTV..GDJ150 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-11010 |
1GDFTV..GDJ150 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-0E010 |
1GDFTV..GDJ150 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-11010 |
1GDFTV..GDJ150 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11390 |
1GDFTV..GDJ150 |
1 | ||
| 17568-11170 |
1GDFTV..GDJ150 NO.1 |
1 | ||
| 17569-11140 |
1GDFTV..GDJ150 NO.2 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11390 |
1GDFTV..GDJ150 |
1 | ||
| 17568-11170 |
1GDFTV..GDJ150 NO.1 |
1 | ||
| 17569-11140 |
1GDFTV..GDJ150 NO.2 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-11020 |
1GDFTV..GDJ150 |
1 | ||
| 17271-11021 |
1GDFTV..GDJ150 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-11020 |
1GDFTV..GDJ150 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-11010 |
1GDFTV..GDJ150 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-67010 |
1GDFTV..GDJ150 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| 17277-11030 |
1GDFTV..GDJ150 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-11040 |
1GDFTV..GDJ150 |
1 | ||
| 17278-11041 |
1GDFTV..GDJ150 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-11020 |
1GDFTV..GDJ150 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-11011 |
1GDFTV..GDJ150 |
1 | ||
| 17293-11010 |
1GDFTV..GDJ150 |
1 | ||
| 17298 - STAY, COMPRESSOR ELBOW | ||||
| 17298-11010 |
1GDFTV..GDJ150 |
1 | ||
| 17452B - CLAMP, EXHAUST PIPE | ||||
| 17452-11070 |
1GDFTV..GDJ150 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-11050 |
1GDFTV..GDJ150 |
1 | ||
| Common parts | ||||
| 90105-08359 | ||||
| 90126-08052 | ||||
| 90126-08056 | ||||
| 90126-10033 | ||||
| 90179-08119 | ||||
| 90179-10070 | ||||
| 91551-80820 | ||||
| 91671-80616 | ||||
| 91671-80825 | ||||
| 91672-81025 | ||||
| 92122-80855 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1702 | ||||
| 1703 | ||||
ILLUST NO. 3 OF 3(1506- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-60011 |
1GDFTV..GDJ150 |
1 | ||
| 04175-60012 |
1GDFTV..GDJ150 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-11080 |
1GDFTV..GDJ150 |
1 | ||
| 89674 - MOTOR, TURBOCHARGER VARIABLE NOZZLE | ||||
| 89674-71020 |
GDJ150 |
1 | ||
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||

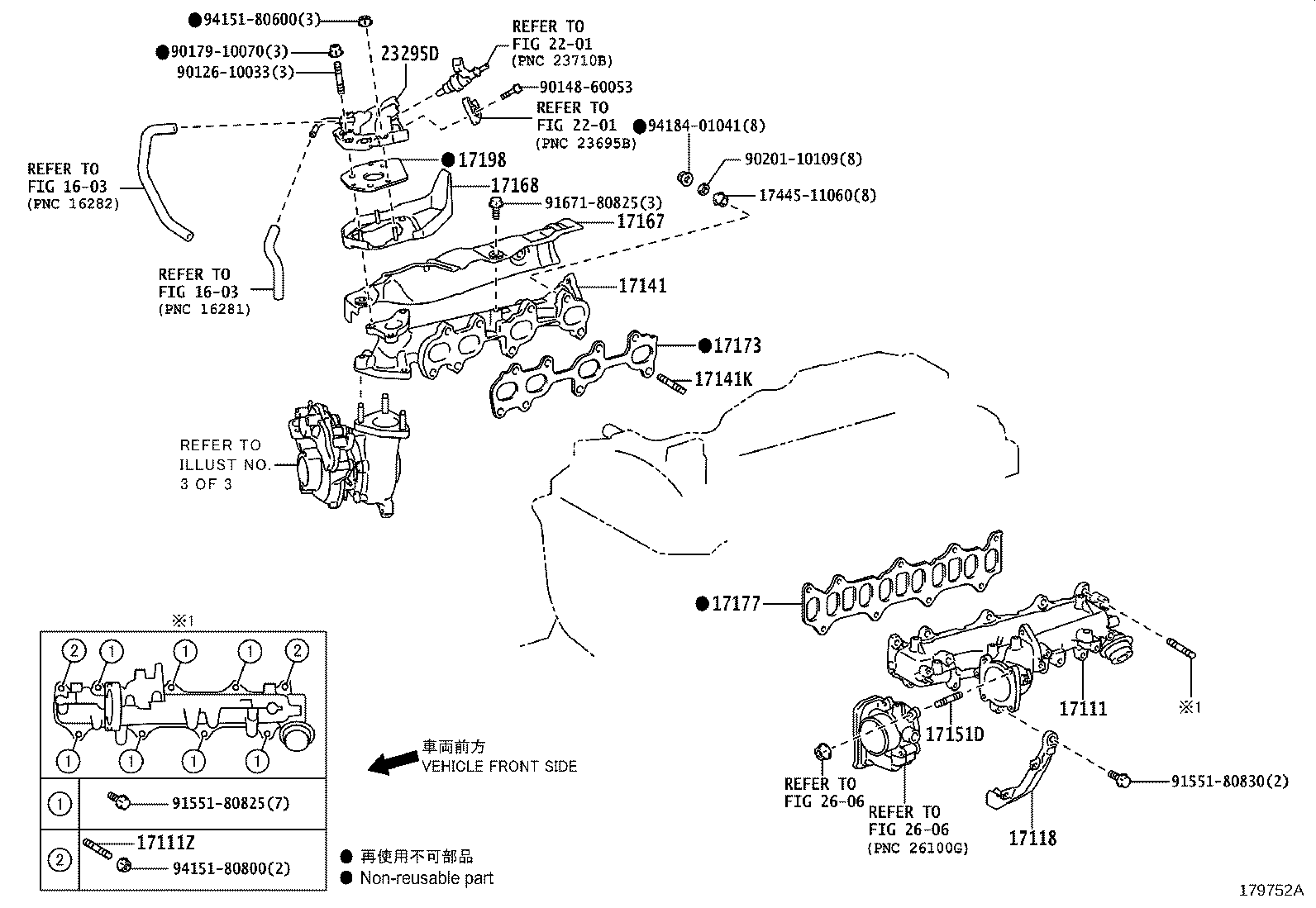

ILLUST NO. 2 OF 3(1506- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-11400 |
1GDFTV..GDJ150 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80822 |
1GDFTV..GDJ150 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-11390 |
1GDFTV..GDJ150 |
1 | ||
| 17568-11170 |
1GDFTV..GDJ150 NO.1 |
1 | ||
| 17569-11140 |
1GDFTV..GDJ150 NO.2 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-11360 |
1GDFTV..GDJ150 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10034 |
1GDFTV..GDJ150 |
8 | ||
| 17151D - BOLT, STUD(MANIFOLD TO THROTTLE BODY) | ||||
| 90126-06026 |
1GDFTV..GDJ150 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-11340 |
1GDFTV..GDJ150 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-11070 |
1GDFTV..GDJ150 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-11060 |
1GDFTV..GDJ150 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-11080 |
1GDFTV..GDJ150 |
1 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-11010 |
1GDFTV..GDJ150 |
1 | ||
| 23295D - HOLDER, INJECTOR, NO.1 | ||||
| 23295-11020 |
1GDFTV..GDJ150 |
1 | ||
| Common parts | ||||
| 17445-11060 | ||||
| 90126-10033 | ||||
| 90148-60053 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2201 | ||||
| 2606 | ||||
ILLUST NO. 2 OF 3(1708- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 17445-11060 | ||||
| 90126-10033 | ||||
| 90148-60053 | ||||
| 90179-10070 | ||||
| 90201-10109 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91671-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2201 | ||||
| 2606 | ||||
ILLUST NO. 1 OF 3(1708-1806)1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08359 | ||||
| 90126-08052 | ||||
| 90126-10033 | ||||
| 90179-10070 | ||||
| 90179-10167 | ||||
| 91551-80820 | ||||
| 91671-80616 | ||||
| 91671-80825 | ||||
| 91672-81025 | ||||
| 92122-80855 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1702 | ||||
| 1703 | ||||
ILLUST NO. 3 OF 3(1708- )1GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90523-04002 | ||||
| 91551-80614 | ||||
