GDJ150R-GKTEYN (2020)

Toyota Land Cruiser Prado

Production Aug 2020 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

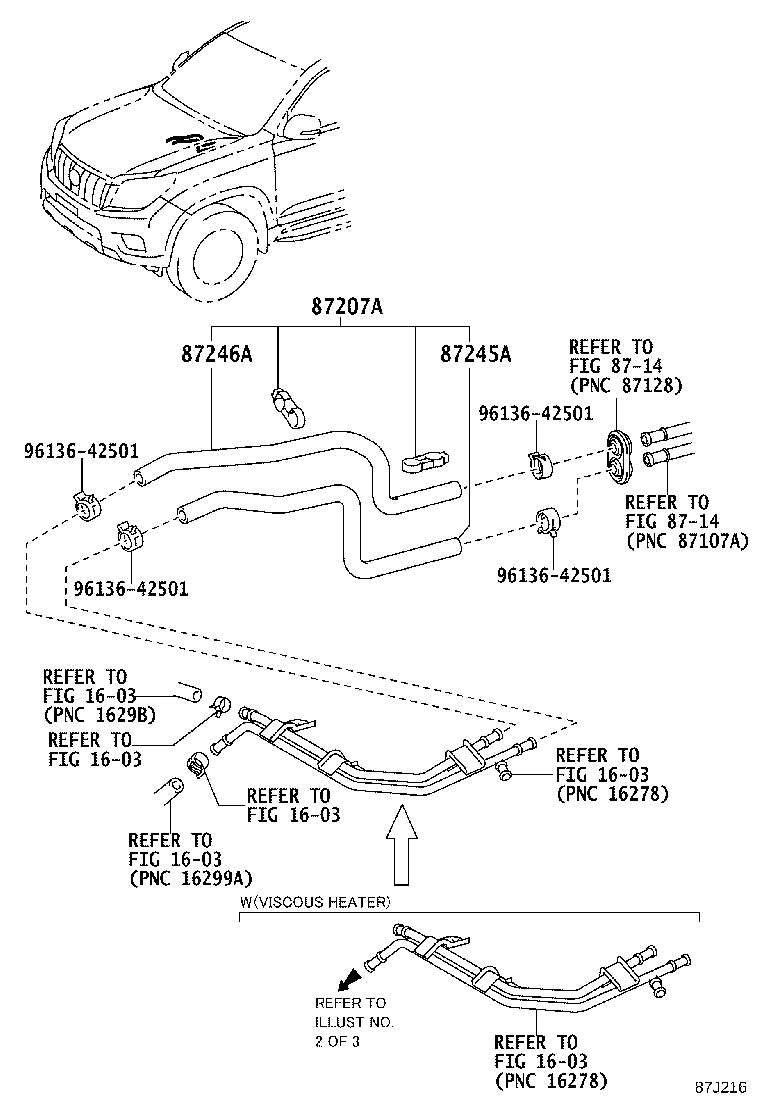

ILLUST NO. 1 OF 3(2008- )GDJ150

Click highlighted areas on diagram

FRONT,W(VISCOUS HEATER)

diagram 1603 1603 1603 1603 1603 1603 8714 8714 87207A 87245A 87246A 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-60520

GDJ150..SA

VX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

 1
87207-60520

GDJ150..SA

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL

 1
87209-60M00

GDJ150

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60N90

GDJ150

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60P00

GDJ150

 1
Common parts
96136-42501
Linked diagrams
1603
8714

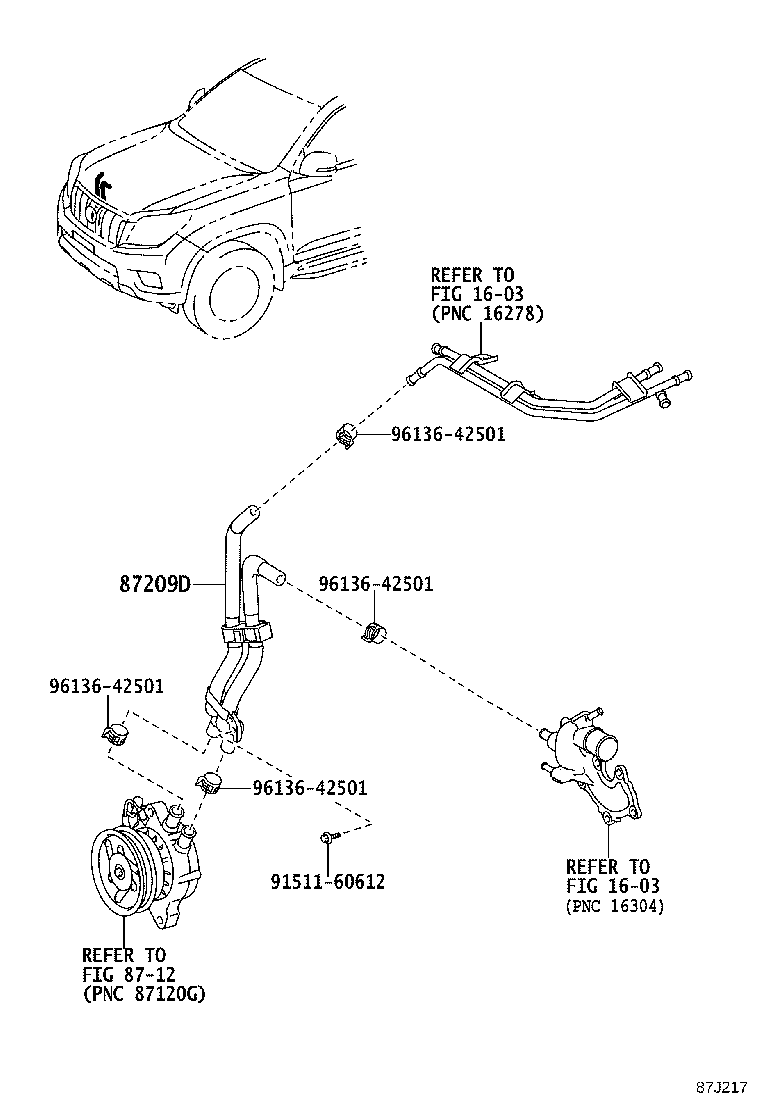

ILLUST NO. 3 OF 3(2008- )GDJ150

Click highlighted areas on diagram

FRONT,W(VISCOUS HEATER)

diagram 1603 1603 8712 87209D 9151160612 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
91511-60612
96136-42501
Linked diagrams
1603
8712
