GDJ150L-GKTEY (2020)

Toyota Land Cruiser Prado

Production Aug 2020 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

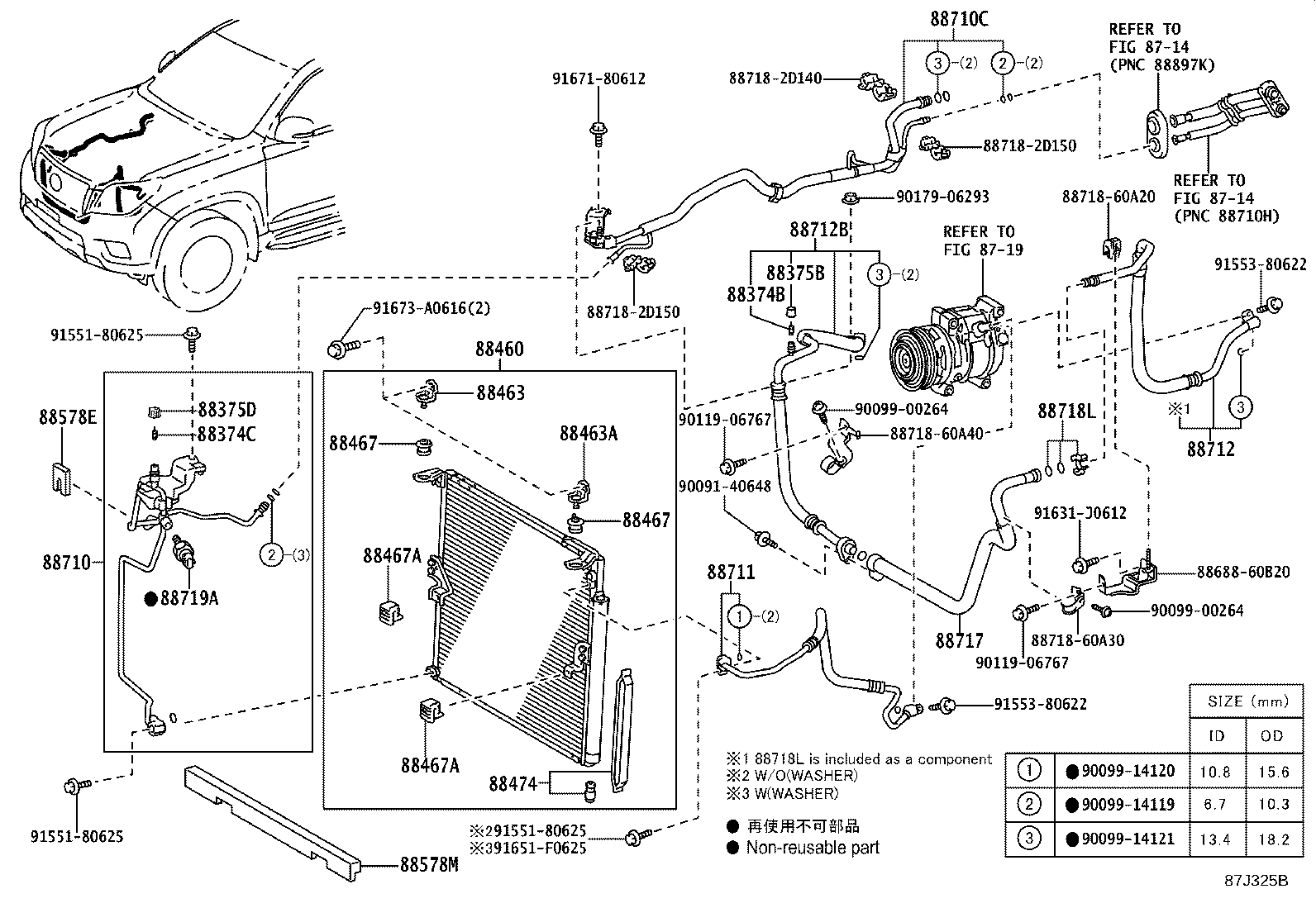

ILLUST NO. 2 OF 3(2008- )GDJ150..LHD

Click highlighted areas on diagram

FRONT,W/O(REAR)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 88710 88710C 88711 88712 88712B 88717 887182D140 887182D150 887182D150 8871860A20 8871860A30 8871860A40 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ150,KDJ150,LJ150,TRJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDJ150,KDJ150,LJ150,TRJ15#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88460 - CONDENSER ASSY, COOLER
88460-60440

GDJ150,TRJ15#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ150..6FC;GDJ150..6F..GEN

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60C60

GDJ150

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60F50

GDJ150..LHD..GEN

AIR CONDITIONER-DUAL(AUTO)

 1
88710-60F50

GDJ150..LHD..GEN

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88710-60F10

GDJ150..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60B00

GDJ150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60B40

GDJ150

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A70

GDJ150

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ150

 1
88718L - CLAMP, PIPING
88718-52280

GDJ150

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GRJ150..RHD;GDJ150,KDJ150

 1
Common parts
88688-60B20
88718-2D140
88718-2D150
88718-60A20
88718-60A30
88718-60A40
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

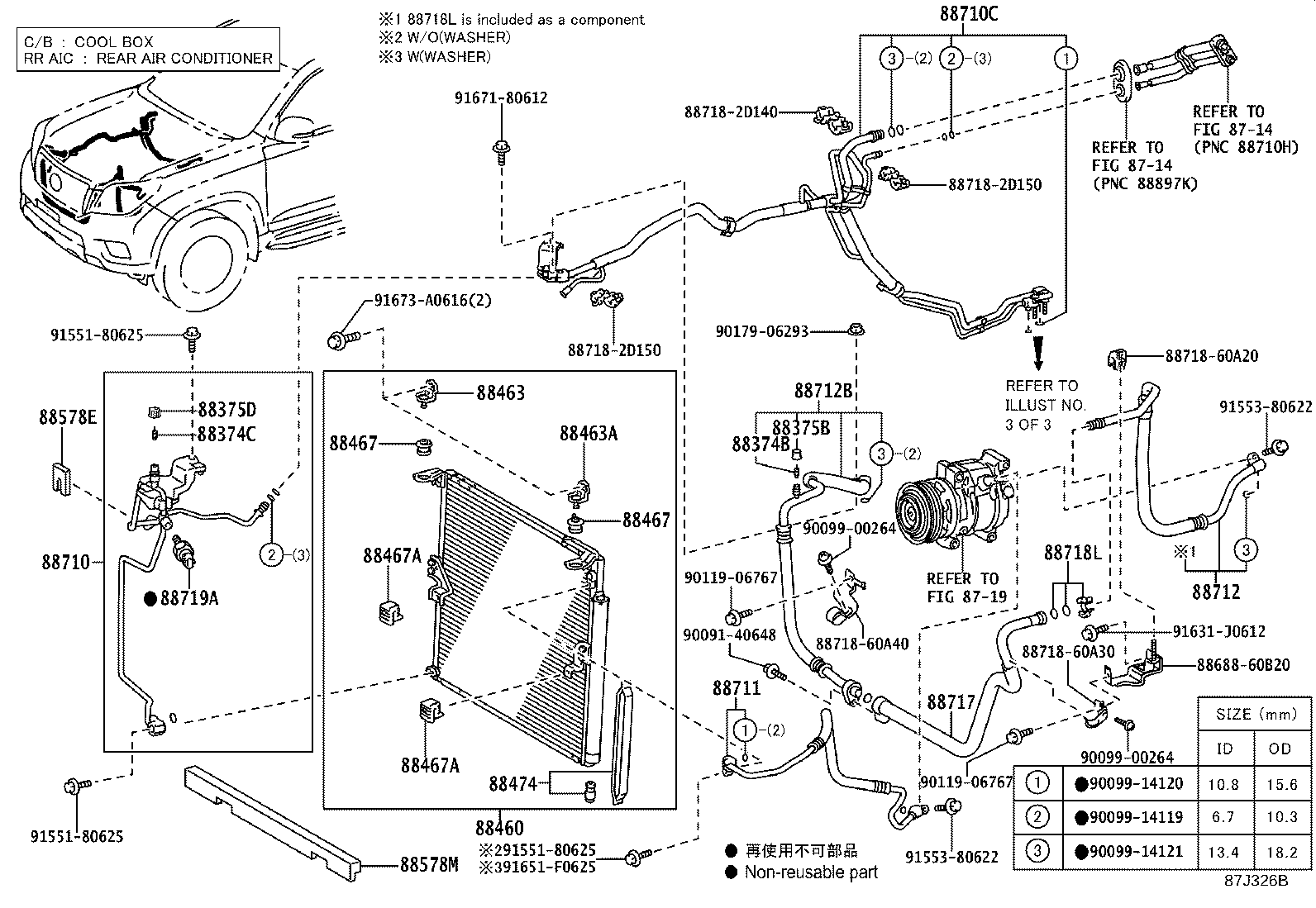

ILLUST NO. 2 OF 3(2008- )GDJ150..LHD

Click highlighted areas on diagram

FRONT,W(RR AIC) OR W(C/B & RR AIC)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 88710 88710C 88711 88712 88712B 88717 887182D140 887182D150 887182D150 8871860A20 8871860A30 8871860A40 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ150,KDJ150,LJ150,TRJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDJ150,KDJ150,LJ150,TRJ15#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88460 - CONDENSER ASSY, COOLER
88460-60440

GDJ150,TRJ15#

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ150..6FC;GDJ150..6F..GEN

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60C60

GDJ150

 1
88710C - TUBE ASSY, AIR CONDITIONER
88710-60F50

GDJ150..LHD..GEN

AIR CONDITIONER-DUAL(AUTO)

 1
88710-60F50

GDJ150..LHD..GEN

AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH

 1
88710-60F10

GDJ150..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60B00

GDJ150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60B40

GDJ150

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A70

GDJ150

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ150

 1
88718L - CLAMP, PIPING
88718-52280

GDJ150

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GRJ150..RHD;GDJ150,KDJ150

 1
Common parts
88688-60B20
88718-2D140
88718-2D150
88718-60A20
88718-60A30
88718-60A40
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719

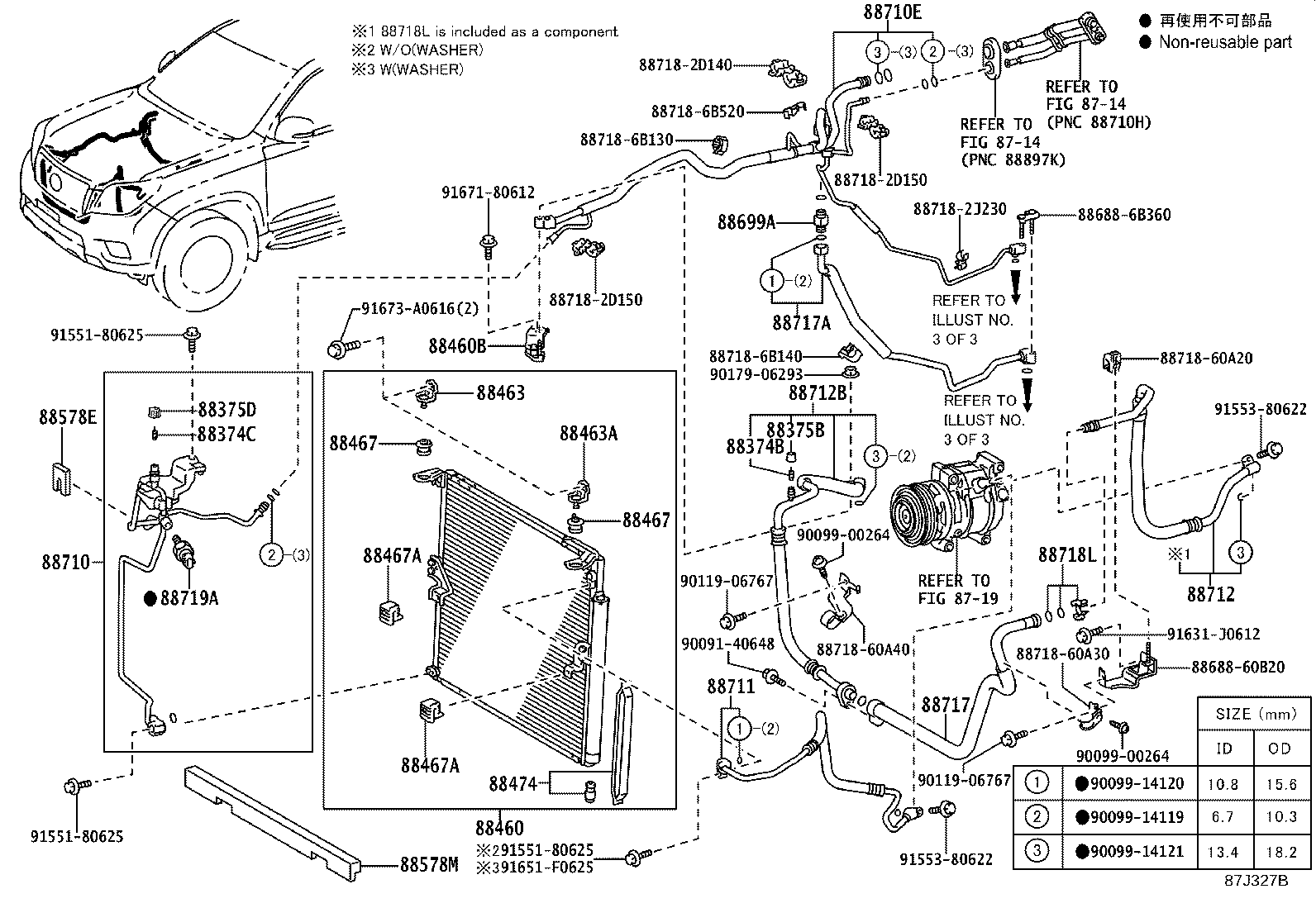

ILLUST NO. 2 OF 3(2008- )GDJ150..LHD

Click highlighted areas on diagram

FRONT,W(COOL BOX)

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88460B 88463 88463A 88467 88467 88467A 88467A 88474 88578E 88578M 8868860B20 886886B360 88699A 88710 88710E 88711 88712 88712B 88717 88717A 887182D140 887182D150 887182D150 887182J230 8871860A20 8871860A30 8871860A40 887186B130 887186B140 887186B520 88718L 88719A 9009140648 9009900264 9009900264 9009914119 9009914120 9009914121 9011906767 9011906767 9017906293 9155180625 9155180625 9155180625 9155380622 9155380622 91631J0612 91651F0625 9167180612 91673A0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GDJ150,KDJ150,LJ150,TRJ15#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GDJ150,KDJ150,LJ150,TRJ15#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88460 - CONDENSER ASSY, COOLER
88460-60440

GDJ150,TRJ15#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60B30

GDJ150..GCC,GEN

COOL BOX-WITH

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-60010

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-60020

GDJ150,GRJ150,KDJ150,TRJ15#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

GDJ150,GRJ150,KDJ150,TRJ15#

 2
88474 - DRYER, COOLER
88474-17010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-60540

GDJ150..6FC;GDJ150..6F..GEN

 1
88578M - PACKING, COOLING PIPE, NO.3
88578-60480

GDJ150..6FC;GDJ150..6F..GEN;GRJ150,LJ150,TRJ15#

 1
88699A - VALVE, AIR
88699-60010

GDJ150,GRJ150,KDJ150,LJ150,TRJ15#..GCC,GEN

COOL BOX-WITH

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-60C60

GDJ150

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60G00

GDJ150..LHD

COOL BOX-WITH

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60B00

GDJ150

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60B40

GDJ150

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-60A70

GDJ150

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-60B00

GDJ150

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60B30

GDJ150..LHD

COOL BOX-WITH

 1
88718L - CLAMP, PIPING
88718-52280

GDJ150

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

GRJ150..RHD;GDJ150,KDJ150

 1
Common parts
88688-60B20
88688-6B360
88718-2D140
88718-2D150
88718-2J230
88718-60A20
88718-60A30
88718-60A40
88718-6B130
88718-6B140
88718-6B520
90091-40648
90099-00264
90099-14119
90099-14120
90099-14121
90119-06767
90179-06293
91551-80625
91553-80622
91631-J0612
91651-F0625
91671-80612
91673-A0616
Linked diagrams
8714
8719
