GDJ150L-GKTEY (2020)

Toyota Land Cruiser Prado

Production Aug 2020 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )1GDFTV

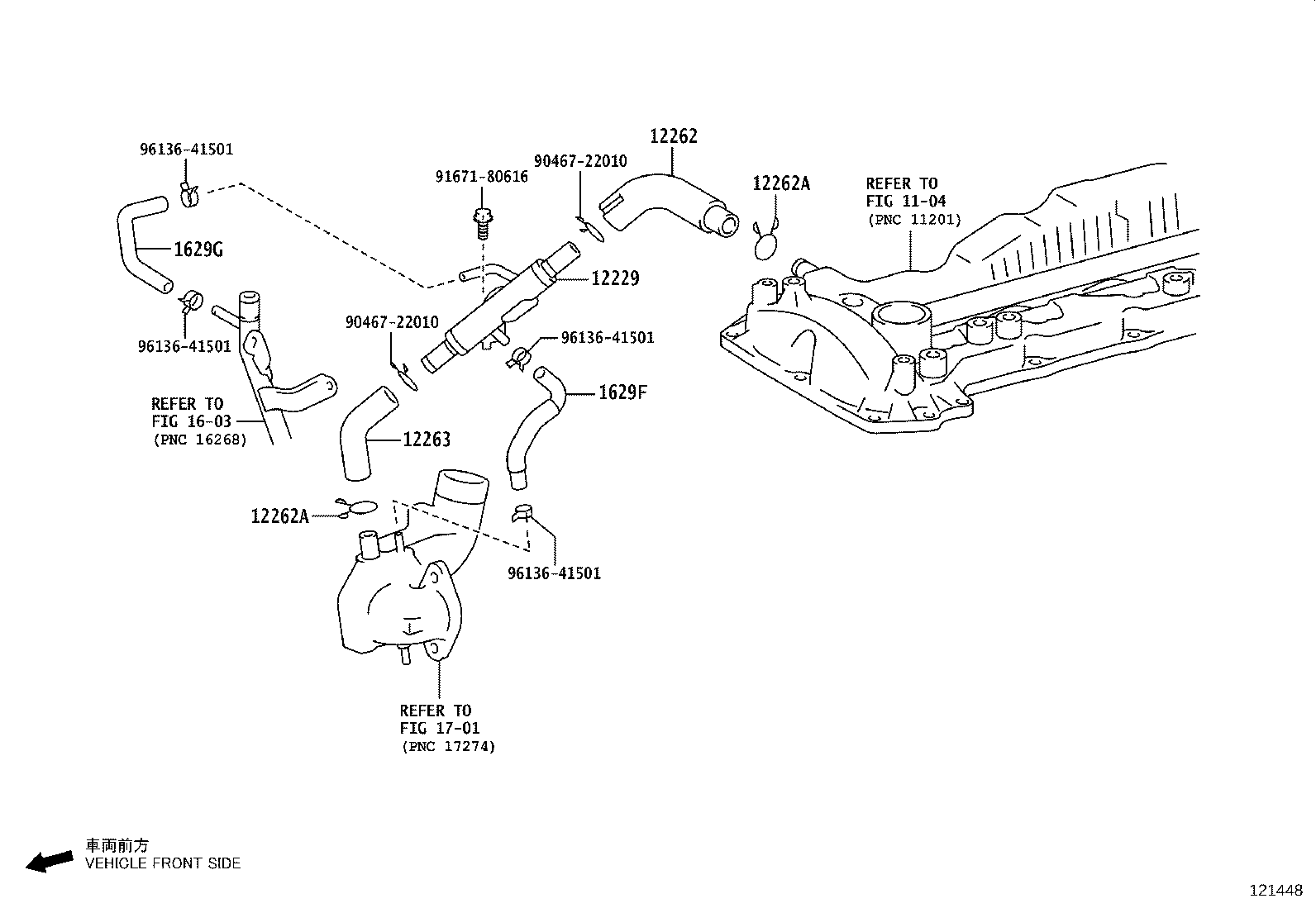

Click highlighted areas on diagram

COLD AREA SPEC

diagram 1104 12229 12262 12262A 12262A 12263 1603 1629F 1629G 1701 9046722010 9046722010 9167180616 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-11060

1GDFTV..GDJ150..LHD..GEN

MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC

 1
12229-11060

1GDFTV..GDJ150..LHD..6FC..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC

 1
12262 - HOSE, VENTILATION, NO.2
12262-11110

1GDFTV..GDJ150..LHD..6FC..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC

 1
12262-11110

1GDFTV..GDJ150..LHD..GEN

MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV..GDJ150

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-22005

1GDFTV..GDJ150

 2
12263 - HOSE, VENTILATION, NO.3
12263-11020

1GDFTV..GDJ150..LHD..6FC..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC

 1
12263-11020

1GDFTV..GDJ150..LHD..GEN

MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC

 1
1629F - HOSE, WATER BY-PASS, NO.19
1629F-11010

1GDFTV..GDJ150..LHD..6FC..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC

 1
1629F-11010

1GDFTV..GDJ150..LHD..GEN

MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC

 1
1629G - HOSE, WATER BY-PASS, NO.20
1629G-11010

1GDFTV..GDJ150..LHD..GEN

MONGOLIA OR AFGHANISTAN SPEC&COLD AREA SPEC

 1
1629G-11010

1GDFTV..GDJ150..LHD..6FC..GEN

GEORGIA,AZORES,TAJIKISTAN,ARMENIA SPEC&COLD AREA SPEC

 1
Common parts
90467-22010
91671-80616
96136-41501
Linked diagrams
1104
1603
1701
