Toyota Land cruiser 90 VZJ95 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER 90
VZJ95R-GKPEKQ (1996)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

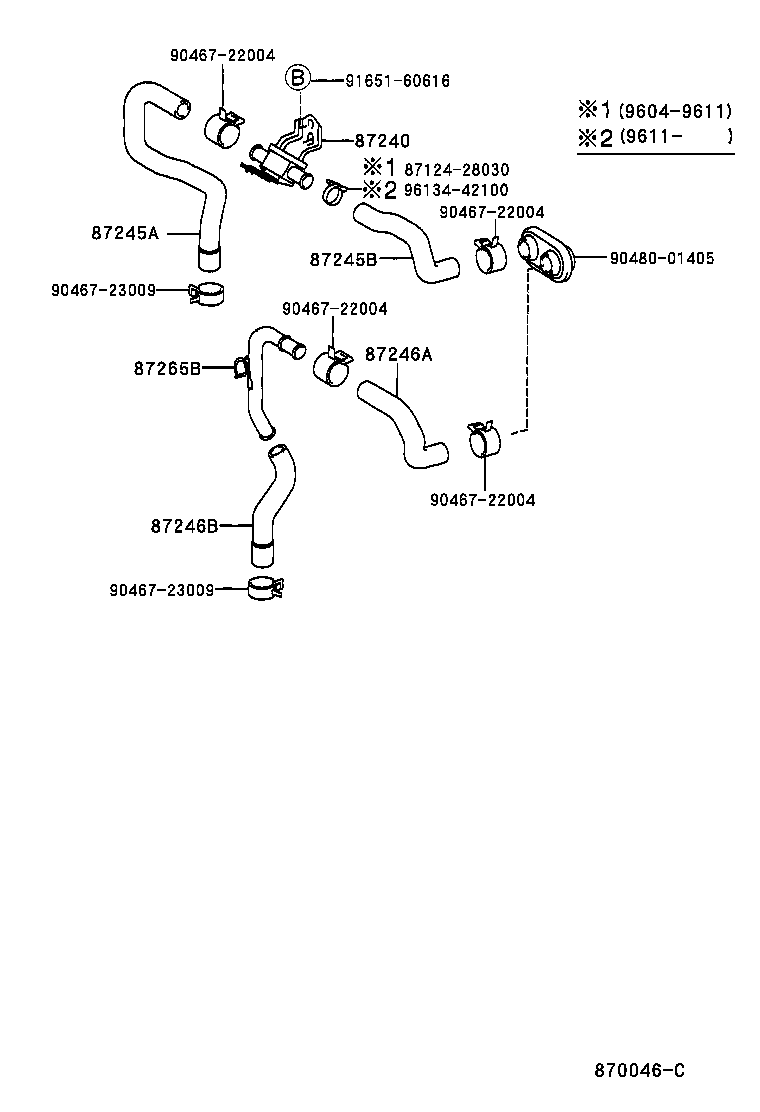

(9604- )VZJ95..ARL

Click highlighted areas on diagram

W/O(REAR HEATER)

Part #	Description	Period	Qty
87240 - VALVE ASSY, HEATER WATER
87240-35040	VZJ95..ARL	04/1996 - 06/1999	1
87240-35040	VZJ95..ARL	06/1999 - 09/2002	1
87245A - HOSE, HEATER WATER, INLET A
87245-60670	VZJ95..ARL	04/1996 - 07/1998	1
87245-3D160	VZJ95..ARL	06/1999 - 09/2002	1
87245-3D160	VZJ95..ARL	07/1998 - 06/1999	1
87245-35580	VZJ95..ARL W(REAR HEATER),*318	06/1999 - 09/2002	1
87245B - HOSE, HEATER WATER, INLET B
87245-35610	VZJ95..ARL	06/1996 - 06/1999	1
87245-35590	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
87245-35610	VZJ95..ARL	06/1999 - 09/2002	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35400	VZJ95..ARL	04/1996 - 06/1999	1
87245-35400	VZJ95..ARL	06/1999 - 09/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60860	VZJ95..ARL	06/1999 - 09/2002	1
87245-60860	VZJ95..ARL	04/1996 - 06/1999	1
87245-35600	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-60150	VZJ95..ARL	04/1996 - 06/1999	1
87265-60150	VZJ95..ARL	06/1999 - 09/2002	1
87265-35290	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
Common parts
87124-28030
90467-22004
90467-23009
90480-01405
91651-60616
96134-42100

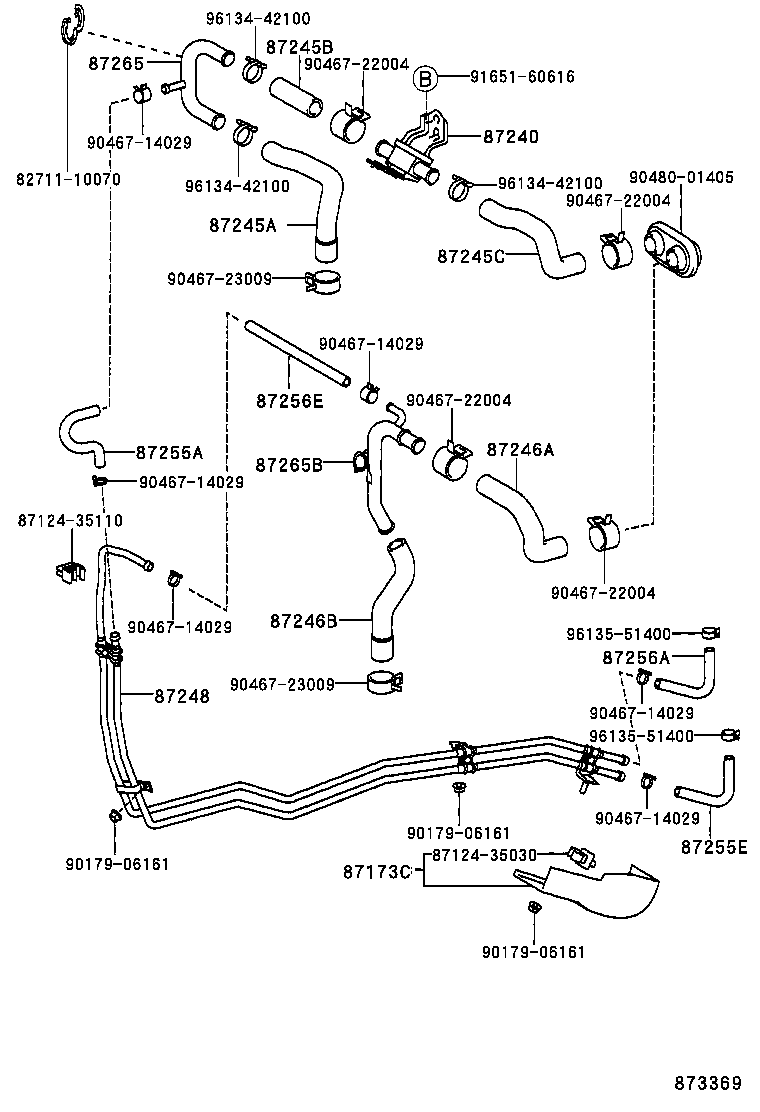

(9906- )VZJ95..ARL

Click highlighted areas on diagram

W(REAR HEATER)

Part #	Description	Period	Qty
87240 - VALVE ASSY, HEATER WATER
87240-35040	VZJ95..ARL	04/1996 - 06/1999	1
87240-35040	VZJ95..ARL	06/1999 - 09/2002	1
87245A - HOSE, HEATER WATER, INLET A
87245-60670	VZJ95..ARL	04/1996 - 07/1998	1
87245-3D160	VZJ95..ARL	06/1999 - 09/2002	1
87245-3D160	VZJ95..ARL	07/1998 - 06/1999	1
87245-35580	VZJ95..ARL W(REAR HEATER),*318	06/1999 - 09/2002	1
87245B - HOSE, HEATER WATER, INLET B
87245-35610	VZJ95..ARL	06/1996 - 06/1999	1
87245-35590	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
87245-35610	VZJ95..ARL	06/1999 - 09/2002	1
87245C - HOSE, HEATER WATER ,INLET C
87245-35610	VZJ95..ARL	06/1999 - 09/2002	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35400	VZJ95..ARL	04/1996 - 06/1999	1
87245-35400	VZJ95..ARL	06/1999 - 09/2002	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60860	VZJ95..ARL	06/1999 - 09/2002	1
87245-60860	VZJ95..ARL	04/1996 - 06/1999	1
87245-35600	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
87248 - PIPE SUB-ASSY, WATER
87248-35030	VZJ95..ARL	06/1999 - 09/2002	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-35740	VZJ95..ARL	06/1999 - 09/2002	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99555-10200	VZJ95..ARL *H,L=200	06/1999 - 09/2002	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35280	VZJ95..ARL	06/1999 - 09/2002	1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-60150	VZJ95..ARL	04/1996 - 06/1999	1
87265-60150	VZJ95..ARL	06/1999 - 09/2002	1
87265-35290	VZJ95..ARL W(REAR HEATER)	06/1999 - 09/2002	1
Common parts
82711-10070
87124-35030
87124-35110
90179-06161
90460-14002
90467-14029
90467-22004
90467-23009
90480-01405
91651-60616
96134-42100
96135-51400

VZJ95R-GKPEKQ (1996)

(9604- )VZJ95..ARL

(9906- )VZJ95..ARL
