Toyota Land cruiser 90 VZJ95 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
GR
LAND CRUISER 90
VZJ95R-GKPEKQ (1996)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9906- )VX..ARL

Click highlighted areas on diagram

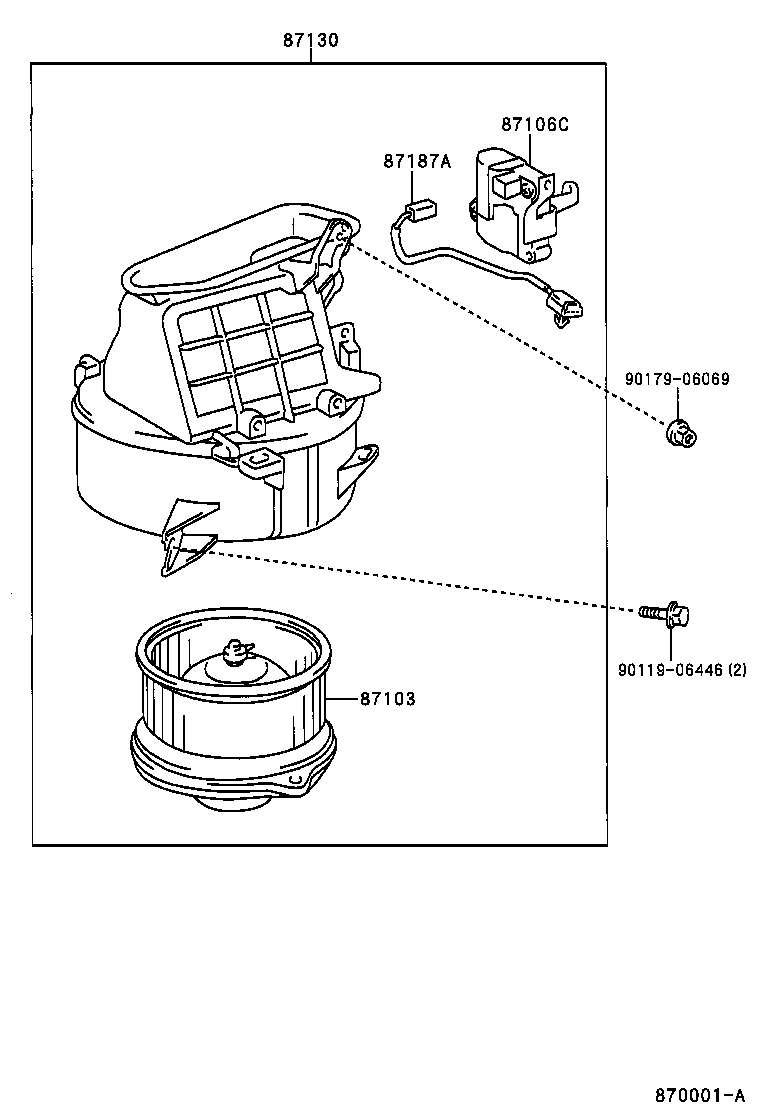

FRONT BLOWER(AUTO A/C)

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-35010	LJ9#,RZJ95,VZJ95..RHD	04/1996 - 07/1998	1
87103-35030	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	08/1998 - 09/2002	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-35050	VZJ95..VX..ARL	06/1999 - 10/2001	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-35130	VZJ95..VX..ARL W(DUAL AUTOMATIC AIR CONDITIONER)	06/1999 - 09/2002	1
87130-35050	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
87187A - WIRE, BLOWER MOTOR LEAD
87187-35030	VZJ95..VX..ARL	06/1999 - 10/2001	1
Common parts
90119-06446
90179-06069

ILLUST NO. 2 OF 3(9604- )RHD

Click highlighted areas on diagram

FRONT RADIATOR(MANUAL A/C)

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60380	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 08/2000	1
87111 - CASE, HEATER
87111-35160	VZJ95..VX..ARL	06/1999 - 08/2000	1
87111-35140	LJ9#,RZJ95,VZJ95..RHD UPPER	06/1999 - 08/2000	1
87111 - CASE, HEATER
87111-35160	VZJ95..VX..ARL	06/1999 - 08/2000	1
87111-35140	LJ9#,RZJ95,VZJ95..RHD UPPER	06/1999 - 08/2000	1
87114 - COVER, HEATER
87114-60010	VZJ95..VX..ARL	06/1999 - 09/2002	1
87150 - RADIATOR ASSY, HEATER
87150-60440	LJ9#,RZJ95,VZJ95..RHD	04/1996 - 04/1997	1
87150-60691	VZJ95..VX..ARL	08/2000 - 09/2002	1
87150-60690	VZJ95..VX..ARL	06/1999 - 08/2000	1
87150-60441	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1997 - 08/2000	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35010	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 08/2000	1
87156-35020	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1996 - 08/2000	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35010	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 08/2000	1
87156-35020	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1996 - 08/2000	1
Common parts
87124-20020
87124-35040
87398-89104
90119-06446
90168-50013
90179-06069
93313-14008
93560-55014
96761-19016
Linked diagrams
8715

ILLUST NO. 3 OF 3(9604- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty	Price
Common parts
87124-20020
87124-35050
87124-35060
87399-35020
90301-15015
90480-01674
93313-14008
93319-14012
93540-24016
93560-15012

ILLUST NO. 1 OF 3(9604- )

Click highlighted areas on diagram

FRONT BLOWER(MANUAL A/C)

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-35010	LJ9#,RZJ95,VZJ95..RHD	04/1996 - 07/1998	1
87103-35030	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	08/1998 - 09/2002	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-35130	VZJ95..VX..ARL W(DUAL AUTOMATIC AIR CONDITIONER)	06/1999 - 09/2002	1
87130-35050	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
Common parts
87124-20020
90119-06446
90179-06069

ILLUST NO. 2 OF 3(9906- )RZJ95..RHD..GEN ; (9906- )KZJ95,LJ9#,VZJ95..RHD..ARL,GEN

Click highlighted areas on diagram

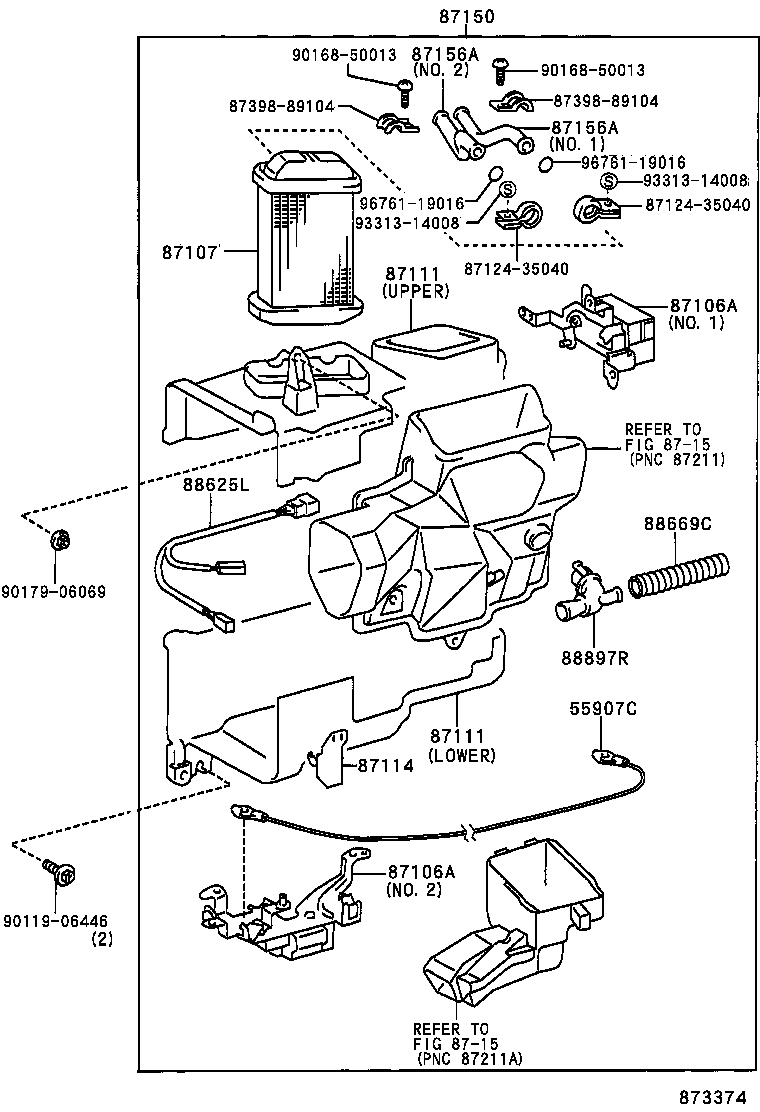

FRONT RADIATOR(AUTO A/C)

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-35020	VZJ95..VX..ARL	06/1999 - 09/2002	1
87106A - SERVO SUB-ASSY, DAMPER
87106-35030	VZJ95..VX..ARL NO.1	06/1999 - 09/2002	1
87106-35040	VZJ95..VX..ARL NO.2	06/1999 - 08/2000	1
87106-35110	VZJ95..VX..ARL NO.2	08/2000 - 09/2002	1
87106A - SERVO SUB-ASSY, DAMPER
87106-35030	VZJ95..VX..ARL NO.1	06/1999 - 09/2002	1
87106-35040	VZJ95..VX..ARL NO.2	06/1999 - 08/2000	1
87106-35110	VZJ95..VX..ARL NO.2	08/2000 - 09/2002	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-60380	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 08/2000	1
87111 - CASE, HEATER
87111-35160	VZJ95..VX..ARL	06/1999 - 08/2000	1
87111-35140	LJ9#,RZJ95,VZJ95..RHD UPPER	06/1999 - 08/2000	1
87111 - CASE, HEATER
87111-35160	VZJ95..VX..ARL	06/1999 - 08/2000	1
87111-35140	LJ9#,RZJ95,VZJ95..RHD UPPER	06/1999 - 08/2000	1
87114 - COVER, HEATER
87114-60010	VZJ95..VX..ARL	06/1999 - 09/2002	1
87150 - RADIATOR ASSY, HEATER
87150-60440	LJ9#,RZJ95,VZJ95..RHD	04/1996 - 04/1997	1
87150-60691	VZJ95..VX..ARL	08/2000 - 09/2002	1
87150-60690	VZJ95..VX..ARL	06/1999 - 08/2000	1
87150-60441	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1997 - 08/2000	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35010	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 08/2000	1
87156-35020	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1996 - 08/2000	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35010	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 08/2000	1
87156-35020	LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1996 - 08/2000	1
88669C - HOSE, AIR
88669-60020	VZJ95..VX..ARL	06/1999 - 09/2002	1
Common parts
87124-35040
87398-89104
90119-06446
90168-50013
90179-06069
93313-14008
96761-19016
Linked diagrams
8715

VZJ95R-GKPEKQ (1996)

ILLUST NO. 1 OF 3(9906- )VX..ARL

ILLUST NO. 2 OF 3(9604- )RHD

ILLUST NO. 3 OF 3(9604- )

ILLUST NO. 1 OF 3(9604- )

ILLUST NO. 2 OF 3(9906- )RZJ95..RHD..GEN ; (9906- )KZJ95,LJ9#,VZJ95..RHD..ARL,GEN
