Toyota Land cruiser 90 VZJ95 ABS & VSC

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9604- )RZJ95..VX ; (9604- )KZJ9#,VZJ9# ;(9604- )RZJ9#..GX..ARL,GCC,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
85999M - BRACKET, RELAY
85999-35070	RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)	04/1996 - 09/2002	1
85999-35070	RZJ95..RHD..ATM;KZJ95,VZJ95..RHD;RZJ95..RHD..MTM..GX..(ARL,GEN)	06/1999 - 09/2002	1
88263A - RELAY, SKID CONTROL
88263-24020	KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
88263-35090	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
88263-35090	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89441A - SENSOR, DECELERATION
89440-60110	VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
89440-35030	RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX	04/1996 - 06/1999	1
89440-60100	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-60110	VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
89540-60100	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(DIFFERENTIAL LOCK)	06/1999 - 12/2999	1
89540-60120	VZJ95..ATM..ARL WIDE PACKAGE & W(VSC & ACTIVE TRC)	06/1999 - 09/2002	1
89540-60051	RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX	06/1998 - 06/1999	1
89540-60050	KZJ9#,RZJ9#,VZJ9#..GX,VX	04/1996 - 06/1998	1
89542 - SENSOR, SPEED, FRONT RH
89542-35050	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89542-35050	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89543 - SENSOR, SPEED, FRONT LH
89543-35050	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89543-35050	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89545 - SENSOR, SPEED, REAR RH
89545-35030	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89545-35030	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89546 - SENSOR, SPEED, REAR LH
89546-35030	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89546-35030	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
Common parts
88266-35520
88266-35530
89515-35010
89515-35020
91621-J0612
91626-G0616
91641-C0618
91641-H0820
91651-B0814

(9906- )KZJ95,VZJ95..ATM..ARL

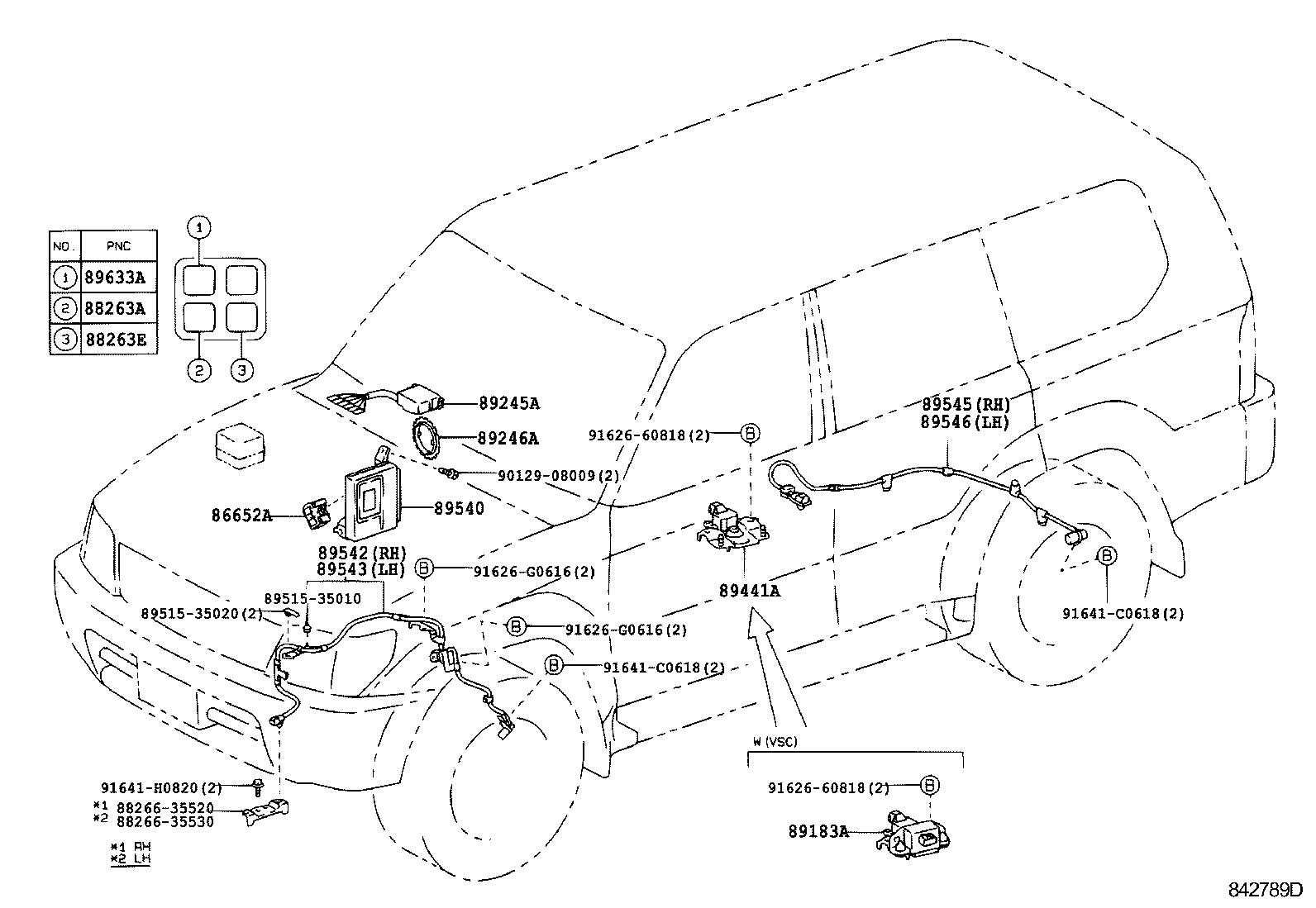

Click highlighted areas on diagram

W(ACTIVE TRC)

Part #	Description	Period	Qty
86652A - BUZZER ASSY, SKID CONTROL
86652-51010	KZJ95,VZJ95..ATM..ARL	06/1999 - 09/2002	1
88263A - RELAY, SKID CONTROL
88263-24020	KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
88263-35090	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
88263-35090	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
88263E - RELAY, SKID CONTROL NO.2
88263-24030	KZJ95,VZJ95..ATM..ARL	06/1999 - 09/2002	1
89441A - SENSOR, DECELERATION
89440-60110	VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
89440-35030	RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX	04/1996 - 06/1999	1
89440-60100	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-60110	VZJ95..ATM..ARL W(ACTIVE TRC)	06/1999 - 09/2002	1
89540-60100	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN) W(DIFFERENTIAL LOCK)	06/1999 - 12/2999	1
89540-60120	VZJ95..ATM..ARL WIDE PACKAGE & W(VSC & ACTIVE TRC)	06/1999 - 09/2002	1
89540-60051	RZJ90..EFI..GEN;KZJ9#,RZJ95,VZJ9#..GX,VX	06/1998 - 06/1999	1
89540-60050	KZJ9#,RZJ9#,VZJ9#..GX,VX	04/1996 - 06/1998	1
89542 - SENSOR, SPEED, FRONT RH
89542-35050	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89542-35050	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89543 - SENSOR, SPEED, FRONT LH
89543-35050	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89543-35050	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89545 - SENSOR, SPEED, REAR RH
89545-35030	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89545-35030	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89546 - SENSOR, SPEED, REAR LH
89546-35030	RZJ90..GX..GEN;RZJ95..GX..CBR;KZJ9#,VZJ9#..EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
89546-35030	RZJ95..ATM;KZJ9#,VZJ9#;RZJ9#..MTM..GX..(ARL,GCC,GEN)	06/1999 - 12/2999	1
89633A - RELAY, TRACTION CONTROL OR VSC
89633-24010	KZJ95,VZJ95..ATM..ARL	06/1999 - 09/2002	1
Common parts
88266-35520
88266-35530
89515-35010
89515-35020
90129-08009
91626-60818
91626-G0616
91641-C0618
91641-H0820

VZJ95R-GKPEKQ (1996)

(9604- )RZJ95..VX ; (9604- )KZJ9#,VZJ9# ;(9604- )RZJ9#..GX..ARL,GCC,GEN

(9906- )KZJ95,VZJ95..ATM..ARL
