Toyota Land cruiser 90 VZJ95 WIRING & CLAMP

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF10(9604- )VZJ9#

Click highlighted areas on diagram

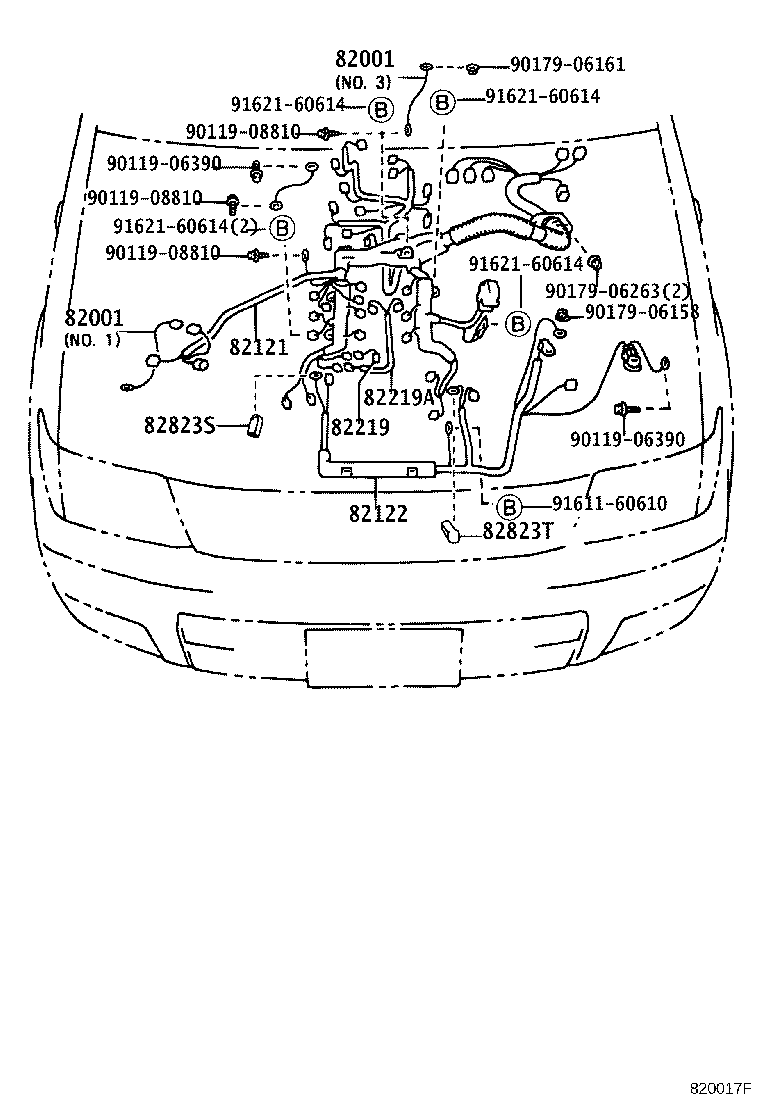

ENGINE WIRE

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07380	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.3	04/1996 - 09/2002	1
90980-07381	VZJ9# NO.2	04/1996 - 10/1999	1
90980-07380	VZJ9#	06/1999 - 12/2999	1
90980-07206	RZJ9#,VZJ9# NO.1	06/1999 - 12/2999	1
90980-07381	VZJ9# NO.2	06/1999 - 12/2999	1
90980-07206	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 09/2002	1
82001 - CABLE, BOND, NO.1
90980-07380	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.3	04/1996 - 09/2002	1
90980-07381	VZJ9# NO.2	04/1996 - 10/1999	1
90980-07380	VZJ9#	06/1999 - 12/2999	1
90980-07206	RZJ9#,VZJ9# NO.1	06/1999 - 12/2999	1
90980-07381	VZJ9# NO.2	06/1999 - 12/2999	1
90980-07206	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1	04/1996 - 09/2002	1
82121 - WIRE, ENGINE
82121-60750	VZJ95..ATM..ARL	04/1996 - 06/1999	1
82121-6A190	VZJ95..ATM..ARL	06/1999 - 09/2002	1
82122 - WIRE, ENGINE, NO.2
82122-35450	VZJ9#	04/1996 - 10/1999	1
82122-35450	VZJ9#	06/1999 - 12/2999	1
82219 - WIRE, THERMO SENSOR
82219-34020	VZJ9#	04/1996 - 10/1999	1
82219-34020	VZJ9#	06/1999 - 12/2999	1
82219A - WIRE, SENSOR
82219-34010	VZJ9#	06/1999 - 12/2999	1
82219-34010	VZJ9#	04/1996 - 10/1999	1
82823S - CAP, STARTER TERMINAL
82823-35050	VZJ9#	04/1996 - 10/1999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
Common parts
90119-06390
90119-08810
90179-06158
90179-06161
90179-06263
91611-60610
91621-60614

ILLUST NO. 4 OF10(9604- )ARL,GCC

Click highlighted areas on diagram

SEAT WIRE

Part #	Description	Period	Qty
82167 - WIRE, SEAT, NO.1
82167-60150	VZJ95..VX..ARL LEATHER PACKAGE	04/1996 - 06/1999	1
82167-60151	VZJ95..VX..ARL LEATHER PACKAGE	06/1999 - 09/2002	1
82167-60130	KZJ95,RZJ95,VZJ9#..ARL,GCC	06/1999 - 09/2002	1
82167 - WIRE, SEAT, NO.1
82167-60150	VZJ95..VX..ARL LEATHER PACKAGE	04/1996 - 06/1999	1
82167-60151	VZJ95..VX..ARL LEATHER PACKAGE	06/1999 - 09/2002	1
82167-60130	KZJ95,RZJ95,VZJ9#..ARL,GCC	06/1999 - 09/2002	1
82168 - WIRE, SEAT, NO.2
82168-60060	VZJ95..VX..ARL LEATHER PACKAGE	04/1996 - 06/1999	1
82168-60061	VZJ95..VX..ARL LEATHER PACKAGE	06/1999 - 09/2002	1
82168 - WIRE, SEAT, NO.2
82168-60060	VZJ95..VX..ARL LEATHER PACKAGE	04/1996 - 06/1999	1
82168-60061	VZJ95..VX..ARL LEATHER PACKAGE	06/1999 - 09/2002	1

ILLUST NO. 9 OF10(9604- )ARL,CO,GCC,GEN

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF10(9604-9906) ; (9906- )CO

Click highlighted areas on diagram

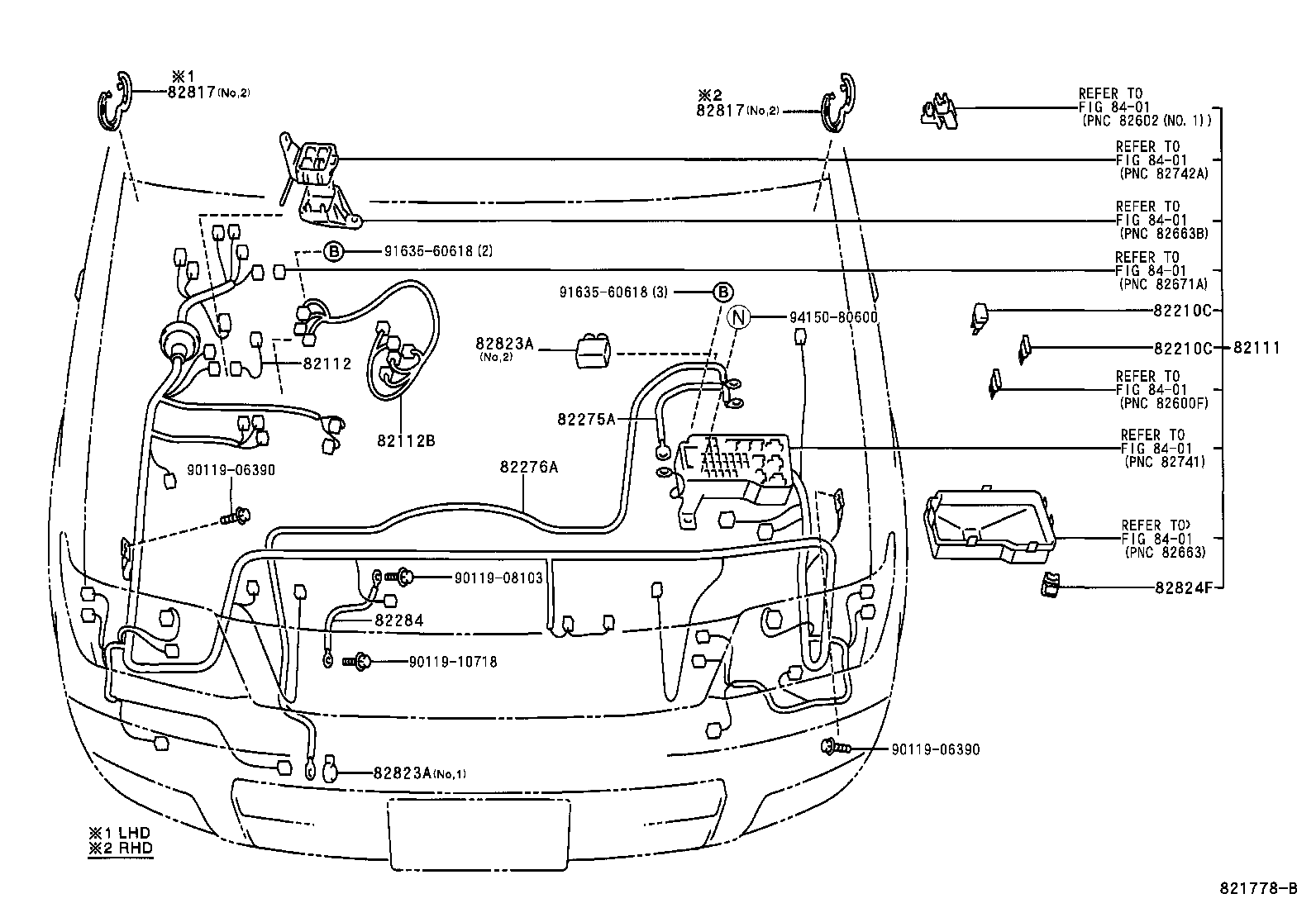

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-60690	RZJ95,VZJ95..RHD..EFI W(ABS)	04/1996 - 01/1998	1
82111-60680	RZJ95,VZJ95..RHD..EFI	04/1996 - 01/1998	1
82111-60681	RZJ95,VZJ95..RHD..EFI	01/1998 - 06/1999	1
82111-60691	RZJ95,VZJ95..RHD..EFI W(ABS)	01/1998 - 06/1999	1
82111-60682	VZJ95..ARL;RZJ95..RHD..(GX,STD)	06/1999 - 08/2000	1
82111-60692	RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS)	06/1999 - 08/2000	1
82115-60060	VZJ95..ATM..ARL W(ABS & VSC & ACTIVE TRC)	06/1999 - 08/2000	1
82111-60693	RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS)	08/2000 - 09/2002	1
82115-60061	VZJ95..ATM..ARL W(ABS & VSC & ACTIVE TRC)	08/2000 - 09/2002	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-60110	VZJ95..ARL	04/1996 - 06/1999	1
82112-60110	VZJ95..ARL	06/1999 - 09/2002	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
82817-32840	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1997 - 09/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
82817-32840	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1997 - 09/2002	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82824F - CONNECTOR, WIRING HARNESS
82824-30180	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82824-30180	RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA	06/1999 - 12/2999	1
Common parts
90119-06390
90119-08103
90119-10718
91651-A0616
94150-80600
Linked diagrams
8401

ILLUST NO. 5 OF10(9604- )

Click highlighted areas on diagram

ROOF,DOOR,FLOOR WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-60230	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR)	04/1996 - 06/1999	1
82151-60231	RZJ95..RHD..(GX,VX)..(GEN,MA);KZJ95,LJ95,VZJ95..RHD..(GX,VX) W(POWER DOOR LOCK---W(POWER WINDOW))	06/1999 - 09/2002	1
82152 - WIRE, FRONT DOOR, LH
82506-60030	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR)	04/1996 - 01/1998	1
82506-60031	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR)	01/1998 - 06/1999	1
82506-60032	KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(POWER DOOR LOCK---W(POWER WINDOW))	06/1999 - 09/2002	1
82153 - WIRE, REAR DOOR, NO.1
82153-60071	VZJ95..ARL;KZJ95,LJ95,RZJ95..GX W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER)	06/1996 - 06/1999	1
82153-60070	KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER)	04/1996 - 06/1996	1
82154 - WIRE, REAR DOOR, NO.2
82153-60071	VZJ95..ARL;KZJ95,LJ95,RZJ95..GX W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER)	06/1996 - 06/1999	1
82153-60070	KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER)	04/1996 - 06/1996	1
82161 - WIRE, FLOOR
82161-60650	LJ95..LHD;VZJ95..ARL;RZJ95..ARL,GCC;VZJ95..ATM..GCC W(ABS,FUEL TANK=90L+70L & REAR DIFFERENTIAL LOCK)	04/1996 - 01/1998	1
82161-60680	VZJ95..VX..ARL W(DUAL MANUAL AIR CONDITIONER)	04/1996 - 01/1998	1
82161-60670	VZJ95..ARL;LJ95..LHD..GX;RZJ95..ARL,GCC;VZJ95..ATM..GCC ALGERIA SPEC & W(DUAL MANUAL AIR CONDITIONER) OR CHINA SPEC & W(DUAL MANUAL AIR CONDITIONE	04/1996 - 01/1998	1
82161-60580	VZJ95..ATM..VX W(SEAT HEATER)	04/1996 - 01/1998	1
82161-60651	LJ95..LHD;VZJ95..ARL;RZJ95..ARL,GCC;VZJ95..ATM..GCC W(ABS,FUEL TANK=90L+70L & REAR DIFFERENTIAL LOCK)	01/1998 - 06/1999	1
82161-60671	LJ95..LHD..GX;VZJ95..ATM..GCC;RZJ95,VZJ95..ARL ALGERIA SPEC & W(DUAL MANUAL AIR CONDITIONER) OR CHINA SPEC & W(DUAL MANUAL AIR CONDITIONE	01/1998 - 08/1998	1
82161-60581	VZJ95..ATM..VX..(ARL,GCC) W(SEAT HEATER)	01/1998 - 06/1999	1
82161-60681	VZJ95..VX..ARL W(DUAL MANUAL AIR CONDITIONER)	01/1998 - 06/1999	1
82161-60671	VZJ95..ARL;LJ95..LHD..GX;RZJ95..ARL,GCC;VZJ95..ATM..GCC ALGERIA SPEC & W(DUAL MANUAL AIR CONDITIONER) OR CHINA SPEC & W(DUAL MANUAL AIR CONDITIONE	08/1998 - 06/1999	1
82161-60830	VZJ95..VX..ARL W(DETACHABLE SECOND SEAT)	06/1999 - 08/2000	1
82161-60652	KZJ95,RZJ95,VZJ95..ARL	06/1999 - 09/2002	1
82161-60831	VZJ95..VX..ARL W(DETACHABLE SECOND SEAT)	08/2000 - 09/2002	1
82162 - WIRE, FLOOR, NO.2
82162-60520	RZJ95,VZJ95..ARL	04/1996 - 01/1998	1
82162-60360	VZJ95..ARL;RZJ95..ARL,GCC;VZJ95..ATM..GCC W(ABS) & CHINA SPEC	04/1996 - 01/1998	1
82162-60550	LJ95..LHD;RZJ95,VZJ95..ARL W(ABS)	04/1996 - 01/1998	1
82162-60540	RZJ95,VZJ95..ARL W(ABS & FUEL TANK=90L+70L)	04/1996 - 01/1998	1
82162-60521	RZJ95,VZJ95..ARL	01/1998 - 06/1999	1
82162-60541	RZJ95,VZJ95..ARL W(ABS & FUEL TANK=90L+70L)	01/1998 - 06/1999	1
82162-60551	LJ95..LHD;RZJ95,VZJ95..ARL W(ABS)	01/1998 - 06/1999	1
82162-60361	VZJ95..ARL;RZJ95..ARL,GCC;VZJ95..ATM..GCC W(ABS) & CHINA SPEC	01/1998 - 06/1999	1
82162-60522	VZJ95..ARL	06/1999 - 07/1999	1
82162-60542	KZJ95,RZJ95,VZJ95..ARL W(ABS & FUEL SUB-TANK)	06/1999 - 09/2002	1
82162-60552	KZJ95,RZJ95,VZJ95..ARL W(FUEL SUB TANK)	06/1999 - 08/2000	1
82162-60770	KZJ95,RZJ95,VZJ95..ARL W(ABS)	06/1999 - 09/2002	1
82162-60553	KZJ95,RZJ95,VZJ95..ARL W(FUEL SUB TANK)	08/2000 - 09/2002	1
82164 - WIRE, FRAME
82164-60220	RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L)	04/1996 - 01/1998	1
82164-60180	VZJ95..ATM..GCC;RZJ95,VZJ95..ARL;KZJ9#,RZJ9#..CBR,TD W(ABS & REAR DIFFERENTIAL LOCK)	04/1996 - 06/1999	1
82164-60210	RZJ95,VZJ95..EFI..(ARL,GCC) W(ABS & FUEL TANK=90L+70L)	04/1996 - 06/1999	1
82164-60221	RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L)	01/1998 - 06/1999	1
82164-60222	RZJ95,VZJ95..ARL,GCC,GEN W(FUEL SUB TANK)	06/1999 - 09/2002	1
82164-60211	RZJ95,VZJ95..ARL,GCC,GEN W(ABS & FUEL SUB-TANK) OR W(DIFFERENTIAL LOCK & FUEL SUB-TANK)	06/1999 - 09/2002	1
82165 - WIRE, FRAME, NO.2
82165-60120	VZJ95;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82165-60120	RZJ95,VZJ95	06/1999 - 12/2999	1
82166 - WIRE, CONSOLE BOX
82166-60020	VZJ95..ATM..GCC;LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(DUAL MANUAL AIR CONDITIONER,REAR HEATER & SEAT HEATER)	04/1996 - 09/2002	1
82171 - WIRE, ROOF, NO.1
82171-60610	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(ROOF RAIL)	04/1996 - 07/1996	1
82171-60560	LJ95,RZJ95,VZJ95..RHD	04/1996 - 06/1999	1
82171-60590	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(SUN ROOF)	04/1996 - 06/1999	1
82171-60680	LJ95,RZJ95,VZJ95..RHD..(GX,VX) W(ROOF RAIL)	07/1996 - 06/1999	1
82171-60890	VZJ95..VX..ARL W(ROOF RAIL)	06/1999 - 09/2002	1
82171-60820	VZJ95..VX..ARL	06/1999 - 09/2002	1
82171-60850	VZJ95..VX..ARL W(SUN ROOF)	06/1999 - 09/2002	1
82172 - WIRE, ROOF, NO.2
82172-60070	KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	1
82172-60070	LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)	04/1996 - 09/2002	1
82173 - WIRE, ROOF, NO.3
82173-60050	KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	1
82173-60050	LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN)	04/1996 - 09/2002	1
82184 - WIRE, BACK DOOR, NO.1
82184-60170	KZJ9#,LJ9#,RZJ9#,VZJ9# W(HIGH MOUNT STOP LAMP,REAR WINDOW DEFOGGER & REAR WINDOW WIPER)	04/1996 - 01/1998	1
82184-60171	KZJ9#,LJ9#,RZJ9#,VZJ9# W(HIGH MOUNT STOP LAMP,REAR WINDOW DEFOGGER & REAR WINDOW WIPER)	01/1998 - 06/1999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-60030	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82186-60030	RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#	06/1999 - 12/2999	1
Common parts
82713-60010
90119-06390
90119-08A30
90179-06161
90269-04010
90950-01234

ILLUST NO. 7 OF10(9604- )

Click highlighted areas on diagram

COWL WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82711-10330
82711-16130
82711-1E040
82711-1E320
82711-2A630
82711-60580
82711-95711
82715-35290
82715-35640
82715-60870
82715-60880
91616-60616

ILLUST NO. 8 OF10(9604- )ARL,CO,GCC,GEN

Click highlighted areas on diagram

ROOF,FLOOR,DOOR WIRE CLAMPS & BKTS

Part #	Description	Period	Qty	Price
Common parts
82711-1E340
82711-2A720
82711-3H630
82715-60250

ILLUST NO. 6 OF10(9604- )VZJ9#

Click highlighted areas on diagram

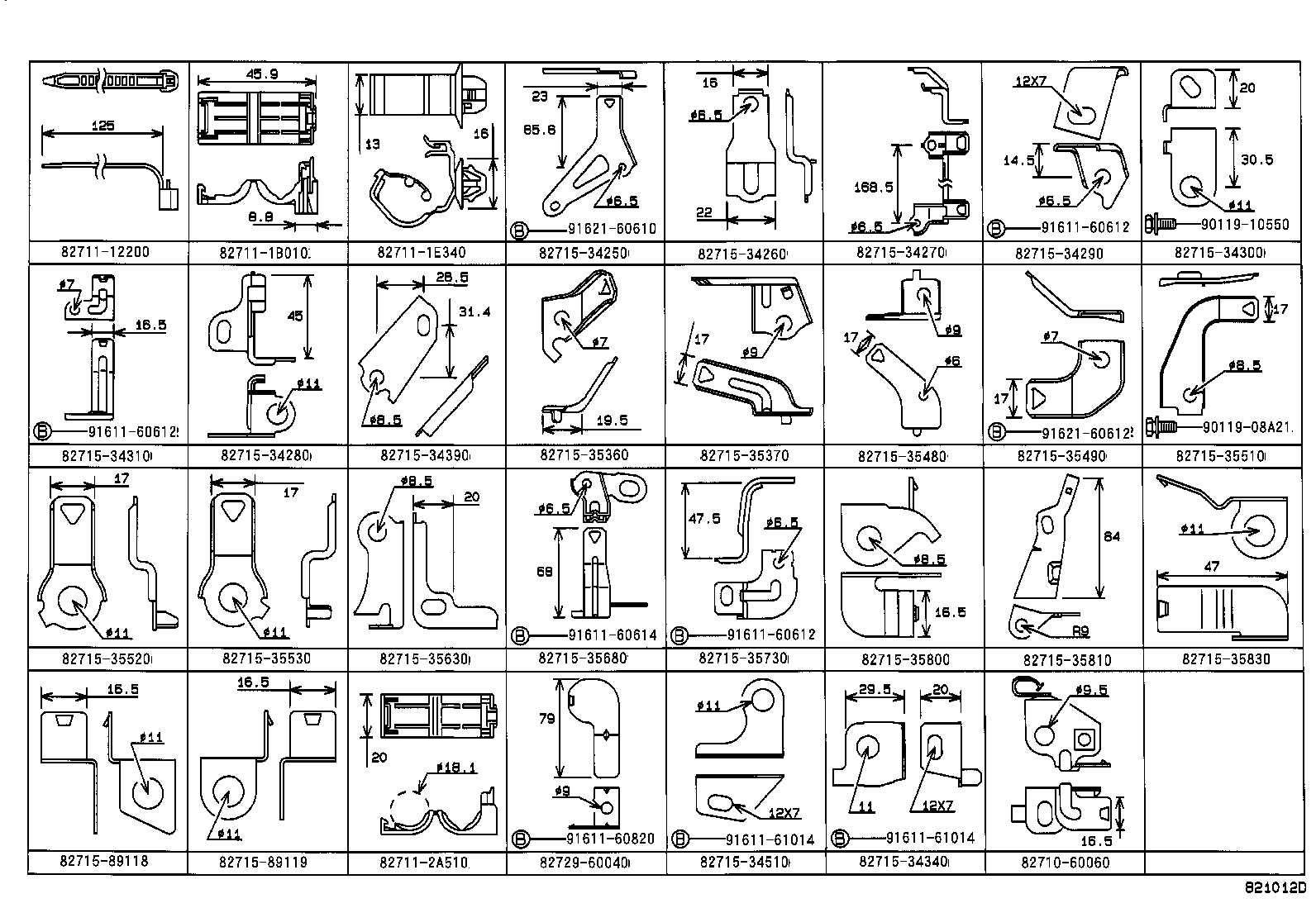

ENGINE WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82710-60060
82711-12200
82711-1B010
82711-1E340
82711-2A510
82715-34250
82715-34260
82715-34270
82715-34280
82715-34290
82715-34300
82715-34310
82715-34340
82715-34390
82715-34510
82715-35360
82715-35370
82715-35480
82715-35490
82715-35510
82715-35520
82715-35530
82715-35630
82715-35680
82715-35730
82715-35800
82715-35810
82715-35830
82715-89118
82715-89119
82729-60040
90119-08A21
90119-10550
91611-60612
91611-60614
91611-60820
91611-61014
91621-60610
91621-60612

ILLUST NO. 6 OF10(9604- )ARL,CO,GCC,GEN

Click highlighted areas on diagram

ENGINE ROOM WIRE CLAMPS & BRACKETS

Part #	Description	Period	Qty	Price
Common parts
82711-34310
82711-35420
82715-22070
82715-35620
82715-60280
82715-60890
90179-06110
91626-60616
91666-60618

ILLUST NO. 1 OF10(9906- )RZJ9#,VZJ9#

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-60690	RZJ95,VZJ95..RHD..EFI W(ABS)	04/1996 - 01/1998	1
82111-60680	RZJ95,VZJ95..RHD..EFI	04/1996 - 01/1998	1
82111-60681	RZJ95,VZJ95..RHD..EFI	01/1998 - 06/1999	1
82111-60691	RZJ95,VZJ95..RHD..EFI W(ABS)	01/1998 - 06/1999	1
82111-60682	VZJ95..ARL;RZJ95..RHD..(GX,STD)	06/1999 - 08/2000	1
82111-60692	RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS)	06/1999 - 08/2000	1
82115-60060	VZJ95..ATM..ARL W(ABS & VSC & ACTIVE TRC)	06/1999 - 08/2000	1
82111-60693	RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS)	08/2000 - 09/2002	1
82115-60061	VZJ95..ATM..ARL W(ABS & VSC & ACTIVE TRC)	08/2000 - 09/2002	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-60110	VZJ95..ARL	04/1996 - 06/1999	1
82112-60110	VZJ95..ARL	06/1999 - 09/2002	1
82112B - WIRE, ENGINE ROOM, NO.2
82112-60361	KZJ95,VZJ95..ATM..ARL	08/2000 - 09/2002	1
82112-60360	KZJ95,VZJ95..ATM..ARL	06/1999 - 08/2000	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
82817-32840	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1997 - 09/2002	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
82817-32840	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2	04/1997 - 09/2002	1
82824F - CONNECTOR, WIRING HARNESS
82824-30180	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82824-30180	RZJ90..CO;RZJ95..RHD..ATM;RZJ95..RHD..MTM..GX..(ARL,GEN);KZJ9#,LJ9#,VZJ95..ARL,CO,GEN,MA	06/1999 - 12/2999	1
Common parts
90119-06390
90119-08103
90119-10718
91635-60618
94150-80600
Linked diagrams
8401

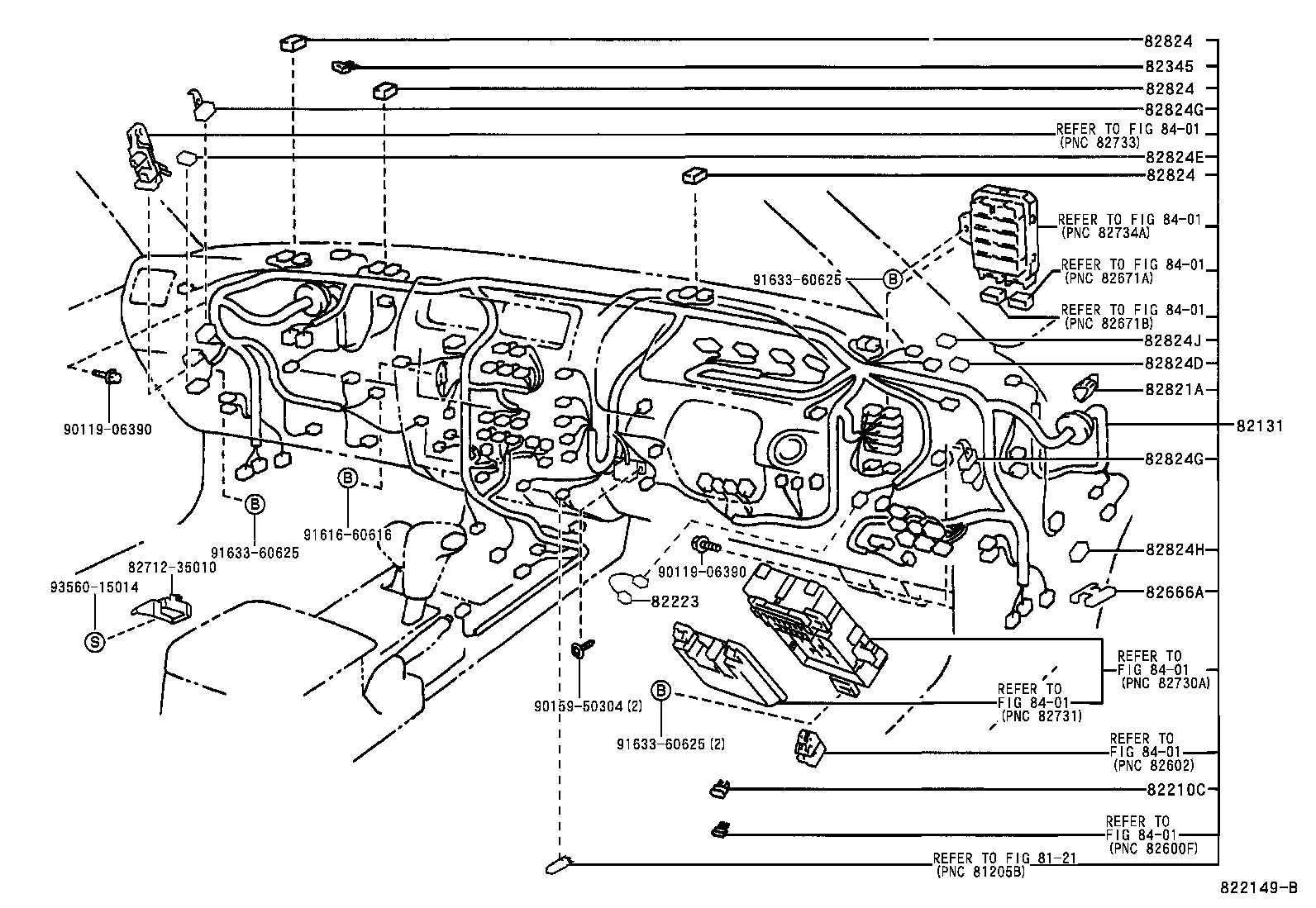

ILLUST NO. 3 OF10(9604-9906)RHD

Click highlighted areas on diagram

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-6B350	VZJ95..VX..ARL	04/1996 - 01/1998	1
82131-6B640	VZJ95..VX..ARL W(*80)	04/1996 - 01/1998	1
82131-6B641	VZJ95..VX..ARL W(*80)	01/1998 - 06/1999	1
82131-6B351	VZJ95..VX..ARL	01/1998 - 06/1999	1
82131-6B352	VZJ95..VX..ARL	06/1999 - 08/2000	1
82131-6B642	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR)	06/1999 - 08/2000	1
82135-60650	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR & ACTIVE TRC)	06/1999 - 08/2000	1
82135-60640	VZJ95..VX..ARL W(ACTIVE TRC)	06/1999 - 08/2000	1
82131-6B353	VZJ95..VX..ARL	08/2000 - 09/2002	1
82131-6B643	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR)	08/2000 - 09/2002	1
82135-60641	VZJ95..VX..ARL W(ACTIVE TRC)	08/2000 - 09/2002	1
82135-60651	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR & ACTIVE TRC)	08/2000 - 09/2002	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82821A - COVER, CONNECTOR
82821-12360	RZJ95,VZJ95..RHD..(GX,VX)..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82821-12360	RZJ95,VZJ95..ARL,MA	06/1999 - 09/2002	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824E - CONNECTOR, WIRING HARNESS
82824-30190	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90..ARL,GCC,GEN;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-20130	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	2
82824-20130	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	2
82824G - CONNECTOR, WIRING HARNESS
82824-20130	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	2
82824-20130	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	2
82824J - CONNECTOR, WIRING HARNESS
82824-30190	RZJ95,VZJ95..ARL,CO,MA;KZJ9#,VZJ9#..MTM..(EFI,TD)..(GCC,GEN)	06/1999 - 12/2999	1
Common parts
82712-35010
90119-06390
90159-50304
91616-60616
91633-60625
93560-15014
Linked diagrams
8401

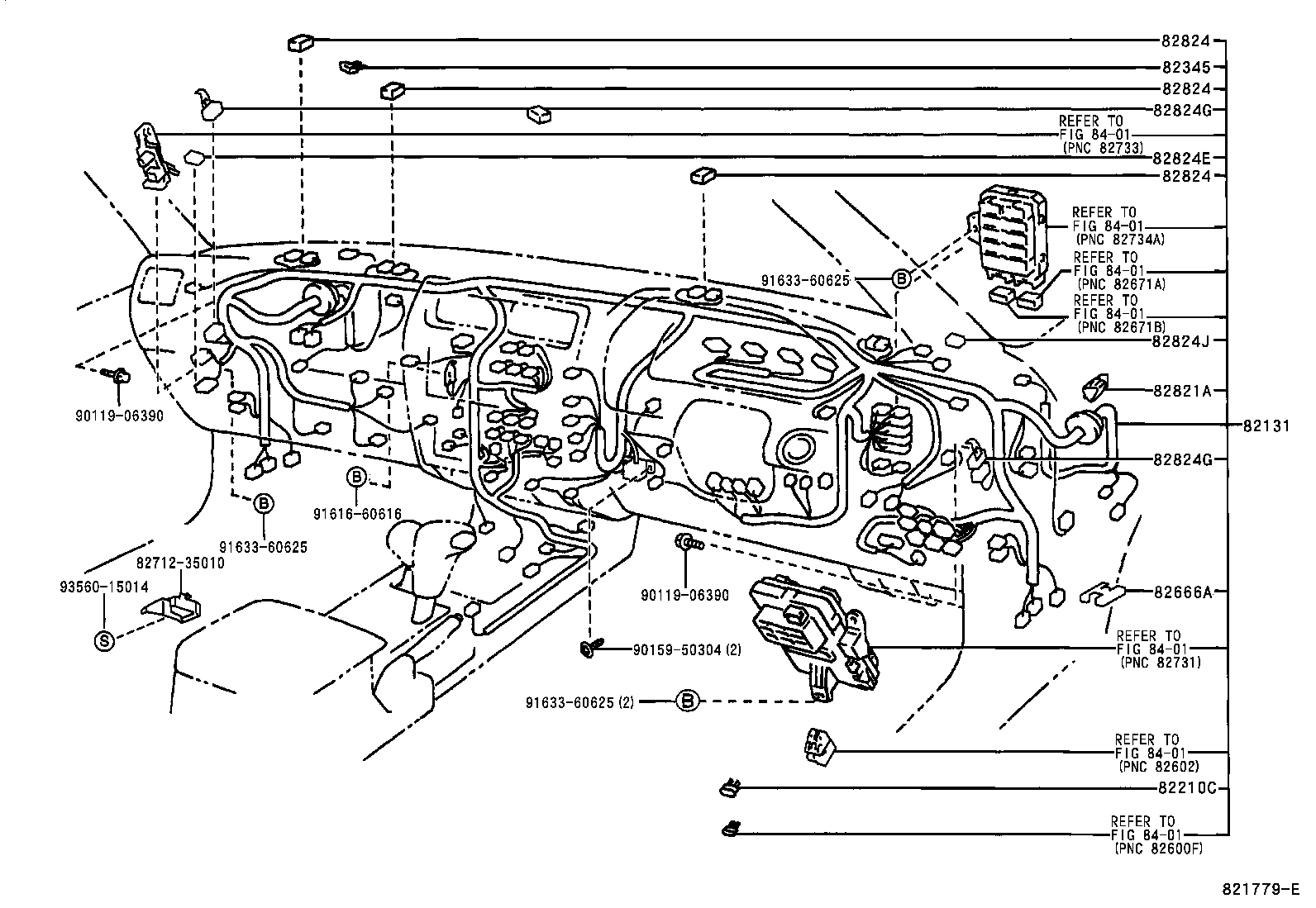

ILLUST NO. 3 OF10(9906- )RHD

Click highlighted areas on diagram

COWL WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-6B350	VZJ95..VX..ARL	04/1996 - 01/1998	1
82131-6B640	VZJ95..VX..ARL W(*80)	04/1996 - 01/1998	1
82131-6B641	VZJ95..VX..ARL W(*80)	01/1998 - 06/1999	1
82131-6B351	VZJ95..VX..ARL	01/1998 - 06/1999	1
82131-6B352	VZJ95..VX..ARL	06/1999 - 08/2000	1
82131-6B642	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR)	06/1999 - 08/2000	1
82135-60650	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR & ACTIVE TRC)	06/1999 - 08/2000	1
82135-60640	VZJ95..VX..ARL W(ACTIVE TRC)	06/1999 - 08/2000	1
82131-6B353	VZJ95..VX..ARL	08/2000 - 09/2002	1
82131-6B643	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR)	08/2000 - 09/2002	1
82135-60641	VZJ95..VX..ARL W(ACTIVE TRC)	08/2000 - 09/2002	1
82135-60651	VZJ95..VX..ARL W(*80,DRIVER SIDE & PASSENGER SIDE,SATELLITE SENSOR & ACTIVE TRC)	08/2000 - 09/2002	1
82210C - FUSIBLE LINK
90982-08280	VZJ95..ARL;RZJ95..GX,VX;KZJ9#,LJ9#,RZJ90,VZJ90;RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) 30A,TERM.:FEMALE,PNK	06/1999 - 12/2999	1
90982-08282	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 50A,TERM.:FEMALE,RED	04/1996 - 09/2002	1
90982-08246	RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) 100A,TERM.:MALE,BLUE	04/1996 - 09/2002	1
90982-08280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 30A,TERM.:FEMALE,PNK	04/1996 - 09/2002	1
90982-08202	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) 60A,TERM.:MALE,YEL	04/1996 - 09/2002	1
82821A - COVER, CONNECTOR
82821-12360	RZJ95,VZJ95..RHD..(GX,VX)..EFI..(ARL,GEN)	04/1996 - 09/2002	1
82821-12360	RZJ95,VZJ95..ARL,MA	06/1999 - 09/2002	1
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824 - CONNECTOR, WIRING HARNESS
82824-12210	KZJ9#,LJ9#,RZJ9#,VZJ9#	04/1996 - 06/1999	2
82824-12210	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,GEN)	06/1999 - 09/2002	2
82824E - CONNECTOR, WIRING HARNESS
82824-30190	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90..ARL,GCC,GEN;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-20130	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	2
82824-20130	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	2
82824G - CONNECTOR, WIRING HARNESS
82824-20130	RZJ95..ARL,MA;RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ9#,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN)	06/1999 - 12/2999	2
82824-20130	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	2
82824J - CONNECTOR, WIRING HARNESS
82824-30190	RZJ95,VZJ95..ARL,CO,MA;KZJ9#,VZJ9#..MTM..(EFI,TD)..(GCC,GEN)	06/1999 - 12/2999	1
Common parts
82712-35010
90119-06390
90159-50304
91616-60616
91633-60625
93560-15014
Linked diagrams
8121
8401

ILLUST NO.10 OF10(9604- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10437
90980-10619
90980-11011
90980-11016
90980-11019
90980-11162
90980-11292
90980-11314
90980-11660

VZJ95R-GKPEKQ (1996)

ILLUST NO. 2 OF10(9604- )VZJ9#

ILLUST NO. 4 OF10(9604- )ARL,GCC

ILLUST NO. 9 OF10(9604- )ARL,CO,GCC,GEN

ILLUST NO. 1 OF10(9604-9906) ; (9906- )CO

ILLUST NO. 5 OF10(9604- )

ILLUST NO. 7 OF10(9604- )

ILLUST NO. 8 OF10(9604- )ARL,CO,GCC,GEN

ILLUST NO. 6 OF10(9604- )VZJ9#

ILLUST NO. 6 OF10(9604- )ARL,CO,GCC,GEN

ILLUST NO. 1 OF10(9906- )RZJ9#,VZJ9#

ILLUST NO. 3 OF10(9604-9906)RHD

ILLUST NO. 3 OF10(9906- )RHD

ILLUST NO.10 OF10(9604- )

Part Price Details
