VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90

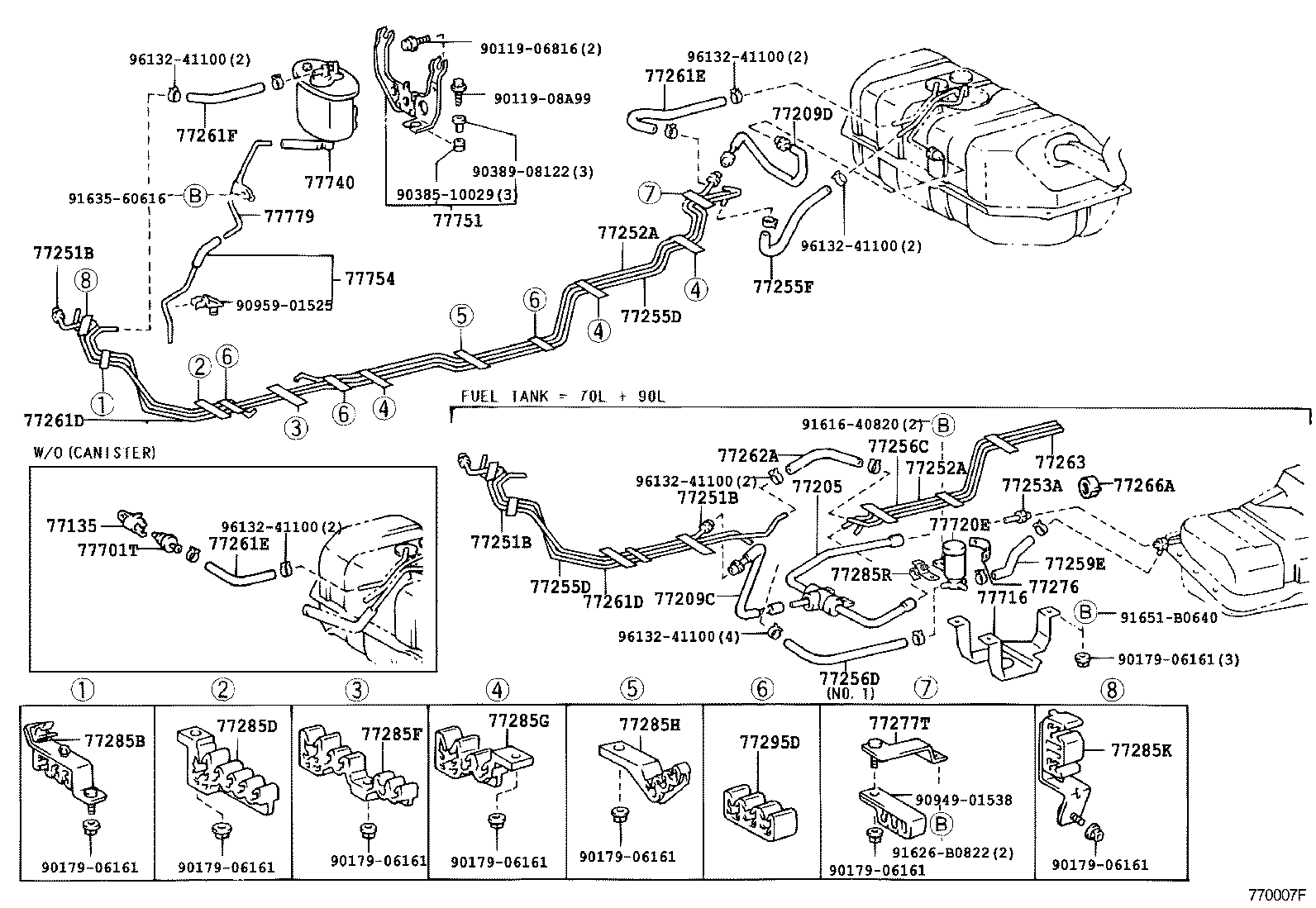

ILLUST NO. 2 OF 2(9604- )VZJ9#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-60870 |
RZJ95..ARL;VZJ95..ARL,GCC |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60090 |
VZJ95..ARL,GCC |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60100 |
RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 77209-60100 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI |
1 | ||
| 77209-60101 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77251-3D140 |
VZJ9# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-60430 |
RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60411 |
VZJ95 |
1 | ||
| 77252-60431 |
RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60431 |
VZJ95..ARL,GCC W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60411 |
VZJ95..ARL,GCC |
1 | ||
| 77252-60412 |
VZJ95 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-60430 |
RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60411 |
VZJ95 |
1 | ||
| 77252-60431 |
RZJ95,VZJ95..EFI..(ARL,GCC) W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60431 |
VZJ95..ARL,GCC W(FUEL TANK=90L+70L) |
1 | ||
| 77252-60411 |
VZJ95..ARL,GCC |
1 | ||
| 77252-60412 |
VZJ95 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77251-60660 |
VZJ95..ARL,GCC;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60520 |
RZJ95,VZJ95 |
1 | ||
| 77255-60521 |
VZJ95;RZJ95..CBR;RZJ95..RHD..GX..EFI |
1 | ||
| 77255-60550 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
1 | ||
| 77255-60522 |
RZJ95,VZJ95 |
1 | ||
| 77255-60521 |
RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60520 |
RZJ95,VZJ95 |
1 | ||
| 77255-60521 |
VZJ95;RZJ95..CBR;RZJ95..RHD..GX..EFI |
1 | ||
| 77255-60550 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
1 | ||
| 77255-60522 |
RZJ95,VZJ95 |
1 | ||
| 77255-60521 |
RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) *H,L=180 |
1 | ||
| 95333-06020 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD *H,L=180 |
1 | ||
| 77256C - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-60331 |
RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 77256-60330 |
RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,GCC) |
1 | ||
| 77256-60331 |
RZJ95..CBR;RZJ95,VZJ95..EFI..(ARL,GCC) |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 77259-60260 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC NO.1 |
1 | ||
| 95334-06017 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC NO.2 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60210 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60271 |
RZJ95..EFI..GEN;RZJ95,VZJ95..ARL,CO,GCC |
1 | ||
| 77261-60270 |
RZJ95..EFI..GEN;RZJ95,VZJ95..ARL,GCC |
1 | ||
| 77261-60290 |
RZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC FUEL TANK=90L+70L |
1 | ||
| 77261-60271 |
RZJ95,VZJ95..ARL,CO,GCC,MA |
1 | ||
| 77261-60272 |
RZJ95,VZJ95..ARL,CO,GCC,MA |
1 | ||
| 77261-60290 |
RZJ95,VZJ95..ARL,GCC FUEL TANK=90L+70L |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-60271 |
RZJ95..EFI..GEN;RZJ95,VZJ95..ARL,CO,GCC |
1 | ||
| 77261-60270 |
RZJ95..EFI..GEN;RZJ95,VZJ95..ARL,GCC |
1 | ||
| 77261-60290 |
RZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC FUEL TANK=90L+70L |
1 | ||
| 77261-60271 |
RZJ95,VZJ95..ARL,CO,GCC,MA |
1 | ||
| 77261-60272 |
RZJ95,VZJ95..ARL,CO,GCC,MA |
1 | ||
| 77261-60290 |
RZJ95,VZJ95..ARL,GCC FUEL TANK=90L+70L |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *H,L=160 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *H,L=160 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *H,L=160 |
1 | ||
| 95333-06020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *H,L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
RZJ95..ARL,GCC;RZJ95..EFI..GEN;RZJ90,VZJ9#..EFI *H,L=300 |
1 | ||
| 95333-06030 |
RZJ95..ARL,GCC,MA;RZJ90,VZJ9#..GX,VX *H,L=300 |
1 | ||
| 77249-60180 |
RZJ95..ARL,GCC,MA;RZJ90,VZJ9#..GX,VX |
1 | ||
| 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) | ||||
| 77259-60240 |
RZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-60100 |
RZJ95,VZJ95..ARL,GCC |
1 | ||
| 77263-60101 |
RZJ95..ARL;VZJ95..ARL,GCC;RZJ95..CBR..GCC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60010 |
RZJ95..ARL;VZJ95..ARL,GCC |
3 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-60080 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77277T - BRACKET, CHECK VALVE | ||||
| 77277-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77277-60050 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77277-60050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35230 |
RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285-35260 |
RZJ9#,VZJ9# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35280 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285-35280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35290 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285-35290 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
3 | ||
| 77285-35300 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
3 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60060 |
RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285-60060 |
RZJ9#,VZJ9# |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35260 |
RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77285-60140 |
RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
1 | ||
| 77285-35230 |
RZJ9#,VZJ9# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35110 |
VZJ95..ARL,GCC FUEL TANK=90L+70L |
3 | ||
| 77295-35110 |
RZJ9#,VZJ9# |
4 | ||
| 77295-35110 |
RZJ9#..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
4 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60080 |
RZJ95..ARL;VZJ95..ARL,GCC |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60050 |
RZJ95,VZJ95..EFI..(ARL,GCC) |
1 | ||
| 77720-60010 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-35320 |
RZJ9#,VZJ9#..EFI |
1 | ||
| 77704-35320 |
RZJ95..ARL,MA;RZJ90,VZJ9#..GX,VX |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35100 |
RZJ9#,VZJ9#..EFI |
1 | ||
| 77751-35100 |
RZJ95..ARL,GCC,MA;RZJ90,VZJ9#..GX,VX |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35330 |
VZJ9# |
1 | ||
| 77754-35330 |
RZJ95..ARL,GCC,MA;RZJ90,VZJ9#..GX,VX |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-35030 |
RZJ95..ARL,GCC,MA;RZJ90,VZJ9#..GX,VX |
1 | ||
| 77779-35030 |
RZJ95..ARL,GCC;RZJ95..EFI..GEN;RZJ90,VZJ9#..EFI |
1 | ||
| Common parts | ||||
| 90119-06816 | ||||
| 90119-08A99 | ||||
| 90179-06161 | ||||
| 90385-10029 | ||||
| 90389-08122 | ||||
| 90949-01538 | ||||
| 90959-01525 | ||||
| 91616-40820 | ||||
| 91626-B0822 | ||||
| 91635-60616 | ||||
| 91651-B0640 | ||||
| 96132-41100 | ||||

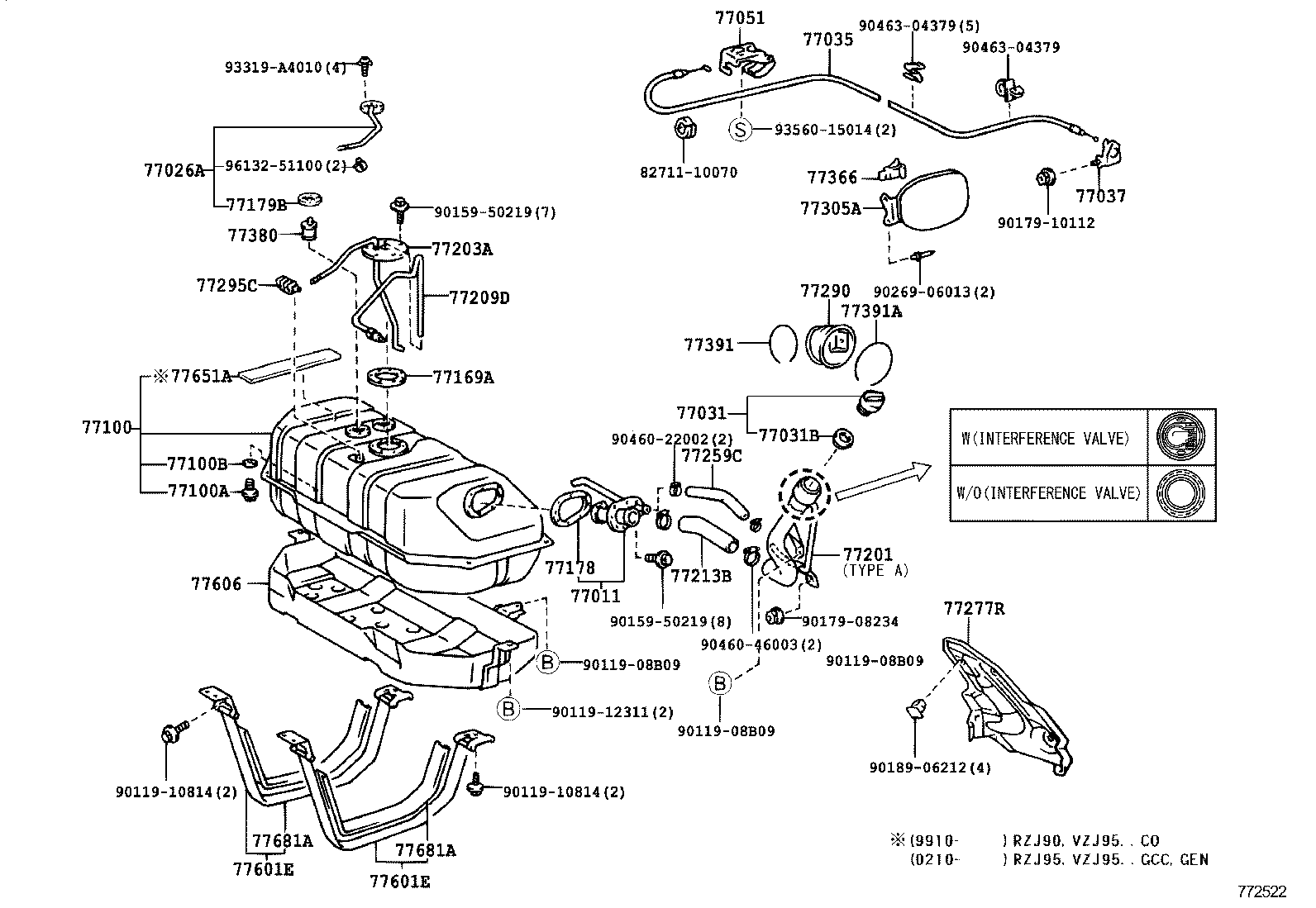

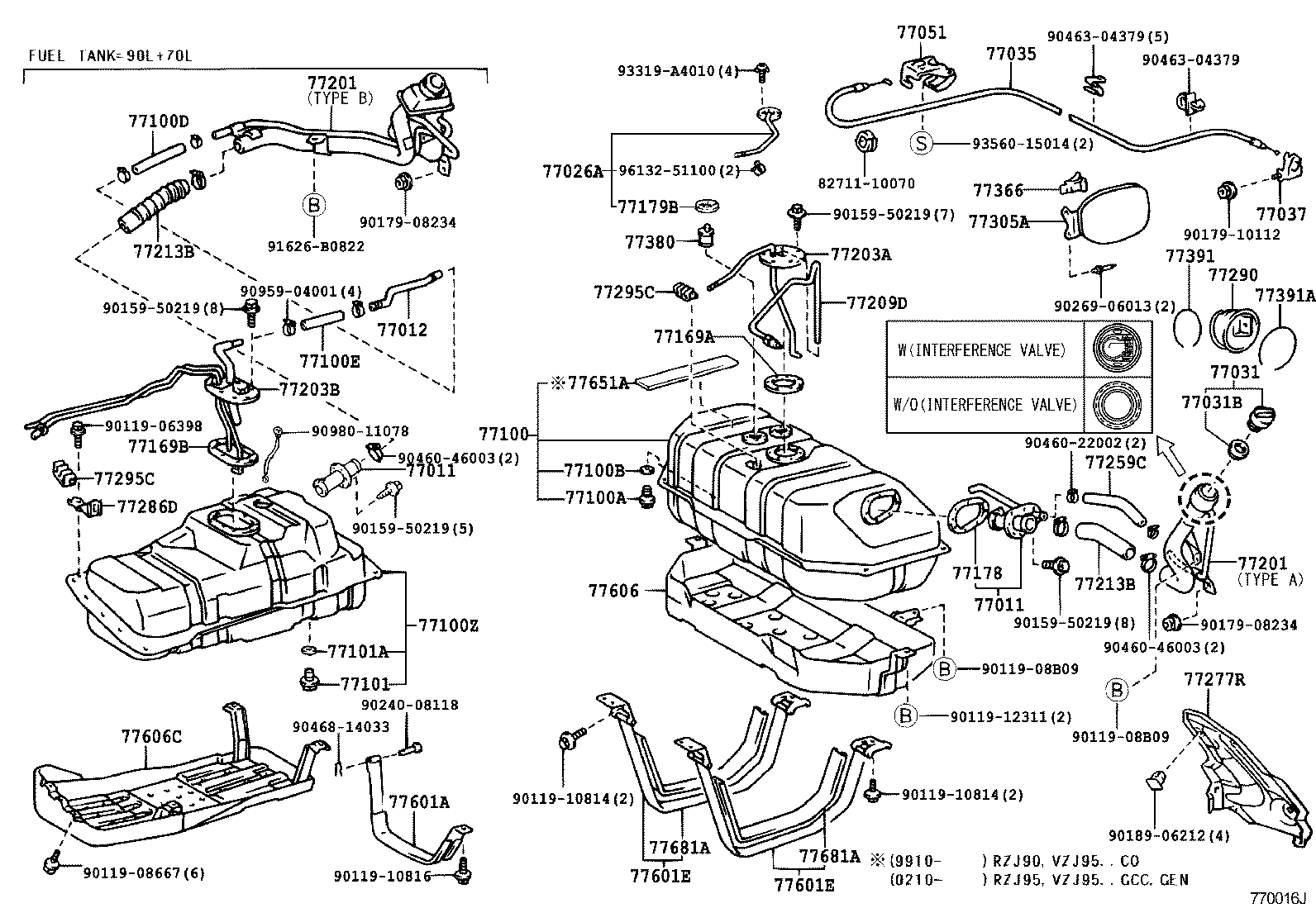

ILLUST NO. 1 OF 2(9604- )RZJ9#,VZJ95..EFI
FUEL TANK,W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-35020 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60100 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77026-60100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-48020 |
RZJ95,VZJ95..ARL |
1 | ||
| 77310-35080 |
RZJ95,VZJ95..ARL |
1 | ||
| 77310-48020 |
RZJ95,VZJ95..ARL |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77316-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60050 |
KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 77035-60050 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77037-12050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60370 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77279-35040 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=170 |
1 | ||
| 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) | ||||
| 77279-35040 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=170 |
1 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-60390 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77101 - PLUG(FOR FUEL SUB-TANK) | ||||
| 90105-12116 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77101A - GASKET(FOR FUEL SUB-TANK) | ||||
| 90430-12245 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77169-14010 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-60010 |
RZJ95..ARL;VZJ95..ARL,GCC |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77178-34010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77179-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60450 |
RZJ9#,VZJ95..EFI..(ARL,CO,GEN) |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77201-60470 |
RZJ95..ARL,MA;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) W(INTERFERENCE VALVE),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60450 |
RZJ9#,VZJ95..EFI..(ARL,CO,GEN) |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77201-60470 |
RZJ95..ARL,MA;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) W(INTERFERENCE VALVE),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60070 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77203-60070 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-35460 |
RZJ95..ARL;VZJ95..ARL,GCC |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60100 |
RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 77209-60100 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI |
1 | ||
| 77209-60101 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259-60190 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77277-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35030 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-60040 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77291-60040 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
RZJ95..RHD..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77295-35140 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
2 | ||
| 77295-35140 |
RZJ90,VZJ90;RZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
RZJ95..RHD..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77295-35140 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
2 | ||
| 77295-35140 |
RZJ90,VZJ90;RZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77350-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 77350-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77360-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77391-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-60020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391-60020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-35060 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60090 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77606-60090 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-35010 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 77606-35010 |
KZJ95,LJ95,RZJ95,VZJ95..ARL,GCC,GEN |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-06398 | ||||
| 90119-08667 | ||||
| 90119-08B09 | ||||
| 90119-10814 | ||||
| 90119-10816 | ||||
| 90119-12311 | ||||
| 90159-50219 | ||||
| 90179-08234 | ||||
| 90179-10112 | ||||
| 90189-06212 | ||||
| 90240-08118 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90463-04379 | ||||
| 90468-14033 | ||||
| 90959-04001 | ||||
| 90980-11078 | ||||
| 91626-B0822 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 96132-51100 | ||||
ILLUST NO. 1 OF 2(9604- )RZJ9#,VZJ95..EFI
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) FUEL TANK=90L+70L |
1 | ||
| 77011-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77011-60050 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60100 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77026-60100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-48020 |
RZJ95,VZJ95..ARL |
1 | ||
| 77310-35080 |
RZJ95,VZJ95..ARL |
1 | ||
| 77310-48020 |
RZJ95,VZJ95..ARL |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77316-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60050 |
KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 77035-60050 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77037-12050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B1 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60370 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77169-14010 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77178-34010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77179-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60450 |
RZJ9#,VZJ95..EFI..(ARL,CO,GEN) |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77201-60470 |
RZJ95..ARL,MA;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) W(INTERFERENCE VALVE),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77201-60490 |
RZJ95,VZJ95..ARL FUEL TANK=90L+70L |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60070 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77203-60070 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60100 |
RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 77209-60100 |
RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI |
1 | ||
| 77209-60101 |
RZJ90,VZJ9#;RZJ95..GX,VX;RZJ95..LHD..STD |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35270 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) L=368,FUEL TANK=90L+70L |
1 | ||
| 77213-60120 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77213-60120 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77259-60190 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77277-60040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-60040 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77291-60040 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35140 |
RZJ95..RHD..CBR;RZJ90,VZJ9#..GX,VX;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77295-35140 |
RZJ95..CBR;RZJ95..ARL;VZJ95..ARL,GCC FUEL TANK=90L+70L |
2 | ||
| 77295-35140 |
RZJ90,VZJ90;RZJ95..ATM..GCC;RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN,MA);RZJ95,VZJ95..LHD..MTM..(STD,VX)..(GCC,GEN) |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77350-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 77350-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77360-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77380-26010 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77391-14020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-60020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77391-60020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-60180 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77601-60180 |
KZJ95,LJ95,RZJ95,VZJ95 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60090 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77606-60090 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 77681-32060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 90119-08B09 | ||||
| 90119-10814 | ||||
| 90119-12311 | ||||
| 90159-50219 | ||||
| 90179-08234 | ||||
| 90179-10112 | ||||
| 90189-06212 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90463-04379 | ||||
| 93319-A4010 | ||||
| 93560-15014 | ||||
| 96132-51100 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
