Toyota Land cruiser 90 VZJ95 REAR DOOR PANEL & GLASS

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

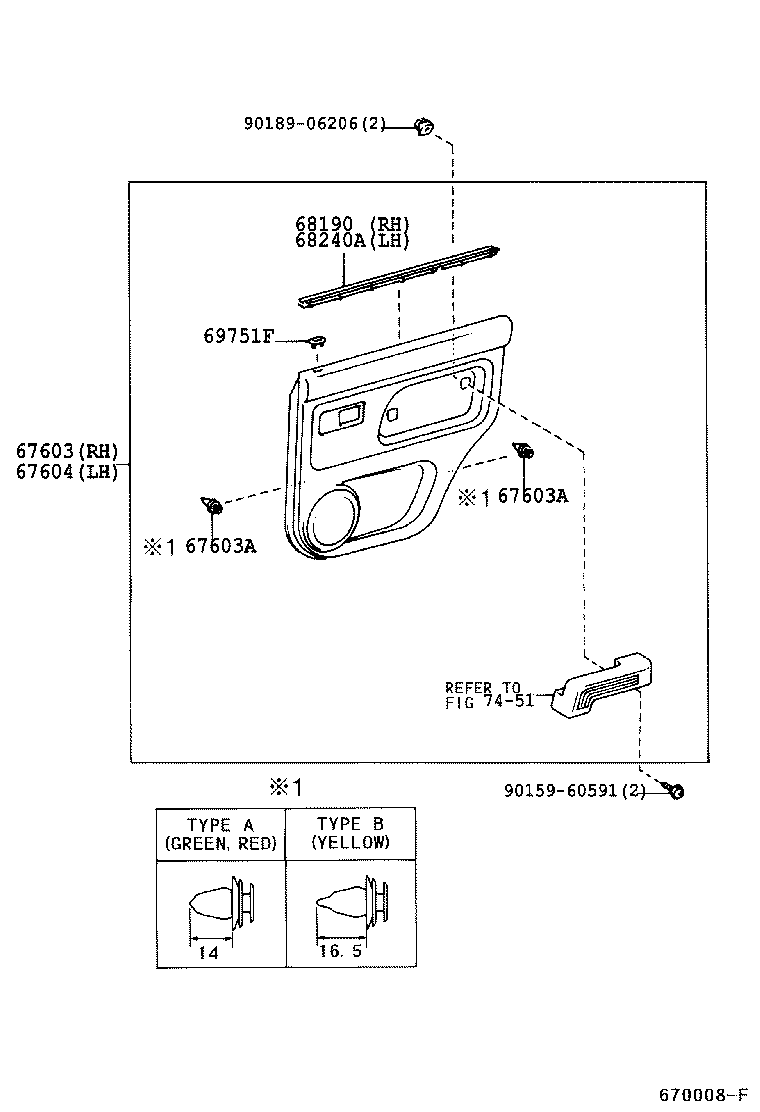

ILLUST NO. 2 OF 2(9604-9906)KZJ95,LJ95,RZJ95,VZJ95..GX,VX ; (9906- )VZJ95..CO ; (9906- )RZJ95.

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-60460B0	VZJ95..VX..(ARL,GCC) W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60610B1	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60450B0	VZJ95..VX..ARL MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60610E0	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	04/1996 - 06/1996	8
67771-30090	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE B	04/1996 - 06/1999	4
67771-28020	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	06/1996 - 06/1999	8
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	04/1996 - 06/1996	8
67771-30090	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE B	04/1996 - 06/1999	4
67771-28020	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	06/1996 - 06/1999	8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-60460B0	VZJ95..VX..(ARL,GCC) W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60450B0	VZJ95..VX..ARL MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610B1	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60610E0	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-60050	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1996 - 06/1999	1
68190-60050	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68240-60030	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1996 - 06/1999	1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-12050B1	KZJ95,LJ95,RZJ95,VZJ95..GX,VX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
69751-12050B1	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
Common parts
90159-60591
90189-06206
Linked diagrams
7451

ILLUST NO. 1 OF 2(9604- )KZJ95,LJ95,RZJ95,VZJ95

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
62331B - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-60010B0	KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
62331-60010B1	KZJ95,LJ95,RZJ95,VZJ95 MOON MIST,TRIM1#	06/1999 - 12/2999	1
62332B - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-60010B0	KZJ95,LJ95,RZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
62332-60010B1	KZJ95,LJ95,RZJ95,VZJ95 MOON MIST,TRIM1#	06/1999 - 12/2999	1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-60160	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 04/1997	1
67003-60210	RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX	01/1998 - 01/1999	1
67003-60211	RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX	01/1999 - 06/1999	1
67003-60171	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING)	01/1999 - 09/2002	1
67003-60170	KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(FRONT FENDER MOULDING)	04/1996 - 01/1999	1
67003-60210	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1997 - 01/1998	1
67003-60171	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING)	06/1999 - 12/2999	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-60170	KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(FRONT FENDER MOULDING)	04/1996 - 01/1999	1
67004-60211	RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX	01/1999 - 06/1999	1
67004-60210	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1997 - 01/1998	1
67004-60171	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING)	01/1999 - 09/2002	1
67004-60160	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 04/1997	1
67004-60210	RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..GX,VX	01/1998 - 01/1999	1
67004-60171	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GCC,GEN) W(FRONT FENDER MOULDING)	06/1999 - 12/2999	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-60150	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING)	04/1996 - 09/2002	1
67113-60140	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 01/1998	1
67113-60140	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95	01/1998 - 06/1999	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-60140	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95	01/1998 - 06/1999	1
67114-60150	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD) W(FRONT FENDER MOULDING)	04/1996 - 09/2002	1
67114-60140	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 01/1998	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-60030	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
67407-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-60030	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
67408-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-60061	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67841-60060	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 06/1999	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-60011	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67842-60010	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 06/1999	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	17
67867-12150	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	17
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	17
67867-12150	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-60060	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67871-60060	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-60060	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
67872-60060	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-60100	KZJ95,LJ95,RZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 01/1998	1
68113-60100	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 *TT,T=3.5,GREEN	01/1998 - 06/1999	1
68113-60100	KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN *TT,T=3.5,GREEN	06/1999 - 12/2999	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-60100	KZJ95,LJ95,RZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 01/1998	1
68114-60100	KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN *TT,T=3.5,GREEN	06/1999 - 12/2999	1
68114-60100	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 *TT,T=3.5,GREEN	01/1998 - 06/1999	1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-60110	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 *TT,T=3.5,GREEN	01/1998 - 06/1999	1
68123-60110	KZJ95,LJ95,RZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 01/1998	1
68123-60110	KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN *TT,T=3.5,GREEN	06/1999 - 12/2999	1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-60110	KZJ95,LJ95,RZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 01/1998	1
68124-60110	RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 *TT,T=3.5,GREEN	01/1998 - 06/1999	1
68124-60110	KZJ95,LJ95,RZJ95,VZJ95..ARL,CO,GCC,GEN *TT,T=3.5,GREEN	06/1999 - 12/2999	1
68142C - RUN, REAR DOOR GLASS, RH
68142-60030	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 06/1999	1
68142-60031	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68152C - RUN, REAR DOOR GLASS, LH
68152-60020	KZJ95,LJ95,RZJ95,VZJ95	04/1996 - 06/1999	1
68152-60021	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68188-60030	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-60030	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
68189-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-60060	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68630-60060	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-60040	RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
68640-60040	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
Common parts
90109-08295
90119-06769
90179-06159
90333-25001
90333-35004
90467-09177
90950-01882
93510-15010
93540-15010

ILLUST NO. 2 OF 2(9906- )KZJ95,LJ95,RZJ95,VZJ95..GX,VX..ARL,GCC,GEN,MA

Click highlighted areas on diagram

DOOR TRIM W(POWER WINDOW)

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-60460B0	VZJ95..VX..(ARL,GCC) W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60610B1	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60450B0	VZJ95..VX..ARL MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60610E0	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	04/1996 - 06/1996	8
67771-30090	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE B	04/1996 - 06/1999	4
67771-28020	KZJ95,LJ95,RZJ95,VZJ95..GX,VX TYPE A	06/1996 - 06/1999	8
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-60460B0	VZJ95..VX..(ARL,GCC) W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60450B0	VZJ95..VX..ARL MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610B1	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60610E0	KZJ95,RZJ95,VZJ95..VX..(ARL,GCC,MA) DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67629 - BRACKET, REAR DOOR TRIM BOARD
67629-60020	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) RH	06/1999 - 02/2000	1
67639-60020	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) LH	06/1999 - 02/2000	1
67629 - BRACKET, REAR DOOR TRIM BOARD
67629-60020	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) RH	06/1999 - 02/2000	1
67639-60020	KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) LH	06/1999 - 02/2000	1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-60050	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1996 - 06/1999	1
68190-60050	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-60030	KZJ95,LJ95,RZJ95,VZJ95	06/1999 - 12/2999	1
68240-60030	KZJ95,LJ95,RZJ95,VZJ95..GX,VX	04/1996 - 06/1999	1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-12050B1	KZJ95,LJ95,RZJ95,VZJ95..GX,VX MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
69751-12050B1	VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95 MD.MOON MIST,TRIM1#	06/1999 - 12/2999	2
Common parts
90159-60591
90164-40105
90189-06206
90189-06217
90189-06218
91651-40620
Linked diagrams
7451
