VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
ILLUST NO. 3 OF 3(9604- )RZJ95..VX ; (9604- )RZJ95..ARL,GCC,GEN ; (9604- )KZJ9#,LJ9#,RZJ90,
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60040 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63407-60040 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60030 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63408-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63484-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63486-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63487-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63488-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63489-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63491-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63492-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63493-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63494-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63495-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63496-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90110-06026 | ||||
| 90119-06820 | ||||
| 90152-50030 | ||||
| 90467-11094 | ||||
ILLUST NO. 2 OF 3(9604- )ARL,CO,GCC,GEN
W(SUN ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX *TEM,T=4.0,GRAY |
1 | ||
| 63201-60050 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) *TEM,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63202-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63209-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63214-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63217-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63218-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63221-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63223-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63224-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63233-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-35010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63239-35010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60070 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX L=1580 |
2 | ||
| 63249-60070 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(ARL,GCC,GEN) L=1580 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60080 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) L=1660 |
1 | ||
| 63249-60080 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX L=1660 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60090 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) L=1700 |
1 | ||
| 63249-60090 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX L=1700 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60050 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63260-60050 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-12040 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63265-12040 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-32020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63267-32020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-32020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63268-32020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63279-12030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63625-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63626-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 63669-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90119-06390 | ||||
| 90149-40031 | ||||
| 90154-40011 | ||||
| 90154-40029 | ||||
| 90168-40046 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90179-06274 | ||||
| 90179-06276 | ||||
| 90467-16038 | ||||
| 90959-01250 | ||||
| 91511-G0614 | ||||
| 91621-J0614 | ||||
| 91626-60618 | ||||
| 93219-13014 | ||||
| 96160-00400 | ||||

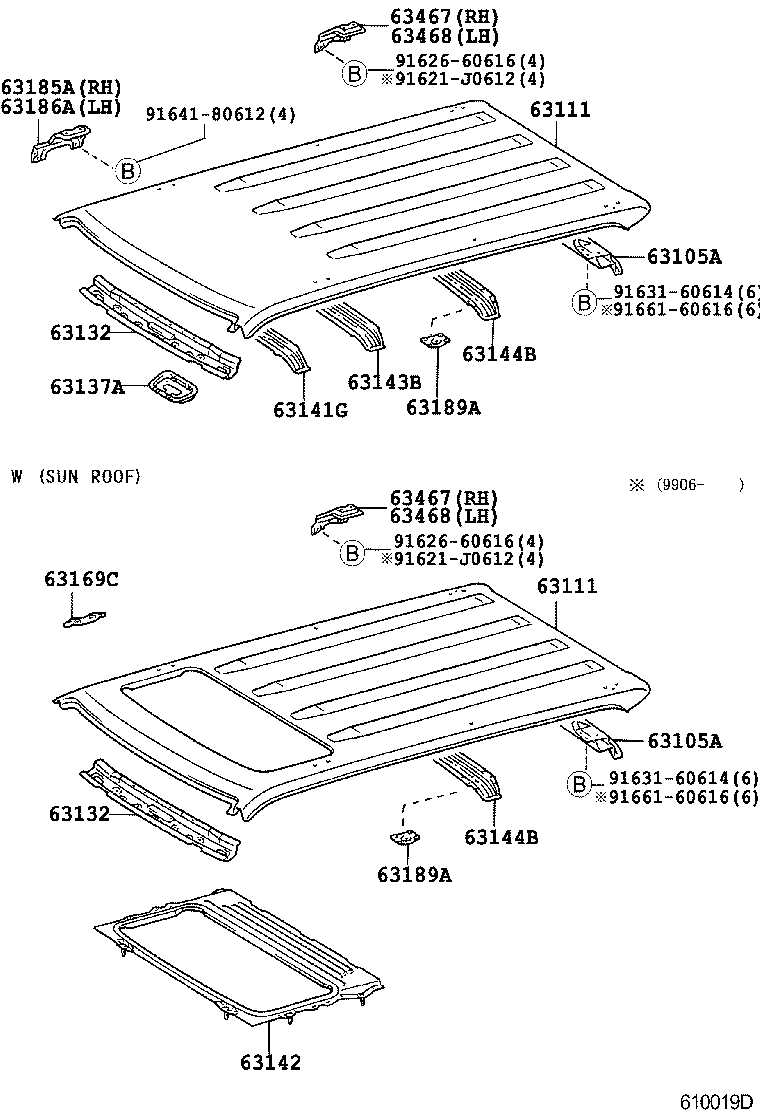

ILLUST NO. 1 OF 3(9604- )KZJ95,LJ95,RZJ95,VZJ95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63105-60150 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63105-60150 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60360 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(SUN ROOF) |
1 | ||
| 63111-60360 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) W(SUN ROOF) |
1 | ||
| 63111-60902 |
VZJ95..ARL;KZJ95,LJ95,RZJ95..GX W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-60350 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 63111-60350 |
VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95 |
1 | ||
| 63111-60350 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60360 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX W(SUN ROOF) |
1 | ||
| 63111-60360 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) W(SUN ROOF) |
1 | ||
| 63111-60902 |
VZJ95..ARL;KZJ95,LJ95,RZJ95..GX W(SUN ROOF & ROOF RAIL) |
1 | ||
| 63111-60350 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 63111-60350 |
VZJ95..ARL,CO;VZJ95..MTM..GCC;KZJ95,LJ95,RZJ95 |
1 | ||
| 63111-60350 |
RZJ95..CBR;RZJ95..ARL;KZJ95,LJ95,VZJ95 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-60020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63132-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-60020 |
RZJ90..GX;KZJ9#,LJ95,RZJ95,VZJ9# |
1 | ||
| 63132-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-60010 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63137-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63141-60050 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63142-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-60020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63143-60020 |
VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ95,VZJ90;RZJ90,VZJ95..(GX,VX)..(ARL,CO,GEN) |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60030 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63144-60030 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-60030 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 63144-60030 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 63169C - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
2 | ||
| 63169-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63185-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63186-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-60010 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63189-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-60010 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63189-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63467-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63467 - BRACKET, ROOF RACK, REAR RH | ||||
| 63467-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63467-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63468-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| 63468 - BRACKET, ROOF RACK, REAR LH | ||||
| 63468-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63468-60020 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| 91626-60616 | ||||
| 91631-60614 | ||||
| 91641-80612 | ||||
| 91661-60616 | ||||
ILLUST NO. 3 OF 3(9604- )RZJ95..VX ; (9604- )RZJ95..ARL,GCC,GEN ; (9604- )KZJ9#,LJ9#,RZJ90,
W(ROOF RACK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63484-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-60030 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63485-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63486-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60010 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63487-60010 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63488-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60020 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 63489-60020 |
KZJ9#,LJ95,RZJ9#,VZJ9#..GX,VX |
1 | ||
| Common parts | ||||
| 90119-08601 | ||||
| 90179-06143 | ||||
| 91651-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
