VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90

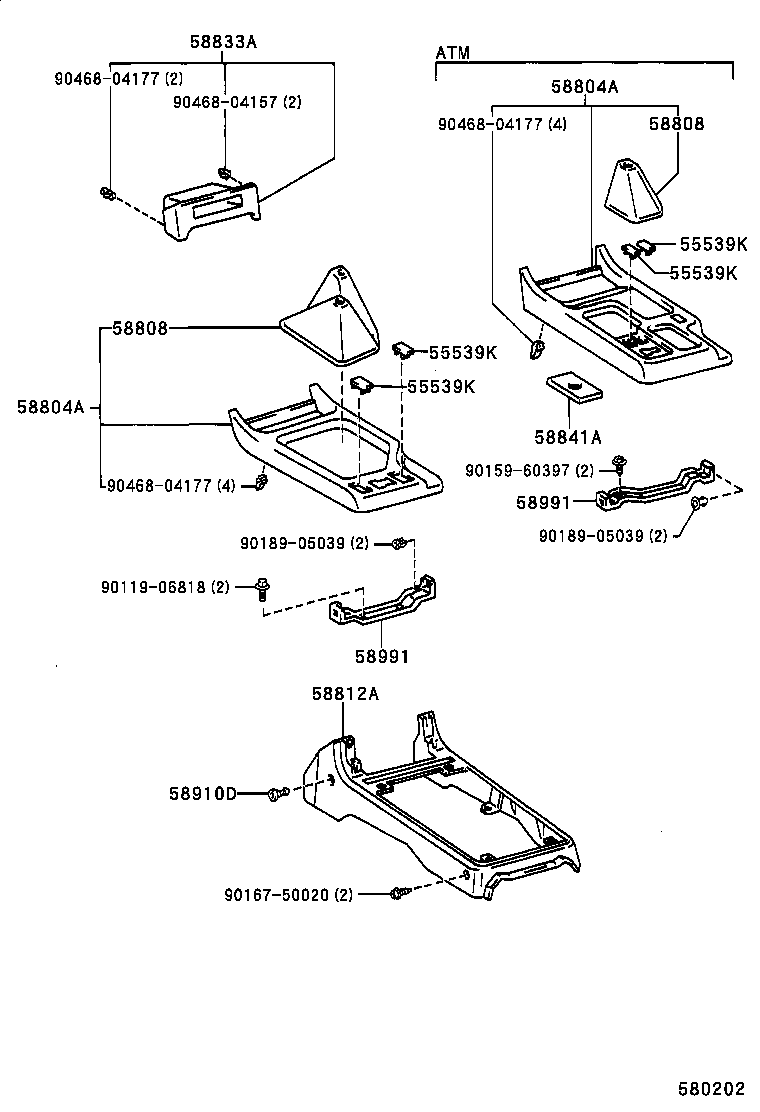

ILLUST NO. 1 OF 2(9604- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 55539K - COVER, SPARE SWITCH HOLE | ||||
| 55539-20020C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
2 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60040C0 |
RZJ95,VZJ95..ATM..ARL BLACK,TRIM1# |
1 | ||
| 58804-60040C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM BLACK,TRIM1#,4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-60040C0 |
RZJ95,VZJ95..ATM..ARL BLACK,TRIM1# |
1 | ||
| 58804-60040C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM BLACK,TRIM1#,4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60080C0 |
RZJ95,VZJ95..ATM..ARL BLACK,TRIM1# |
1 | ||
| 58808-60080C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM BLACK,TRIM1#,4# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60080C0 |
RZJ95,VZJ95..ATM..ARL BLACK,TRIM1# |
1 | ||
| 58808-60080C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM BLACK,TRIM1#,4# |
1 | ||
| 58812A - BOX, CONSOLE, LOWER | ||||
| 58812-60020B0 |
RZJ90..GX..GEN;RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,VZJ9#..(GX,VX)..(DSL,EFI,TD) MD.MOON MIST,TRIM1# |
1 | ||
| 58812-60020B0 |
RZJ90..GX..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-60010C0 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX BLACK,TRIM1# |
1 | ||
| 58841A - COVER, SHIFTING HOLE | ||||
| 58841-35010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 58841-35010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 58841-35010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07041B5 |
RZJ90..EFI..GEN;KZJ9#,LJ95,RZJ95,VZJ9#..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| 90467-07041B5 |
KZJ9#,LJ9#,RZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-60050 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 58991-60050 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-60050 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 58991-60050 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| Common parts | ||||
| 90119-06818 | ||||
| 90159-60397 | ||||
| 90167-50020 | ||||
| 90189-05039 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55523C - COVER, HEATER CONTROL OPENING | ||||
| 55523-60010E0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
1 | ||
| 55523-60010B0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
1 | ||
| 55523-60010B0 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) MD.MOON MIST,TRIM1# |
1 | ||
| 55523-60010E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
1 | ||
| 55523-60010B0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
1 | ||
| 55523-60010E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
1 | ||
| 55523-60010B0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080B2 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55539-20080B2 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080B2 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080E0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55539-20080E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ95,LJ95,RZJ95,VZJ95..GX,VX MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080B2 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55539-20080B2 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080B2 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) MD.MOON MIST,TRIM1# |
2 | ||
| 55539-20080E0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55539-20080E0 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) OAK,TRIM4# |
2 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-60010B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55619E - COVER, CUP HOLDER HOLE | ||||
| 55619-60020B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 55619-60020B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58815-60070 |
LJ90..RHD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58815-60010B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58911-60060B0 |
LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..GX MD.MOON MIST,TRIM1# |
1 | ||
| 58911-60120B0 |
KZJ95,LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..(GX,VX) MD.MOON MIST,TRIM1# |
1 | ||
| 58911-60120E0 |
KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) OAK,TRIM4# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-60010 |
LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..GX |
1 | ||
| 58904-60010 |
RZJ95..ARL;LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..GX..(CBR,DSL) |
1 | ||
| 58904-60010 |
KZJ95,LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..(GX,VX) |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58905-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58907-60020 |
KZJ95..ATM..ARL;RZJ95,VZJ95..ARL |
1 | ||
| 58907-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58907-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58907-60020 |
KZJ95..ATM..ARL;RZJ95,VZJ95..ARL |
1 | ||
| 58907-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908-32040 |
RZJ95,VZJ95..ARL W(REAR HEATER) |
2 | ||
| 58908-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.2 |
1 | ||
| 58908-32040 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(REAR HEATER) |
2 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908-32040 |
RZJ95,VZJ95..ARL W(REAR HEATER) |
2 | ||
| 58908-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.2 |
1 | ||
| 58908-32040 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(REAR HEATER) |
2 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908-32040 |
RZJ95,VZJ95..ARL W(REAR HEATER) |
2 | ||
| 58908-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.2 |
1 | ||
| 58908-32040 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(REAR HEATER) |
2 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-32050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58908-32040 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58908-32040 |
RZJ95,VZJ95..ARL W(REAR HEATER) |
2 | ||
| 58908-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.2 |
1 | ||
| 58908-32040 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GEN) W(REAR HEATER) |
2 | ||
| 58909B - RETAINER SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58909-60030 |
KZJ95,VZJ9#..ARL,GCC |
1 | ||
| 58909-60030 |
VZJ9#;KZJ95,RZJ95..ARL |
1 | ||
| 58909-60030 |
RZJ95..ARL;RZJ95..ATM..GCC;KZJ95,VZJ9#..ARL,CO,GCC |
1 | ||
| 58916A - INSERT, CONSOLE BOX, REAR | ||||
| 58916-60050B0 |
RZJ90..CBR;RZJ95..GX..CBR;LJ95,RZJ90..GX..GEN;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ90,VZJ95..(DSL,EFI,TD)..(ARL,GCC,GEN) W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1# |
1 | ||
| 58916-60040E0 |
LJ95,RZJ95..RHD..GX..(ARL,GEN);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN) OAK,TRIM4# |
1 | ||
| 58916-60040B0 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) MD.MOON MIST,TRIM1# |
1 | ||
| 58916-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58917A - COVER, CONSOLE BOX, REAR | ||||
| 58917-60020B0 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60020B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60020E0 |
KZJ9#,LJ95,RZJ9#,VZJ9#..(GX,VX)..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 58917-60030B0 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60030E0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 58917-60030B0 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58917-60020B0 |
RZJ95..ATM..GCC;VZJ95..MTM..GCC;KZJ9#,LJ90,RZJ90,VZJ90..ARL,CO,GCC,GEN;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,CO,GEN) TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-60040B0 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 58951-60040B0 |
VZJ95..ARL;LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90 MD.MOON MIST,TRIM1# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
2 | ||
| 58959-60030 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
2 | ||
| 58959-60030 |
RZJ90..STD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,LJ90,VZJ95..(DSL,EFI,TDEFI)..(ARL,GEN,MA) |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60040 |
KZJ95,VZJ9#..ARL,GCC |
2 | ||
| 58959-60040 |
VZJ9#;KZJ95,RZJ95..ARL |
2 | ||
| 58959-60040 |
RZJ95..ARL;RZJ95..ATM..GCC;KZJ95,VZJ9#..ARL,CO,GCC |
2 | ||
| 58959D - CUSHION, REAR CONSOLE BOX | ||||
| 58959-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
4 | ||
| 58959-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
4 | ||
| 58959-60010 |
KZJ95..RHD;LJ95,RZJ95..GX,VX;KZJ9#,LJ90,RZJ90,VZJ9#..DSL,EFI,TD |
4 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58964-60010 |
RZJ90..STD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,LJ90,VZJ95..(DSL,EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58964-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58965-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58965-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58965-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58965-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58965-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58965-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58969-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58969-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3 | ||||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58969-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58969-60030 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95..ARL,GEN |
1 | ||
| 58969-60020 |
KZJ95,RZJ95,VZJ95..ARL NO.1 |
1 | ||
| 58969-60030 |
RZJ95..ARL;RZJ95..GX..CBR;KZJ9#,LJ90,RZJ90;LJ95,VZJ95..(GX,VX)..(ARL,GEN) |
1 | ||
| 58969-60030 |
LJ95,RZJ95..RHD..(GX,VX);KZJ95,VZJ95..(EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-26010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ95 |
1 | ||
| 58971-60010 |
RZJ90..STD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,LJ90,VZJ95..(DSL,EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58971-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58971-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58983A - RETAINER, CONSOLE MOUNTING | ||||
| 58983-60020 |
KZJ95,VZJ9#..ARL,GCC |
1 | ||
| 58983-60020 |
VZJ9#;KZJ95,RZJ95..ARL |
1 | ||
| 58983-60020 |
RZJ95..ARL;RZJ95..ATM..GCC;KZJ95,VZJ9#..ARL,CO,GCC |
1 | ||
| 58985 - RETAINER, CONSOLE BOX | ||||
| 58985-60050 |
RZJ90..STD;LJ95,RZJ95..RHD..(GX,VX);KZJ95,LJ90,VZJ95..(DSL,EFI,TDEFI)..(ARL,GEN,MA) |
1 | ||
| 58985-60050 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58985-60050 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58902-60010 |
LJ95,RZJ95..GX;KZJ9#,LJ90,RZJ90,VZJ9# |
1 | ||
| 58902-60010 |
RZJ95..ARL;KZJ9#,LJ90,RZJ90,VZJ9#;LJ95,RZJ95..GX..(CBR,DSL) |
1 | ||
| 58902-60061 |
KZJ95,LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..(GX,VX) |
1 | ||
| 58902-60060 |
KZJ95,LJ90,VZJ95..RHD;LJ95,RZJ95..RHD..(GX,VX) |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-06479 | ||||
| 90164-45013 | ||||
| 90164-50044 | ||||
| 90183-05094 | ||||
| 90468-04177 | ||||
| 90541-03078 | ||||
| 91616-60618 | ||||
| 93560-53012 | ||||
| 93567-14514 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
