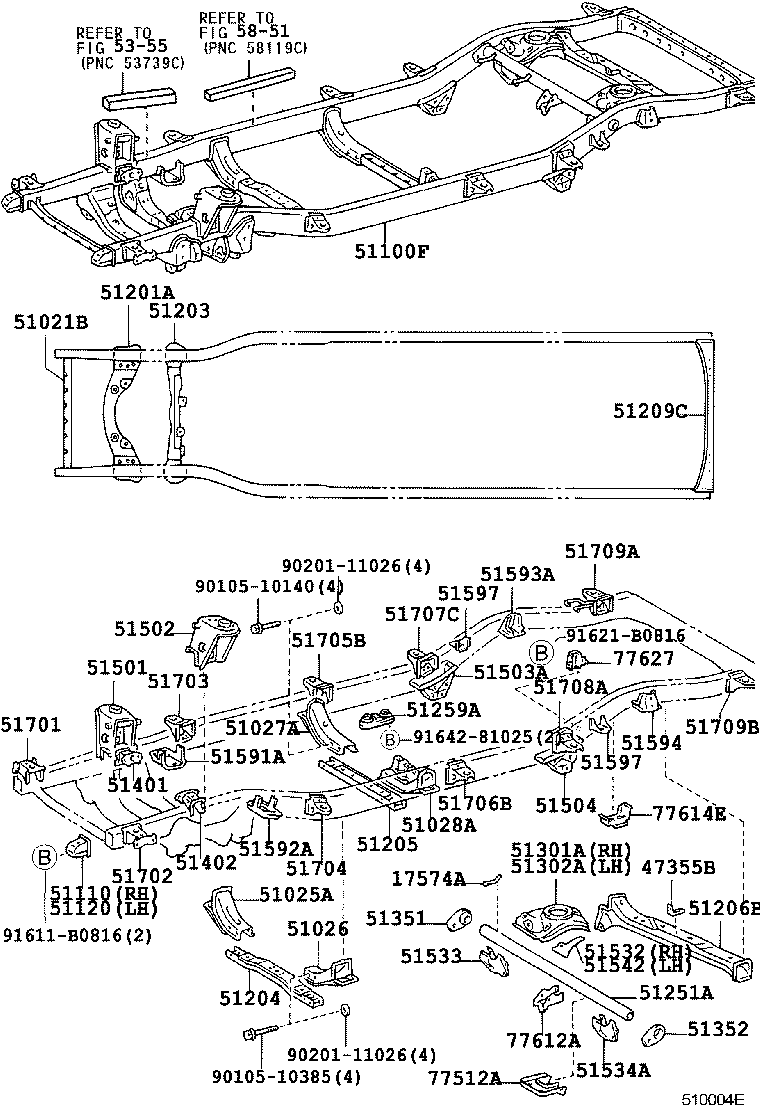

VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
(9604- )KZJ95,LJ95,RZJ95,VZJ95
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17574A - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-67010 |
3RZFE..RZJ90..GX;3RZFE..RZJ95..RHD..GX..(ARL,GEN);1KZT,3L,3RZF,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 17574-67010 |
1KZ#,3L,3RZFE,5VZFE..KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47355B - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 47355-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51021-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51021-60010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51025-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51026-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51027A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51027-35010 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51027-35010 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51028A - BRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51028-35010 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51028-35010 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-6A710 |
VZJ95..ARL |
1 | ||
| 51001-6A711 |
VZJ95..ARL |
1 | ||
| 51001-6A712 |
VZJ95..ARL |
1 | ||
| 51001-6A713 |
VZJ95..ARL |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-35010 |
KZJ95,RZJ95..ARL,GCC,MA;KZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 51110-35010 |
RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51120-35010 |
KZJ95,RZJ95..ARL,GCC,MA;KZJ90,VZJ9#..ARL,GCC,GEN |
1 | ||
| 51120-35010 |
RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-35261 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51201-35261 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60190 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-35321 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51203-35321 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51203-35320 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35530 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51204-35530 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51206-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-60150 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51209-60150 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51251A - CROSSMEMBER, FRAME, NO.5 | ||||
| 51251-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51251-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51259A - WEIGHT, NO.4 CROSSMEMBER DUMPER | ||||
| 51259-60020 |
VZJ95 |
1 | ||
| 51301A - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 51301-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51302A - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 51302-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51351 - GUSSET, CROSSMEMBER, NO.5 RH | ||||
| 51351-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51351-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51352 - GUSSET, CROSSMEMBER, NO.5 LH | ||||
| 51351-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51351-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35310 |
KZJ9#,LJ9#,VZJ9# |
1 | ||
| 51401-35310 |
KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-35310 |
KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD |
1 | ||
| 51401-35310 |
KZJ9#,LJ9#,VZJ9# |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51501-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51502-35100 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51503A - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH | ||||
| 51503-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51503-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51504 - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH | ||||
| 51504-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51504-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51532 - REINFORCEMENT, REAR SPRING SUPPORT BRACKET, RH | ||||
| 51532-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51532-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51533 - BRACKET, UPPER CONTROL LINK, RH | ||||
| 51533-35020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51533-35020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51534A - BRACKET, UPPER CONTROL LINK, LH | ||||
| 51534-35020 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51534-35020 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51542 - REINFORCEMENT, REAR SPRING SUPPORT BRACKET, LH | ||||
| 51542-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51542-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51591A - SUPPORT, STABILIZER, RH | ||||
| 51591-35060 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51591-35060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51592A - SUPPORT, STABILIZER, LH | ||||
| 51592-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51592-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51593A - BRACKET, REAR SPRING BUMPER, RH | ||||
| 51593-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51593-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51594 - BRACKET, REAR SPRING BUMPER, LH | ||||
| 51594-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51594-35020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51597 - BRACKET, REAR STABILIZER SUPPORT, FRONT | ||||
| 51597-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 51597-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 51597 - BRACKET, REAR STABILIZER SUPPORT, FRONT | ||||
| 51597-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 51597-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35140 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51701-35140 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-35140 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51701-35140 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51703-35160 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-35110 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51704-35150 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-35120 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51705-35121 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51705-35121 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-35121 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51705-35120 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51705-35121 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-35070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51707-35071 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51707-35071 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-35071 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51708-35070 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 51708-35071 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING | ||||
| 51709-60050 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51709-60050 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 51709B - BRACKET SUB-ASSY, BODY REAR END MOUNTING, LH | ||||
| 51706-60040 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 51706-60040 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77512A - BRACKET, FUEL TANK, REAR | ||||
| 77512-35080 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77512-35080 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77612A - BRACKET, FUEL TANK BAND | ||||
| 77612-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77612-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 77614E - BRACKET, FUEL TANK BAND, NO.2 | ||||
| 77614-35030 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77614-35030 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| 77627 - SPACER, FUEL TANK BAND | ||||
| 77627-35010 |
RZJ95..CBR;KZJ95,LJ95,VZJ95..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 77627-35010 |
KZJ95,LJ95,RZJ95,VZJ95 |
1 | ||
| Common parts | ||||
| 90105-10140 | ||||
| 90105-10385 | ||||
| 90201-11026 | ||||
| 91611-B0816 | ||||
| 91621-B0816 | ||||
| 91642-81025 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 5851 | ||||
