VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-3D010 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 04493-60280 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 04493-60280 |
RZJ95..GX;RZJ95..LHD..STD;KZJ95,LJ9#,RZJ90,VZJ9#..(DSL,EFI,TDEFI)..(ARL,GCC,GEN) |
1 | ||
| 04493-60340 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 04493-3D010 |
KZJ95,RZJ9#,VZJ9#..(GX,VX)..(EFI,TDEFI)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-60061 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60690 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47025-60062 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60680 |
KZJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47201-60690 |
RZJ95..RHD..GX;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 47201-60680 |
RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
RZJ95..RHD..CBR;LJ9#,VZJ95..ARL,GEN;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47220-60120 |
VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35010 |
LJ9#;KZJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 47220-60140 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35050 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90029-43001 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN W(ABS) |
1 | ||
| 90029-43001 |
VZJ9#;KZJ9#,LJ9#,RZJ9#..GX,STD W(ABS) |
1 | ||
| 90430-06104 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90109-06077 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-30130 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47230-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47230-12040 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47264-50010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47275-12020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47299-24010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 8202 | ||||

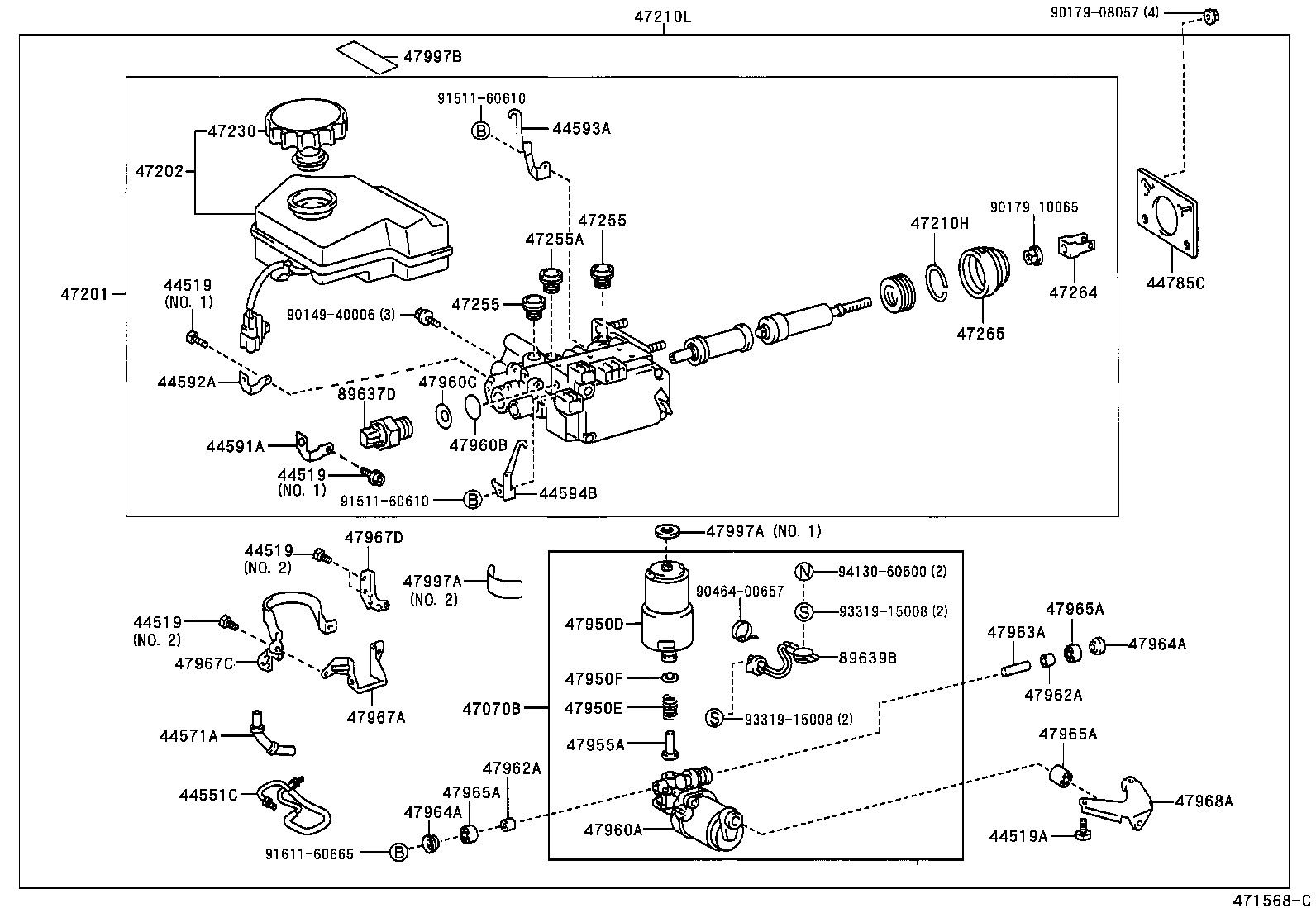

ILLUST NO. 2 OF 2(9906-0008)KZJ95,VZJ95..ATM..ARL
W(ACTIVE TRC OR VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-60020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-30080 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44592A - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-60040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44593A - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44594B - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-35030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30060 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-60061 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60690 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47025-60062 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60680 |
KZJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47201-60690 |
RZJ95..RHD..GX;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 47201-60680 |
RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
RZJ95..RHD..CBR;LJ9#,VZJ95..ARL,GEN;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47220-60120 |
VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35010 |
LJ9#;KZJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 47220-60140 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35050 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-60061 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47050-60062 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-30130 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47230-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47230-12040 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47264-50010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-30010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-16160 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-30010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47967C - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47967-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47967D - BRACKET, BRAKE BOOSTER PUMP, NO.3 | ||||
| 47967-30040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-60040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89637-30050 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30100 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91511-60610 | ||||
| 91611-60665 | ||||
| 93319-15008 | ||||
| 94130-60500 | ||||

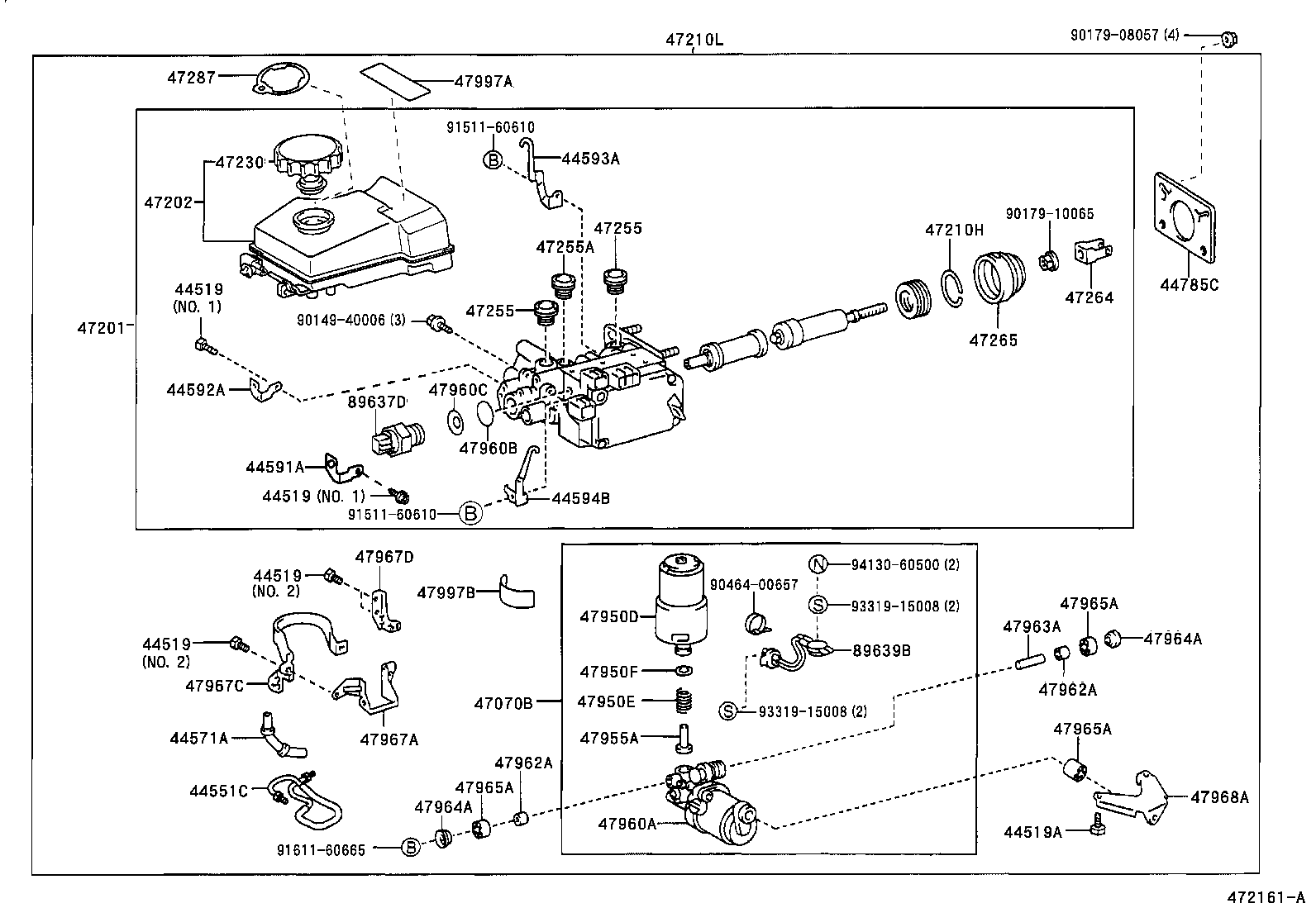

ILLUST NO. 1 OF 2(9906- )KZJ95,VZJ95..ATM..ARL
W(ACTIVE TRC OR VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

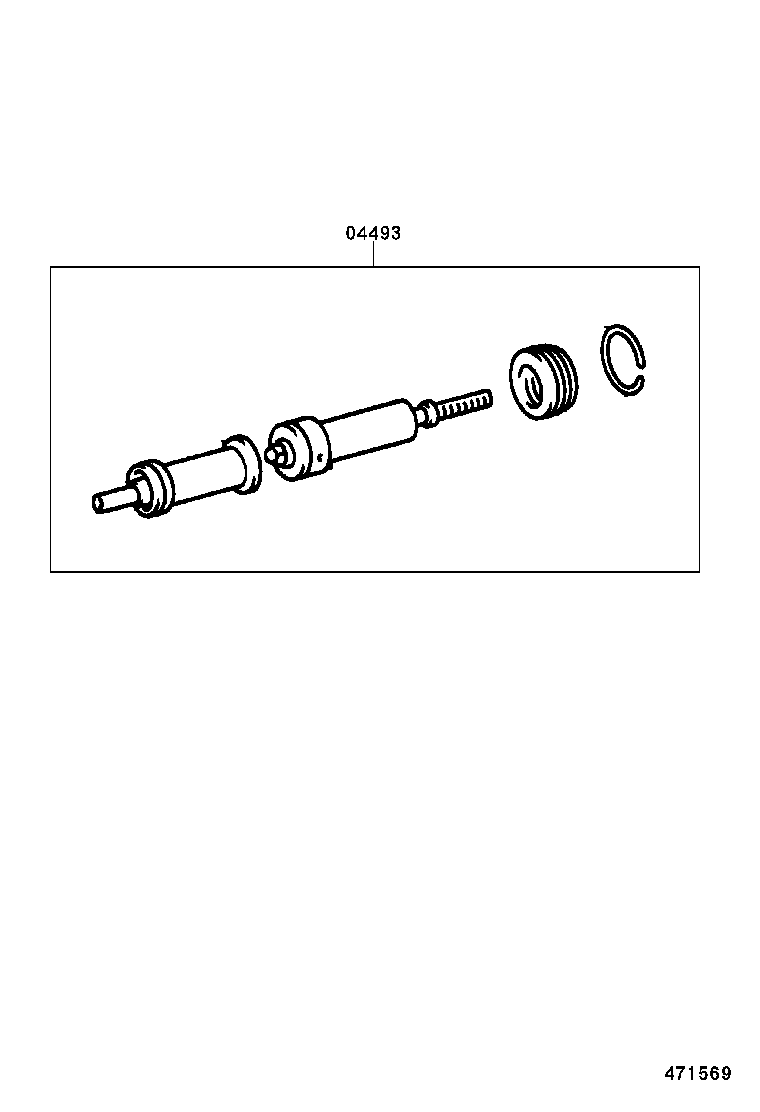

| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-3D010 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)..(ARL,GCC,GEN) W(ABS) |
1 | ||
| 04493-60280 |
RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ9#,VZJ9#..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 04493-60280 |
RZJ95..GX;RZJ95..LHD..STD;KZJ95,LJ9#,RZJ90,VZJ9#..(DSL,EFI,TDEFI)..(ARL,GCC,GEN) |
1 | ||
| 04493-60340 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 04493-3D010 |
KZJ95,RZJ9#,VZJ9#..(GX,VX)..(EFI,TDEFI)..(ARL,GCC,GEN) W(ABS) |
1 | ||
ILLUST NO. 2 OF 2(0008- )KZJ95,VZJ95..ATM..ARL
W(ACTIVE TRC OR VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519 - BOLT, BRAKE ACTUATOR | ||||
| 44519-30010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
3 | ||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
2 | ||
| 44519A - BOLT(FOR BRAKE BOOSTER PUMP) | ||||
| 44519-24020 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-60020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-30080 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44592A - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-60040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44593A - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44594B - BRACKET, BRAKE ACTUATOR, NO.4 | ||||
| 44594-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-35030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-30060 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47025-60061 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60690 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47025-60062 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47201-60680 |
KZJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47201-60690 |
RZJ95..RHD..GX;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 47201-60680 |
RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) W(ABS) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
RZJ95..RHD..CBR;LJ9#,VZJ95..ARL,GEN;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47220-60120 |
VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35010 |
LJ9#;KZJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 47220-60140 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47220-35050 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER) | ||||
| 90520-32012 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-60061 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47050-60062 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-30130 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 47230-12040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47230-12040 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 47230-12040 |
RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,LJ9#,RZJ90,VZJ9#..ARL,GCC,GEN,MA |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 47255-16010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2 | ||||
| 31417-35010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 47264-50010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 90029-70001 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER | ||||
| 47950-30010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90501-16160 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) | ||||
| 90301-13014 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR | ||||
| 47955-30010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960A - PUMP ASSY, BRAKE BOOSTER | ||||
| 47960-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90301-15014 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) | ||||
| 90561-16009 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47962A - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47963A - SHAFT, BRAKE BOOSTER PUMP | ||||
| 47963-24010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47964A - WASHER, BRAKE BOOSTER PUMP | ||||
| 47964-24010 |
KZJ95,VZJ95..ATM..ARL |
2 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-24010 |
KZJ95,VZJ95..ATM..ARL |
3 | ||
| 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 | ||||
| 47967-30020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47967C - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47967-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47967D - BRACKET, BRAKE BOOSTER PUMP, NO.3 | ||||
| 47967-30040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47968-30020 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-24020 |
KZJ95,VZJ95..ATM..ARL NO.1 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL NO.2 |
1 | ||
| 47997-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 | ||||
| 47997-60040 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 47997-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-30030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89637-30050 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 89639B - WIRE, BRAKE CONTROL | ||||
| 89639-30100 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08057 | ||||
| 90179-10065 | ||||
| 90464-00657 | ||||
| 91511-60610 | ||||
| 91611-60665 | ||||
| 93319-15008 | ||||
| 94130-60500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
