VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )RHD

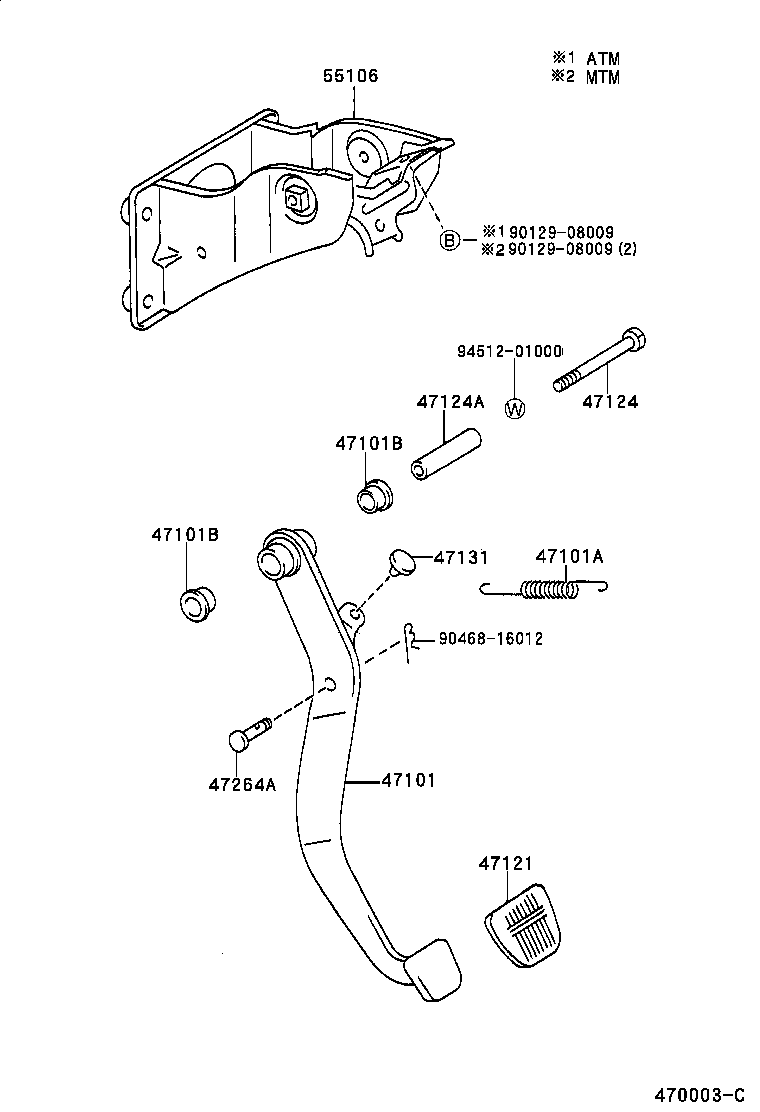

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9012908009 9012908009 9046816012 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60250

RZJ95,VZJ95..ATM..ARL

 1
47101-60250

KZJ95,RZJ95,VZJ95..RHD..ATM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90905-07014

LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
90386-13015

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 2
90386-13015

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13020

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
90386-13015

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 2
90386-13015

KZJ9#,LJ9#,RZJ9#,VZJ9#

 2
47121 - PAD, BRAKE PEDAL
47121-14010

KZJ95,RZJ95,VZJ95..ATM

 1
47121-14010

VZJ95..ATM;RZJ95..ATM..ARL

 1
47124 - SHAFT, BRAKE PEDAL
91112-61060

LJ9#,RZJ95,VZJ95..RHD

 1
90101-10039

LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
90541-06036

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
47264A - PIN(FOR PUSH ROD)
47148-35010

RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
47148-35010

KZJ9#,LJ9#,RZJ9#,VZJ9#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-60071

LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
55106-60071

KZJ95,LJ9#,RZJ95,VZJ95..RHD

 1
55106-60070

LJ9#,RZJ95,VZJ95..RHD

 1
Common parts
90129-08009
90468-16012
94512-01000
