Toyota Land cruiser 90 VZJ95 STEERING WHEEL

VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

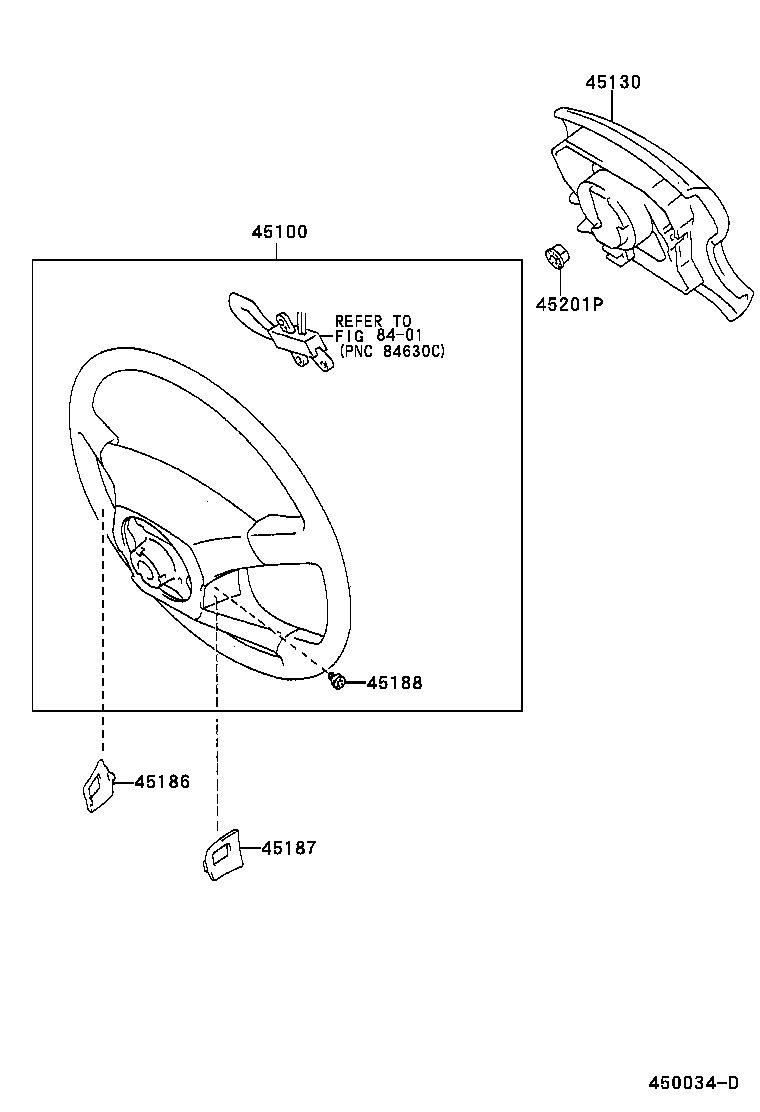

(9604- )ARL,GCC,MA ; (0108- )VZJ95..CO

Click highlighted areas on diagram

4-SPOKE,W(*80)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-60230B1	VZJ9# 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60200B1	RZJ95,VZJ9#..ARL,GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60220B1	VZJ9#..VX 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60271B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	12/1998 - 06/1999	1
45100-60270B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60340B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60260B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60330B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60250B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45100-60341B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1999 - 06/1999	1
45100-60261B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	12/1998 - 09/2002	1
45100-60331B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/2000 - 09/2002	1
45100-60271E0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45100-60331B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1999 - 01/2000	1
45100-60261E0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60261B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60331B0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60320B0	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	01/1998 - 08/2001	1
45100-60331E0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60271B0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60250B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45100-60320B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC;RZJ95..GX..(ARL,GCC,MA) 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-60200B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
45130-60170B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45130-43010B1	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) W/O(*80),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130-43010B1	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W/O(*80),MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60030B1	VZJ9#..ARL,GCC W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
45186-60020E0	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA OAK,TRIM4#	06/1999 - 09/2002	1
45186-60020B2	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA MD.MOON MIST,TRIM1#	06/1999 - 08/2001	1
45186-60020B2	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45186-60020B2	KZJ95,RZJ95,VZJ9#..ARL,CO,GCC,MA MD.MOON MIST,TRIM1#	08/2001 - 09/2002	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030B2	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45187-50030B2	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA MD.MOON MIST,TRIM1#	06/1999 - 08/2001	1
45187-50030B2	KZJ95,RZJ95,VZJ9#..ARL,CO,GCC,MA MD.MOON MIST,TRIM1#	08/2001 - 12/2999	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011	RZJ95,VZJ9#..ARL,GCC	04/1996 - 01/1998	2
45188-60010	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA L=18	06/1999 - 12/2999	2
45188-60010	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC L=18	01/1998 - 08/2001	2
45201P - NUT, STEERING WHEEL SET
90179-12071	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
90179-12071	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1

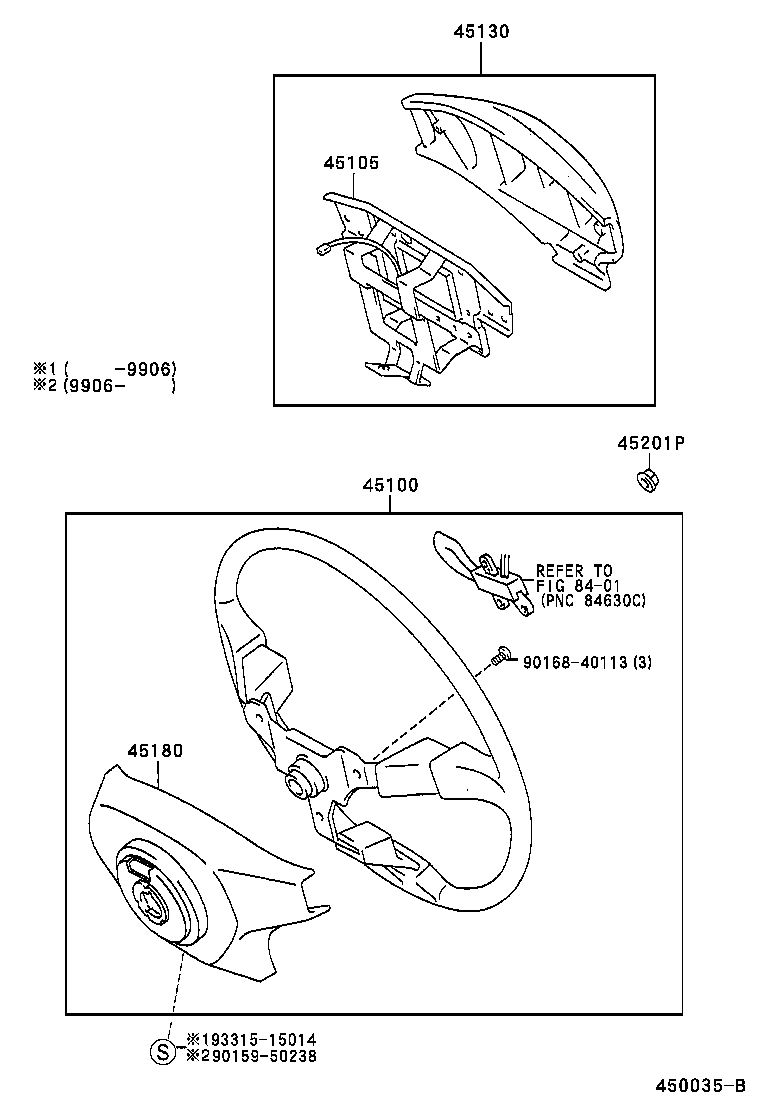

(9604-0108)GX,VX..ARL,CO,GCC,GEN ; (0108- )VZJ95..ARL,GCC ; (0108- )KZJ95,LJ9

Click highlighted areas on diagram

3-SPOKE

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-60230B1	VZJ9# 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60200B1	RZJ95,VZJ9#..ARL,GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60220B1	VZJ9#..VX 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60271B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	12/1998 - 06/1999	1
45100-60270B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60340B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60260B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60330B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60250B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45100-60341B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1999 - 06/1999	1
45100-60261B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	12/1998 - 09/2002	1
45100-60331B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/2000 - 09/2002	1
45100-60271E0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45100-60331B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1999 - 01/2000	1
45100-60261E0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60261B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60331B0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60320B0	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	01/1998 - 08/2001	1
45100-60331E0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60271B0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60250B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45100-60320B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC;RZJ95..GX..(ARL,GCC,MA) 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30220	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)	04/1996 - 08/2001	1
45105-30220	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)	06/1999 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-60200B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
45130-60170B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45130-43010B1	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) W/O(*80),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130-43010B1	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W/O(*80),MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60070B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45184-60100B0	VZJ9#..ARL,GCC W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
45184-60100E0	KZJ95,VZJ95..ARL W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45180-60070B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45184-60100B0	KZJ95,VZJ95..ARL W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45201P - NUT, STEERING WHEEL SET
90179-12071	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
90179-12071	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
Common parts
90159-50238
90168-40113
93315-15014

(9604- )KZJ95,VZJ9#..ARL,GCC

Click highlighted areas on diagram

4-SPOKE,W(*80 & CLUISE CONTROL)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-60230B1	VZJ9# 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60200B1	RZJ95,VZJ9#..ARL,GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60220B1	VZJ9#..VX 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60271B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	12/1998 - 06/1999	1
45100-60270B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60340B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60260B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60330B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60250B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45100-60341B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1999 - 06/1999	1
45100-60261B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	12/1998 - 09/2002	1
45100-60331B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/2000 - 09/2002	1
45100-60271E0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45100-60331B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1999 - 01/2000	1
45100-60261E0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60261B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60331B0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60320B0	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	01/1998 - 08/2001	1
45100-60331E0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60271B0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60250B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45100-60320B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC;RZJ95..GX..(ARL,GCC,MA) 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-60200B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
45130-60170B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45130-43010B1	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) W/O(*80),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130-43010B1	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W/O(*80),MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60030B1	VZJ9#..ARL,GCC W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
45186-60020E0	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA OAK,TRIM4#	06/1999 - 09/2002	1
45186-60020B2	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA MD.MOON MIST,TRIM1#	06/1999 - 08/2001	1
45186-60020B2	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45186-60020B2	KZJ95,RZJ95,VZJ9#..ARL,CO,GCC,MA MD.MOON MIST,TRIM1#	08/2001 - 09/2002	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030B2	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45187-50030B2	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA MD.MOON MIST,TRIM1#	06/1999 - 08/2001	1
45187-50030B2	KZJ95,RZJ95,VZJ9#..ARL,CO,GCC,MA MD.MOON MIST,TRIM1#	08/2001 - 12/2999	1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011	RZJ95,VZJ9#..ARL,GCC	04/1996 - 01/1998	2
45188-60010	KZJ95,RZJ95,VZJ9#..ARL,GCC,MA L=18	06/1999 - 12/2999	2
45188-60010	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC L=18	01/1998 - 08/2001	2
45201P - NUT, STEERING WHEEL SET
90179-12071	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
90179-12071	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
Linked diagrams
8401

(9604- )VZJ9#..ARL,GCC ; (9906- )KZJ95..ARL

Click highlighted areas on diagram

3-SPOKE,W(CLUISE CONTROL)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-60230B1	VZJ9# 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60200B1	RZJ95,VZJ9#..ARL,GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60220B1	VZJ9#..VX 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45100-60271B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	12/1998 - 06/1999	1
45100-60270B0	VZJ9#..ARL,GCC 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60340B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60260B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1996 - 12/1998	1
45100-60330B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/1998 - 04/1999	1
45100-60250B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45100-60341B0	VZJ9#..ARL,GCC 4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1999 - 06/1999	1
45100-60261B0	VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	12/1998 - 09/2002	1
45100-60331B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	01/2000 - 09/2002	1
45100-60271E0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45100-60331B0	VZJ9#..VX..(ARL,GCC) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	04/1999 - 01/2000	1
45100-60261E0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60261B0	RZJ95..ARL;VZJ9#..VX..(ARL,GCC) 3-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60331B0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60320B0	RZJ95..ARL;VZJ9#..ARL,GCC;RZJ95..CBR..GCC 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	01/1998 - 08/2001	1
45100-60331E0	RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..VX..(ARL,GCC,MA) 4-SPOKE,LEATHER,OAK,TRIM4#	06/1999 - 09/2002	1
45100-60271B0	VZJ95..ARL 3-SPOKE,LEATHER,W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45100-60250B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) 3-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45100-60320B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC;RZJ95..GX..(ARL,GCC,MA) 4-SPOKE,URETHANE,MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-30220	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD)	04/1996 - 08/2001	1
45105-30220	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN)	06/1999 - 12/2999	1
45130 - BUTTON ASSY, HORN
45130-60200B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	01/1998 - 06/1999	1
45130-60170B0	RZJ95,VZJ9#..ARL,GCC W(*80),MD.MOON MIST,TRIM1#	04/1996 - 01/1998	1
45130-43010B1	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) W/O(*80),MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45130-43010B1	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) W/O(*80),MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60070B0	RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,LJ95,RZJ90,VZJ9#..(GX,VX)..(DSL,EFI,TD) MD.MOON MIST,TRIM1#	04/1996 - 08/2001	1
45184-60100B0	VZJ9#..ARL,GCC W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
45184-60100E0	KZJ95,VZJ95..ARL W(CRUISE CONTROL),OAK,TRIM4#	06/1999 - 09/2002	1
45180-60070B0	VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ95,RZJ9#,VZJ90..(GX,VX)..(ARL,CO,GCC,GEN) MD.MOON MIST,TRIM1#	06/1999 - 12/2999	1
45184-60100B0	KZJ95,VZJ95..ARL W(CRUISE CONTROL),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
45201P - NUT, STEERING WHEEL SET
90179-12071	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
90179-12071	KZJ9#,LJ9#,RZJ9#,VZJ9#	06/1999 - 12/2999	1
Common parts
90159-50238
90168-40113
93315-15014
Linked diagrams
8401

VZJ95R-GKPEKQ (1996)

(9604- )ARL,GCC,MA ; (0108- )VZJ95..CO

(9604-0108)GX,VX..ARL,CO,GCC,GEN ; (0108- )VZJ95..ARL,GCC ; (0108- )KZJ95,LJ9

(9604- )KZJ95,VZJ9#..ARL,GCC

(9604- )VZJ9#..ARL,GCC ; (9906- )KZJ95..ARL

Part Price Details
