VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9801)RZJ9#,VZJ9#..GCC,GEN ; (9801-9906)RZJ95..CBR ; (9801-9906)RZJ90,VZJ9#..G

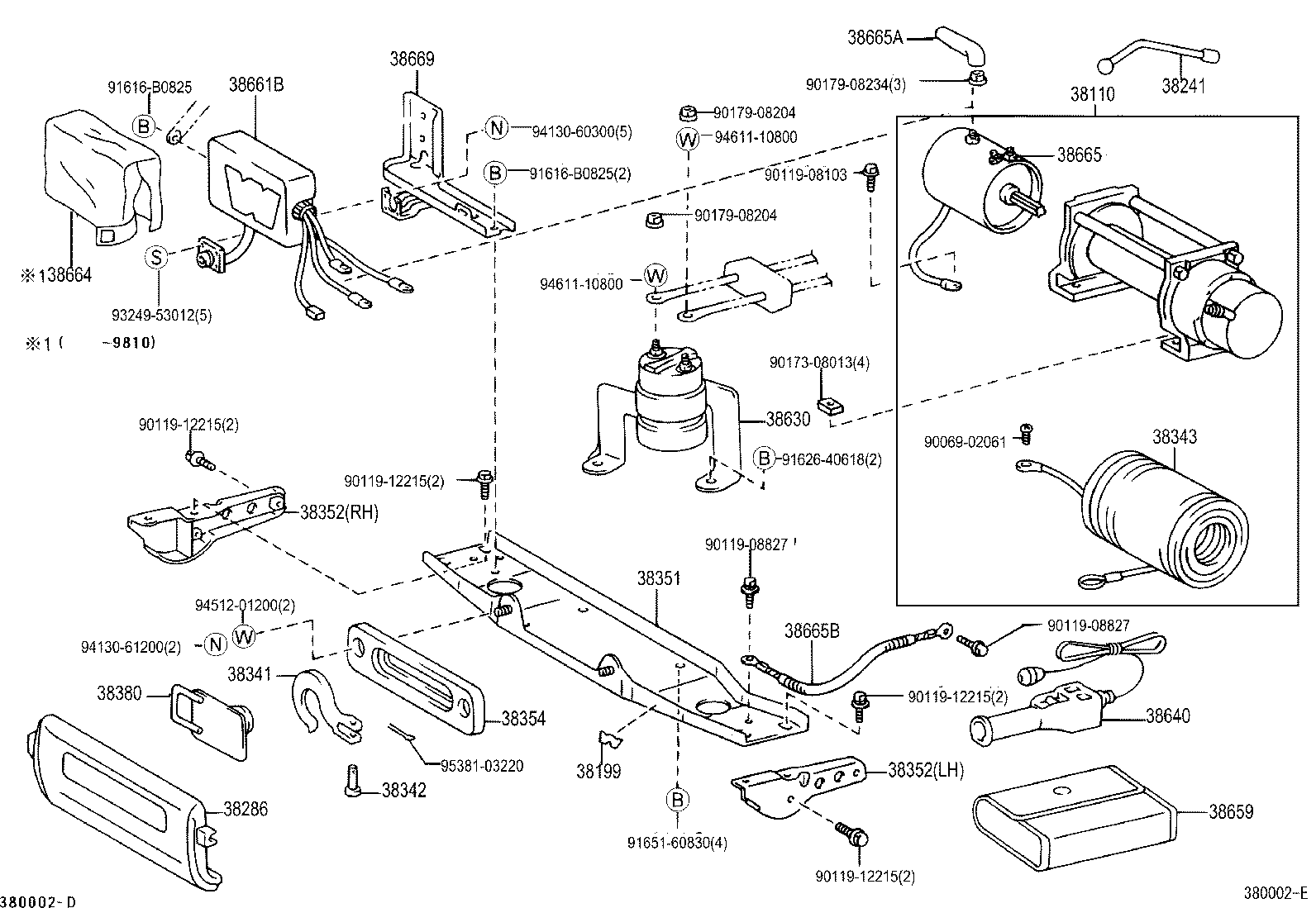

Click highlighted areas on diagram

diagram 38110 38199 38241 38286 38341 38342 38343 38351 38352 38352 38354 38380 38630 38640 38659 38661B 38664 38665 38665A 38665B 38669 9006902061 9011908103 9011908827 9011908827 9011912215 9011912215 9011912215 9011912215 9017308013 9017908204 9017908204 9017908234 91616B0825 91616B0825 9162640618 9165160830 9324953012 9413060300 9413061200 9451201200 9461110800 9461110800 9538103220
Part # Description Qty Price
Common parts
90069-02061
90119-08103
90119-08827
90119-12215
90173-08013
90179-08204
90179-08234
91616-B0825
91626-40618
91651-60830
93249-53012
94130-60300
94130-61200
94512-01200
94611-10800
95381-03220
