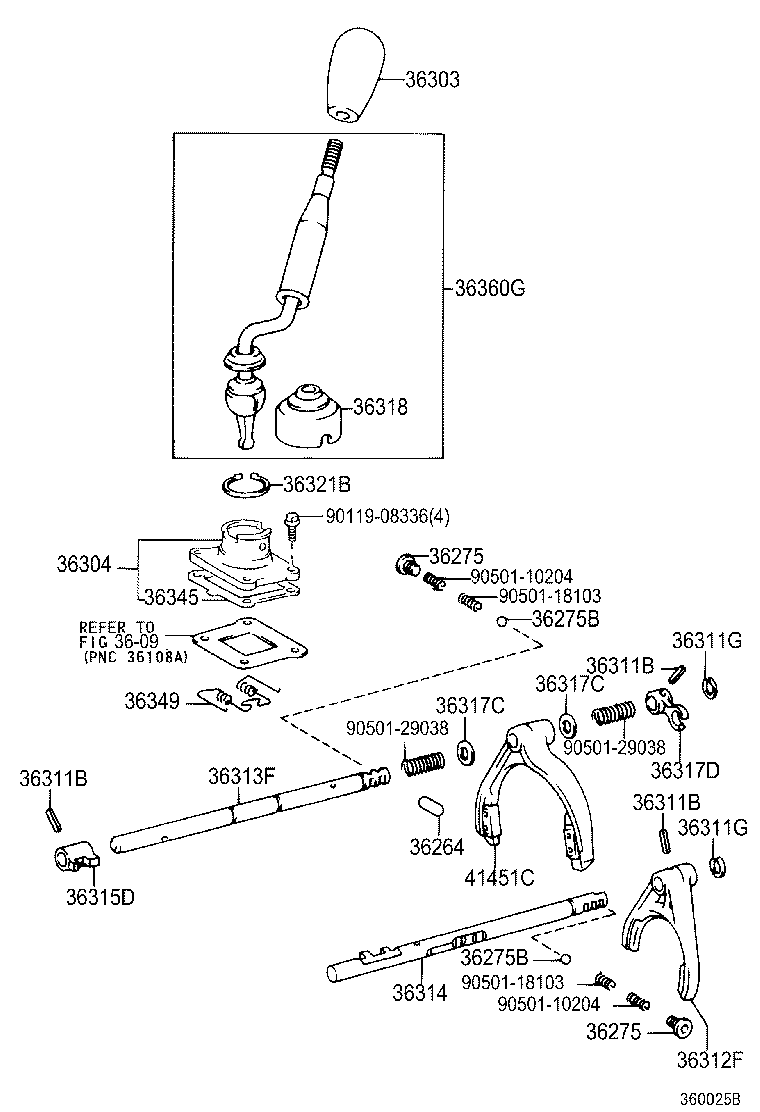

VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
(9604- )VZJ9# ; (9604- )RZJ95..VX ; (9604-)KZJ95,RZJ95..MTM..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=25.7,OD=9.53 |
1 | ||
| 90250-10020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) L=25.7,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 90341-12014 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90341-12014 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 90341-12014 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90341-12014 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
KZJ95,VZJ95..ATM..ARL OD=9.52,STEEL,W(ACTIVE TRC OR VSC) |
1 | ||
| 90360-10003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=9.52,STEEL |
2 | ||
| 90360-10003 |
RZJ9#..LHD..GEN;VZJ95..ATM..ARL;RZJ95..RHD..GX..(GEN,MA) OD=9.52,STEEL |
3 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
KZJ95,VZJ95..ATM..ARL OD=9.52,STEEL,W(ACTIVE TRC OR VSC) |
1 | ||
| 90360-10003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=9.52,STEEL |
2 | ||
| 90360-10003 |
RZJ9#..LHD..GEN;VZJ95..ATM..ARL;RZJ95..RHD..GX..(GEN,MA) OD=9.52,STEEL |
3 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60260C0 |
RZJ95,VZJ9#..EFI..(ARL,CO,GCC) BLACK,TRIM1# |
1 | ||
| 36303-60270C0 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),BLACK,TRIM1#,4# |
1 | ||
| 36303-60260C0 |
VZJ95..ARL;RZJ95..MTM..ARL;RZJ95..RHD..ATM;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC,MA BLACK,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60030 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
VZJ9#;RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ9#;KZJ95,RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ95..ATM..ARL L=22,W(ABS & ACTIVE TRC) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
VZJ9#;RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ9#;KZJ95,RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ95..ATM..ARL L=22,W(ABS & ACTIVE TRC) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
VZJ9#;RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ9#;KZJ95,RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ95..ATM..ARL L=22,W(ABS & ACTIVE TRC) |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 90520-13002 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 90520-13002 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36312-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-60120 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
1 | ||
| 36313-60120 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60070 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36314-60080 |
VZJ95..ATM..ARL W(ACTIVE TRC) |
1 | ||
| 36314-60070 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36315-60020 |
VZJ9#;RZJ95..ARL |
1 | ||
| 36315-60020 |
RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..ARL,CO,GCC,MA |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36317-35020 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36317-35020 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36317-35030 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 33555-35190 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-49003 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM |
1 | ||
| 36345-35050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-60010 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36349-60010 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60520 |
VZJ95..ATM..ARL |
1 | ||
| 36360-60521 |
VZJ95..ATM..ARL |
1 | ||
| 36360-60521 |
KZJ95,VZJ95..RHD..ATM |
1 | ||
| 36360-60580 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 41451C - FORK, DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60030 |
VZJ9#;RZJ95..ARL |
1 | ||
| 41451-60030 |
RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..ARL,CO,GCC,MA |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90501-10204 | ||||
| 90501-18103 | ||||
| 90501-29038 | ||||
| Linked diagrams | ||||
| 3609 | ||||

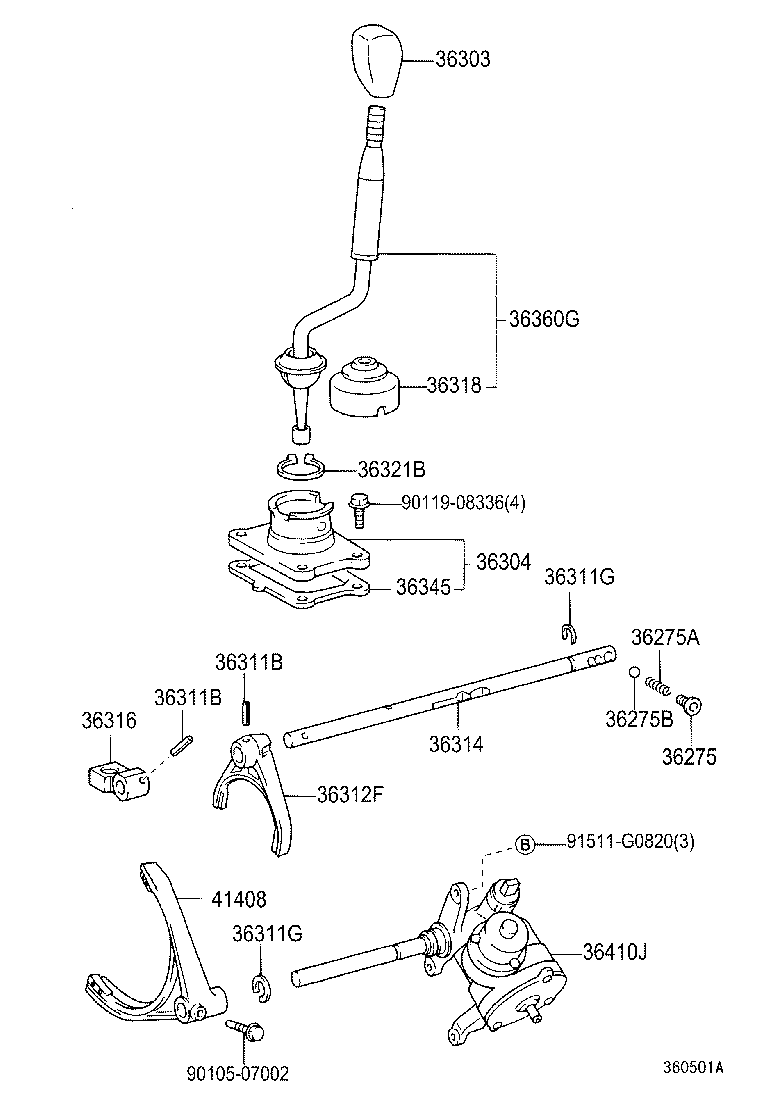

(9906- )KZJ95,VZJ95..ATM..ARL
W(ACTIVE TRC OR VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 90341-12014 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90341-12014 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
KZJ95,VZJ95..ATM..ARL L=23 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
KZJ95,VZJ95..ATM..ARL OD=9.52,STEEL,W(ACTIVE TRC OR VSC) |
1 | ||
| 90360-10003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) OD=9.52,STEEL |
2 | ||
| 90360-10003 |
RZJ9#..LHD..GEN;VZJ95..ATM..ARL;RZJ95..RHD..GX..(GEN,MA) OD=9.52,STEEL |
3 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60260C0 |
RZJ95,VZJ9#..EFI..(ARL,CO,GCC) BLACK,TRIM1# |
1 | ||
| 36303-60270C0 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),BLACK,TRIM1#,4# |
1 | ||
| 36303-60260C0 |
VZJ95..ARL;RZJ95..MTM..ARL;RZJ95..RHD..ATM;VZJ95..MTM..GCC;KZJ95,VZJ90..ARL,GCC,MA BLACK,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60030 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
VZJ9#;RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ9#;KZJ95,RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ95..ATM..ARL L=22,W(ABS & ACTIVE TRC) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
VZJ9#;RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ9#;KZJ95,RZJ95..MTM..ARL L=22 |
3 | ||
| 90254-05001 |
VZJ95..ATM..ARL L=22,W(ABS & ACTIVE TRC) |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 90520-13002 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
2 | ||
| 90520-13002 |
VZJ9#;RZJ95..MTM..ARL |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36312-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60070 |
VZJ9#;RZJ95..MTM..ARL |
1 | ||
| 36314-60080 |
VZJ95..ATM..ARL W(ACTIVE TRC) |
1 | ||
| 36314-60070 |
VZJ9#;KZJ95,RZJ95..MTM..ARL |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-35040 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 33555-35190 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90521-49003 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
VZJ95..ARL;VZJ95..MTM..GCC;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM |
1 | ||
| 36345-35050 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60520 |
VZJ95..ATM..ARL |
1 | ||
| 36360-60521 |
VZJ95..ATM..ARL |
1 | ||
| 36360-60521 |
KZJ95,VZJ95..RHD..ATM |
1 | ||
| 36360-60580 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-60071 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60010 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| Common parts | ||||
| 90105-07002 | ||||
| 90119-08336 | ||||
| 91511-G0820 | ||||
