VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90

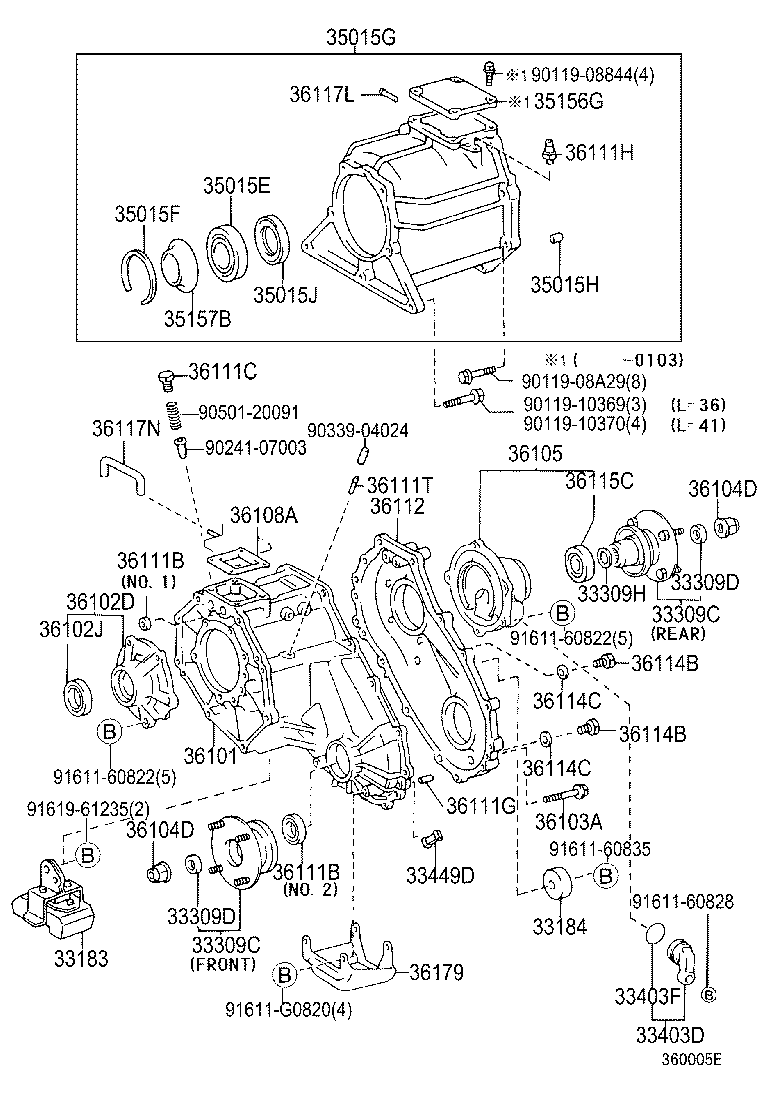

(9604- )VZJ95..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-60021 |
VZJ9# |
1 | ||
| 33183-34031 |
VZJ95 |
1 | ||
| 33183-60020 |
VZJ9# |
1 | ||
| 33184 - WEIGHT, DYNAMIC DAMPER | ||||
| 33184-60010 |
VZJ9#;RZJ95..ARL |
1 | ||
| 33184-60010 |
RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..ARL,CO,GCC,MA |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# N=30,OD=38 |
2 | ||
| 36275-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) N=30,OD=38 |
2 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 33449-32020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 35015E - BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) | ||||
| 90363-37001 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90363-37001 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER) | ||||
| 90521-72001 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90521-72001 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35015G - ADAPTER, TRANSFER, REAR | ||||
| 35015-35030 |
VZJ95..ATM |
1 | ||
| 35015-35030 |
VZJ95..ATM |
1 | ||
| 35015-35060 |
VZJ95..ATM |
1 | ||
| 35015H - PIN, RING(FOR TRANSFER CASE) | ||||
| 90253-11001 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90253-11001 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC,MA) |
2 | ||
| 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) | ||||
| 90311-40007 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90311-40007 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35156G - COVER, TRANSMISSION CASE REAR ADAPTER | ||||
| 35156-35010 |
VZJ95..ATM |
1 | ||
| 35156-35010 |
VZJ95..ATM |
1 | ||
| 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL | ||||
| 35157-35010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35157-35010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35157-60010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36111-35070 |
RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..ARL,CO,GCC,MA |
1 | ||
| 36111-35070 |
VZJ9#;RZJ95..ARL |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35031 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36102-35032 |
KZJ95,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36102-35031 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *8-1.25PX55-30 |
12 | ||
| 90119-08A28 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36105-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35060 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM |
1 | ||
| 36108-35060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),NO.1 |
1 | ||
| 90311-41008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-41011 |
KZJ95,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),NO.1 |
1 | ||
| 90311-41008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-41011 |
KZJ95,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90341-14012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) L=14,OD=10 |
2 | ||
| 90250-10214 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=14,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90930-03085 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35050 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 36112-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36112-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90311-41007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90904-45005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90904-45005 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36179-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08844 | ||||
| 90119-08A29 | ||||
| 90119-10369 | ||||
| 90119-10370 | ||||
| 90241-07003 | ||||
| 90339-04024 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91611-60835 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||

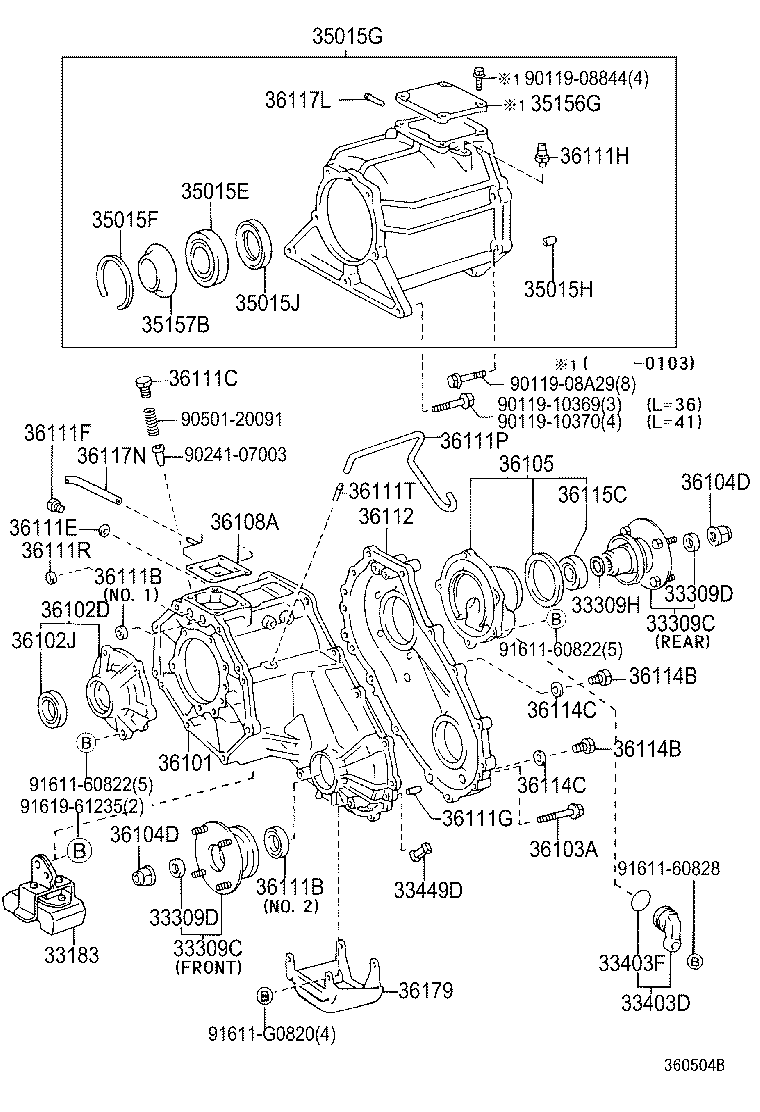

(9906- )VZJ95..ATM..ARL
W(ACTIVE TRC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-60021 |
VZJ9# |
1 | ||
| 33183-34031 |
VZJ95 |
1 | ||
| 33183-60020 |
VZJ9# |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35091 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) REAR |
1 | ||
| 33309-35100 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) FRONT |
1 | ||
| 33309-35091 |
KZJ9#,LJ9#,RZJ9#,VZJ9# REAR |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90312-23001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# N=30,OD=38 |
2 | ||
| 36275-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) N=30,OD=38 |
2 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 33449-32020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 35015E - BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) | ||||
| 90363-37001 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90363-37001 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER) | ||||
| 90521-72001 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90521-72001 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35015G - ADAPTER, TRANSFER, REAR | ||||
| 35015-35030 |
VZJ95..ATM |
1 | ||
| 35015-35030 |
VZJ95..ATM |
1 | ||
| 35015-35060 |
VZJ95..ATM |
1 | ||
| 35015H - PIN, RING(FOR TRANSFER CASE) | ||||
| 90253-11001 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90253-11001 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC,MA) |
2 | ||
| 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) | ||||
| 90311-40007 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90311-40007 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35156G - COVER, TRANSMISSION CASE REAR ADAPTER | ||||
| 35156-35010 |
VZJ95..ATM |
1 | ||
| 35156-35010 |
VZJ95..ATM |
1 | ||
| 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL | ||||
| 35157-35010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35157-35010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35157-60010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36111-35070 |
RZJ95..RHD..ATM;RZJ95..MTM..ARL;KZJ95,VZJ9#..ARL,CO,GCC,MA |
1 | ||
| 36111-35070 |
VZJ9#;RZJ95..ARL |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35031 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36102-35032 |
KZJ95,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36102-35031 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) *8-1.25PX55-30 |
12 | ||
| 90119-08A28 |
KZJ9#,LJ9#,RZJ9#,VZJ9# *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 90179-22016 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36105-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35060 |
VZJ95;KZJ9#,LJ9#,RZJ9#,VZJ90..MTM |
1 | ||
| 36108-35060 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..MTM..GX..EFI..(ARL,GEN) |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),NO.1 |
1 | ||
| 90311-41008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-41011 |
KZJ95,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.2 |
1 | ||
| 90311-15008 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) NO.1 |
2 | ||
| 90311-15008 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC),NO.1 |
1 | ||
| 90311-41008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-41011 |
KZJ95,LJ9#,RZJ9#,VZJ9# NO.2 |
1 | ||
| 90311-15008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# NO.1 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90341-14012 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZJ95..MTM;VZJ95..ARL;VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZJ95..MTM;VZJ95..ARL;VZJ95..MTM..VX;KZJ9#,LJ9#,RZJ90,VZJ90..ARL,CO,GCC,GEN |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) L=14,OD=10 |
2 | ||
| 90250-10214 |
KZJ9#,LJ9#,RZJ9#,VZJ9# L=14,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03085 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90930-03085 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36111P - HOSE, BREATHER (FOR TRANSFER CASE) | ||||
| 90447-08119 |
KZJ95,VZJ95..ATM..ARL L=540 |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 90331-25005 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35050 |
KZJ95,VZJ95..ATM..ARL W(ACTIVE TRC OR VSC) |
1 | ||
| 36112-35040 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36112-35040 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90341-18006 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 90430-18008 |
RZJ9#..CBR;RZJ90..GX..GEN;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 90311-41007 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
KZJ9#,RZJ9#,VZJ9# |
1 | ||
| 90441-05001 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90904-45005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90904-45005 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-35010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 36179-35010 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08844 | ||||
| 90119-08A29 | ||||
| 90119-10369 | ||||
| 90119-10370 | ||||
| 90241-07003 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91611-G0820 | ||||
| 91619-61235 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
