VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
ILLUST NO. 4 OF 5(9604-9906)ATM ; (9906-9910)ATM..CO ; (9906-)RZJ95..ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||

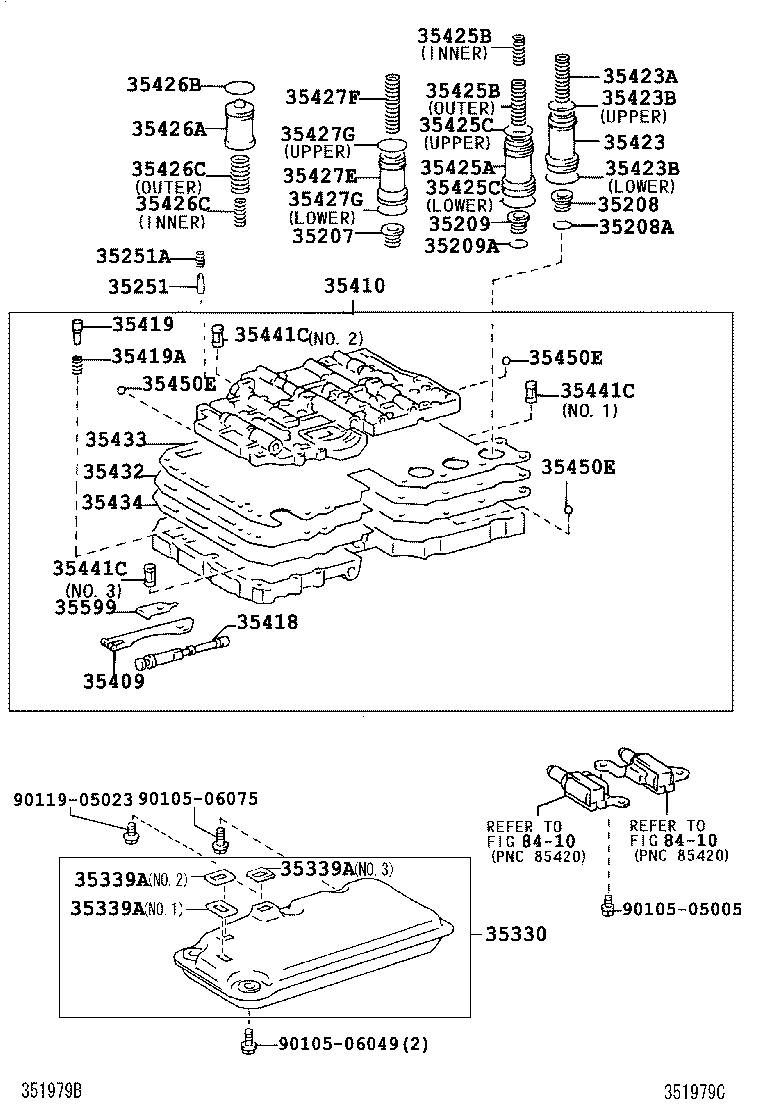

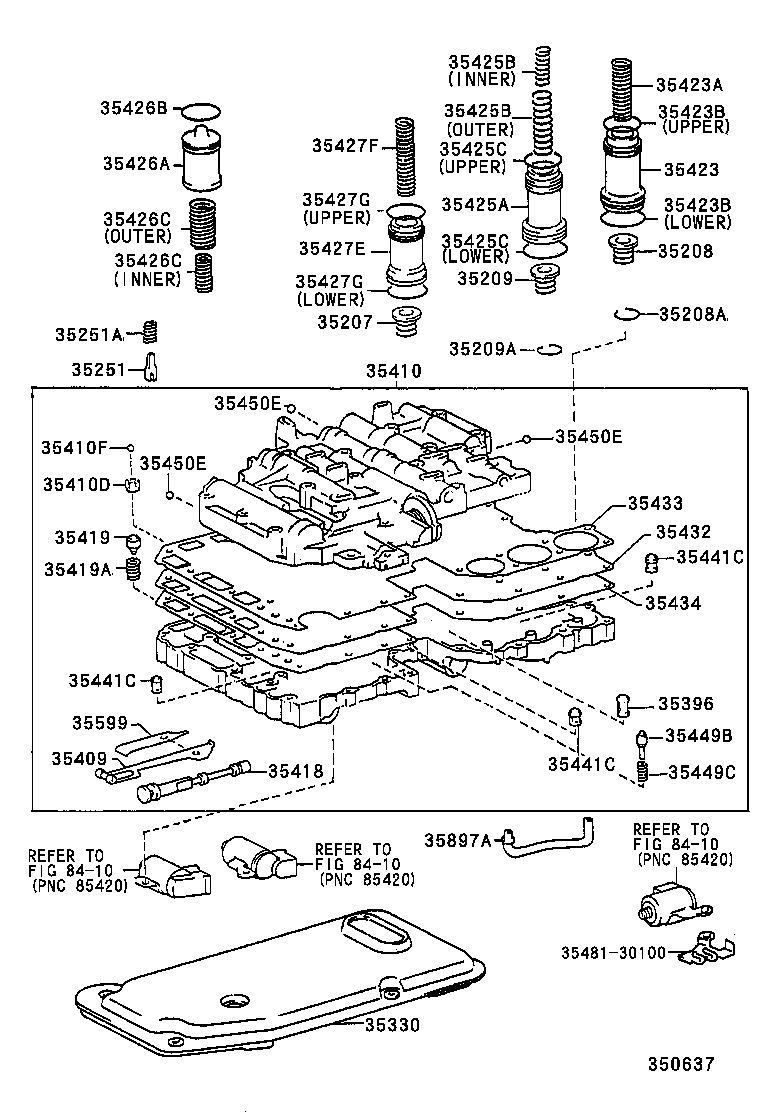

ILLUST NO. 1 OF 5(9604-9906)ATM ; (9906-9910)ATM..CO ; (9906-)RZJ95..ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35207-22010 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-22010 |
VZJ95..ATM |
1 | ||
| 35208-22010 |
VZJ95..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90521-22004 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-30010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35209-30010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35209-22020 |
KZJ95..MA;VZJ95..ATM |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90521-22004 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35251-30020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-03005 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35330-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-30010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35409-30020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60370 |
VZJ95..ATM |
1 | ||
| 35410-60371 |
VZJ95..ATM |
1 | ||
| 35410-60480 |
VZJ95..ATM |
1 | ||
| 35410D - VALVE, CHECK | ||||
| 90917-10073 |
RZJ95,VZJ95..ATM |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
RZJ95,VZJ95..ATM |
1 | ||
| 90360-06004 |
VZJ95..ATM..ARL |
2 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
VZJ95..ATM |
1 | ||
| 35418-30070 |
RZJ95,VZJ95..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50010 |
VZJ95..ATM |
1 | ||
| 35419-12030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
VZJ95..ATM |
1 | ||
| 90501-11039 |
RZJ95,VZJ95..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35423-30030 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-27019 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-27019 |
VZJ95..ATM |
1 | ||
| 90501-27019 |
VZJ95..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-23010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-23010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-23010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-23010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35425-30020 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
VZJ95..ATM OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-25027 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22016 |
VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
VZJ95..ATM OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-25027 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22016 |
VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25003 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-25010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25003 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-25010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35426-40010 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
RZJ95,VZJ95..ATM |
1 | ||
| 90301-24010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90301-24010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
VZJ95..ATM;RZJ95..ATM..ARL OUTER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM OUTER |
1 | ||
| 90501-22008 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
VZJ95..ATM;RZJ95..ATM..ARL OUTER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM OUTER |
1 | ||
| 90501-22008 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35427-30040 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35427-30040 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
VZJ95..ATM |
1 | ||
| 90501-21006 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-21006 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-21006 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-26002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-26011 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-20008 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-26011 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-20002 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-26002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-26011 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-20008 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-26011 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-20002 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-35190 |
VZJ95..ATM |
1 | ||
| 35432-60170 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35432-60170 |
VZJ95..ATM |
1 | ||
| 35432-35220 |
VZJ95..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
RZJ95,VZJ95..ATM |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60040 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35434-60040 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35434-30076 |
RZJ95,VZJ95..ATM |
1 | ||
| 35434-60040 |
KZJ95,VZJ95..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
RZJ95,VZJ95..ATM |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35599-30020 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35599-30020 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-60010 |
RZJ95,VZJ95..ATM |
1 | ||
| Common parts | ||||
| 35481-30100 | ||||
| Linked diagrams | ||||
| 8410 | ||||

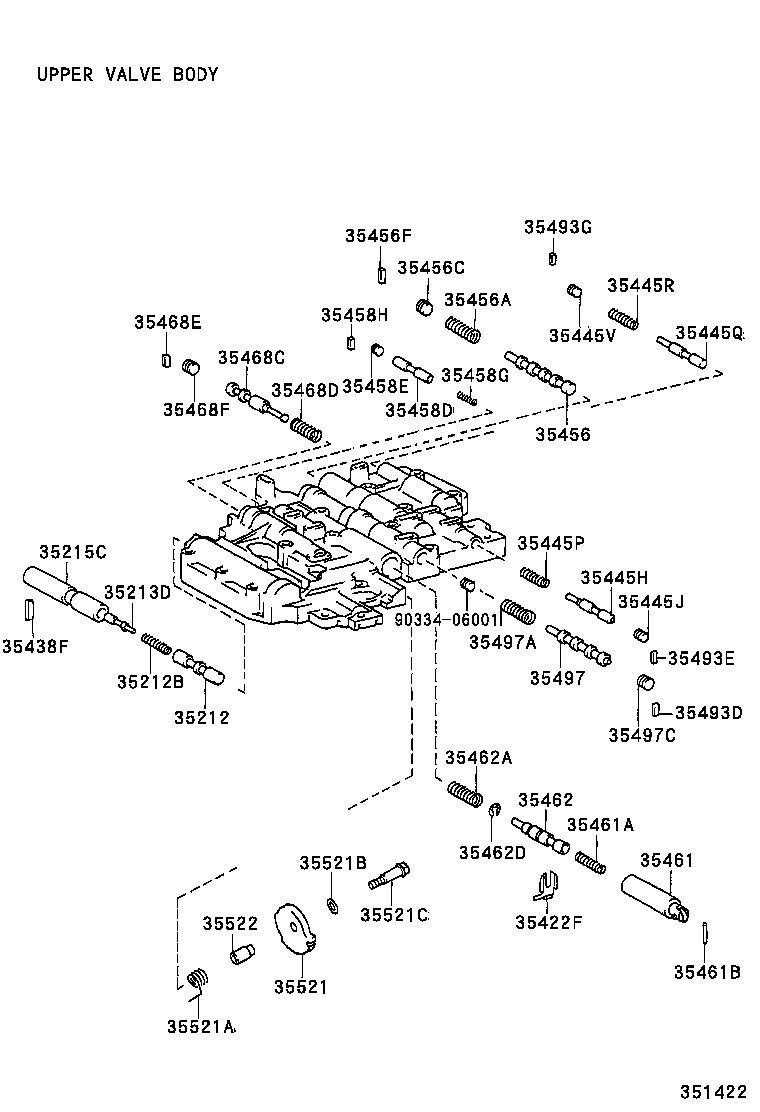

ILLUST NO. 2 OF 5(9604-9906)ATM ; (9906-9910)ATM..CO ; (9906-)RZJ95..ATM ; (9910-0008)KZJ95..MA
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35212-24010 |
VZJ95..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06037 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-06057 |
VZJ95..ATM |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35213-24010 |
VZJ95..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35215-24010 |
VZJ95..ATM |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-30010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-50010 |
VZJ95..ATM |
1 | ||
| 35438-22020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35438-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-30011 |
RZJ95,VZJ95..ATM |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90339-04002 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90339-04002 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-11026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-11026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-11026 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-30011 |
RZJ95,VZJ95..ATM |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08169 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-08169 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-08088 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
RZJ95,VZJ95..ATM |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04002 |
RZJ95,VZJ95..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456-30060 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
RZJ95..ATM..ARL;VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-24010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35458-24010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458-24010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35458-30030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04056 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90339-04002 |
RZJ95,VZJ95..ATM |
1 | ||
| 90339-04056 |
KZJ95,VZJ95..ATM |
1 | ||
| 90339-04056 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03003 |
RZJ95,VZJ95..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22050 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35408-22050 |
VZJ95..ATM |
1 | ||
| 35408-30040 |
RZJ95,VZJ95..ATM |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10119 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-10119 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-10119 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-10119 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35461B - PIN, STRAIGHT (FOR DOWN SHIFT PLUG) | ||||
| 90250-03045 |
RZJ95,VZJ95..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35462-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35462-50010 |
VZJ95..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07067 |
RZJ95,VZJ95..ATM L=23.28 |
1 | ||
| 90501-07051 |
RZJ95,VZJ95..ATM L=20.58 |
1 | ||
| 90504-06002 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90504-06002 |
VZJ95..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
RZJ95,VZJ95..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35468-24010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35468-24010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35468-12020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-15007 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-12170 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-12170 |
KZJ95,VZJ95..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-22020 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90339-05014 |
RZJ95,VZJ95..ATM |
1 | ||
| 90339-05020 |
KZJ95,VZJ95..ATM |
1 | ||
| 90339-05020 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-30080 |
RZJ95,VZJ95..ATM |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35497-30040 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35497-30040 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30080 |
VZJ95..ATM |
1 | ||
| 35521-35010 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35521-35010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90508-11007 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90508-11007 |
RZJ95,VZJ95..ATM |
1 | ||
| 90508-11007 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90201-06472 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90201-06472 |
RZJ95,VZJ95..ATM |
1 | ||
| 90201-06472 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90105-06018 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90105-06018 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90105-06018 |
RZJ95,VZJ95..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35522-22020 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35522-22020 |
VZJ95..ATM |
1 | ||
| Common parts | ||||
| 90334-06001 | ||||
ILLUST NO. 3 OF 5(9604-9906)ATM ; (9906-9910)ATM..CO ; (9906-)RZJ95..ATM ; (9910-0008)KZJ95..MA
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

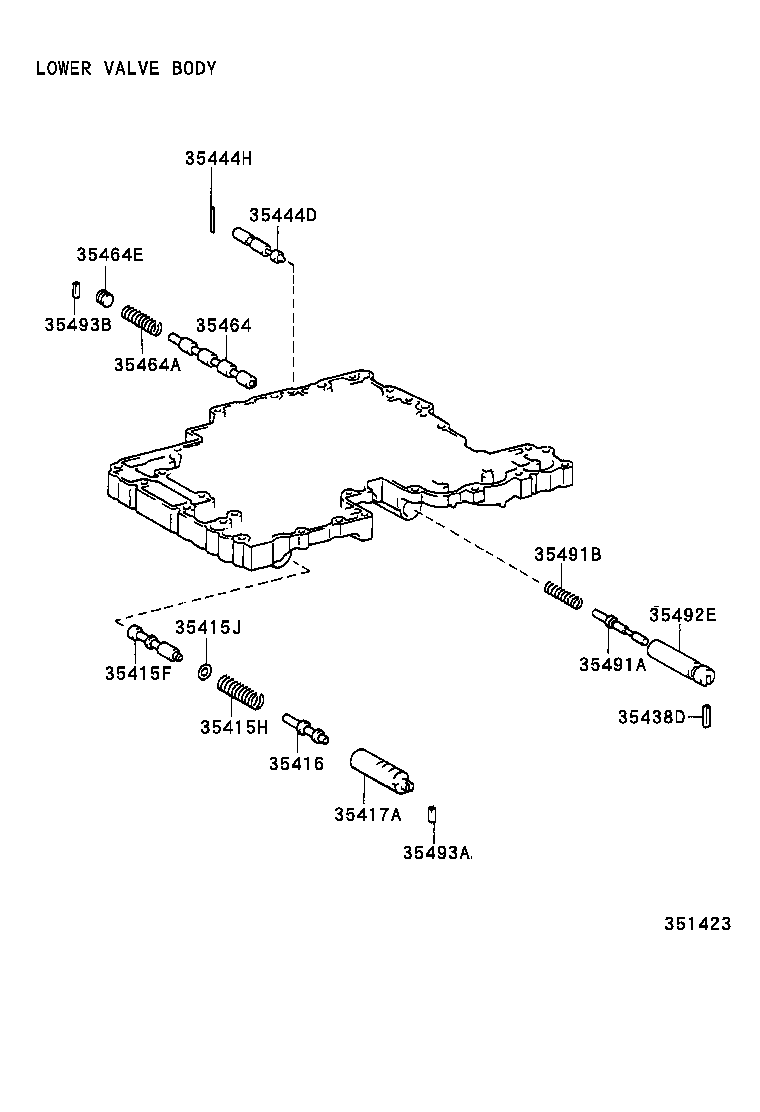

| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
VZJ95..ATM |
1 | ||
| 35415-30030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-14117 |
VZJ95..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08021 |
RZJ95,VZJ95..ATM |
1 | ||
| 90201-08067 |
VZJ95..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-30050 |
RZJ95,VZJ95..ATM |
1 | ||
| 35416-24020 |
VZJ95..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-30070 |
RZJ95,VZJ95..ATM |
1 | ||
| 35417-24020 |
VZJ95..ATM |
1 | ||
| 35438D - SEAT, ACCUMULATOR CONTROL VALVE SPRING | ||||
| 35438-22020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35444D - VALVE, RELEASE CONTROL | ||||
| 35444-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35444H - PIN,STRAIGHT(FOR INTERMEDIATE MODULATOR PLUG) | ||||
| 90250-03045 |
RZJ95,VZJ95..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35464-12030 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35464-12030 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08191 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-08077 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-08191 |
KZJ95,VZJ95..ATM |
1 | ||
| 90501-08191 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-30030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
ILLUST NO. 4 OF 5(9906-9910)KZJ95,VZJ95..ATM..ARL,GCC ; (9910-)KZJ95,VZJ95..ATM..ARL,CO,GCC ; (0
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05009 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90119-05023 | ||||

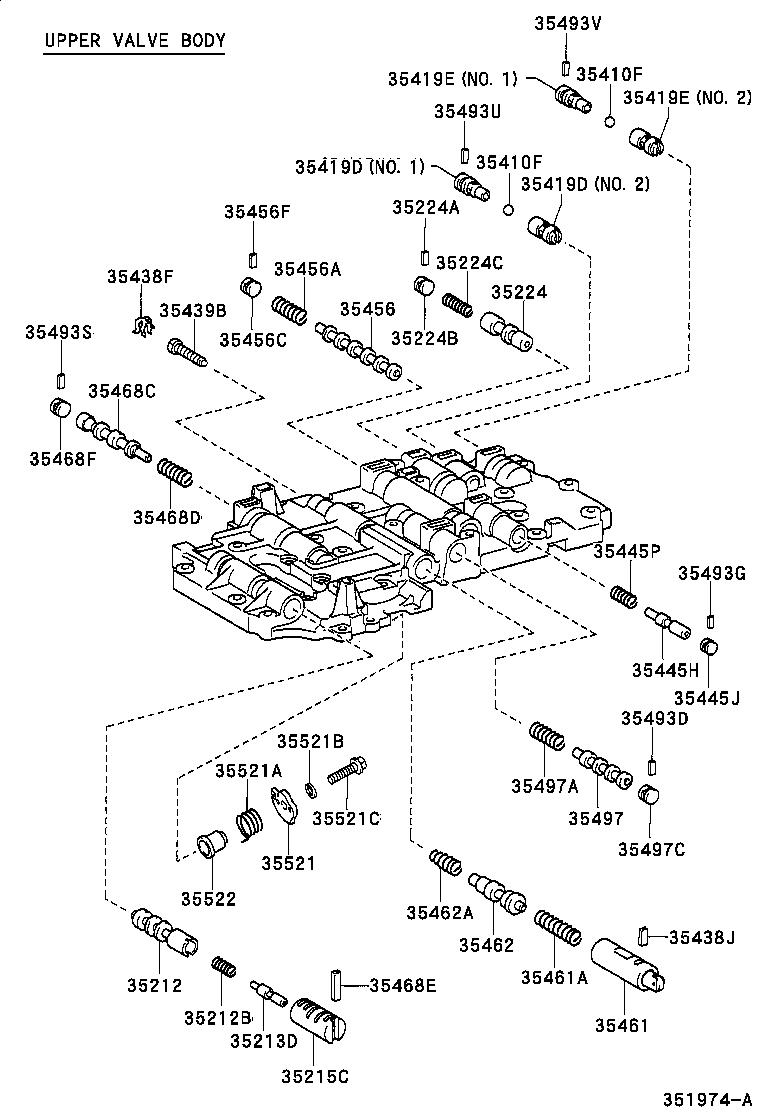

ILLUST NO. 2 OF 5(9906-9910)VZJ95..ATM..ARL,GCC ; (9910- )VZJ95..ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-12010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35212-24010 |
VZJ95..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06037 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-06057 |
VZJ95..ATM |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35213-24010 |
VZJ95..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35215-24010 |
VZJ95..ATM |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
VZJ95..ATM |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
VZJ95..ATM |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
VZJ95..ATM |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
VZJ95..ATM |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
RZJ95,VZJ95..ATM |
1 | ||
| 90360-06004 |
VZJ95..ATM..ARL |
2 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
RZJ95,VZJ95..ATM |
1 | ||
| 90360-06004 |
VZJ95..ATM..ARL |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50030 |
VZJ95..ATM NO.2 |
1 | ||
| 35419-50020 |
VZJ95..ATM NO.1 |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50030 |
VZJ95..ATM NO.2 |
1 | ||
| 35419-50020 |
VZJ95..ATM NO.1 |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50030 |
VZJ95..ATM NO.2 |
1 | ||
| 35419-50020 |
VZJ95..ATM NO.1 |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50030 |
VZJ95..ATM NO.2 |
1 | ||
| 35419-50020 |
VZJ95..ATM NO.1 |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-50010 |
VZJ95..ATM |
1 | ||
| 35438-22020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35438-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35493-50050 |
VZJ95..ATM |
1 | ||
| 35493-50050 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35439B - SCREW, THROTTLE VALVE | ||||
| 35439-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35439-50010 |
VZJ95..ATM |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-30011 |
RZJ95,VZJ95..ATM |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35445-50010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90339-04002 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90339-04002 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-11026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-11026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-11026 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456-30060 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
RZJ95..ATM..ARL;VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22050 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35408-22050 |
VZJ95..ATM |
1 | ||
| 35408-30040 |
RZJ95,VZJ95..ATM |
1 | ||
| 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) | ||||
| 90501-10119 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-10119 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-10119 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-10119 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35462-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35462-50010 |
VZJ95..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07067 |
RZJ95,VZJ95..ATM L=23.28 |
1 | ||
| 90501-07051 |
RZJ95,VZJ95..ATM L=20.58 |
1 | ||
| 90504-06002 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90504-06002 |
VZJ95..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35468-24010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35468-24010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35468-12020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-15007 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-12170 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-12170 |
KZJ95,VZJ95..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-22020 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-22020 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90339-05014 |
RZJ95,VZJ95..ATM |
1 | ||
| 90339-05020 |
KZJ95,VZJ95..ATM |
1 | ||
| 90339-05020 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493-30030 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-30030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35493-30030 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493-30030 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 35493-30030 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-30030 |
KZJ95,VZJ95..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35497-30040 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35497-30040 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30080 |
VZJ95..ATM |
1 | ||
| 35521-35010 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35521-35010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90508-11007 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90508-11007 |
RZJ95,VZJ95..ATM |
1 | ||
| 90508-11007 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90201-06472 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90201-06472 |
RZJ95,VZJ95..ATM |
1 | ||
| 90201-06472 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90105-06018 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90105-06018 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90105-06018 |
RZJ95,VZJ95..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
RZJ95,VZJ95..ATM |
1 | ||
| 35522-22020 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35522-22020 |
VZJ95..ATM |
1 | ||
ILLUST NO. 1 OF 5(9906-9910)VZJ95..ATM..ARL,GCC ; (9910- )VZJ95..ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35207-22010 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-22010 |
VZJ95..ATM |
1 | ||
| 35208-22010 |
VZJ95..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90521-22004 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-30010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35209-30010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35209-22020 |
KZJ95..MA;VZJ95..ATM |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90521-22004 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35251-30020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-03005 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35330-60030 |
KZJ95,VZJ95..ATM..ARL |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30080 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35339-30090 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.2 |
1 | ||
| 35339-30100 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30080 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35339-30090 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.2 |
1 | ||
| 35339-30100 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30080 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35339-30090 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.2 |
1 | ||
| 35339-30100 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35409-30020 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60370 |
VZJ95..ATM |
1 | ||
| 35410-60371 |
VZJ95..ATM |
1 | ||
| 35410-60480 |
VZJ95..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
VZJ95..ATM |
1 | ||
| 35418-30070 |
RZJ95,VZJ95..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50010 |
VZJ95..ATM |
1 | ||
| 35419-12030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
VZJ95..ATM |
1 | ||
| 90501-11039 |
RZJ95,VZJ95..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35423-30030 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-27019 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-27019 |
VZJ95..ATM |
1 | ||
| 90501-27019 |
VZJ95..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-23010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-23010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-23010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-23010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35425-30020 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
VZJ95..ATM OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-25027 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22016 |
VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
VZJ95..ATM OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-25027 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22016 |
VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 90501-25027 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23093 |
RZJ95,VZJ95..ATM OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25003 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-25010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-31010 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25003 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-31002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-25010 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-25010 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35426-40010 |
VZJ95..ATM..ARL;KZJ95,RZJ95..ATM |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
RZJ95,VZJ95..ATM |
1 | ||
| 90301-24010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90301-24010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
VZJ95..ATM;RZJ95..ATM..ARL OUTER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM OUTER |
1 | ||
| 90501-22008 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-23073 |
VZJ95..ATM;RZJ95..ATM..ARL OUTER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM OUTER |
1 | ||
| 90501-22008 |
VZJ95..ATM;RZJ95..ATM..ARL INNER |
1 | ||
| 90501-22008 |
KZJ95,RZJ95,VZJ95..ATM INNER |
1 | ||
| 90501-23073 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OUTER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35427-30040 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35427-30040 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
VZJ95..ATM |
1 | ||
| 90501-21006 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-21006 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-21006 |
RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-26002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-26011 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-20008 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-26011 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-20002 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
KZJ95,RZJ95,VZJ95..ATM UPPER |
1 | ||
| 90301-26002 |
RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-26011 |
KZJ95,RZJ95,VZJ95..ATM LOWER |
1 | ||
| 90301-20008 |
VZJ95..ATM;RZJ95..ATM..ARL UPPER |
1 | ||
| 90301-26011 |
VZJ95..ATM;RZJ95..ATM..ARL LOWER |
1 | ||
| 90301-20002 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-35190 |
VZJ95..ATM |
1 | ||
| 35432-60170 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35432-60170 |
VZJ95..ATM |
1 | ||
| 35432-35220 |
VZJ95..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
RZJ95,VZJ95..ATM |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM |
1 | ||
| 35433-60040 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-60040 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35434-60040 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35434-30076 |
RZJ95,VZJ95..ATM |
1 | ||
| 35434-60040 |
KZJ95,VZJ95..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30031 |
RZJ95,VZJ95..ATM UPPER |
1 | ||
| 35441-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.3 |
1 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.3 |
1 | ||
| 35441-24010 |
VZJ95..ATM |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) NO.1 |
1 | ||
| 35441-50030 |
KZJ95,VZJ95..ATM..(ARL,GCC) NO.1 |
1 | ||
| 35441-30020 |
RZJ95,VZJ95..ATM LOWER |
2 | ||
| 35441-24020 |
KZJ95,VZJ95..ATM NO.3 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
10 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35496-22030 |
RZJ95,VZJ95..ATM OD=6.35,RUBBER |
1 | ||
| 35496-22030 |
VZJ95..ATM OD=6.35,RUBBER |
2 | ||
| 35495-22020 |
VZJ95..ATM OD=5.535,RUBBER |
9 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35599-30020 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35599-30020 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90105-06075 | ||||
| 90119-05023 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 3 OF 5(9906-9910)KZJ95,VZJ95..ATM..ARL,GCC ; (9910-)KZJ95,VZJ95..ATM..ARL,CO,GCC ; (0
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
VZJ95..ATM |
1 | ||
| 35415-30030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-16077 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-14117 |
VZJ95..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08021 |
RZJ95,VZJ95..ATM |
1 | ||
| 90201-08067 |
VZJ95..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-30050 |
RZJ95,VZJ95..ATM |
1 | ||
| 35416-24020 |
VZJ95..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-30070 |
RZJ95,VZJ95..ATM |
1 | ||
| 35417-24020 |
VZJ95..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
VZJ95..ATM..ARL OD=8.00,STEEL |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-12142 |
VZJ95..ATM |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
VZJ95..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-50010 |
VZJ95..ATM |
1 | ||
| 35445-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-50010 |
VZJ95..ATM |
1 | ||
| 35445-50010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08169 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-08169 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-08088 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
KZJ95..MA;RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90501-08169 |
RZJ95,VZJ95..ATM |
1 | ||
| 35445W - SEAT, SHIFT VALVE PLUG(FOR LOW MODULATOR VALVE) | ||||
| 35493-24010 |
VZJ95..ATM |
1 | ||
| 35493-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35445W - SEAT, SHIFT VALVE PLUG(FOR LOW MODULATOR VALVE) | ||||
| 35493-24010 |
VZJ95..ATM |
1 | ||
| 35493-24010 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-24010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35458-24010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458-24010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35458-30030 |
RZJ95,VZJ95..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04056 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90339-04002 |
RZJ95,VZJ95..ATM |
1 | ||
| 90339-04056 |
KZJ95,VZJ95..ATM |
1 | ||
| 90339-04056 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06026 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-07113 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35464-12030 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35464-12030 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-09053 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 90339-05014 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
KZJ95,VZJ95..ATM |
1 | ||
| 35486-30020 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35486-30020 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35491-60050 |
KZJ95,VZJ95..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08191 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90501-08077 |
RZJ95,VZJ95..ATM |
1 | ||
| 90501-08191 |
KZJ95,VZJ95..ATM |
1 | ||
| 90501-08191 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90282-03016 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90282-03016 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-30020 |
RZJ95,VZJ95..ATM |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35493-50010 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
KZJ95..MA;RZJ95..ATM;VZJ95..ATM..ARL |
1 | ||
| 35493-30090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 35493-30100 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35493-30100 |
KZJ95,VZJ95..ATM |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 90339-05028 |
KZJ95,VZJ95..ATM..(ARL,CO,GCC) |
1 | ||
| 90339-05028 |
KZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90339-05028 |
KZJ95,VZJ95..ATM |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
ILLUST NO. 5 OF 5(9604- )ATM
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
