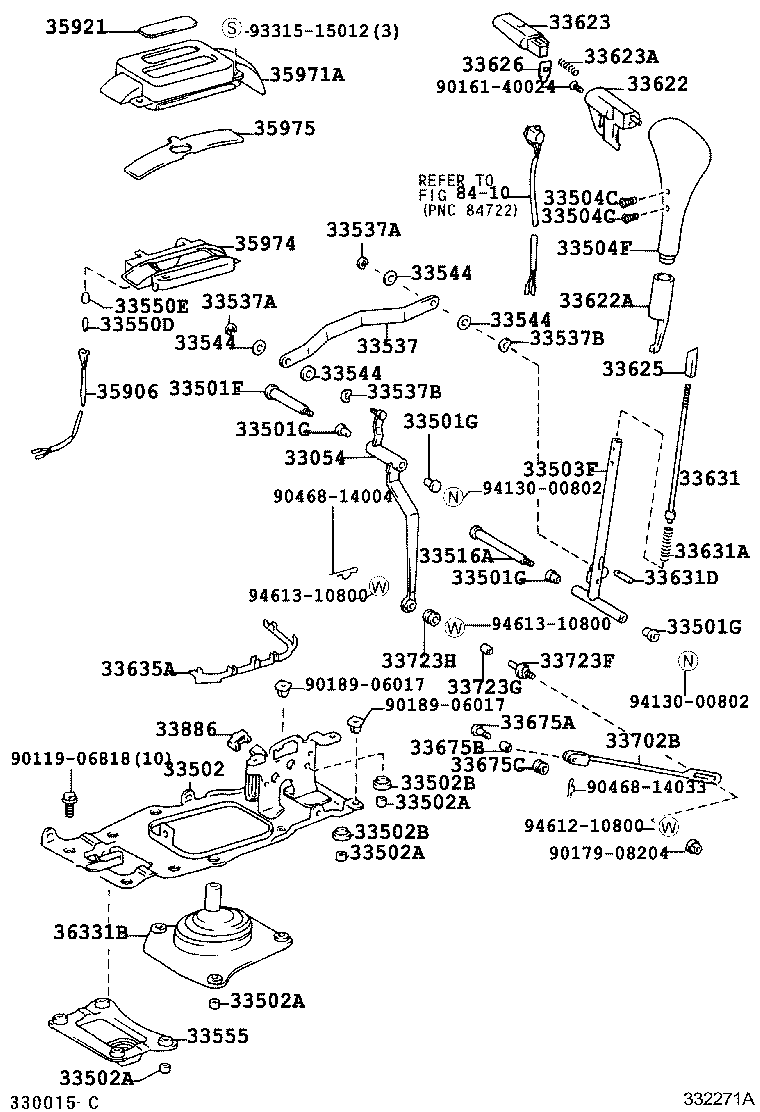

VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90
(9604- )RHD..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-60010 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 33054-60010 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-35180 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33511-35180 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33511-35180 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 90385-11003 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 90385-11003 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 90385-11003 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 90385-11003 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 90385-11003 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-60210 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 33502-60210 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM OD=8.8 |
10 | ||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OD=8.8 |
10 | ||
| 90387-06065 |
VZJ95..ATM;RZJ95..ATM..ARL OD=8.8 |
10 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM OD=8.8 |
10 | ||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OD=8.8 |
10 | ||
| 90387-06065 |
VZJ95..ATM;RZJ95..ATM..ARL OD=8.8 |
10 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM OD=8.8 |
10 | ||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OD=8.8 |
10 | ||
| 90387-06065 |
VZJ95..ATM;RZJ95..ATM..ARL OD=8.8 |
10 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM OD=8.8 |
10 | ||
| 90387-06065 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) OD=8.8 |
10 | ||
| 90387-06065 |
VZJ95..ATM;RZJ95..ATM..ARL OD=8.8 |
10 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90480-13018 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90480-13018 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90480-13018 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90480-13018 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-60030 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 33055-60030 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90159-40109 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90159-40109 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90159-40109 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90159-40109 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-33050C0 |
RZJ95,VZJ95..ATM..ARL URETHANE,BLACK,TRIM1# |
1 | ||
| 33542-33060C0 |
VZJ95..ATM..ARL LEATHER,BLACK,TRIM1# |
1 | ||
| 33542-33050C0 |
KZJ95,RZJ95,VZJ95..ATM..ARL URETHANE,BLACK,TRIM1#,4# |
1 | ||
| 33542-33060C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM LEATHER,BLACK,TRIM1#,4# |
1 | ||
| 33516A - SHAFT, CONTROL, NO.3 | ||||
| 33516-35010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33516-35010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33516-35010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33537 - PLATE, CONTROL LEVER | ||||
| 33537-60010 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 33537-60010 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90523-06019 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90523-06019 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33537A - RING, E (FOR CONTROL LEVER PLATE) | ||||
| 90523-06019 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90523-06019 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 90523-06019 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 33537B - WASHER, WAVE (FOR TRANSMISSION SHIFT LEVER) | ||||
| 90206-08011 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 90206-08011 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90206-08011 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 33537B - WASHER, WAVE (FOR TRANSMISSION SHIFT LEVER) | ||||
| 90206-08011 |
KZJ95,RZJ95,VZJ95..ATM |
2 | ||
| 90206-08011 |
VZJ95..ATM;RZJ95..ATM..ARL |
2 | ||
| 90206-08011 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
2 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 33544 - INSERT, SHIFT LEVER, NO.1 | ||||
| 33544-27010 |
VZJ95..ATM;RZJ95..ATM..ARL |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
4 | ||
| 33544-27010 |
KZJ95,RZJ95,VZJ95..ATM |
4 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11036 |
KZJ95,RZJ95,VZJ95..ATM 12V 1.7W |
1 | ||
| 90981-11036 |
VZJ95..ATM;RZJ95..ATM..ARL 12V 1.7W |
1 | ||
| 90981-11036 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-09001 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90339-09001 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90339-09001 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60080 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33555-60080 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-33060C0 |
RZJ95,VZJ95..ATM..ARL BLACK,TRIM1# |
1 | ||
| 33622-33060C0 |
KZJ95,RZJ95,VZJ95..RHD..ATM BLACK,TRIM1#,4# |
1 | ||
| 33622A - COVER, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-60030 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33622-60030 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33622-60030 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-33040C0 |
RZJ95,VZJ95..ATM BLACK,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-07009 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-07009 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-33020 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33625-33020 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33625-33020 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-20010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33626-20010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33626-20010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-60060 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33631-60060 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33631-60060 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90501-07074 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90501-07074 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04007 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90256-04007 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90256-04007 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-60050 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33635-60050 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33635-60050 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08054 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 90240-08054 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90240-08054 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90389-08005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90389-08005 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90480-17177 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90480-17177 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-35210 |
VZJ95..ATM |
1 | ||
| 33702-35210 |
VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33702-35210 |
VZJ95..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33723-22010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33723-22010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 90389-08005 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 90389-08005 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33572-22010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33572-22010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 33886-22010 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 33886-22010 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-60110 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 35906-60110 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-60150 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 35921-60150 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-60110 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 35971-60110 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60080 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 35974-60080 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60090 |
KZJ95,RZJ95,VZJ95..ATM..(ARL,GCC) |
1 | ||
| 35975-60090 |
VZJ95..ATM;RZJ95..ATM..ARL |
1 | ||
| 35975-60090 |
KZJ95,RZJ95,VZJ95..ATM |
1 | ||
| 36331B - BOOT, TRANSFER SHIFT LEVER | ||||
| 36331-60050 |
RZJ95,VZJ95..ATM..ARL |
1 | ||
| 36331-60050 |
KZJ95,RZJ95,VZJ95..RHD..ATM |
1 | ||
| Common parts | ||||
| 90119-06818 | ||||
| 90161-40024 | ||||
| 90179-08204 | ||||
| 90189-06017 | ||||
| 90468-14004 | ||||
| 90468-14033 | ||||
| 93315-15012 | ||||
| 94130-00802 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
