VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

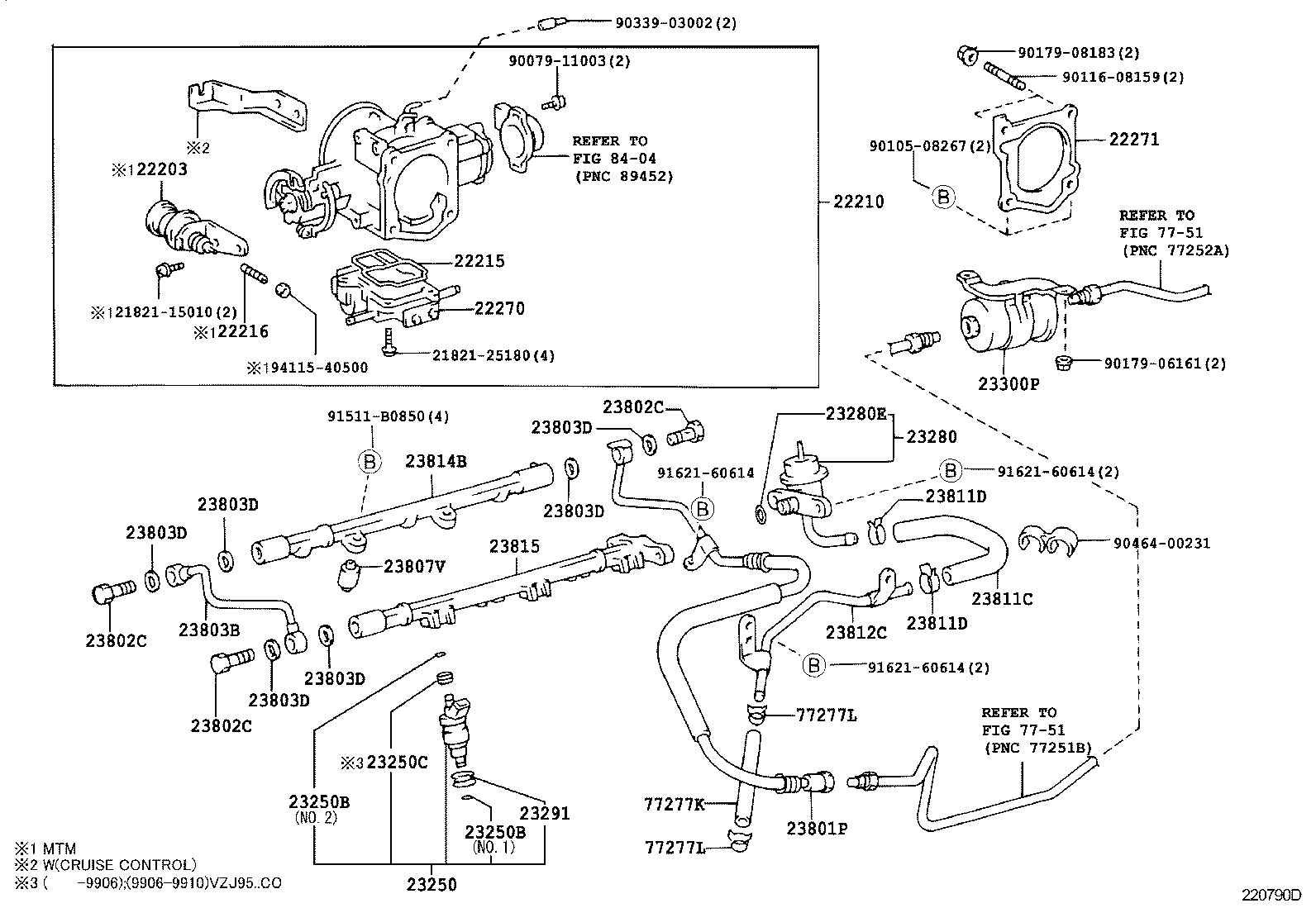

ILLUST NO. 1 OF 2(9604- )5VZFE

Click highlighted areas on diagram

diagram 2182115010 2182125180 22203 22210 22215 22216 22270 22271 23250 23250B 23250B 23250C 23280 23280E 23291 23300P 23801P 23802C 23802C 23802C 23803B 23803D 23803D 23803D 23803D 23803D 23803D 23807V 23811C 23811D 23811D 23812C 23814B 23815 77277K 77277L 77277L 7751 7751 8404 9007911003 9010508267 9011608159 9017906161 9017908183 9033903002 9046400231 91511B0850 9162160614 9162160614 9162160614 9411540500
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-62230

5VZFE..VZJ95..ATM

 1
22210-62230

5VZFE..VZJ95..ATM..ARL

 1
22210-62220

5VZFE..VZJ95..ATM..(ARL,GCC)

W(CRUISE CONTOROL)

 1
22215 - GASKET, THROTTLE BODY COVER
22215-62180

5VZFE..VZJ9#

 1
22215-62180

5VZFE..VZJ9#

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-62050

5VZFE..VZJ9#

 1
22270-62050

5VZFE..VZJ9#

 1
22271 - GASKET, THROTTLE BODY
22271-62040

5VZFE..VZJ9#

 1
22271-62040

5VZFE..VZJ9#

 1
23250 - INJECTOR ASSY, FUEL
23209-62030

5VZFE..VZJ9#

 6
23209-62040

5VZFE..VZJ9#

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

5VZFE..VZJ9#

NO.1 & NO.2

 12
90301-07001

5VZFE..VZJ9#

NO.1 & NO.2

 12
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024

5VZFE..VZJ9#

NO.1 & NO.2

 12
90301-07001

5VZFE..VZJ9#

NO.1 & NO.2

 12
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

5VZFE..VZJ9#

 6
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-62030

5VZFE..VZJ9#

 1
23280-62030

5VZFE..VZJ9#

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

5VZFE..VZJ9#

 1
90301-07001

5VZFE..VZJ9#

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-20010

5VZFE..VZJ9#

 6
23291-62010

5VZFE..VZJ9#

 6
23300P - FILTER, FUEL(FOR EFI)
23300-62030

5VZFE..VZJ9#

 1
23300-62030

5VZFE..VZJ9#

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-62070

5VZFE..VZJ9#

 1
23801-62070

5VZFE..VZJ9#

 1
23801-62071

5VZFE..VZJ9#

 1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZJ9#

 3
90401-12036

5VZFE..VZJ9#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZJ9#

 3
90401-12036

5VZFE..VZJ9#

 3
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-12036

5VZFE..VZJ9#

 3
90401-12036

5VZFE..VZJ9#

 3
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-62010

5VZFE..VZJ9#

 1
23803-62010

5VZFE..VZJ9#

 1
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
90430-12026

5VZFE..VZJ9#

 6
90430-12026

5VZFE..VZJ9#

 6
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08020

5VZFE..VZJ9#

 4
90561-08020

5VZFE..VZJ9#

 4
23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
95333-06020

5VZFE..VZJ9#

*H,L=190

 1
95333-06020

5VZFE..VZJ9#

 1
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZJ9#

 2
90467-11065

5VZFE..VZJ9#

 2
23811D - CLIP, HOSE(FOR FUEL HOSE)
90467-11065

5VZFE..VZJ9#

 2
90467-11065

5VZFE..VZJ9#

 2
23812C - PIPE, FUEL, NO.2
23812-62041

5VZFE..VZJ9#

 1
23812-62041

5VZFE..VZJ9#

 1
23814B - PIPE, FUEL DELIVERY
23814-62050

5VZFE..VZJ9#

 1
23815 - PIPE, FUEL DELIVERY, NO.2
23815-62050

5VZFE..VZJ9#

 1
77277K - HOSE, FUEL(FOR RETURN HOSE)
23273-62030

VZJ9#

 1
23273-62030

VZJ9#

 1
77277L - CLIP, HOSE(FOR RETURN HOSE)
96135-41100

VZJ9#

 2
96135-51100

VZJ9#

 2
77277L - CLIP, HOSE(FOR RETURN HOSE)
96135-41100

VZJ9#

 2
96135-51100

VZJ9#

 2
Common parts
21821-15010
21821-25180
90079-11003
90105-08267
90116-08159
90179-06161
90179-08183
90339-03002
90464-00231
91511-B0850
91621-60614
94115-40500
Linked diagrams
7751
8404

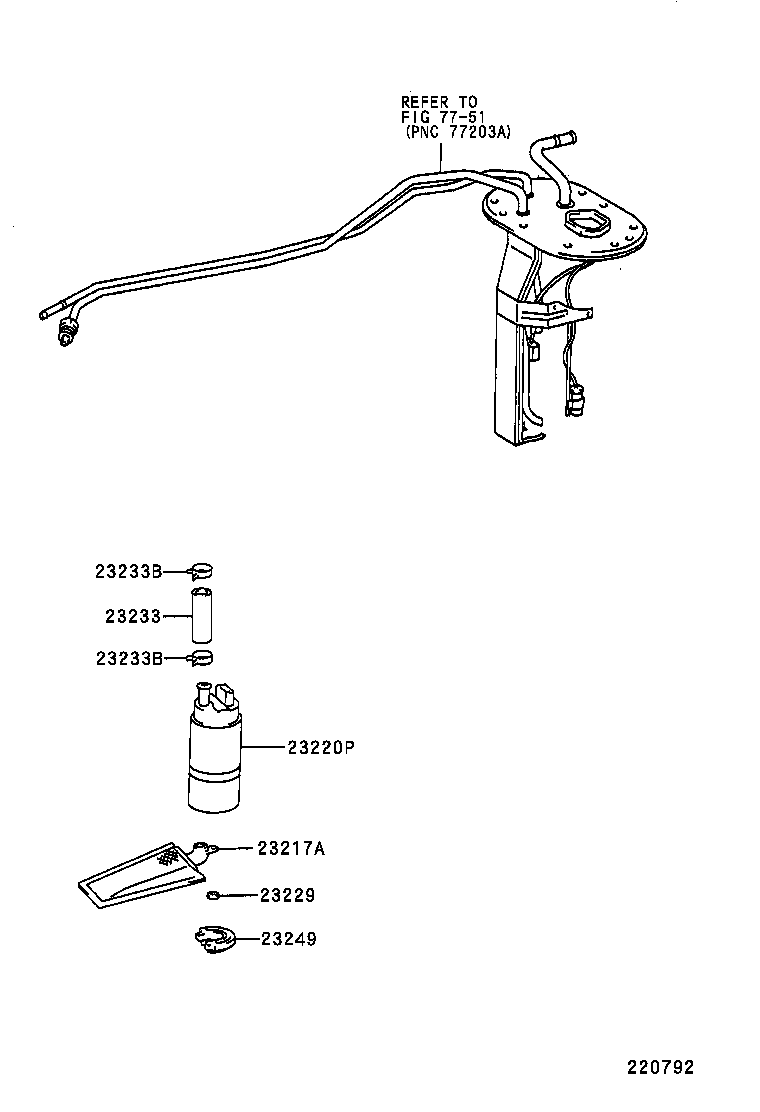

ILLUST NO. 2 OF 2(9604- )5VZFE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 7751
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-74021

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23217-74021

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23217-74021

5VZFE..VZJ9#

 1
23217-74021

5VZFE..VZJ9#

 1
23220P - PUMP ASSY, FUEL
23221-15040

5VZFE..VZJ9#

 1
23221-16490

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23221-15040

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23221-16490

5VZFE..VZJ9#

 1
23221-15040

5VZFE..VZJ9#

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

5VZFE..VZJ9#

 1
23229-16010

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23229-16010

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23229-16010

5VZFE..VZJ9#

 1
23233 - HOSE, FUEL PUMP
23239-11010

5VZFE..VZJ9#

 1
23239-11010

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23239-11010

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23239-11010

5VZFE..VZJ9#

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

5VZFE..VZJ9#

 2
90467-12067

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 4
90467-12067

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 4
90467-12067

5VZFE..VZJ9#

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067

5VZFE..VZJ9#

 2
90467-12067

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 4
90467-12067

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 4
90467-12067

5VZFE..VZJ9#

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610

5VZFE..VZJ9#..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23249-74610

5VZFE..VZJ95..ARL,GCC

W(FUEL TANK=90L+70L)

 2
23249-74610

5VZFE..VZJ9#

 1
23249-74610

5VZFE..VZJ9#

 1
Linked diagrams
7751
