VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )5VZFE

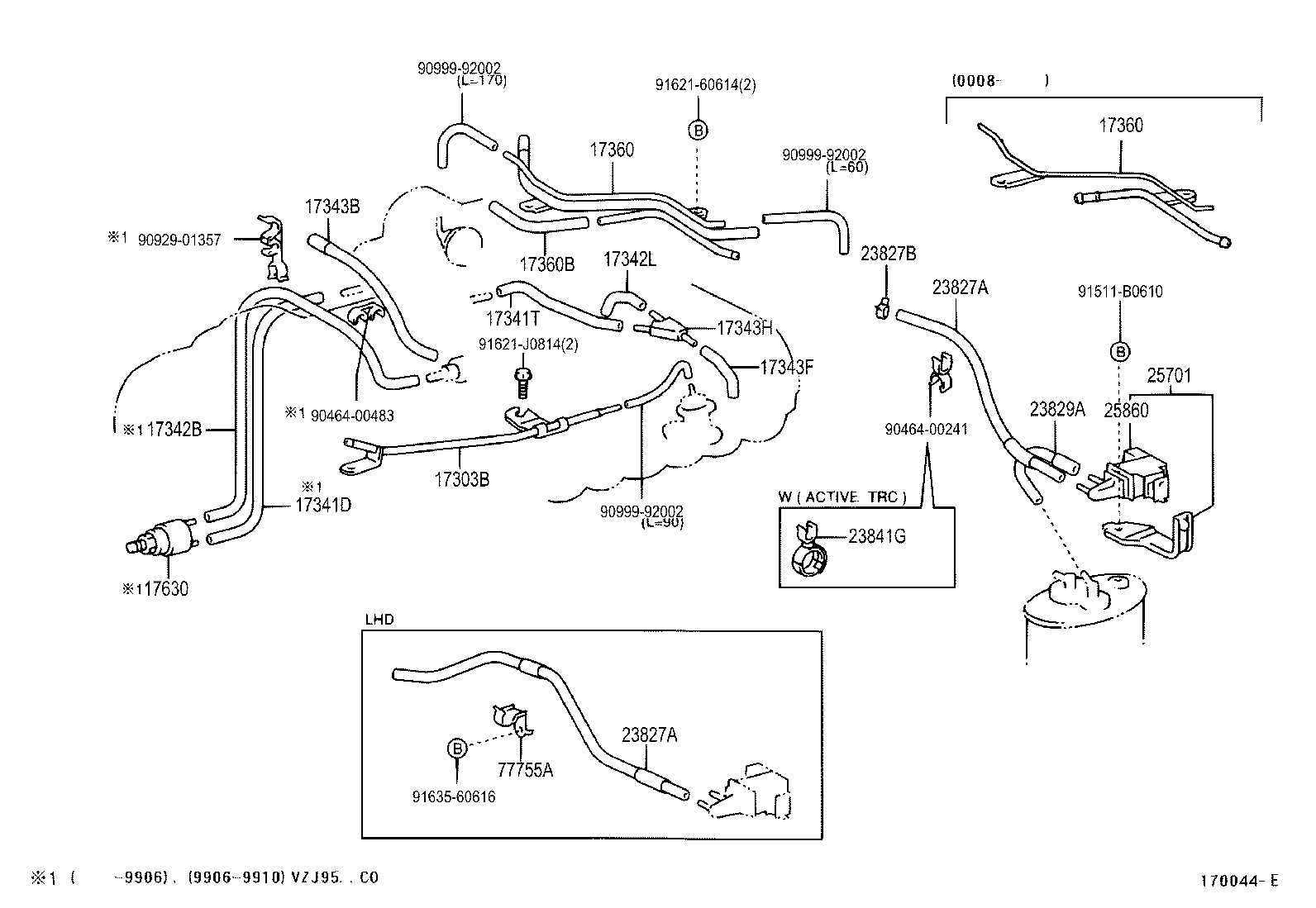

Click highlighted areas on diagram

diagram 17303B 17341D 17341T 17342B 17342L 17343B 17343F 17343H 17360 17360 17360B 17630 23827A 23827A 23827B 23829A 23841G 25701 25860 77755A 9046400241 9046400483 9092901357 9099992002 9099992002 9099992002 91511B0610 9162160614 91621J0814 9163560616
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62020

5VZFE..VZJ9#

 1
17303-62020

5VZFE..VZJ9#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-62070

5VZFE..VZJ9#

 1
17341T - HOSE, AIR, NO.1
17341-62060

5VZFE..VZJ9#

 1
17341-62060

5VZFE..VZJ9#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-62090

5VZFE..VZJ9#

 1
17342L - HOSE, AIR, NO.2
17342-62080

5VZFE..VZJ9#

 1
17342-62080

5VZFE..VZJ9#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62110

5VZFE..VZJ9#

 1
17343-62090

5VZFE..VZJ9#

 1
17343-62110

5VZFE..VZJ9#

 1
17343F - HOSE, AIR, NO.3
17343-62080

5VZFE..VZJ9#

 1
17343-62080

5VZFE..VZJ9#

 1
17343H - WAY, 3(FOR AIR HOSE)
90904-13015

5VZFE..VZJ9#

 1
90904-13015

5VZFE..VZJ9#

 1
17360 - TUBE ASSY, AIR
17360-62010

5VZFE..VZJ9#

 1
17360-62010

5VZFE..VZJ9#

 1
17360-62011

5VZFE..VZJ9#

 1
17360 - TUBE ASSY, AIR
17360-62010

5VZFE..VZJ9#

 1
17360-62010

5VZFE..VZJ9#

 1
17360-62011

5VZFE..VZJ9#

 1
17360B - HOSE(FOR AIR PIPE)
90445-12284

5VZFE..VZJ9#

 1
90445-12284

5VZFE..VZJ9#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

5VZFE..VZJ9#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
90445-12292

5VZFE..VZJ95..ARL

 1
90445-12292

5VZFE..VZJ95..ARL

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
90445-12292

5VZFE..VZJ95..ARL

 1
90445-12292

5VZFE..VZJ95..ARL

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

5VZFE..VZJ9#

 1
96132-41300

5VZFE..VZJ9#

 1
96132-41300

5VZFE..VZJ9#..ARL,GCC

 1
23829A - HOSE, FUEL VAPOR FEED
23829-62030

5VZFE..VZJ9#

 1
23829-62030

5VZFE..VZJ9#

 1
23841G - CLAMP, FUEL HOSE
23841-62040

5VZFE..VZJ95..ATM..ARL

 1
25701 - VALVE SET, EMISSION CONTROL
25701-62030

5VZFE..VZJ9#

 1
25701-62030

5VZFE..VZJ9#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75100

5VZFE..VZJ9#

 1
25860-75100

5VZFE..VZJ9#

 1
Common parts
90464-00241
90464-00483
90929-01357
90999-92002
91511-B0610
91621-60614
91621-J0814
91635-60616
