VZJ95R-GKPEKQ (1996)
Toyota Land Cruiser 90

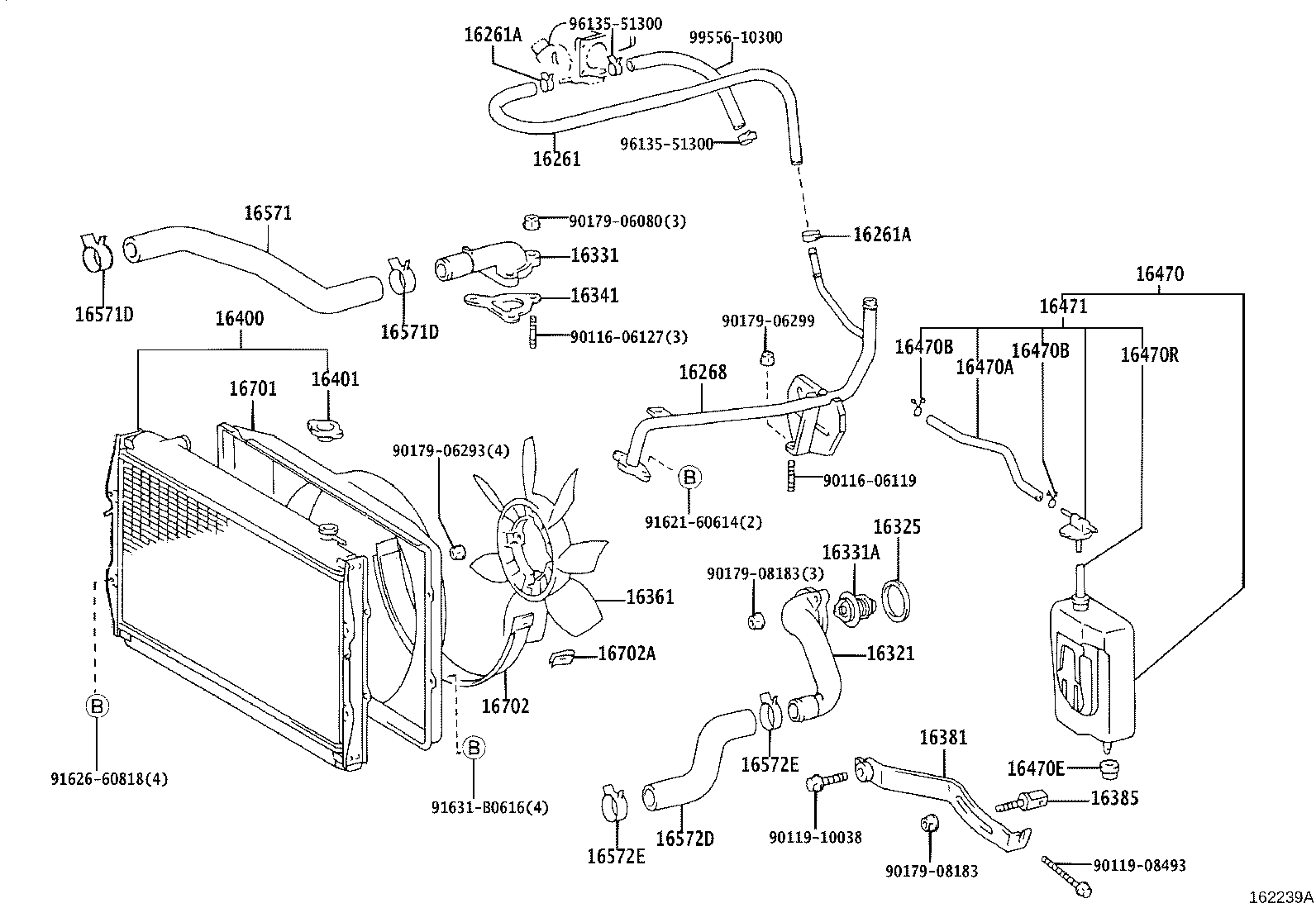

ILLUST NO. 1 OF 2(9604- )5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62060 |
5VZFE..VZJ9# |
1 | ||
| 16261-62060 |
5VZFE..VZJ9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5VZFE..VZJ9# |
2 | ||
| 96135-41300 |
5VZFE..VZJ9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
5VZFE..VZJ9# |
2 | ||
| 96135-41300 |
5VZFE..VZJ9# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62060 |
5VZFE..VZJ9# |
1 | ||
| 16268-62060 |
5VZFE..VZJ9# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-62020 |
5VZFE..VZJ9# |
1 | ||
| 16321-62020 |
5VZFE..VZJ9# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
5VZFE..VZJ9# |
1 | ||
| 16325-62010 |
5VZFE..VZJ9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62040 |
5VZFE..VZJ9# |
1 | ||
| 16331-62040 |
5VZFE..VZJ9# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
5VZFE..VZJ9# *WAX 82-95 |
1 | ||
| 90916-03075 |
5VZFE..VZJ9# *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62040 |
5VZFE..VZJ9# |
1 | ||
| 16341-62040 |
5VZFE..VZJ9# |
1 | ||
| 16361 - FAN | ||||
| 16361-62010 |
5VZFE..VZJ9# |
1 | ||
| 16361-62010 |
5VZFE..VZJ9# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62041 |
5VZFE..VZJ9# |
1 | ||
| 16381-62041 |
5VZFE..VZJ9# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62020 |
5VZFE..VZJ9# |
1 | ||
| 16385-62020 |
5VZFE..VZJ9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16400-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
5VZFE..VZJ9# |
1 | ||
| 16401-72090 |
5VZFE..VZJ9# |
1 | ||
| 16401-62100 |
5VZFE..VZJ9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75030 |
5VZFE..VZJ9# |
1 | ||
| 16470-75030 |
5VZFE..VZJ9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
5VZFE..VZJ9# *H,L=390 |
1 | ||
| 90445-12078 |
5VZFE..VZJ9# *H,L=390 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5VZFE..VZJ9# |
2 | ||
| 90467-11085 |
5VZFE..VZJ9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5VZFE..VZJ9# |
2 | ||
| 90467-11085 |
5VZFE..VZJ9# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
5VZFE..VZJ9# |
1 | ||
| 90480-25025 |
5VZFE..VZJ9# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
5VZFE..VZJ9# *H,L=240 |
1 | ||
| 90445-12078 |
5VZFE..VZJ9# *H,L=240 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75020 |
5VZFE..VZJ9# |
1 | ||
| 16405-75020 |
5VZFE..VZJ9# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-62070 |
5VZFE..VZJ9# |
1 | ||
| 16571-07030 |
5VZFE..VZJ9# |
1 | ||
| 16571-07030 |
5VZFE..VZJ9# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 90467-37002 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 90467-37002 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-62070 |
5VZFE..VZJ9# |
1 | ||
| 16572-62070 |
5VZFE..VZJ9# |
1 | ||
| 16572-62090 |
5VZFE..VZJ9# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37002 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 90467-37005 |
5VZFE..VZJ9# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-62040 |
5VZFE..VZJ9# |
1 | ||
| 16711-62040 |
5VZFE..VZJ9# |
1 | ||
| 16702 - SHROUD SUB-ASSY, FAN, NO.2 | ||||
| 16702-62030 |
5VZFE..VZJ9# |
1 | ||
| 16702-62030 |
5VZFE..VZJ9# |
1 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06092 |
5VZFE..VZJ9# |
2 | ||
| 90468-06092 |
5VZFE..VZJ9# |
2 | ||
| Common parts | ||||
| 90116-06119 | ||||
| 90116-06127 | ||||
| 90119-08493 | ||||
| 90119-10038 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-06299 | ||||
| 90179-08183 | ||||
| 91621-60614 | ||||
| 91626-60818 | ||||
| 91631-B0616 | ||||
| 96135-51300 | ||||
| 99556-10300 | ||||

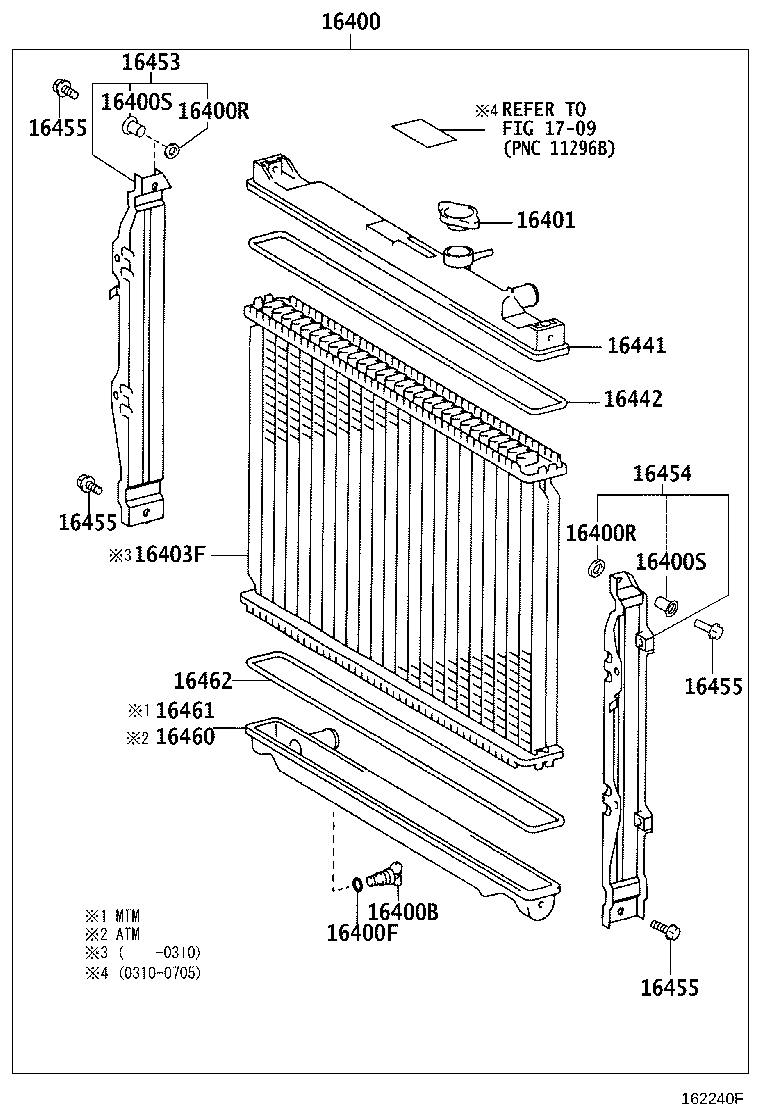

ILLUST NO. 2 OF 2(9604- )5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16400-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
5VZFE..VZJ9# |
1 | ||
| 23322-54010 |
5VZFE..VZJ9# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
5VZFE..VZJ9# |
1 | ||
| 16492-21050 |
5VZFE..VZJ9# |
1 | ||
| 96711-19007 |
5VZFE..VZJ9# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
5VZFE..VZJ9# |
2 | ||
| 16444-75180 |
5VZFE..VZJ9# |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
5VZFE..VZJ9# |
2 | ||
| 16444-75180 |
5VZFE..VZJ9# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
5VZFE..VZJ9# |
2 | ||
| 16445-75180 |
5VZFE..VZJ9# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
5VZFE..VZJ9# |
2 | ||
| 16445-75180 |
5VZFE..VZJ9# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
5VZFE..VZJ9# |
1 | ||
| 16401-72090 |
5VZFE..VZJ9# |
1 | ||
| 16401-62100 |
5VZFE..VZJ9# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-75180 |
5VZFE..VZJ9# |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-75180 |
5VZFE..VZJ9# |
1 | ||
| 16441-75180 |
5VZFE..VZJ9# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-42240 |
5VZFE..VZJ9# |
1 | ||
| 16462-42240 |
5VZFE..VZJ9# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-75180 |
5VZFE..VZJ9# |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-75180 |
5VZFE..VZJ9# |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91652-B0820 |
5VZFE..VZJ9# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91652-B0820 |
5VZFE..VZJ9# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91652-B0820 |
5VZFE..VZJ9# |
4 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91652-B0820 |
5VZFE..VZJ9# |
4 | ||
| 16460 - TANK ASSY, RADIATOR | ||||
| 16460-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16460-75180 |
5VZFE..VZJ95..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-42240 |
5VZFE..VZJ9# |
1 | ||
| 16462-42240 |
5VZFE..VZJ9# |
1 | ||
| Linked diagrams | ||||
| 1709 | ||||
