VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )5VZFE

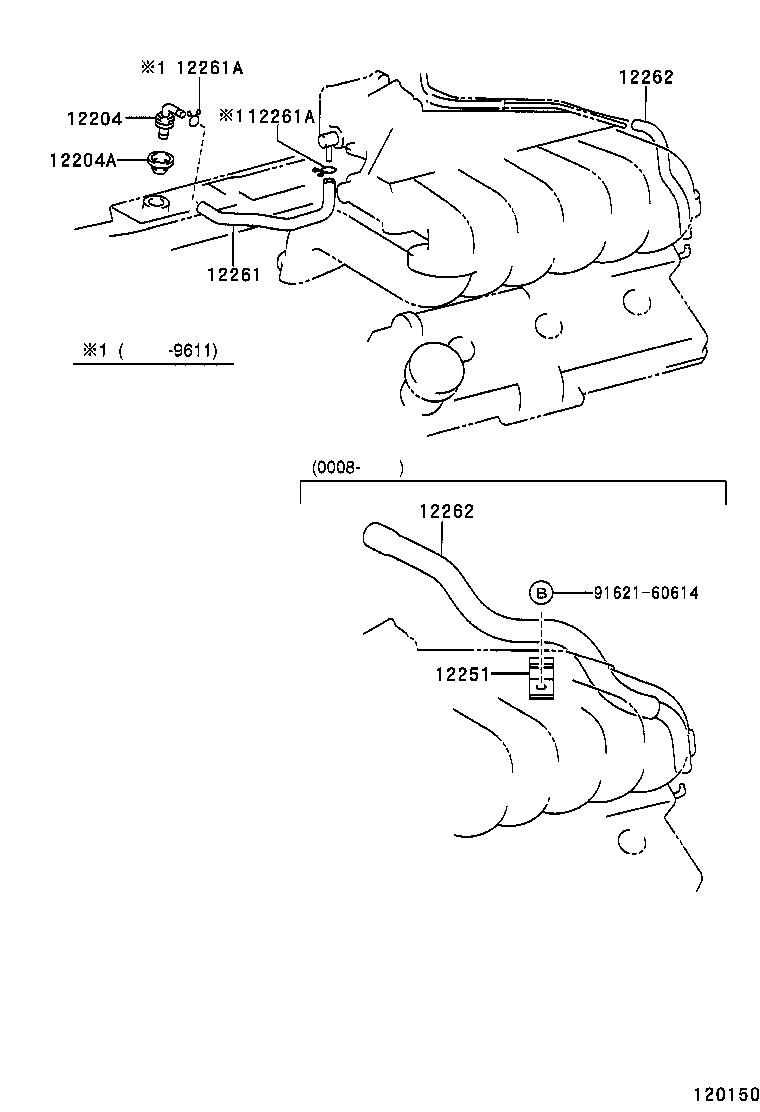

Click highlighted areas on diagram

diagram 12204 12204A 12251 12261 12261A 12261A 12262 12262 9162160614
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-62010

5VZFE..VZJ9#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

5VZFE..VZJ9#

 1
90480-18001

5VZFE..VZJ9#

 1
12251 - CLAMP, VENTILATION TUBE
12251-62010

5VZFE..VZJ9#

 1
12261 - HOSE, VENTILATION
12261-62040

5VZFE..VZJ9#

 1
12261-62041

5VZFE..VZJ9#

 1
12261-62041

5VZFE..VZJ9#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

5VZFE..VZJ9#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

5VZFE..VZJ9#

 2
12262 - HOSE, VENTILATION, NO.2
12262-62050

5VZFE..VZJ9#

 1
12262-62050

5VZFE..VZJ9#

 1
12262-62060

5VZFE..VZJ9#

 1
12262 - HOSE, VENTILATION, NO.2
12262-62050

5VZFE..VZJ9#

 1
12262-62050

5VZFE..VZJ9#

 1
12262-62060

5VZFE..VZJ9#

 1
Common parts
91621-60614
