VZJ95R-GKPEKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)5VZFE

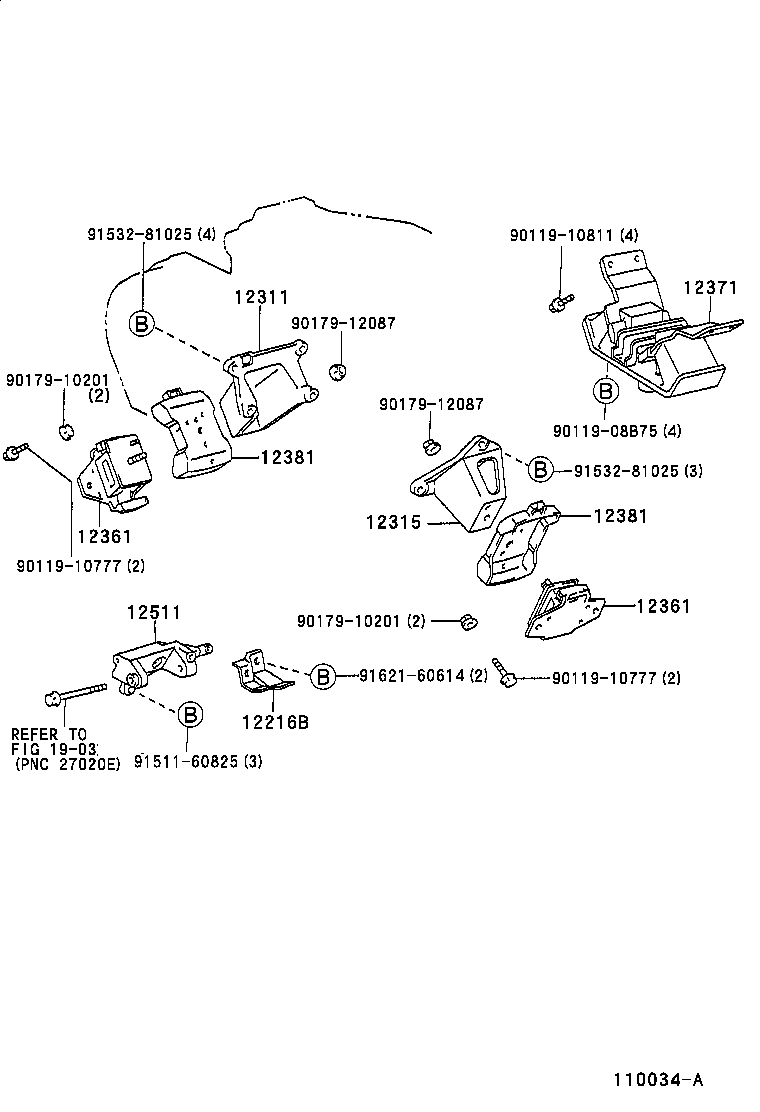

Click highlighted areas on diagram

diagram 12216B 12311 12315 12361 12361 12371 12381 12381 12511 1903 9011908B75 9011910777 9011910777 9011910811 9017910201 9017910201 9017912087 9017912087 9151160825 9153281025 9153281025 9162160614
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VZJ9#

 1
12216-62030

5VZFE..VZJ9#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62030

5VZFE..VZJ9#

 1
12311-62060

5VZFE..VZJ9#..ARL,GCC

 1
12311-62070

5VZFE..VZJ9#

 1
12311-62060

5VZFE..VZJ9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62040

5VZFE..VZJ9#

 1
12315-62070

5VZFE..VZJ9#

 1
12315-62070

5VZFE..VZJ9#..ARL,GCC

 1
12315-62080

5VZFE..VZJ9#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62140

5VZFE..VZJ9#..ARL,GCC

 2
12361-62110

5VZFE..VZJ9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62140

5VZFE..VZJ9#..ARL,GCC

 2
12361-62110

5VZFE..VZJ9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62120

5VZFE..VZJ95..ATM

 1
12371-62120

5VZFE..VZJ95..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZJ9#

 2
12382-62010

5VZFE..VZJ9#..ARL,GCC

LH

 1
12381-62020

5VZFE..VZJ9#..ARL,GCC

RH

 1
12382-62010

5VZFE..VZJ9#

LH

 1
12381-62020

5VZFE..VZJ9#

RH

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZJ9#

 2
12382-62010

5VZFE..VZJ9#..ARL,GCC

LH

 1
12381-62020

5VZFE..VZJ9#..ARL,GCC

RH

 1
12382-62010

5VZFE..VZJ9#

LH

 1
12381-62020

5VZFE..VZJ9#

RH

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZJ9#

 1
12511-62010

5VZFE..VZJ9#

 1
Common parts
90119-08B75
90119-10777
90119-10811
90179-10201
90179-12087
91511-60825
91532-81025
91621-60614
Linked diagrams
1903

(9906- )5VZFE

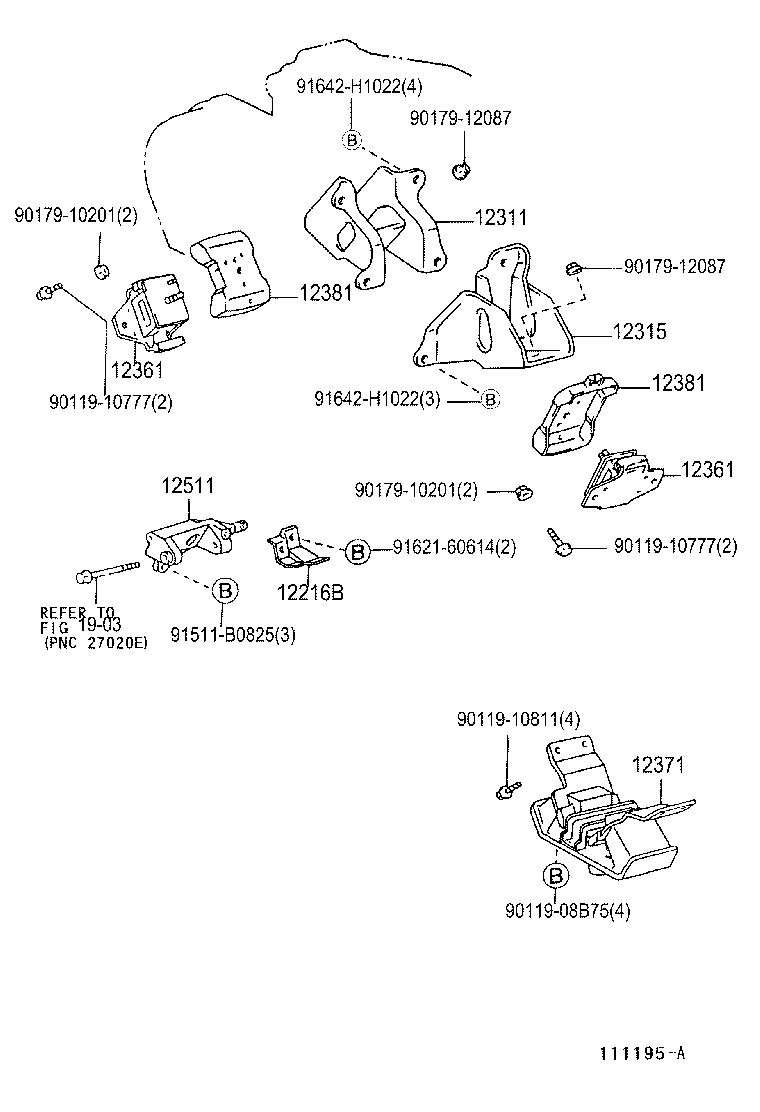

Click highlighted areas on diagram

diagram 12216B 12311 12315 12361 12361 12371 12381 12381 12511 1903 9011908B75 9011910777 9011910777 9011910811 9017910201 9017910201 9017912087 9017912087 91511B0825 9162160614 91642H1022 91642H1022
Part # Description Qty Price
12216B - PLATE, OIL BAFFLE
12216-62030

5VZFE..VZJ9#

 1
12216-62030

5VZFE..VZJ9#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-62030

5VZFE..VZJ9#

 1
12311-62060

5VZFE..VZJ9#..ARL,GCC

 1
12311-62070

5VZFE..VZJ9#

 1
12311-62060

5VZFE..VZJ9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-62040

5VZFE..VZJ9#

 1
12315-62070

5VZFE..VZJ9#

 1
12315-62070

5VZFE..VZJ9#..ARL,GCC

 1
12315-62080

5VZFE..VZJ9#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62140

5VZFE..VZJ9#..ARL,GCC

 2
12361-62110

5VZFE..VZJ9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-62140

5VZFE..VZJ9#..ARL,GCC

 2
12361-62110

5VZFE..VZJ9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62120

5VZFE..VZJ95..ATM

 1
12371-62120

5VZFE..VZJ95..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZJ9#

 2
12382-62010

5VZFE..VZJ9#..ARL,GCC

LH

 1
12381-62020

5VZFE..VZJ9#..ARL,GCC

RH

 1
12382-62010

5VZFE..VZJ9#

LH

 1
12381-62020

5VZFE..VZJ9#

RH

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

5VZFE..VZJ9#

 2
12382-62010

5VZFE..VZJ9#..ARL,GCC

LH

 1
12381-62020

5VZFE..VZJ9#..ARL,GCC

RH

 1
12382-62010

5VZFE..VZJ9#

LH

 1
12381-62020

5VZFE..VZJ9#

RH

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VZJ9#

 1
12511-62010

5VZFE..VZJ9#

 1
Common parts
90119-08B75
90119-10777
90119-10811
90179-10201
90179-12087
91511-B0825
91621-60614
91642-H1022
Linked diagrams
1903
