VZJ95R-GKMNKQ (1996)
Toyota Land Cruiser 90

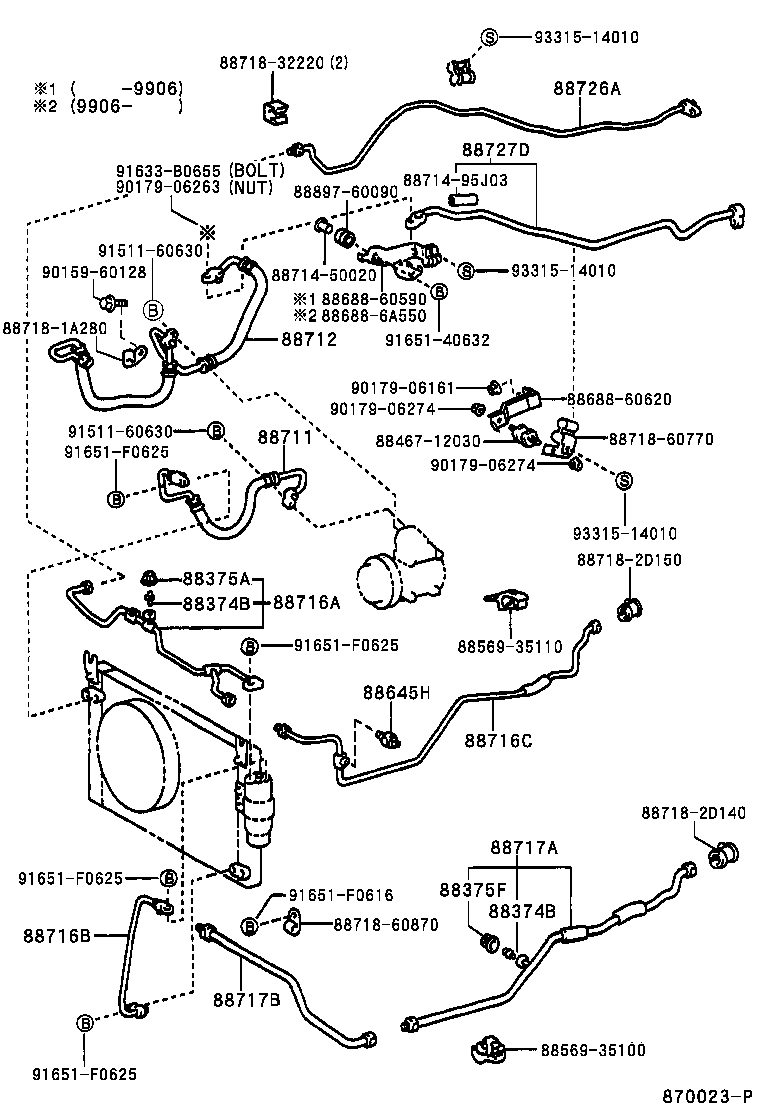

ILLUST NO. 2 OF 4(9604- )RZJ95,VZJ95..RHD
DUAL AIR CONDITIONER---FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 88375-30290 |
LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC) |
1 | ||
| 88645-60030 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60410 |
VZJ95..ARL |
1 | ||
| 88711-60410 |
VZJ95..ARL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60650 |
VZJ95..ARL |
1 | ||
| 88712-60690 |
VZJ95..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-6A060 |
VZJ95..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-60650 |
VZJ95..ARL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A660 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88716-6A700 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A660 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88716-6A700 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A660 |
LJ9#,VZJ95..RHD;RZJ95..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A800 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A801 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A690 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A801 |
KZJ95,RZJ95,VZJ95..GX..ARL DEALER OPTION |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6B090 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) |
1 | ||
| 88716-6A740 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6B300 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6A741 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6B300 |
KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6B090 |
KZJ95,LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-35120 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A250 |
KZJ95,VZJ95..GX..ARL DUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88717-6A250 |
VZJ95..ARL DUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88717-6A250 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD DUAL AIR CONDITIONER |
1 | ||
| 88717-35130 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35150 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35130 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A030 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88717-6A030 |
KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88717-6A040 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88717-6A030 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A040 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A750 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6B200 |
RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88716-6A880 |
RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A400 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| 88717-6A050 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX) |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88569-35100 | ||||
| 88569-35110 | ||||
| 88688-60590 | ||||
| 88688-60620 | ||||
| 88688-6A550 | ||||
| 88714-50020 | ||||
| 88714-95J03 | ||||
| 88718-1A280 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-60770 | ||||
| 88718-60870 | ||||
| 88897-60090 | ||||
| 90159-60128 | ||||
| 90179-06161 | ||||
| 90179-06263 | ||||
| 90179-06274 | ||||
| 91511-60630 | ||||
| 91633-B0655 | ||||
| 91651-40632 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||

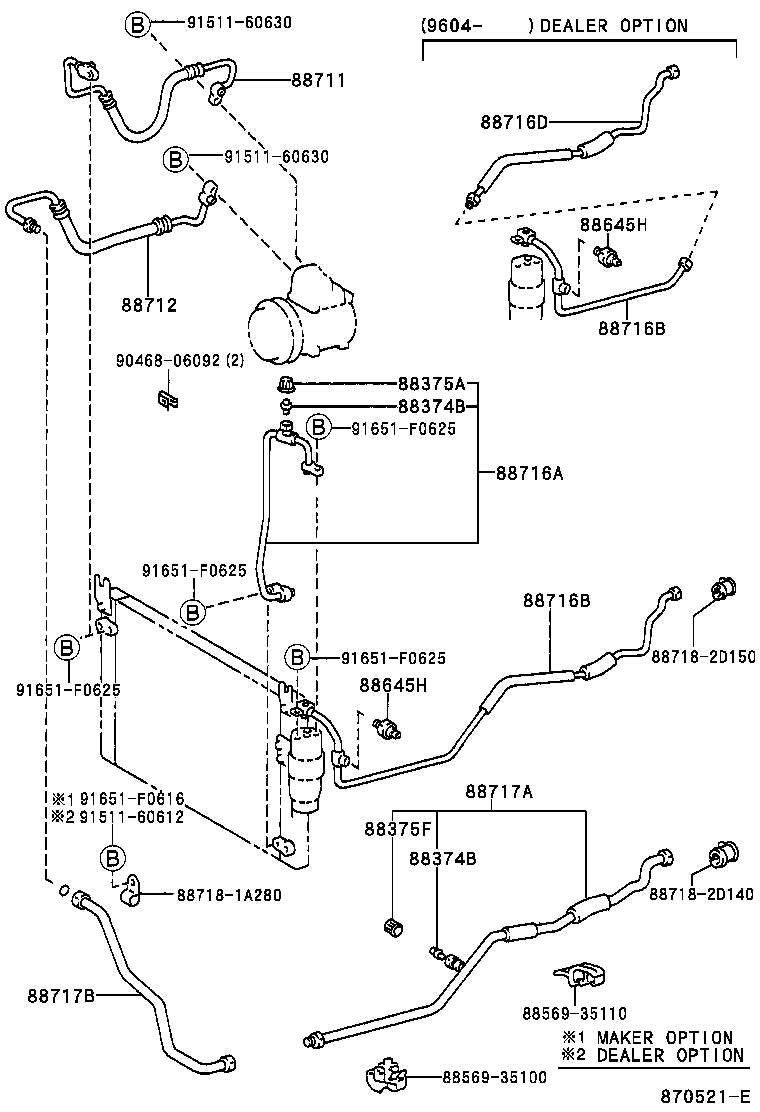

ILLUST NO. 1 OF 4(9604- )
DUAL AIR CONDITIONER(CONDENSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60010 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-60010 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60250 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60600 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,RH |
1 | ||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88688-60570 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,LH |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60600 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,RH |
1 | ||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88688-60570 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,LH |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88688-35310 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88688-35300 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 88471-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88471-30370 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60140 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88472-60130 |
RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-64080 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60020 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) |
1 | ||
| 88590-60020 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) |
1 | ||
| 88590-60020 |
KZJ95..GEN,MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN,MA) |
1 | ||
| 88590-60020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20081 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88718-32220 | ||||
| 88895-89102 | ||||
| 88897-50020 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 91651-F0616 | ||||
| 91651-G0635 | ||||
ILLUST NO. 2 OF 4(9604- )RZJ95,VZJ95..RHD..ARL,GEN
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN |
1 | ||
| 88374-30010 |
LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88375F - CAP, SERVICE VALVE, NO.3 | ||||
| 88375-30290 |
LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD) |
1 | ||
| 88375-30290 |
LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC) |
1 | ||
| 88645-60030 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC) |
1 | ||
| 88645-60030 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60410 |
VZJ95..ARL |
1 | ||
| 88711-60410 |
VZJ95..ARL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60650 |
VZJ95..ARL |
1 | ||
| 88712-60690 |
VZJ95..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-6A060 |
VZJ95..ARL DUAL AIR CONDITIONER |
1 | ||
| 88712-60650 |
VZJ95..ARL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A660 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88716-6A700 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A660 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88716-6A700 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A660 |
LJ9#,VZJ95..RHD;RZJ95..RHD..GEN |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A800 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A801 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A690 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A801 |
KZJ95,RZJ95,VZJ95..GX..ARL DEALER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A800 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A801 |
RZJ95,VZJ95..ARL DEALER OPTION |
1 | ||
| 88716-6A690 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88716-6A801 |
KZJ95,RZJ95,VZJ95..GX..ARL DEALER OPTION |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6A811 |
KZJ95,RZJ95,VZJ95..GX..ARL |
1 | ||
| 88716-6A811 |
RZJ95,VZJ95..ARL |
1 | ||
| 88716-6A810 |
RZJ95,VZJ95..ARL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-35120 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A250 |
KZJ95,VZJ95..GX..ARL DUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88717-6A250 |
VZJ95..ARL DUAL AIR CONDITIONER(DEALER OPTION) |
1 | ||
| 88717-6A250 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD DUAL AIR CONDITIONER |
1 | ||
| 88717-35130 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35150 |
KZJ95,LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-35130 |
LJ9#,VZJ95..RHD;RZJ95..RHD..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A030 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88717-6A030 |
KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88717-6A040 |
LJ95,RZJ95,VZJ95..RHD..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88717-6A030 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88717-6A040 |
KZJ95..MA;KZJ95..MTM..ARL;LJ95,RZJ95,VZJ95..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88569-35100 | ||||
| 88569-35110 | ||||
| 88718-1A280 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90468-06092 | ||||
| 91511-60612 | ||||
| 91511-60630 | ||||
| 91651-F0616 | ||||
| 91651-F0625 | ||||
ILLUST NO. 3 OF 4(9604-9906)
DUAL AIR CONDITIONER---REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A770 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6A780 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A080 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6A070 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 88714-95D00 | ||||
| 88718-60780 | ||||
| 88718-60790 | ||||
| 88718-60800 | ||||
| 88718-60810 | ||||
| 88718-60820 | ||||
| 88718-60830 | ||||
| 88718-60840 | ||||
| 90179-06161 | ||||
| 91633-G0640 | ||||
| 93315-54010 | ||||
ILLUST NO. 1 OF 4(9604- )
SINGLE AIR CONDITIONER(CONDENSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60250 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60600 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,RH |
1 | ||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88688-60570 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,LH |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60600 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,RH |
1 | ||
| 88688-60570 |
LJ95,RZJ95..STD;RZJ95,VZJ95..ARL,CO;KZJ90,LJ90,RZJ90,VZJ90 |
2 | ||
| 88688-60570 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER,LH |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-35310 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88688-35310 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-35300 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88688-35300 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-35320 |
RZJ95..RHD..GEN;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88688-35320 |
RZJ95..ARL;RZJ95..RHD..CBR;LJ9#,VZJ95..RHD |
1 | ||
| 88688-35320 |
LJ9#,RZJ95,VZJ95..RHD |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-26470 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
4 | ||
| 88688-26470 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
3 | ||
| 88688-26470 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
4 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60010 |
KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC) |
1 | ||
| 88461-60010 |
RZJ95..RHD..GEN;KZJ95,LJ9#,VZJ95..RHD..(ARL,GEN) |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
2 | ||
| 88467-35020 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
2 | ||
| 88467-35020 |
KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZJ95..CBR;RZJ95..ARL;KZJ9#,LJ9#,RZJ90,VZJ9# |
1 | ||
| 88471-34010 |
KZJ9#,LJ9#,RZJ9#,VZJ9# |
1 | ||
| 88471-30370 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60140 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88472-60130 |
RZJ95..ARL;LJ95,RZJ95..STD;KZJ90,LJ90,RZJ90,VZJ9# |
1 | ||
| Common parts | ||||
| 88718-32160 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 91651-F0616 | ||||
ILLUST NO. 3 OF 4(9906- )ARL,GCC,GEN,MA
DUAL AIR CONDITIONER---REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6A770 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6A780 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A080 |
KZJ95,LJ95,RZJ95,VZJ95..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6A070 |
RZJ95..GX..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ95,LJ95,VZJ95..(GX,VX)..(DSL,EFI,TD)..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 88718-60780 | ||||
| 88718-60790 | ||||
| 88718-60800 | ||||
| 88718-60810 | ||||
| 88718-60830 | ||||
| 88718-60840 | ||||
| 88718-6A500 | ||||
| 90179-06161 | ||||
| 91633-G0640 | ||||
| 93315-54010 | ||||
ILLUST NO. 4 OF 4(9604- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
