VZJ95R-GKMNKQ (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )5VZFE

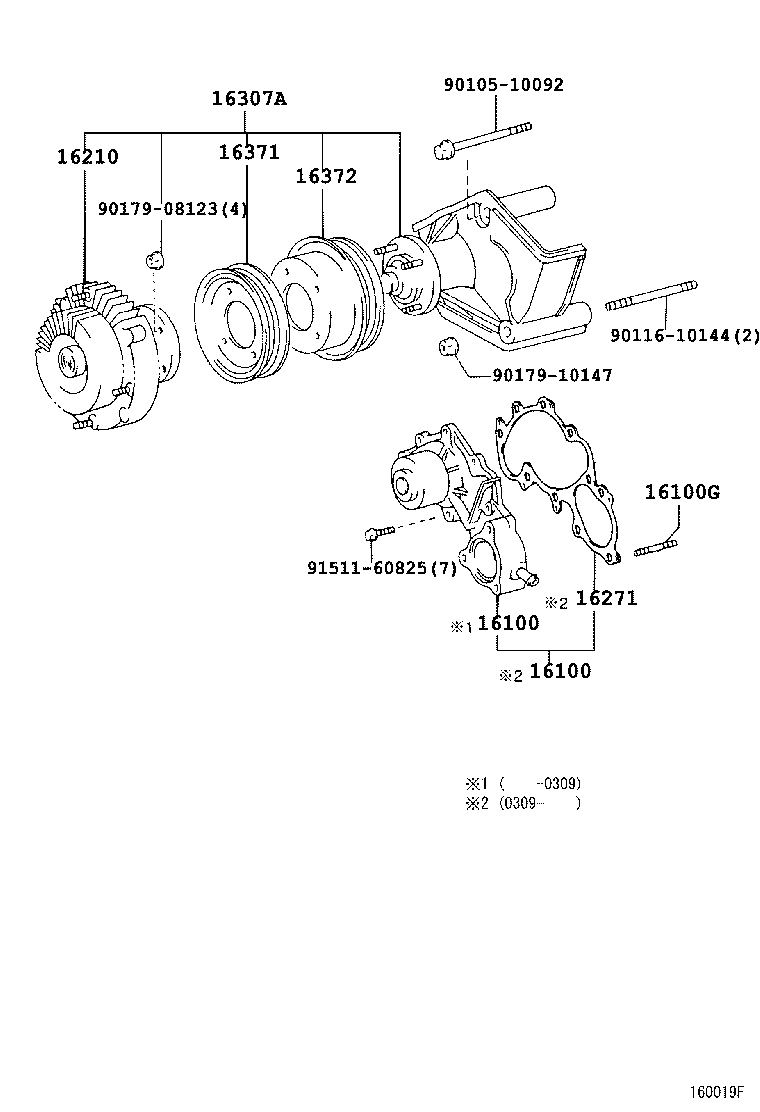

Click highlighted areas on diagram

diagram 16100 16100 16100G 16210 16271 16307A 16371 16372 9010510092 9011610144 9017908123 9017910147 9151160825
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69395

5VZFE..VZJ9#

 1
16100-69396

5VZFE..VZJ9#

 1
16100-69395

5VZFE..VZJ9#

 1
16100 - PUMP ASSY, ENGINE WATER
16100-69395

5VZFE..VZJ9#

 1
16100-69396

5VZFE..VZJ9#

 1
16100-69395

5VZFE..VZJ9#

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-08270

5VZFE..VZJ9#

 3
90116-08270

5VZFE..VZJ9#

 3
16210 - COUPLING ASSY, FLUID
16210-62011

5VZFE..VZJ9#

 1
16210-62011

5VZFE..VZJ9#

 1
16307A - BRACKET SUB-ASSY, FAN
16307-62011

5VZFE..VZJ9#

 1
16307-62011

5VZFE..VZJ9#

 1
16371 - PULLEY, FAN
16371-62010

5VZFE..VZJ9#

 1
16371-62010

5VZFE..VZJ9#

 1
16372 - PULLEY, FAN, NO.2
16372-65010

5VZFE..VZJ9#

 1
16372-65010

5VZFE..VZJ9#

 1
Common parts
90105-10092
90116-10144
90179-08123
90179-10147
91511-60825
