Toyota Land cruiser 90 VZJ90 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER 90
VZJ90L-GJMEKV (1996)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

VZJ90L-GJMEKV (1996)

Toyota Land Cruiser 90

Production Aug 1996 - Sep 2002

Engine 5VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

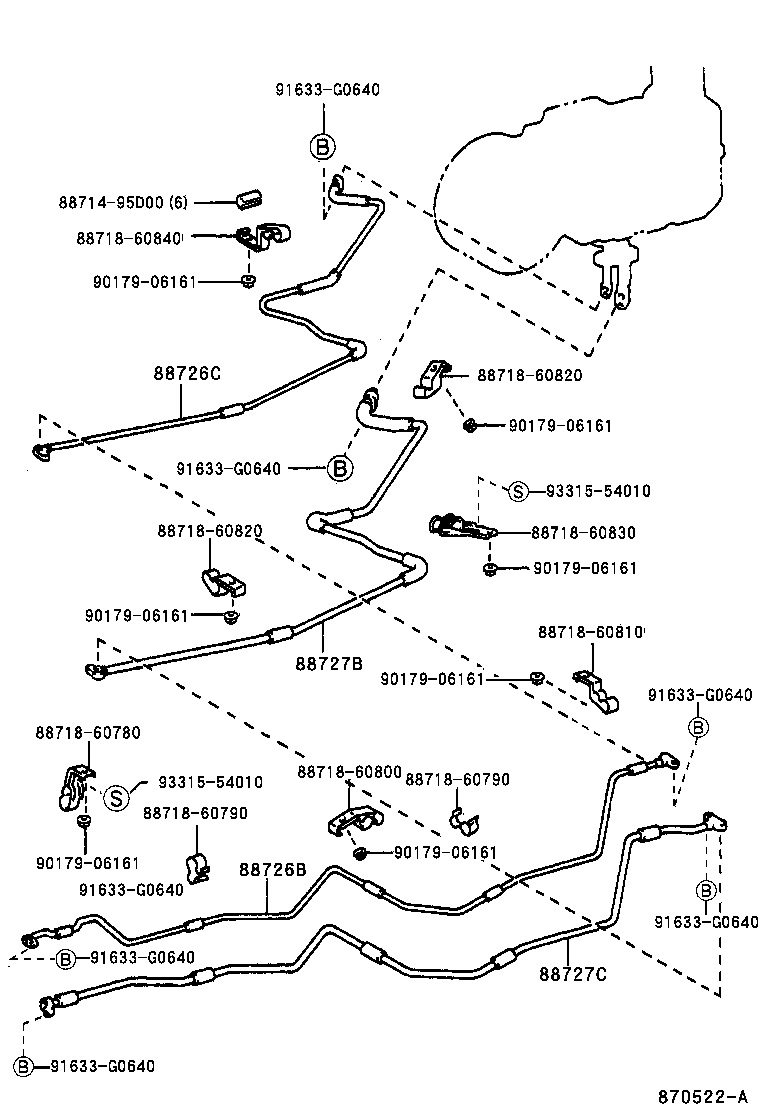

ILLUST NO. 3 OF 4(9604-9906)

Click highlighted areas on diagram

DUAL AIR CONDITIONER---REAR

Part #	Description	Period	Qty	Price
Common parts
88714-95D00
88718-60780
88718-60790
88718-60800
88718-60810
88718-60820
88718-60830
88718-60840
90179-06161
91633-G0640
93315-54010

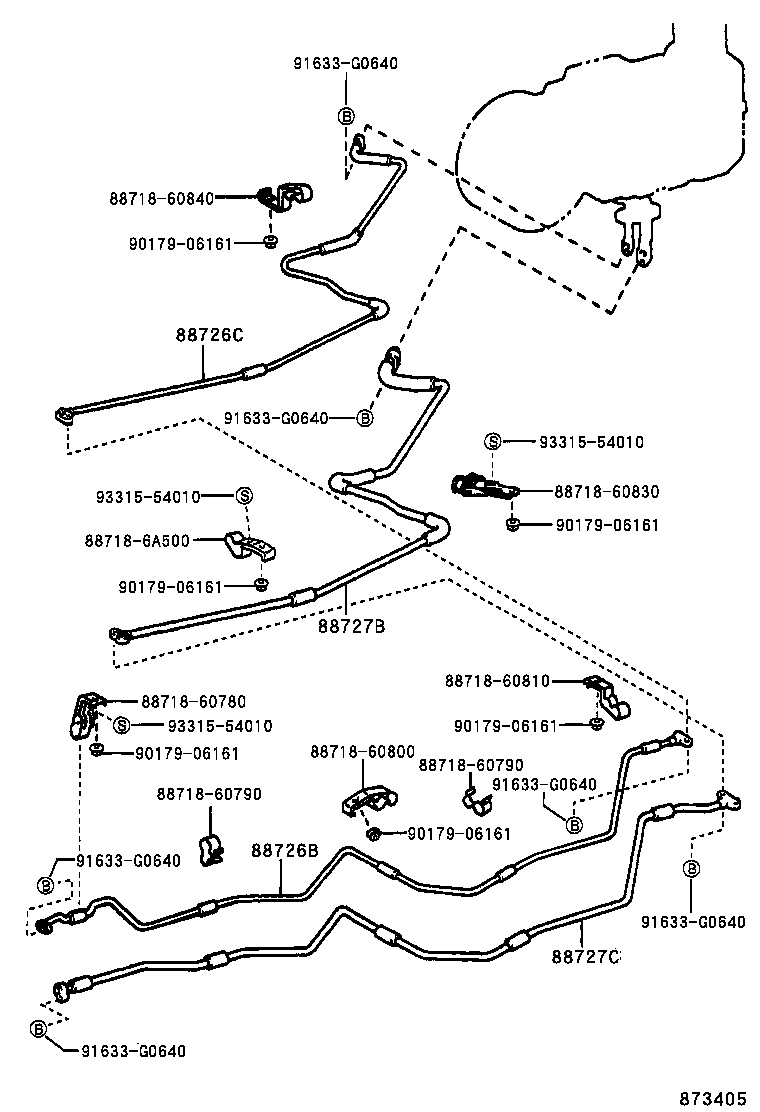

ILLUST NO. 3 OF 4(9906- )ARL,GCC,GEN,MA

Click highlighted areas on diagram

DUAL AIR CONDITIONER---REAR

Part #	Description	Period	Qty	Price
Common parts
88718-60780
88718-60790
88718-60800
88718-60810
88718-60830
88718-60840
88718-6A500
90179-06161
91633-G0640
93315-54010

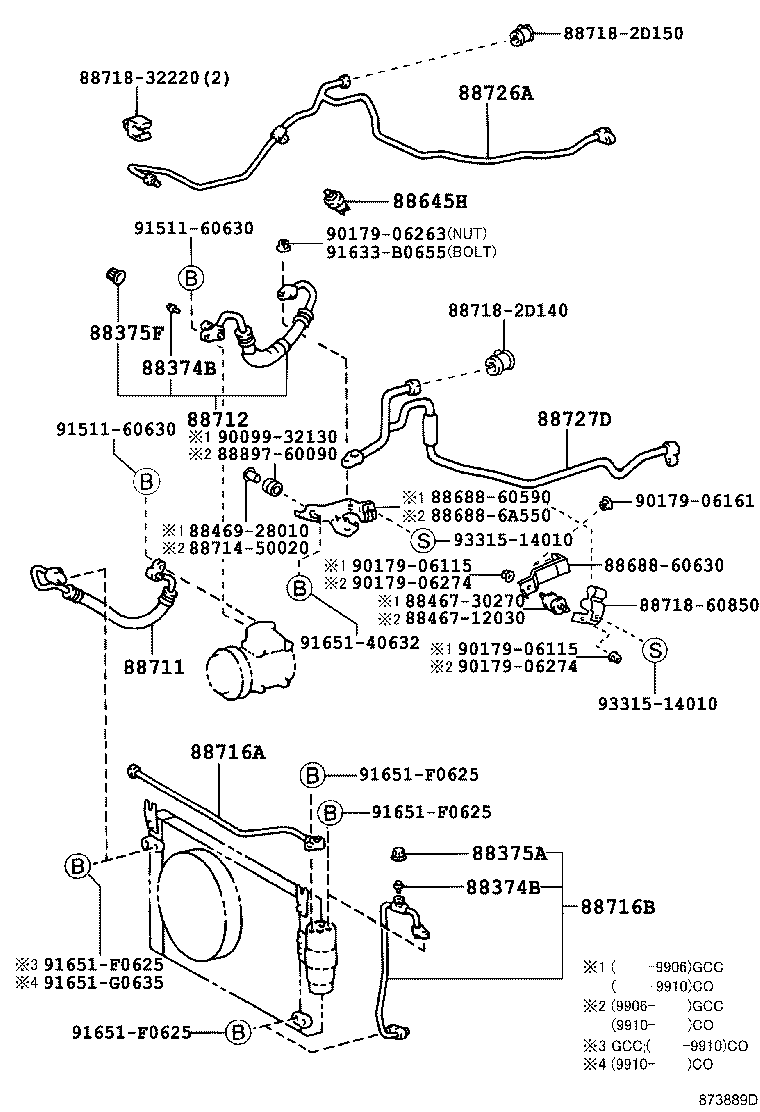

ILLUST NO. 2 OF 4(9608- )VZJ9#..LHD

Click highlighted areas on diagram

DUAL AIR CONDITIONER---FRONT

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN	04/1996 - 06/1999	1
88374-30010	LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA	06/1999 - 09/2002	2
88374B - VALVE, SERVICE, NO.1
88374-30010	KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN	04/1996 - 06/1999	1
88374-30010	LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA	06/1999 - 09/2002	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)	04/1996 - 09/2002	1
88375-30290	LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9#	06/1999 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC)	07/1998 - 06/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35490	VZJ9#..LHD	08/1996 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35540	VZJ9#..LHD	07/1998 - 10/1999	1
88712-35540	VZJ9#..GCC	06/1999 - 09/2002	1
88712-35470	VZJ9#..GCC	08/1996 - 07/1998	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A670	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	04/1996 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A721	VZJ9#..GCC	09/1997 - 07/1998	1
88716-6A720	VZJ9#..GCC	08/1996 - 09/1997	1
88716-35390	RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)	07/1998 - 10/1999	1
Common parts
88467-12030
88467-30270
88469-28010
88688-60590
88688-60630
88688-6A550
88714-50020
88718-2D140
88718-2D150
88718-32220
88718-60850
88897-60090
90099-32130
90179-06115
90179-06161
90179-06263
90179-06274
91511-60630
91633-B0655
91651-40632
91651-F0625
91651-G0635
93315-14010

ILLUST NO. 2 OF 4(9608- )VZJ9#..LHD

Click highlighted areas on diagram

SINGLE AIR CONDITIONER

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN	04/1996 - 06/1999	1
88374-30010	LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA	06/1999 - 09/2002	2
88374B - VALVE, SERVICE, NO.1
88374-30010	KZJ9#,LJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN	04/1996 - 06/1999	1
88374-30010	LJ9#..RHD;KZJ9#,RZJ9#,VZJ9#..ARL,GCC,GEN,MA	06/1999 - 09/2002	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	RZJ90..GX;RZJ9#..CBR;KZJ9#,LJ9#,VZJ9#..DSL,EFI,TD;RZJ95..RHD..GX..EFI..(ARL,GEN)	04/1996 - 09/2002	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	LJ9#..RHD;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN);KZJ9#,RZJ90,VZJ9#..(GX,VX)..(EFI,TD)	04/1996 - 09/2002	1
88375-30290	LJ9#..RHD;RZJ95..GX,VX;RZJ95..LHD..STD;KZJ9#,RZJ90,VZJ9#	06/1999 - 12/2999	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	KZJ9#,LJ9#,RZJ9#,VZJ90..LHD;RZJ95,VZJ95..EFI..(ARL,CO,GCC)	07/1998 - 06/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35490	VZJ9#..LHD	08/1996 - 10/1999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35540	VZJ9#..LHD	07/1998 - 10/1999	1
88712-35540	VZJ9#..GCC	06/1999 - 09/2002	1
88712-35470	VZJ9#..GCC	08/1996 - 07/1998	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A670	RZJ90..GX;RZJ9#..LHD..CBR;KZJ9#,LJ9#,VZJ9#..LHD	04/1996 - 10/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A721	VZJ9#..GCC	09/1997 - 07/1998	1
88716-6A720	VZJ9#..GCC	08/1996 - 09/1997	1
88716-35390	RZJ9#..LHD..CBR;RZJ90,VZJ9#..LHD..(GX,VX)	07/1998 - 10/1999	1
Common parts
88718-2D150
88718-32220
91511-60630
91651-F0625

VZJ90L-GJMEKV (1996)

ILLUST NO. 3 OF 4(9604-9906)

ILLUST NO. 3 OF 4(9906- )ARL,GCC,GEN,MA

ILLUST NO. 2 OF 4(9608- )VZJ9#..LHD

ILLUST NO. 2 OF 4(9608- )VZJ9#..LHD

Part Price Details
