RZJ95R-GKMRU (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Jun 1999
Engine 3RZF
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)RHD..CBR

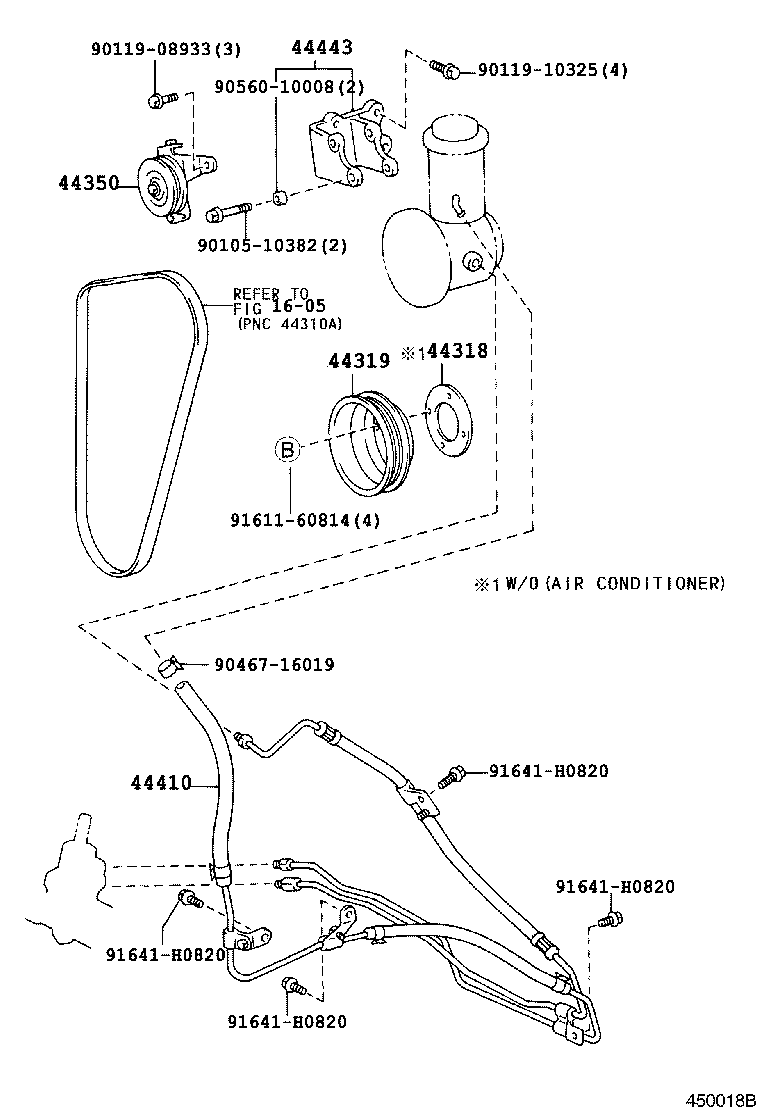

Click highlighted areas on diagram

diagram 1605 44318 44319 44350 44410 44443 9010510382 9011908933 9011910325 9046716019 9056010008 9161160814 91641H0820 91641H0820 91641H0820 91641H0820
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020

RZJ9#

 1
44318-26020

RZJ90;RZJ95..CBR;RZJ95..ARL

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-34010

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010

RZJ90..GX;RZJ9#..CBR;RZJ95..RHD..GX..EFI..(ARL,GEN)

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60390

RZJ95..RHD..CBR

 1
44443 - BRACKET, PUMP
44443-34020

RZJ9#..CBR

 1
Common parts
90105-10382
90119-08933
90119-10325
90467-16019
90560-10008
91611-60814
91641-H0820
Linked diagrams
1605
